Page 4273 of 4378

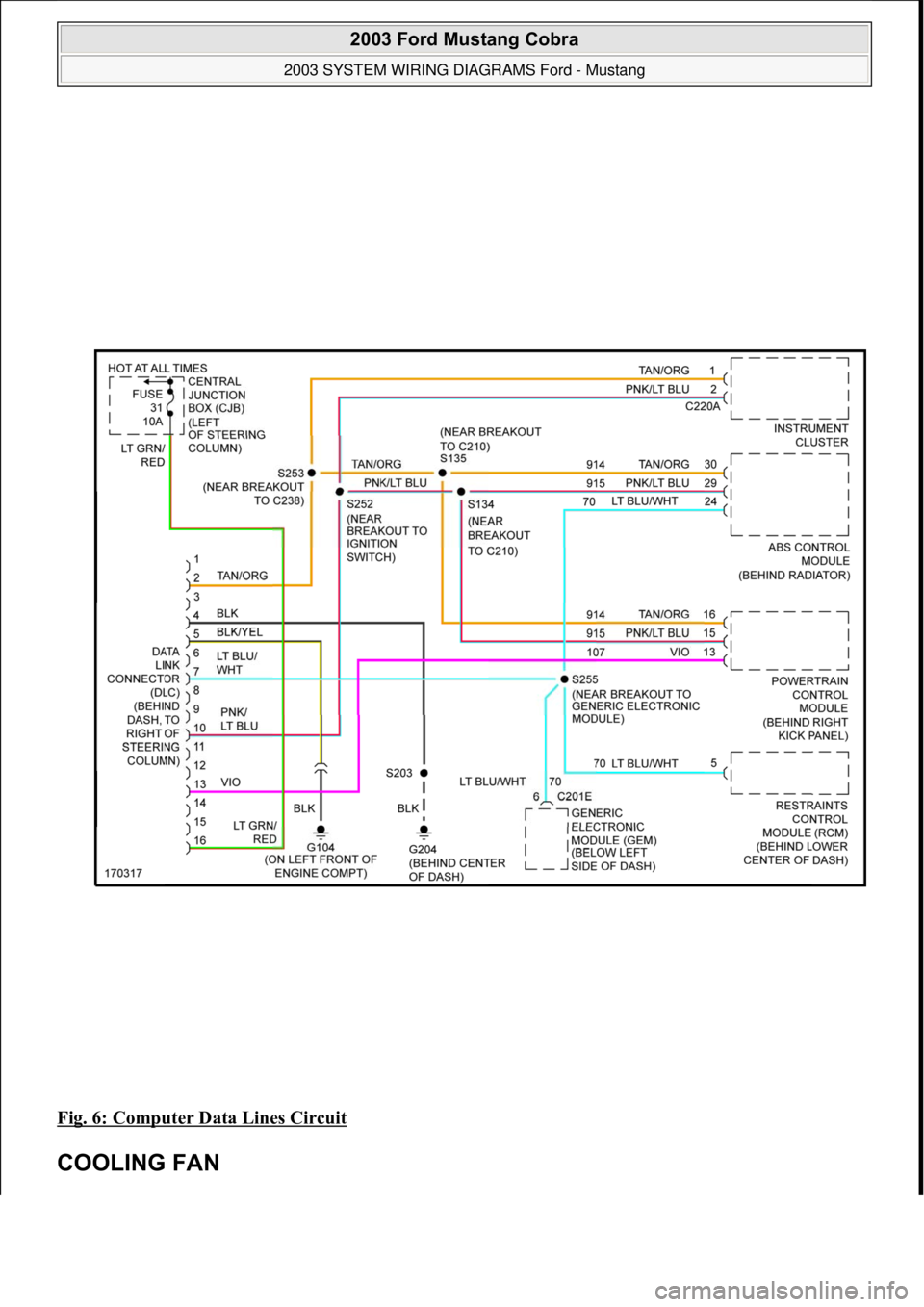

Fig. 6: Computer Data Lines Circuit
COOLING FAN
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 7 © 2006 Mitchell Repair Information Company, LLC.
Page 4274 of 4378
3.8L

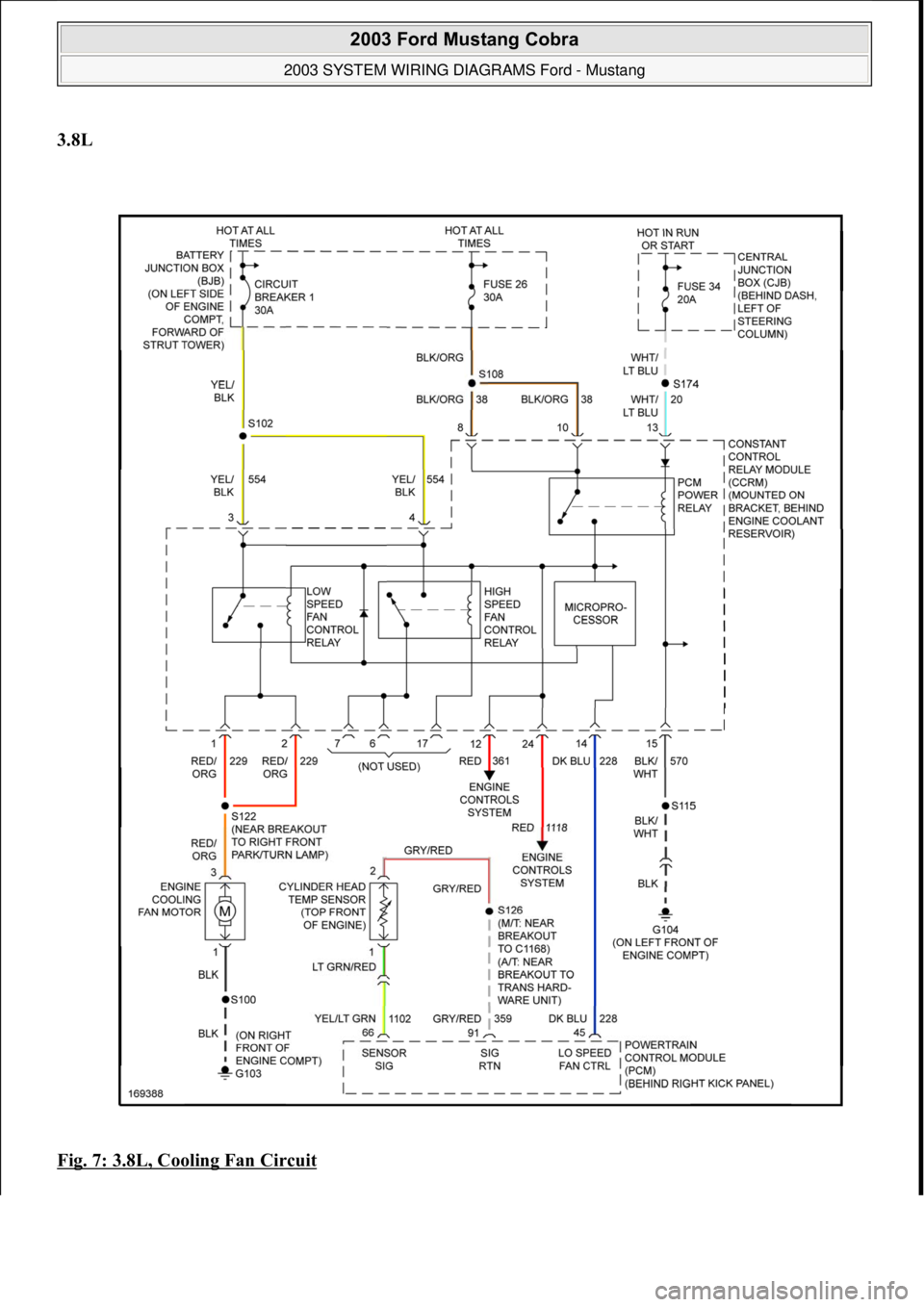

Fig. 7: 3.8L, Cooling Fan Circuit
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 8 © 2006 Mitchell Repair Information Company, LLC.
Page 4275 of 4378
4.6L

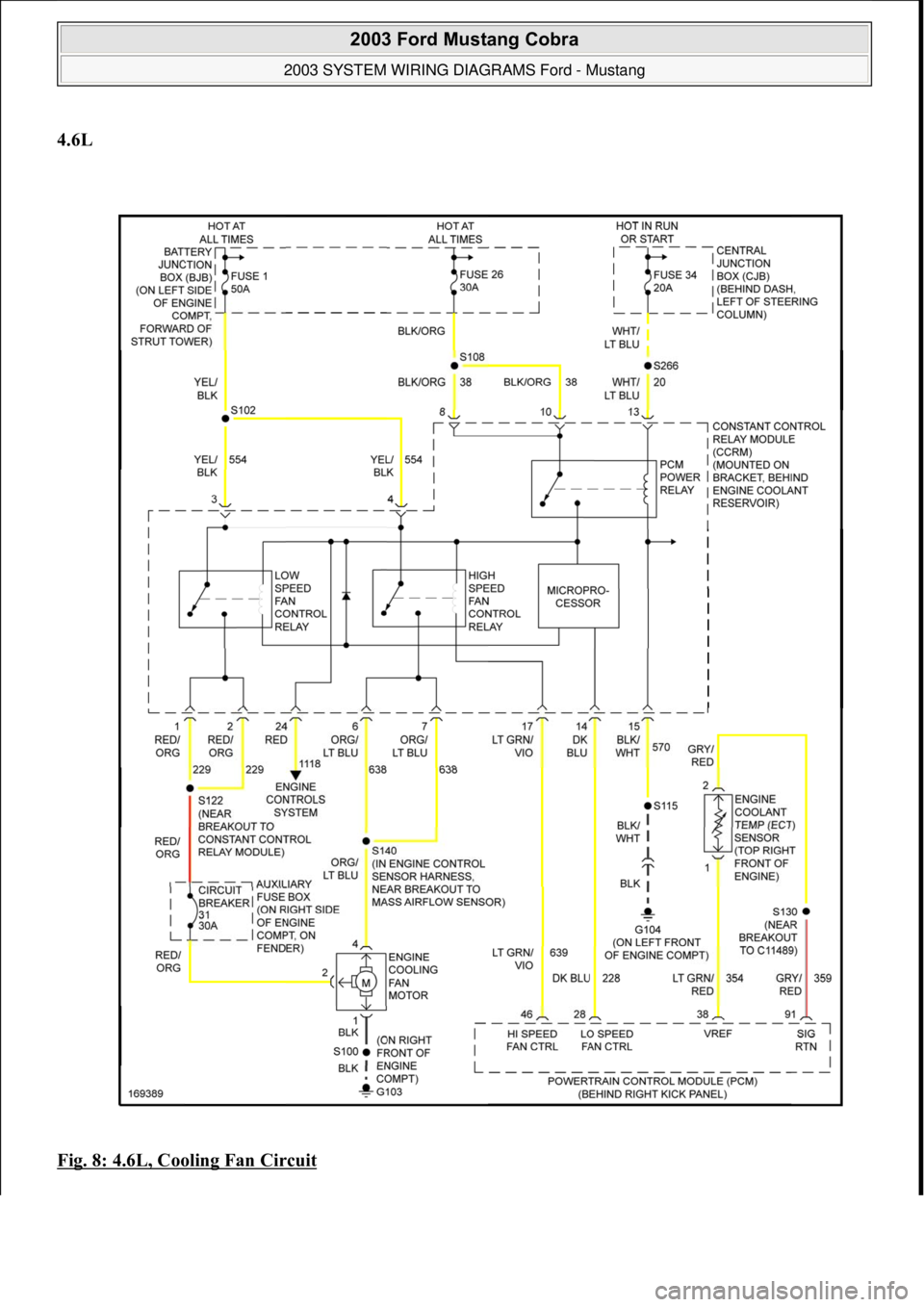

Fig. 8: 4.6L, Cooling Fan Circuit
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 9 © 2006 Mitchell Repair Information Company, LLC.
Page 4276 of 4378
CRUISE CONTROL

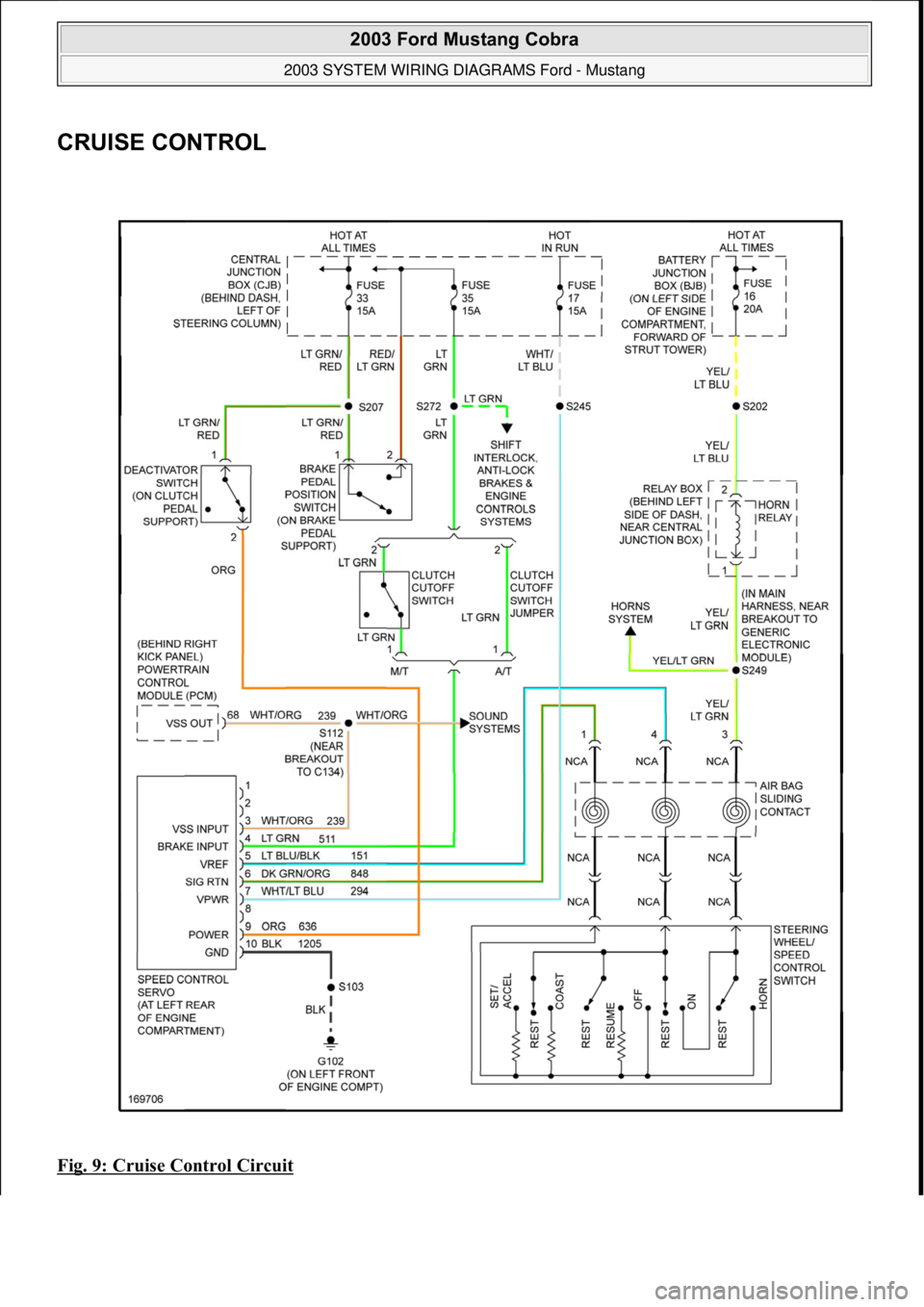

Fig. 9: Cruise Control Circuit
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 10 © 2006 Mitchell Repair Information Company, LLC.
Page 4277 of 4378
DEFOGGERS
Fig. 10: Defoggers Circuit
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 11 © 2006 Mitchell Repair Information Company, LLC.
Page 4278 of 4378
ENGINE PERFORMANCE
3.8L
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 12 © 2006 Mitchell Repair Information Company, LLC.
Page 4279 of 4378
Fig. 11: 3.8L, Engine Performance Circuit (1 of 3)
Fig. 12: 3.8L, Engine Performance Circuit (2 of 3)
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 13 © 2006 Mitchell Repair Information Company, LLC.
Page 4280 of 4378
Fig. 13: 3.8L, Engine Performance Circuit (3 of 3)
4.6L DOHC
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 14 © 2006 Mitchell Repair Information Company, LLC.
