Page 3657 of 4378

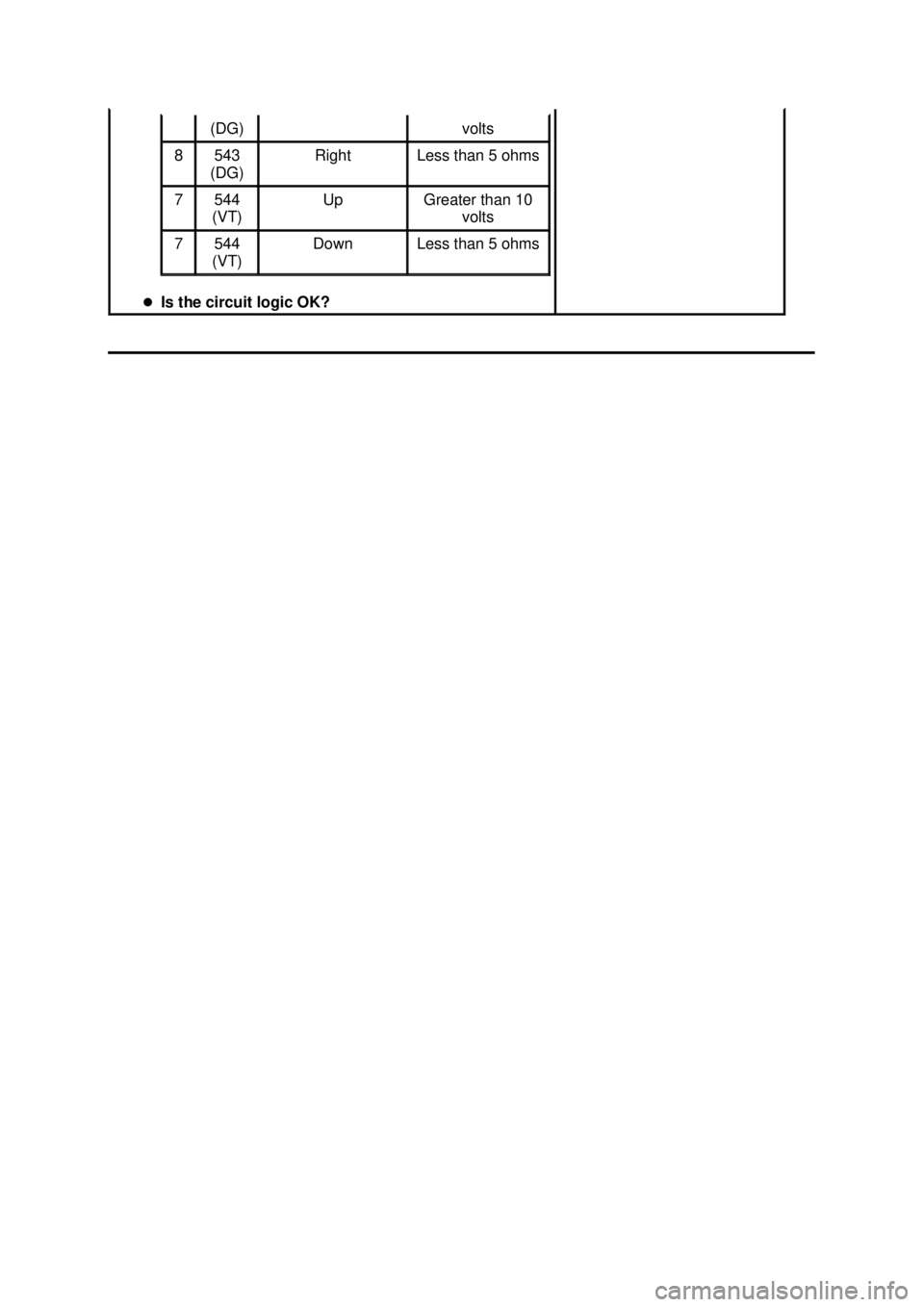

FORD MUSTANG 2003 Workshop Manual �z Is the circuit logic OK? (DG) volts 8 543 (DG) Right Less than 5 ohms 7 544 (VT) Up Greater than 10 volts 7 544 (VT) Down Less than 5 ohms Klj . 8 ba 82003 Mustang Worksh

Page 3658 of 4378

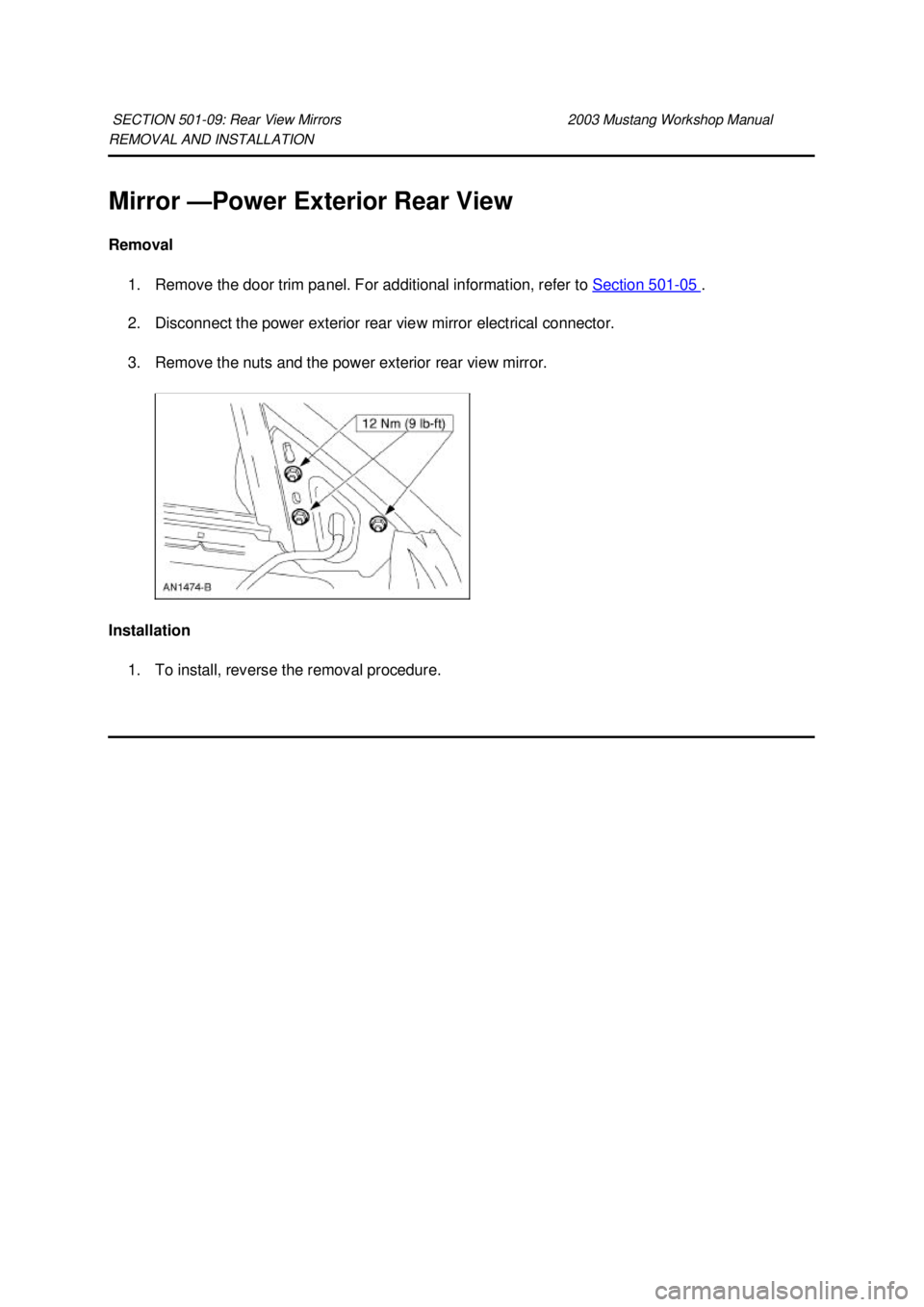

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Mirror —Power Exterior Rear View Removal 1. Remove the door trim panel. For additional information, refer to Section 501 - 05 . 2. Disconnect the power exterior rear v

Page 3659 of 4378

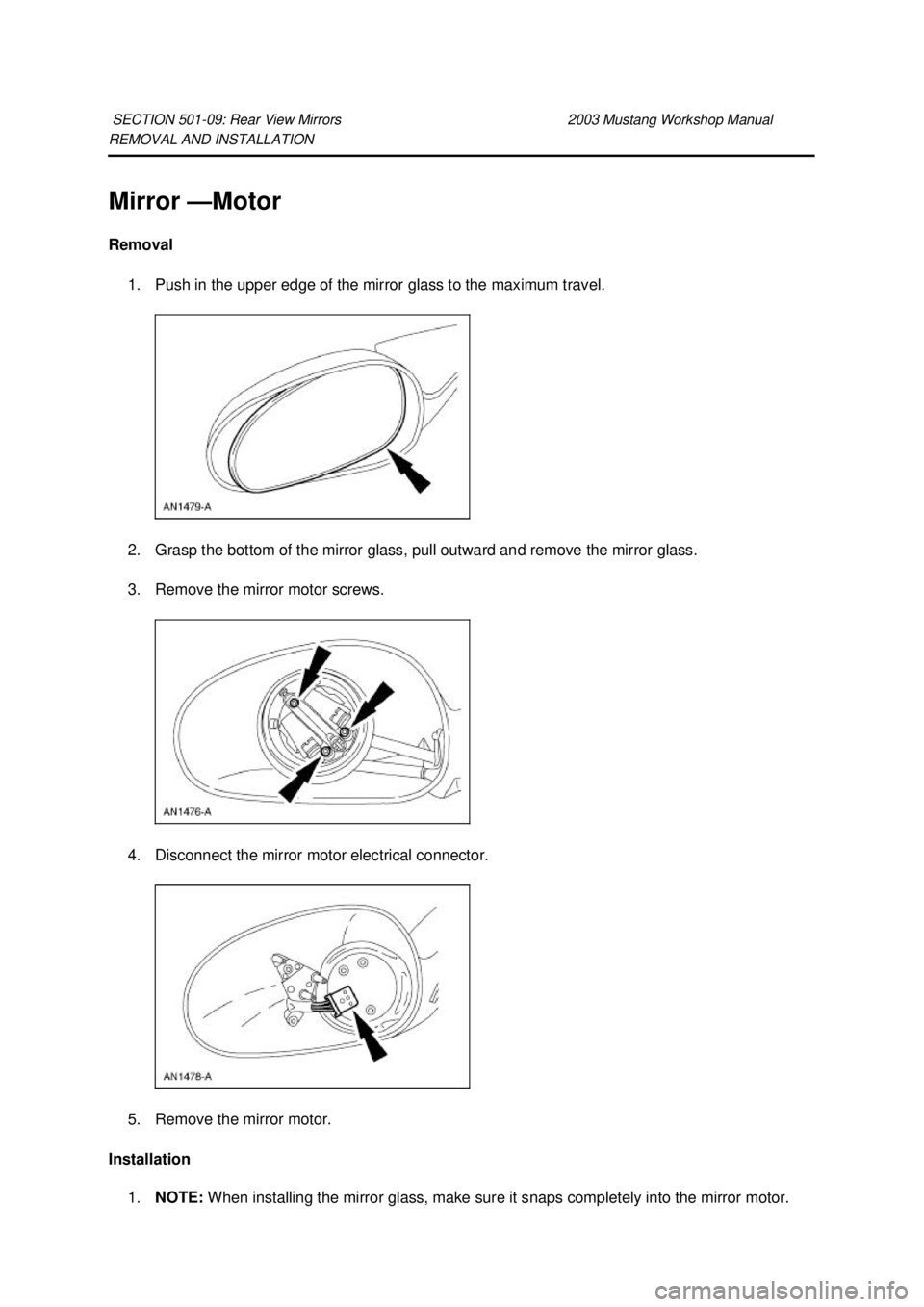

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Mirror —Motor Removal 1. Push in the upper edge of the mirror glass to the maximum travel. 2. Grasp the bottom of the mirror glass, pull outward and remove the mirror gl

Page 3660 of 4378

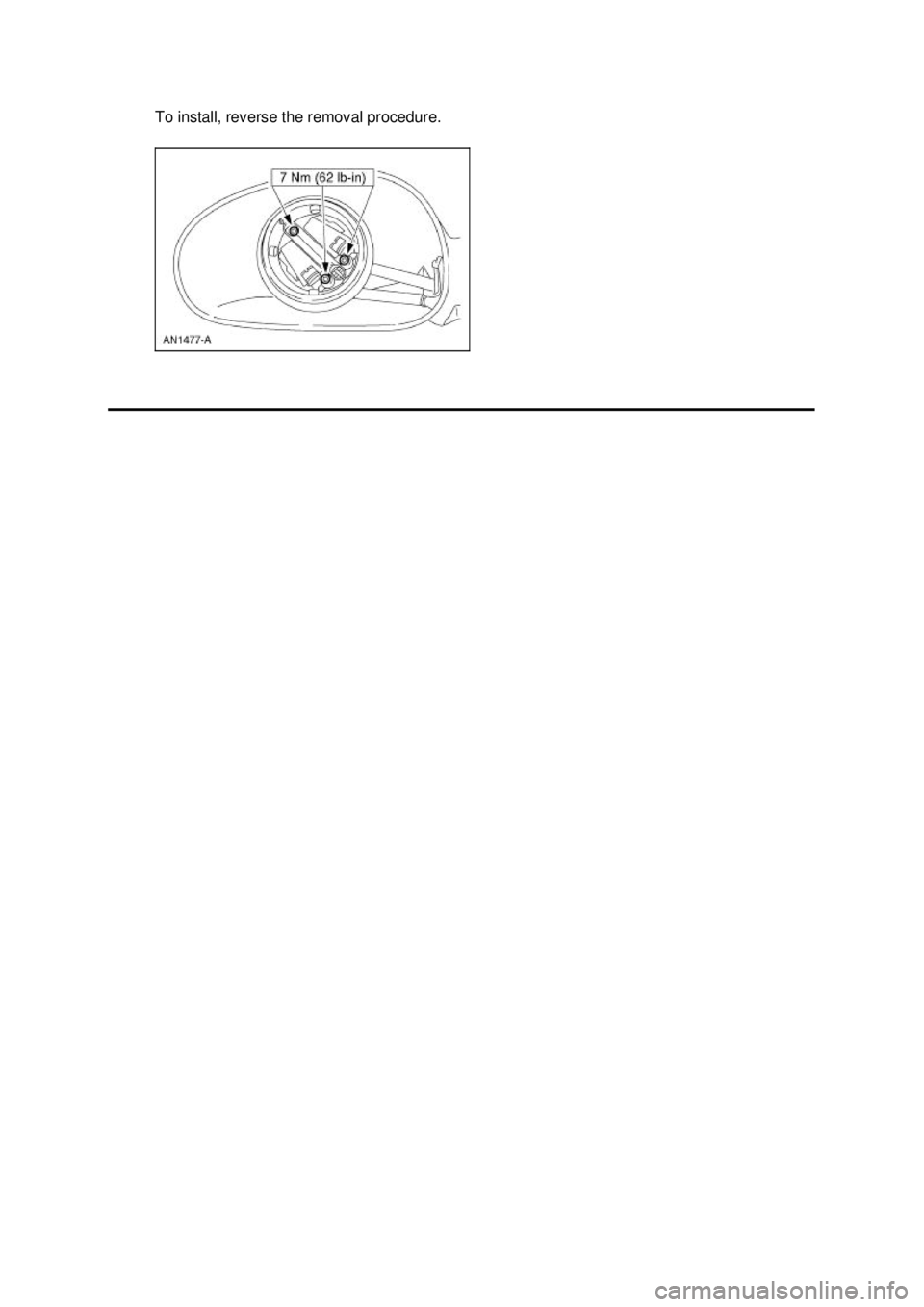

FORD MUSTANG 2003 Workshop Manual To install, reverse the removal procedure. Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3661 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Switch — Exterior Rear View Mirror Control Removal 1. CAUTION: Use a shop towel or similar material between the tool and the front door trim panel or damage to the fron

Page 3662 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3663 of 4378

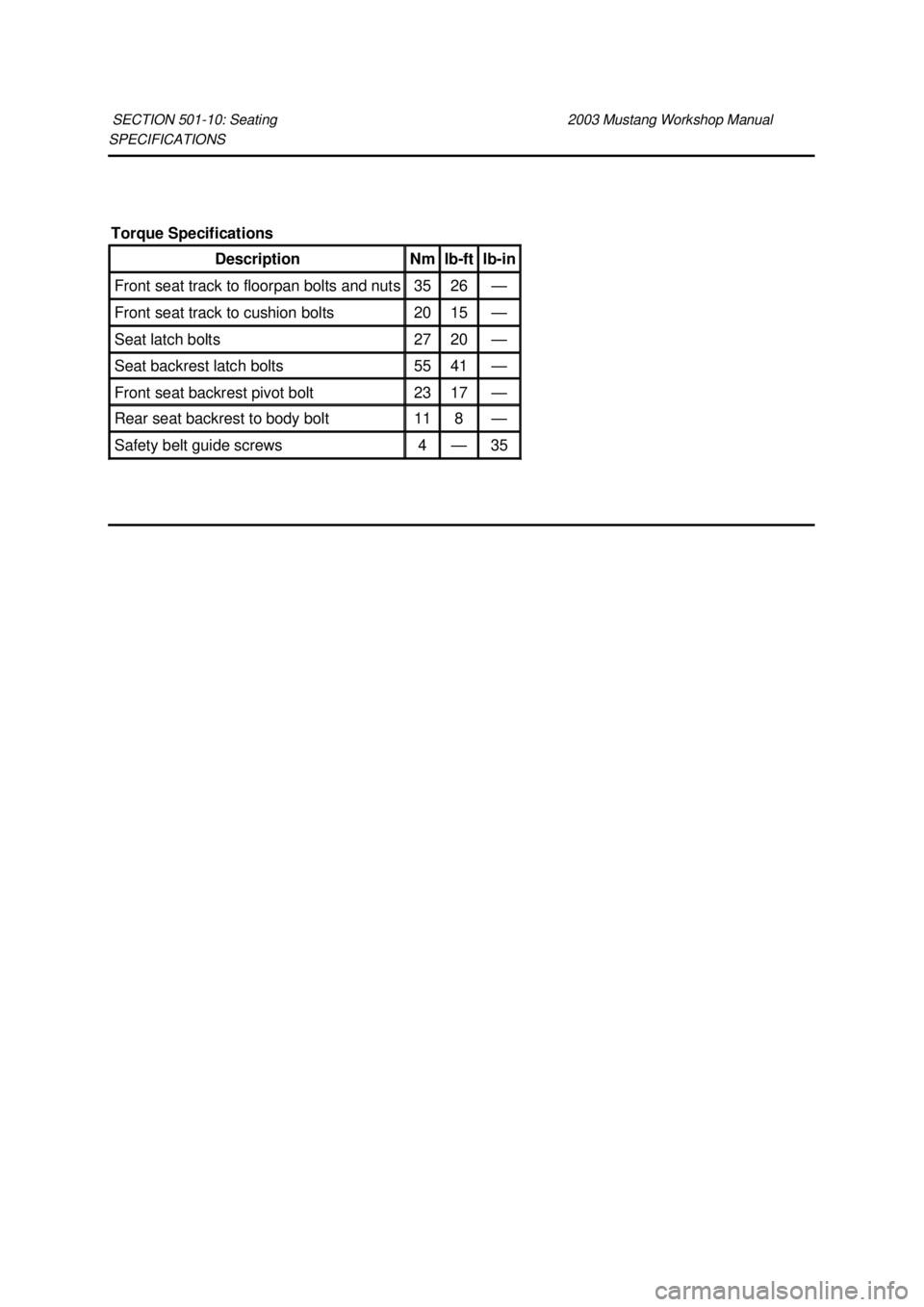

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS SECTION 501- 10: Seating 2003 Mustang Workshop Manual Torque Specifications Description Nm lb- ft lb- in Front seat track to floorpan bolts and nuts 35 26 — Front seat track

Page 3664 of 4378

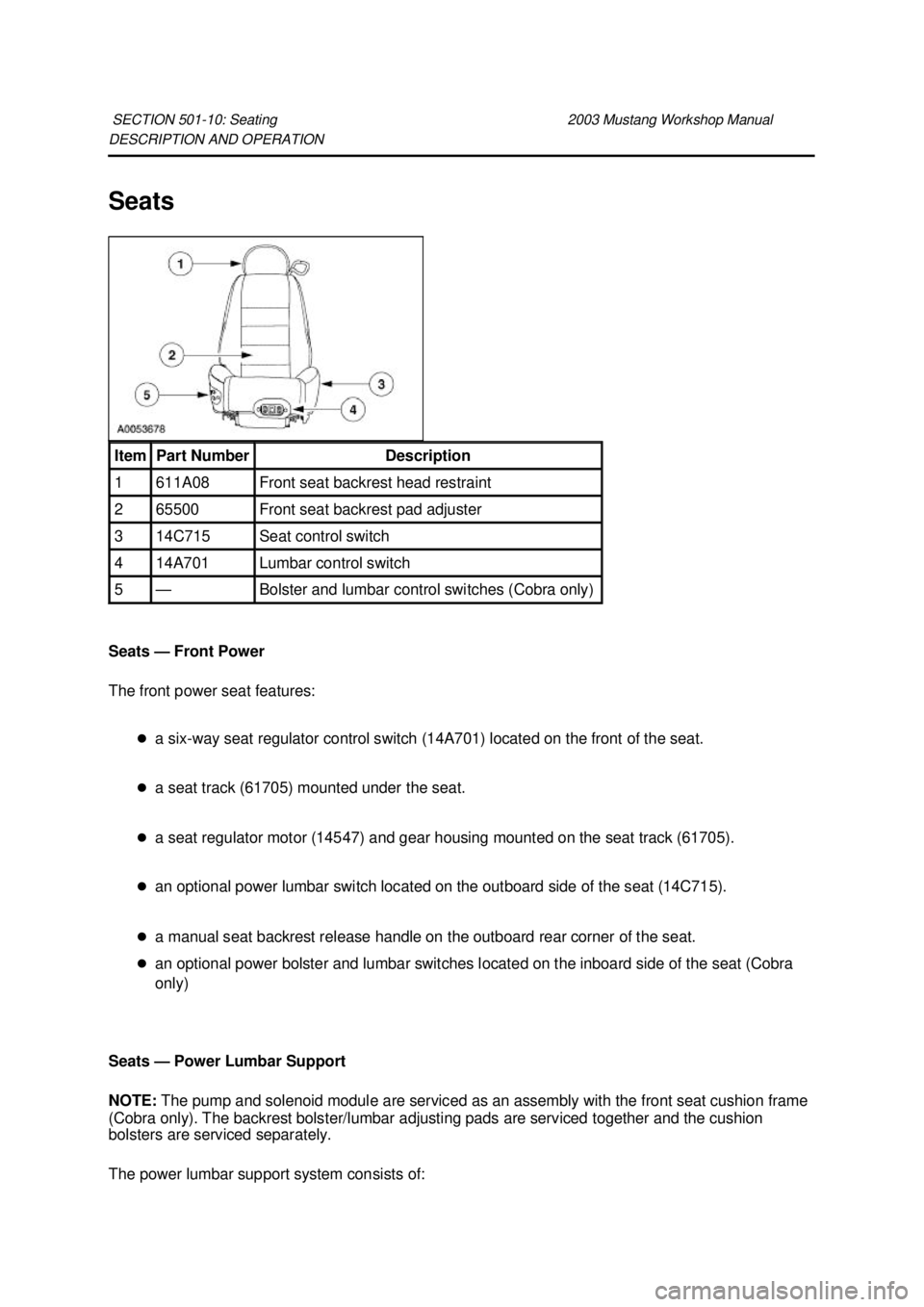

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Seats Seats — Front Power The front power seat features: �za six- way seat regulator control switch (14A701) located on the front of the seat. �z a seat track (61705)
