Page 3249 of 4378

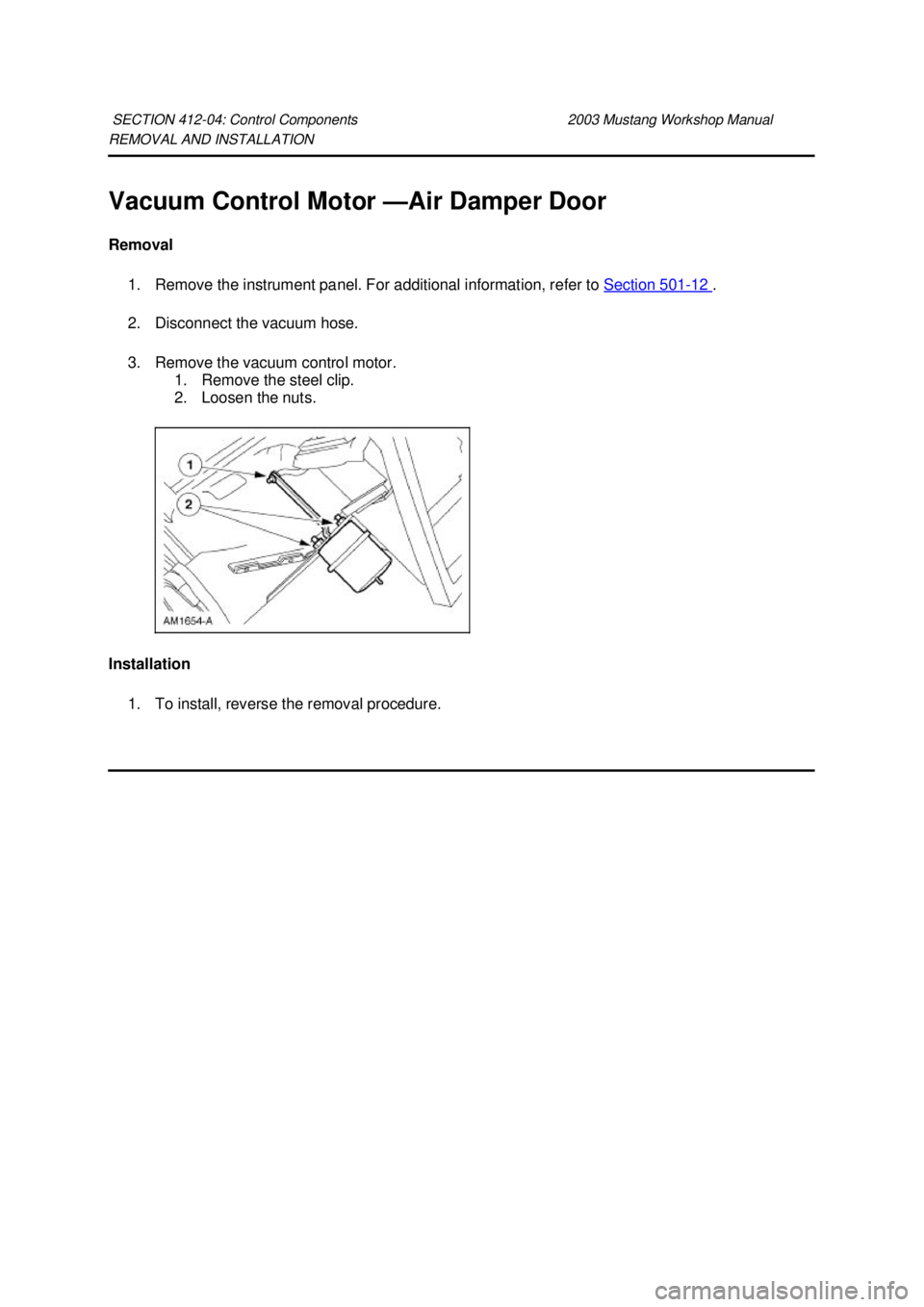

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Vacuum Control Motor —Air Damper Door Removal 1. Remove the instrument panel. For additional information, refer to Section 501 - 12 . 2. Disconnect the vacuum hose. 3

Page 3250 of 4378

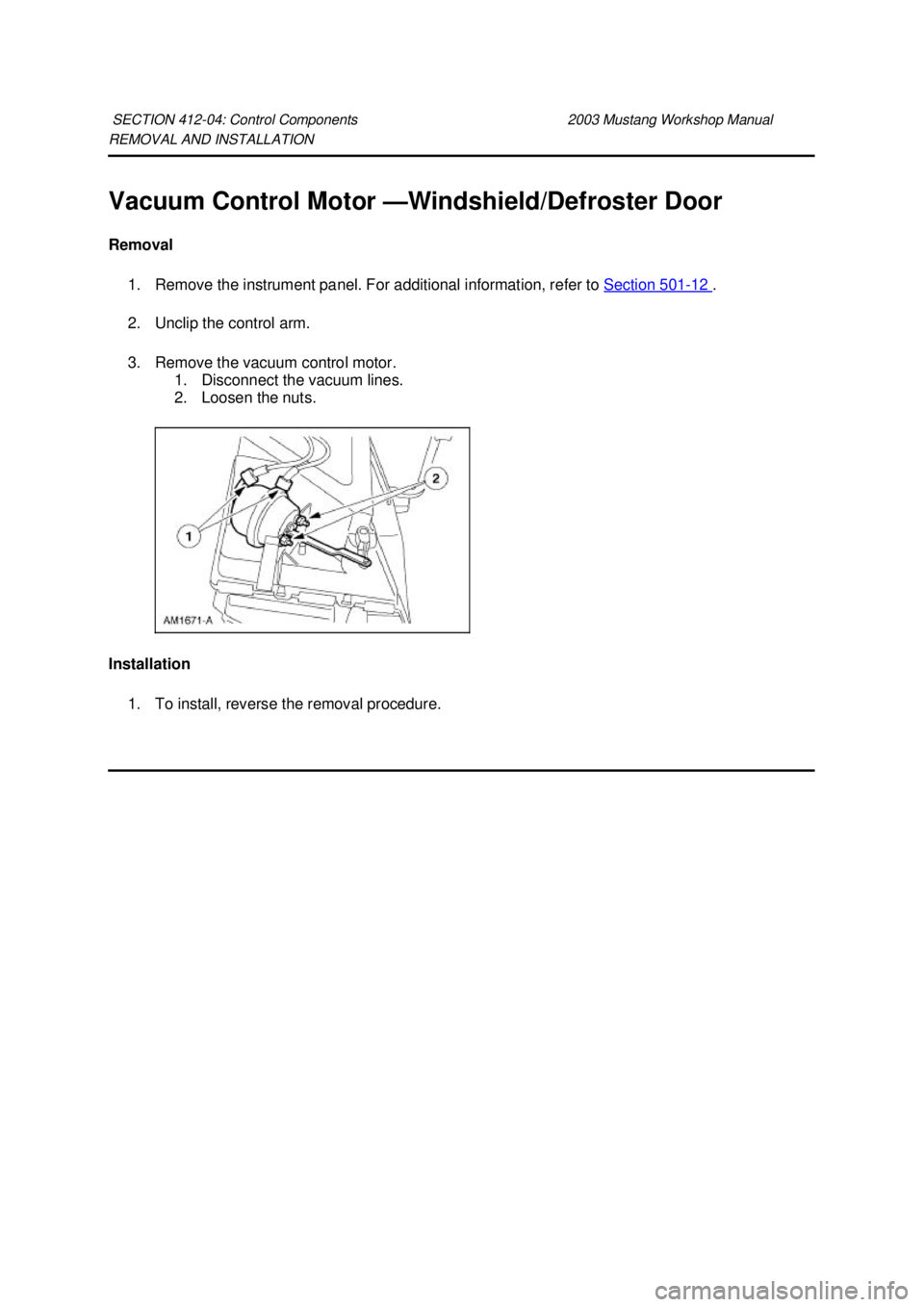

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Vacuum Control Motor —Windshield/Defroster Door Removal 1. Remove the instrument panel. For additional information, refer to Section 501 - 12 . 2. Unclip the control a

Page 3251 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Vacuum Reservoir Tank Removal 1. Access the vacuum reservoir tank through the glove compartment. 2. Remove the reservoir. 1. Disconnect the vacuum connector. 2. Remove t

Page 3252 of 4378

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Instrument Cluster and Panel Illumination The instrument cluster and panel illumination system illuminates the following components: �zinstrument cluster (10849) �z audio

Page 3253 of 4378

FORD MUSTANG 2003 Workshop Manual DIAGNOSIS AND TESTING Instrument Cluster and Panel Illumination Refer to Wiring Diagrams Cell 71 , Instrument Illumination for schematic and connector information. Inspection and Verification NO

Page 3254 of 4378

FORD MUSTANG 2003 Workshop Manual Pinpoint Tests PINPOINT TEST A: THE CONTROL ILLUMINATION IS INOPERATIVE PINPOINT TEST B: THE INSTRUMENT CLUSTER ILLUMINATION IS INOPERATIVE �z Bulb(s). �z The climate control illumination is ino

Page 3255 of 4378

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST C: THE CLIMATE CONTROL ILLUMINATION IS INOPERATIVE illumination position. �z Measure the voltage between the instrument cluster C220b pin 4, circuit 19 (LB/RD), harness side and grou

Page 3256 of 4378

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST D: THE AUDIO SYSTEM ILLUMINATION IS INOPERATIVE �z Measure the resistance between the function selector switch C294b pin 1, circuit 1205 (BK), harness side and ground. �z Is the resi
