Page 1761 of 4378

FORD MUSTANG 2003 Workshop Manual 17. Disconnect the generator. 18. Disconnect the idle air control (IAC) valve electrical connector. 19. Disconnect the throttle position (TP) sensor electrical connector. 20. Remove the bolts and t

Page 1762 of 4378

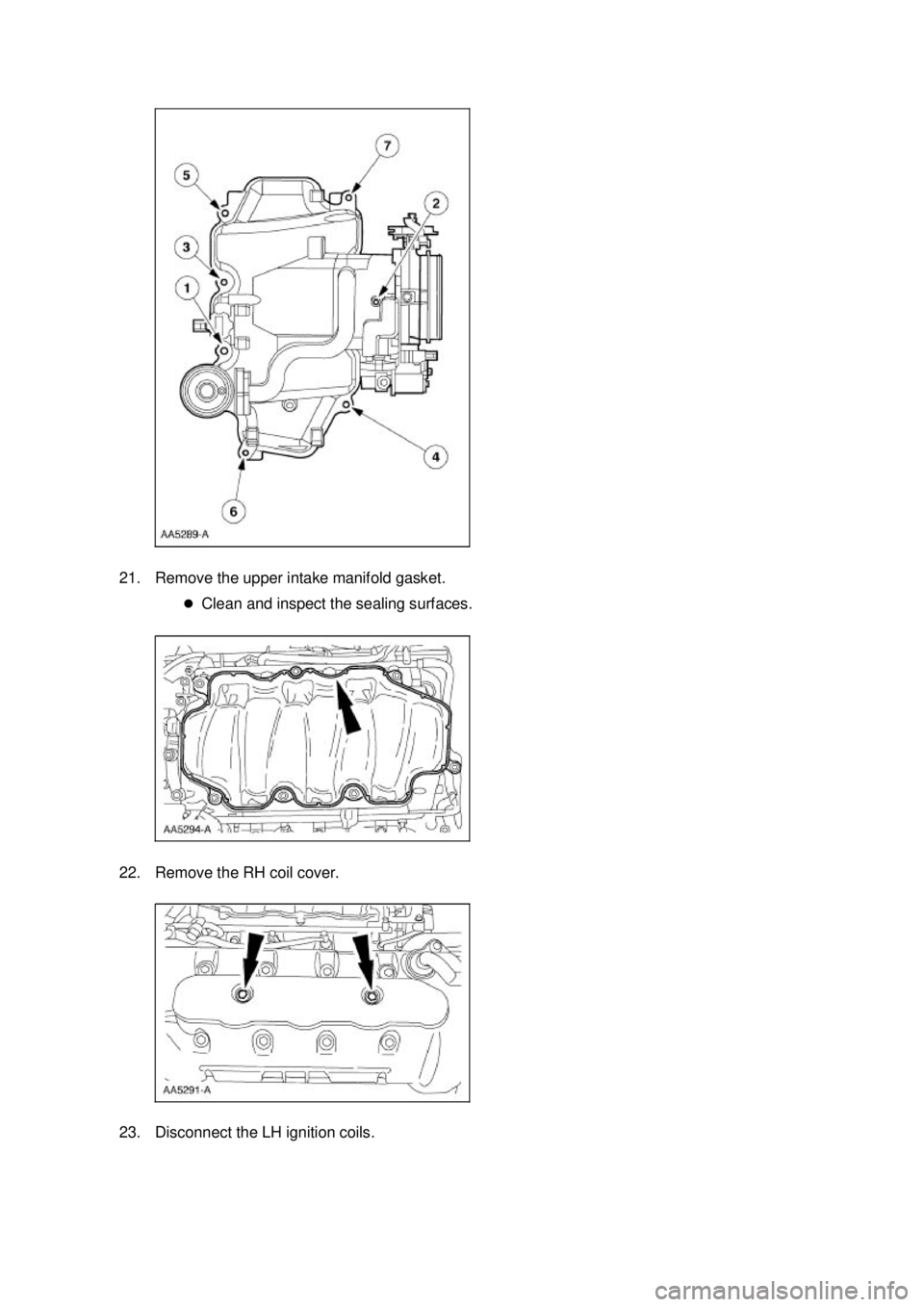

FORD MUSTANG 2003 Workshop Manual 21. Remove the upper intake manifold gasket. �zClean and inspect the sealing surfaces. 22. Remove the RH coil cover. 23. Disconnect the LH ignition coils. Klj . 7 ba 212003 Mustang Worksho

Page 1763 of 4378

FORD MUSTANG 2003 Workshop Manual 24. Disconnect the four RH fuel injector electrical connectors. 25. Disconnect the engine coolant temperature (ECT) sensor. 26. Disconnect the RH ignition coils. 27. Remove the eight ignition coils

Page 1764 of 4378

FORD MUSTANG 2003 Workshop Manual 28. Remove the bracket from the accessory drive belt tensioner. 29. Remove the accessory drive belt. 30. Remove the coolant bypass tube and upper generator support bracket. �zRemove the bolts. �z

Page 1765 of 4378

FORD MUSTANG 2003 Workshop Manual 33. Remove the bolts and the coolant pump pulley. 34. Remove the coolant pump from the cylinder block. �zRemove the bolts. �z Inspect and clean the sealing surfaces. 35. Remove the bolt. Klj .

Page 1766 of 4378

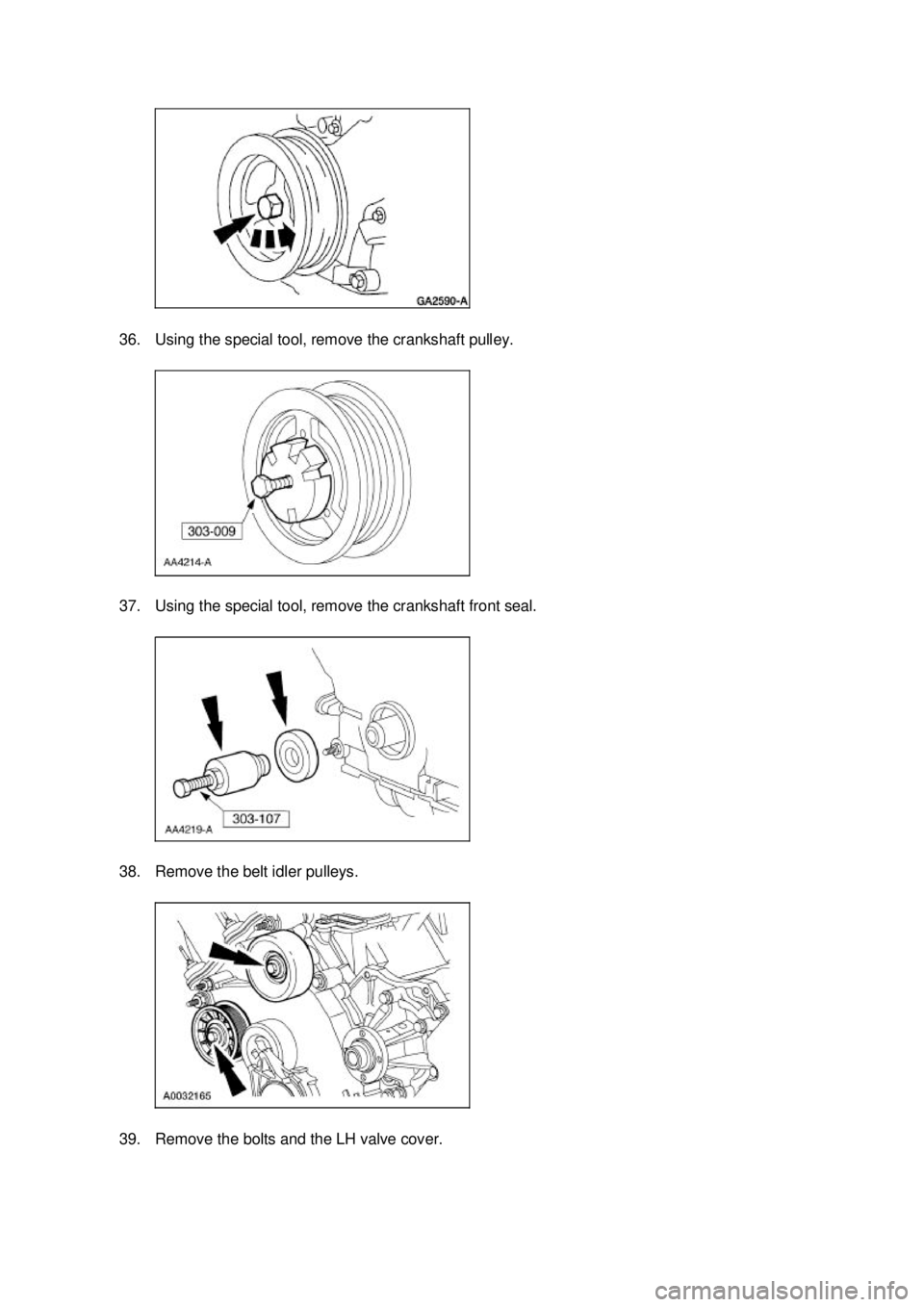

FORD MUSTANG 2003 Workshop Manual 36. Using the special tool, remove the crankshaft pulley. 37. Using the special tool, remove the crankshaft front seal. 38. Remove the belt idler pulleys. 39. Remove the bolts and the LH valve cove

Page 1767 of 4378

FORD MUSTANG 2003 Workshop Manual 40. Remove the bolts and the RH valve cover. 41. Remove the knock sensor wiring harness. 1. LH knock sensor electrical connector. 2. RH knock sensor electrical connector. 3. Engine control sensor

Page 1768 of 4378

FORD MUSTANG 2003 Workshop Manual 43. NOTE: LH side is shown; RH side is similar. Remove the exhaust manifolds. 1. Remove the nuts. 2. Remove the LH and RH exhaust manifolds. 3. Remove the exhaust manifold gaskets. 44. Remove th
