Symptom Chart
Pinpoint Tests
CAUTION: Before removing and installing the GEM or its connectors, disconnect the Output Circuit Failure
B2488 RF Side Repeater Lamp
Output Circuit Failure GEM REFER to
Section 417 - 01 .
C1189 Brake Fluid Level Sensor
Input Short Circuit to Ground GEM REFER to
Section 413 - 01 .
C1223 Lamp Brake Warning
Output Circuit Failure GEM REFER to
Section 413 - 01 .
C1225 Lamp Brake Warning
Output Circuit Short to
Battery GEM REFER to
Section 413 - 01 .
Symptom Chart Condition
Possible Sources Action
z No communication with the generic
electronic module z
CJB Fuse 39
(5A)
z GEM.
z Circuitry. z
GO to
Pinpoint Test A .

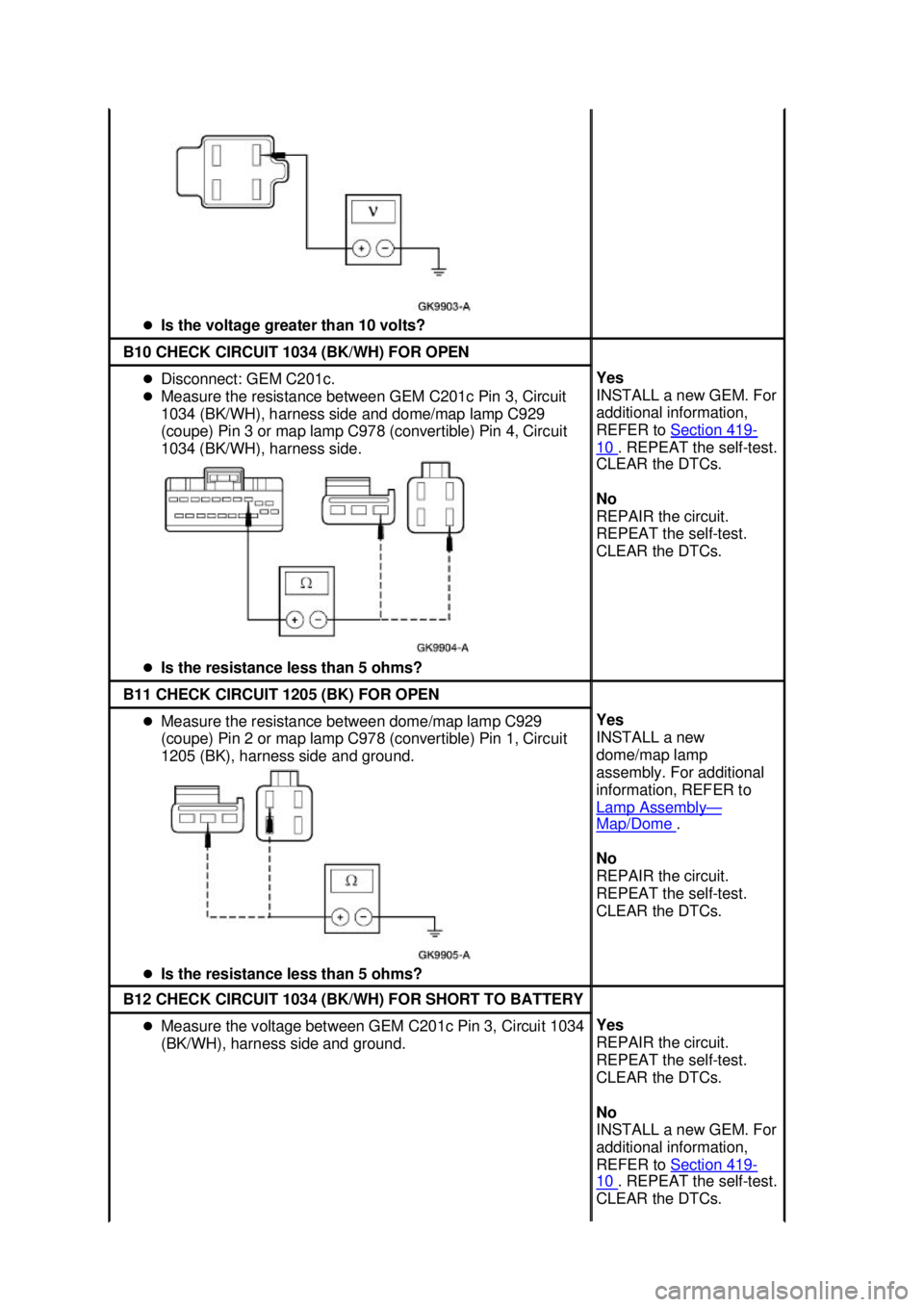

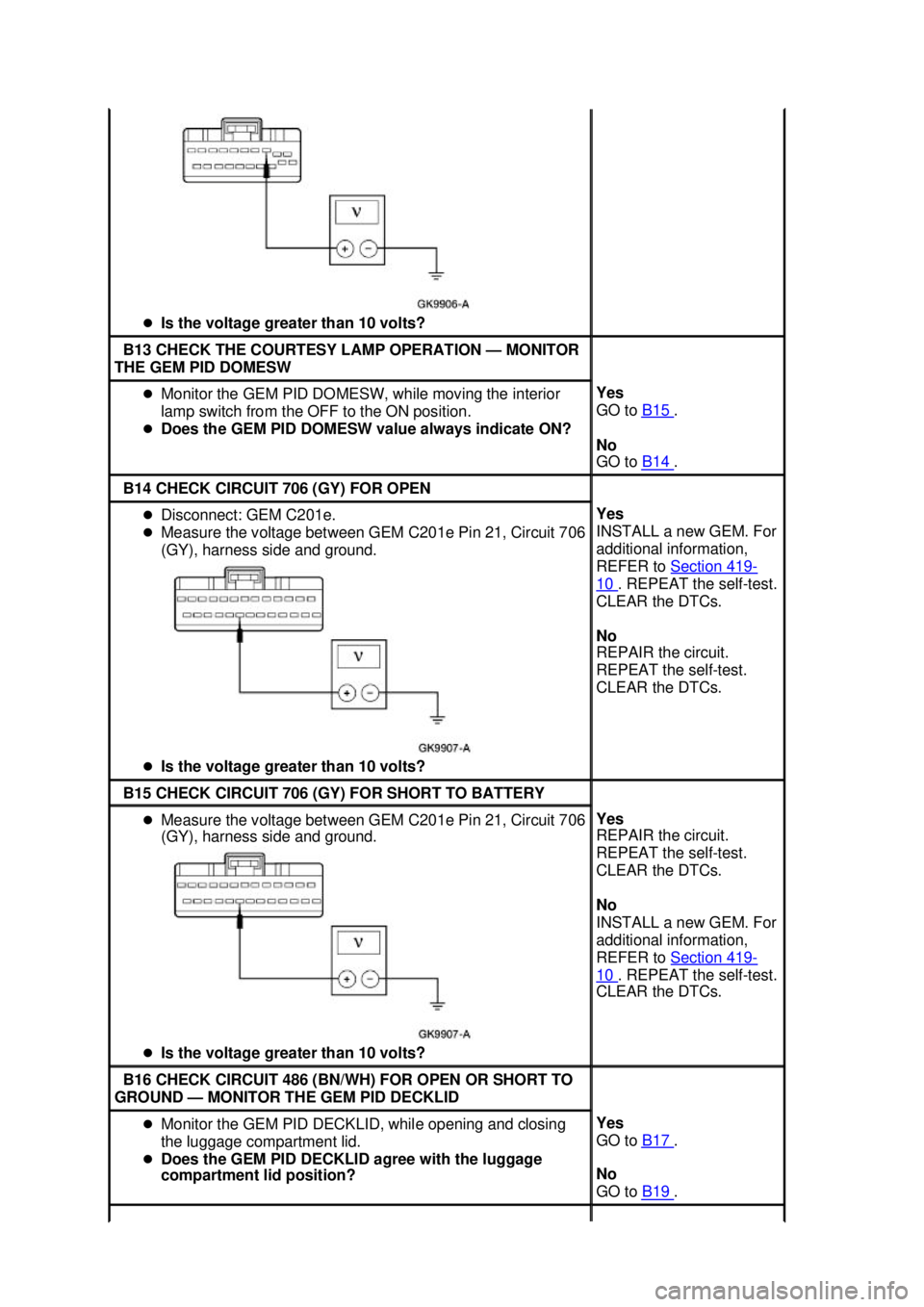

z The courtesy lamps are inoperative zCJB Fuse 7
(20A).
z Door ajar switch
(es).
z Courtesy lamp
assemblies.
z Circuitry.
z GEM.
z Ignition Switch.
z Headlamp
Switch. z
GO to
Pinpoint Test B .
z The demand lighting is inoperative zCJB Fuse 7
(20A).
z Circuitry.
z GEM.
z Door ajar switch
(es).
z Demand lamp
assemblies.
z Ignition Switch.
z Headlamp
Switch. z
GO to
Pinpoint Test C .
z The illuminated entry is inoperative
when using the remote transmitter z
Remote
transmitter.
z GEM. z
GO to
Pinpoint Test D .
z The battery saver does not
deactivate after timeout z
Circuitry.
z GEM. z
GO to
Pinpoint Test E . Klj . 5 ba
162003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
battery. Failure to follow this caution will result in the GEM storing many erroneous DTCs and
may result in the GEM exhibiting erratic operation after installation.
CAUTION: Be careful when probing the central junction box (CJB), battery junction box
(BJB), or any connectors. Damage will result to the connector receptacle if the probe being
used is too large.
CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to
these charges, damage may result.
NOTE: If continuous DTCs are recorded and the symptom is not present when carrying out the
pinpoint tests, an intermittent concern may be the cause. Always check for loose connections and
corroded terminals.
NOTE: Complete the entire pinpoint test related to the symptom before installing a new GEM.
PINPOINT TEST A: NO COMMUNICATION WITH THE GENERIC
ELECTRONIC MODULE Test Step Result / Action to Take
CAUTION: Use the correct probe adapter(s) when making measurements. Failure to
use the correct probe adapter(s) may damage the connector. A1 GENERIC ELECTRONIC MODULE (GEM) POWER SUPPLY
z
Key in OFF position.
z Disconnect: Generic Electronic Module (GEM) C201a.
z Disconnect: GEM C201b.
z Key in ON position.
z Using the following table, measure the voltage between the
GEM, harness side and ground.
z Are the voltages greater than 10 volts? Connector Pin Circuit
C201a 2 400 (LB/BK)
C201a 3 1006 (DG/WH)
C201b 1 1001 (WH/YE)
C201b 4 193 (YE/LG) Yes
GO to
A2 .
No
REPAIR the circuit(s) in
question. TEST the system
for normal operation. A2 CHECK THE GEM GROUND CIRCUIT 397 (BK/WH) FOR
OPEN z
Key in OFF position.
z Measure the reistance between the GEM C201b pin 2, circuit
397 (BK/WH), harness side and ground. Yes
GO to
A3 .
No
REPAIR the circuit(s) in
question. TEST the system
for normal operation. Klj . 6 ba
