Change engine oil and install a new oil filter, lube front lower control arm and steering linkage
ball joints with zerk fittings (if equipped) every 4,800 km (3,000 miles) or 3 months.
z Inspect brake system and check battery electrolyte level (Patrol cars) every 8,000 km (5,000
miles).
z Install a new fuel filter every 24,000 km (15,000 miles).
z Change automatic transmission fluid, lubricate 4x2 wheel bearings, install new grease seals and
adjust bearings every 48,000 km (30,000 miles).
z Install new spark plugs and change transfer case fluid every 96,000 km (60,000 miles).
z Install a new cabin air filter as required.
When operating in dusty conditions such as unpaved or dusty roads:
zChange engine oil and install a new oil filter every 4,800 km (3,000 miles) or 3 months.
z Install a new fuel filter every 24,000 km (15,000 miles).
z Change automatic transmission fluid every 48,000 km (30,000 miles).
z Change transfer case fluid every 96,000 km (60,000 miles).
z Install a new engine air filter as required.
z Install a new cabin air filter as required.
When operating in off- road conditions:
z Change automatic transmission fluid every 48,000 km (30,000 miles).
z Change transfer case fluid every 96,000 km (60,000 miles).
z Install a new cabin air filter as required.
z Inspect and lubricate U- joints.
z Inspect and lubricate steering linkage ball joints with zerk fittings.
Checks and Services
Certain basic maintenance checks and inspections should be carried out at specified intervals. Any
recognized adverse condition should be corrected as soon as possible.
Maximum Oil Change Interval (Normal Schedule) z8,000 km (5,000 miles) or 6 months, whichever occurs first.
Maximum Oil Change Interval (Special Operating Conditions)
z4,800 km (3,000 miles) or 3 months.
Monthly Checks
Check each of the following items every month:
zAll interior and exterior lights.
z Tires for wear and correct air pressure. Klj . 2 ba
112003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

z
Engine oil fluid level.
z Windshield washer solvent fluid level.
z Check and drain fuel/water separator.
Six Month Checks
Check each of the following items at least every six months:
zLap/shoulder belts and seat latches for wear and function.
z Spare tire air pressure.
z Power steering fluid level.
z Parking brake for correct operation.
z Safety warning lamps (brake, ABS, air bag, safety belt) for correct operation.
z Coolant system fluid level and correct strength.
z Battery connections. Clean if necessary.
z Clutch fluid level, if equipped.
z Windshield washer spray, wiper operation, clean all wiper blades.
z Lubricate all hinges, latches and outside locks. Inspect for correct operation.
z Lubricate door rubber weatherstrips. Inspect for excessive wear.
z Clean body and door drain holes. Inspect for clogs and obstructions.
Special Checks (Mustang Only)
Carry out the following check every 8,000 km (5,000 miles):
zAdjust clutch by lifting pedal (manual transmission Mustang only, as described in owner guide).
Normal Schedule
The following checks or procedures should be carried out for all cars, minivans, light trucks, sport
utilities, vans, 4x4s, natural gas and propane vehicles.
8,000 Km (5,000 Miles) zChange engine oil and install a new oil filter.
z Rotate tires and inspect for wear.
16,000 Km (10,000 Miles)
zChange engine oil and install a new oil filter.
z Inspect tires for wear. Rotation recommended for optimal tire life.
24,000 Km (15,000 Miles)
zChange engine oil and install a new oil filter. Klj . 3 ba
112003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

noise—
normally
accompanied by
vibration Powertrain/Drivetrain Mount Neutralizing in this
section.
z Damaged or
misaligned exhaust
system. z
INSPECT the exhaust
system for loose or broken
clamps and brackets.
CARRY OUT Exhaust System Neutralizing in this
section.
z Whistling noise—
normally
accompanied
with poor idle
condition z
Air intake system. zCHECK the air intake
ducts, air cleaner, throttle
body and vacuum hoses for
leaks and correct fit.
REPAIR or ADJUST as
necessary. REFER to
Section 303 - 12
z
Clunking noise zWater pump has
excessive end play or
imbalance. z
CHECK the water pump for
excessive end play.
INSPECT the water pump
with the drive belt off for
imbalance. INSTALL a new
water pump as necessary.
REFER to Section 303 -
03A .
z Generator has
excessive end play. z
CHECK the generator for
excessive end play.
REPAIR or INSTALL a new
generator. REFER to
Section 414 - 02 .
z Pinging noise zExhaust system leak. zINSPECT the exhaust
system for leaks. REPAIR
as necessary.
z Gasoline octane too
low. z
VERIFY with customer the
type of gasoline used.
CORRECT as necessary.
z Knock sensor
operation. z
CHECK the knock sensor.
INSTALL a new knock
sensor as necessary.
REFER to Section 303 - 14 .
z Incorrect spark
timing. z
CHECK the spark timing.
REPAIR as necessary.
z High operating
temperature. z
INSPECT cooling system
for leaks. CHECK the
coolant level. REFILL as
necessary. CHECK the
coolant for the correct mix
ratio. DRAIN and REFILL
as needed. CHECK engine
operating temperature is
within specifications.
REPAIR as necessary.
z Foul- out spark plug. zCHECK the spark plugs.
REPAIR or INSTALL new
spark plugs as necessary.
z Catalytic converter. zAcceptable noise.
z Knocking noise—
light knocking
noise, also z
Excessive clearance
between the piston
and the cylinder wall. z
Engine cold and at high
idle. Using an EngineEAR,
pull a spark plug or fuel Klj . 24 ba
702003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

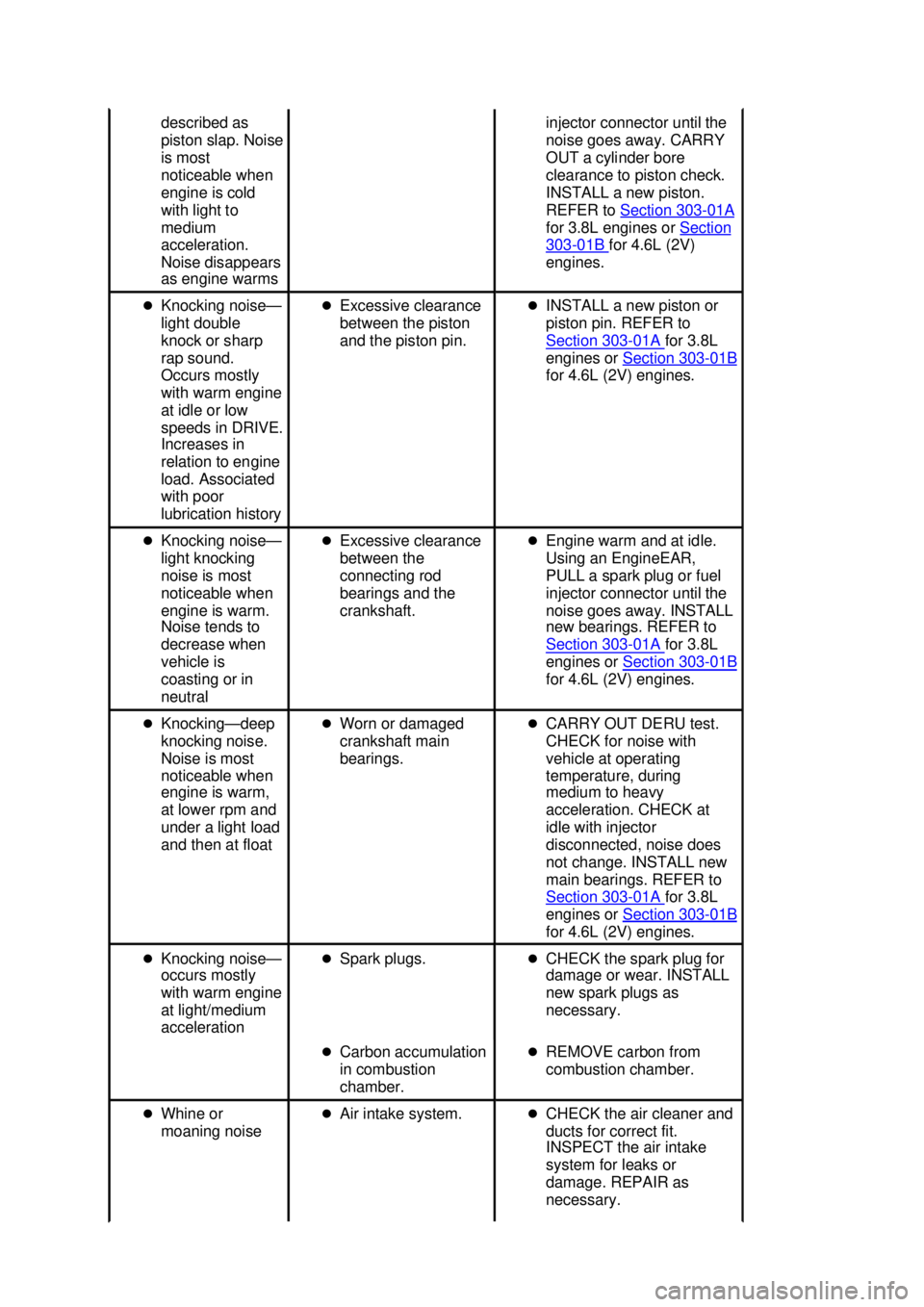

described as
piston slap. Noise
is most
noticeable when
engine is cold
with light to
medium
acceleration.
Noise disappears
as engine warms
injector connector until the
noise goes away. CARRY
OUT a cylinder bore
clearance to piston check.
INSTALL a new piston.
REFER to
Section 303 - 01A
for 3.8L engines or
Section 303 - 01B for 4.6L (2V)
engines.
z Knocking noise—
light double
knock or sharp
rap sound.
Occurs mostly
with warm engine
at idle or low
speeds in DRIVE.
Increases in
relation to engine
load. Associated
with poor
lubrication history z
Excessive clearance
between the piston
and the piston pin. z
INSTALL a new piston or
piston pin. REFER to
Section 303 - 01A for 3.8L
engines or Section 303 - 01B
for 4.6L (2V) engines.
z Knocking noise—
light knocking
noise is most
noticeable when
engine is warm.
Noise tends to
decrease when
vehicle is
coasting or in
neutral z
Excessive clearance
between the
connecting rod
bearings and the
crankshaft. z
Engine warm and at idle.
Using an EngineEAR,
PULL a spark plug or fuel
injector connector until the
noise goes away. INSTALL
new bearings. REFER to
Section 303 - 01A for 3.8L
engines or Section 303 - 01B
for 4.6L (2V) engines.
z Knocking— deep
knocking noise.
Noise is most
noticeable when
engine is warm,
at lower rpm and
under a light load
and then at float z
Worn or damaged
crankshaft main
bearings. z
CARRY OUT DERU test.
CHECK for noise with
vehicle at operating
temperature, during
medium to heavy
acceleration. CHECK at
idle with injector
disconnected, noise does
not change. INSTALL new
main bearings. REFER to
Section 303 - 01A for 3.8L
engines or Section 303 - 01B
for 4.6L (2V) engines.
z Knocking noise—
occurs mostly
with warm engine
at light/medium
acceleration z
Spark plugs. zCHECK the spark plug for
damage or wear. INSTALL
new spark plugs as
necessary.
z Carbon accumulation
in combustion
chamber. z
REMOVE carbon from
combustion chamber.
z Whine or
moaning noise z
Air intake system. zCHECK the air cleaner and
ducts for correct fit.
INSPECT the air intake
system for leaks or
damage. REPAIR as
necessary. Klj . 25 ba
702003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

z
Excessive runout of
valve seats on the
valve face. z
CARRY OUT a valve seat
runout test. INSPECT the
valve face and seat.
INSTALL new valves as
necessary. REFER to
Section 303 - 01A for 3.8L
engines or Section 303 - 01B
for 4.6L (2V) engines.
z Rattling noise—
from the bottom
of the vehicle z
Loose muffler shields
or catalytic converter
shields. z
CHECK the exhaust
system for loose exhaust
shields. REPAIR as
necessary.
z Thumping
noise— from the
bottom of the
vehicle, worse at
acceleration z
Exhaust pipe/muffler
grounded to chassis. z
CHECK the exhaust
system to chassis
clearance. CHECK the
exhaust system hangers for
damage. REPAIR as
necessary. REFER to
Section 309 - 00 .
z Whoosh— occurs
during light
vehicle
acceleration.
Heard inside the
vehicle z
Throttling late,
creating turbulence
transmitted through
the plastic manifold. z
CHECK for leaks or
missing seal in the dash
panel.
z Engine
vibration—
increases
intensity as
engine rpm is
increased z
Engine out-of-
balance. z
CARRY OUT Neutral
Engine Run- Up (NERU)
Test. ROTATE the torque
converter, 120° for 3 bolt
and 180° for 4 bolt.
INSPECT the torque
converter pilot outer
diameter to crankshaft pilot
inner diameter. REPAIR as
necessary. REFER to
Section 307 - 01 .
z Engine
vibration— is felt
with increases
and decreases in
engine rpm z
Strain on exhaust
mounts. z
CARRY OUT the Exhaust
System Neutralizing
procedure in this section.
REPAIR as necessary.
z Damaged or worn
powertrain/drivetrain
mounts. z
CHECK the
powertrain/drivetrain
mounts for damage.
REPAIR as necessary.
z Engine or
transmission
grounded to chassis. z
INSPECT the
powertrain/drivetrain for
correct clearances.
REPAIR as necessary.
z Engine
vibration—
vibration felt at all
times z
Excessive engine
pulley runout. z
CARRY OUT Engine
Accessory Test. INSTALL a
new engine pulley as
necessary. REFER to
Section 303 - 01A for 3.8L
engines or Section 303 - 01B
for 4.6L (2V) engines.
z Damaged or worn
accessory
component. z
CARRY OUT Engine
Accessory Test. REPAIR or
INSTALL a new component Klj . 27 ba
702003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

as necessary.
z Accelerator pedal
vibration— felt
through the pedal
as a buzz z
Throttle cable loose
or misrouted. z
INSPECT the throttle cable.
REPAIR as necessary.
REFER to Section 310 - 02 .
z Engine
vibration— mostly
at coast/neutral
coast. Condition
improves with
vehicle
accelerating z
Combustion
instability. z
CHECK the ignition system.
INSTALL new components
as necessary.
z Engine vibration
or shudder—
occurs with light
to medium
acceleration
above 56 km/h
(35 mph) z
Worn or damaged
spark plugs. z
INSPECT the spark plugs
for cracks, high resistance
or broken insulator.
INSTALL a new spark plug
(s) as necessary.
z Plugged fuel injector. zREPAIR or INSTALL a new
injector as necessary.
REFER to Section 303 - 04A
for 3.8L engines or
Section 303 - 04B for 4.6L (2V)
engines.
z Damaged spark plug
wire. z
INSPECT the spark plug
wires for damage. INSTALL
a new spark plug wire(s) as
necessary.
z Contaminated fuel. zINSPECT the fuel for
contamination. DRAIN the
fuel system and refill.
z Worn or damaged
torque converter. z
CHECK the torque
converter. INSTALL a new
torque converter as
necessary. REFER to
Section 307 - 01 .
Symptom Chart—
Idle Noise/Vibration Condition
Possible Sources Action
z Idle air control (IAC)
valve moan — occurs
on throttle tip- out z
IAC valve is
contaminated
with oil. z
GO to Component Tests in
this section.
z Accessory drive belt
chirp — occurs at idle
or high idle, cold or
hot. Most common
occurrence is during
humid weather z
Accessory drive
belt worn, or
pulley is
misaligned or
loose. z
INSPECT for loose or
misaligned pulleys. CHECK
the drive belt for wear or
damage. INSTALL new
pulley(s)/drive belt, or
accessory drive components
as necessary. REFER to
Section 303 - 05 .
z Accessory drive
bearing hoot —
occurs at idle or high
idle in cold
temperatures of
approximately +4°C z
Accessory drive
idler or
tensioner pulley
bearing is
experiencing
stick/slip z
Go To Pinpoint Test C . Klj . 28 ba
702003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Section 308 - 02 .
z Grease or oil on the
clutch disc facing. z
CHECK the input shaft
seal and rear main oil
seal. REPAIR as
necessary. INSTALL a
new clutch disc.
REFER to Section 308 -
03A for T50D
transmissions or
Section 308 - 03B for
TR3650 transmissions.
z Clutch disc surface
glazed or damaged. z
INSPECT the clutch
disc surface for a
glazed, hardened or
damage condition.
CARRY OUT a disc
check. INSTALL a new
clutch disc as
necessary. REFER to
Section 308 - 01 .
z Damaged or worn
clutch pressure
plate. z
INSPECT the clutch
pressure plate for wear
or damage. INSTALL a
new clutch pressure
plate as necessary.
REFER to Section 308 -
01 .
z Flywheel surface
damaged or glazed. z
INSPECT the flywheel
for damage or wear.
CARRY OUT a
flywheel runout check.
INSTALL a new
flywheel as necessary.
REFER to Section 303 -
01A for 3.8L engines or
Section 303 - 01B for
4.6L (2V) engines.
z Clutch chatter noise—
noise when clutch
pedal is released at
initial take- off. Clutch is
hard to engage and
disengage z
Pilot bearing worn,
damaged or not
correctly aligned in
bore. z
INSPECT the clutch
pressure plate release
fingers for uneven
wear, clutch
components burnt or a
seized pilot bearing.
INSTALL a new pilot
bearing as necessary.
REFER to Section 308 -
01 .
z Clutch vibration zLoose flywheel
bolts.
z Damaged or loose
clutch pressure
plate.
z Excessive flywheel
runout. z
Go To Pinpoint Test L .
z Transmission
rattling/clattering
noise— noise at idle or
on light acceleration
from a stop. Gear
selection difficult z
Gearshift lever joint
worn or damaged. z
INSTALL a new
gearshift lever. REFER
to Section 308 - 03A for
T50D transmissions or
Section 308 - 03B for
TR3650 transmissions. Klj . 41 ba
702003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

flange runout.
Symptom Chart—
Transmission (Automatic) Noise/Vibration Condition
Possible Sources Action
z Rattle— occurs
at idle or at
light
acceleration
from a stop z
Damaged engine or
transmission mounts. z
CHECK the
powertrain/drivetrain mounts
for damage. REPAIR or
INSTALL new mounts as
necessary.
z A loose front exhaust
pipe heat shield. z
REPAIR or INSTALL a new
heat shield as necessary.
z Loose inspection
plate or dust cover
plate. z
CHECK for loose bolts.
TIGHTEN to specifications.
REFER to Section 307 - 01 .
z Loose flex plate to
converter nuts. z
CHECK for loose nuts.
TIGHTEN to specifications.
REFER to Section 307 - 01 .
z Whine— pitch
increases with
vehicle speed.
Starts in first
and second
gear,
decreases or
goes away at
higher gears z
Damaged or worn low
one- way clutch.
z Damaged or worn
intermediate one- way
clutch.
z Friction elements.
z Damaged or worn
planetary or sun gear. z
INSPECT the transmission
for wear or damage. REPAIR
or INSTALL new components
as necessary. REFER to
Section 307 - 01 .
z Whine— the
pitch changes
with engine
speed z
A worn or damaged
accessory drive
component. z
CARRY OUT the Engine
Accessory Test. REPAIR or
INSTALL new components as
necessary.
z Incorrect fluid level. zCHECK that the transmission
is filled to the correct level.
ADD fluid as necessary.
REFER to Section 307 - 01 .
z Partially blocked filter. zINSPECT the filter. CLEAN or
INSTALL a new filter as
necessary. REFER to Section 307 - 01 .
z Worn or damaged
torque converter. z
CARRY OUT the torque
converter service and
replacement check. REFER
to Section 307 - 01 .
z Worn or damaged
front pump. z
INSPECT the front pump.
INSTALL a new front pump
as necessary. REFER to
Section 307 - 01 .
z Whine— pitch
changes with
vehicle speed z
Speedometer cable
or gears. z
REPAIR or INSTALL new
cables or gears as necessary.
z Whine/moan
type noise—
pitch increases
or changes
with vehicle
speed z
Damaged engine or
transmission mount. z
CHECK the
powertrain/drivetrain mounts
for damage. CARRY OUT
Powertrain/Drivetrain Mount Neutralizing in this section.
z U-joints worn or zINSPECT the U- joints for Klj . 45 ba
702003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
