Pinpoint Tests
The pinpoint tests are a step-by-
step diagnostic process designed to determine the cause of a z
Bump—occurs
when shifting
from PARK to
a drive or
reverse
position.
Similar to
Clunk but with
no sound z
Initial gear
engagement. z
Acceptable condition.
z Buzz or hiss zIncorrect driveline
angles. z
CHECK for correct driveline
angles. REPAIR as
necessary. REFER to Section 205 - 00 .
z Worn or damaged
main control
solenoids or valves. z
Using a transmission tester,
ACTIVATE the solenoids to
duplicate sound. INSTALL
new components as
necessary. REFER to Section 307 - 01 .
z Vibration— a
high frequency
(20–80 Hz) that
is felt through
the seat or
gear shifter.
Changes with
engine speed z
Transmission cooler
lines grounded out. z
CHECK the transmission
cooler lines. REPAIR as
necessary.
z Flexplate to torque
converter nuts loose. z
CHECK the flexplate nuts.
TIGHTEN to specification.
REFER to Section 307 - 01 .
z Fluid filler tube
grounded out. z
CHECK the fluid filler tube.
REPAIR as necessary.
z Shift cable incorrectly
routed, grounded out
or loose. z
CHECK the shift cable.
REPAIR as necessary.
Section 307 - 05 .
z Shutter or
chatter—
occurs with
light to medium
acceleration
from low
speeds or a
stop z
Electrical
inputs/outputs.
z Vehicle wiring
harness.
z Incorrect
inputs/outputs from
the powertrain control
module (PCM), digital
transmission range
(TR) sensor, brake
pedal position (BPP)
sensor, throttle
position (TP) sensor,
transmission speed
sensor (TSS), output
speed shaft (OSS)
sensor or the torque
converter clutch
(TCC). z
CARRY OUT a Torque
Converter Clutch Operation
Test. RUN on- board
diagnostics or self- test.
REFER to Section 307 - 01 .
CLEAR the DTC's, ROAD
TEST and RERUN on- board
diagnostics or self- test. Klj . 47 ba
702003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

4. While the noise is occurring, either place an EngineEAR probe near the IAC valve and the inlet
tube, or create a 6.35 mm (0.25 in)- 12.7 mm (0.50 in) air gap between the inlet tube and the
clean air tube. If the IAC valve is making the noise, install a new IAC valve.
5. Test the vehicle for normal operation.
Steering Gear Grunt/Shudder Test
1. Start and run the vehicle to operating temperature.
2. Set engine idle speed to 1200 rpm.
3. CAUTION: Do not hold the steering wheel against the stops for more than three to
five seconds at a time. Damage to the power steering pump will occur.
Rotate the steering wheel to the RH stop, then turn the steering wheel 90° back from that
position. Turn the steering wheel slowly in a 15° to 30° arc.
4. Turn the steering wheel another 90°. Turn the steering wheel slowly in a 15° to 30° arc.
5. Repeat the test with power steering fluid at different temperatures.
6. If a light grunt is heard or a low (50- 200 Hz) shudder is present, this is a normal steering system
condition.
7. If a loud grunt is heard, or a strong shudder is felt, fill and purge the power steering system.
Checking Tooth Contact Pattern and Condition of the Ring and Pinion
There are two basic types of conditions that will produce ring and pinion noise. The first type is a howl
or chuckle produced by broken, cracked, chipped, scored or forcibly damaged gear teeth and is
usually quite audible over the entire speed range. The second type of ring and pinion noise pertains to
the mesh pattern of the gear pattern. This gear noise can be recognized as it produces a cycling pitch
or whine. Ring and pinion noise tends to peak in a narrow speed range or ranges, and will tend to
remain constant in pitch.
1. Raise and support the vehicle. For additional information, refer to Section 100 - 02 .
2. Drain the axle lubricant. Refer to Section 205 - 02A for Ford 7.5 rear axles or
Section 205 - 02B for
Ford 8.8 integral axles.
3. Remove the carrier assembly or the axle housing cover depending on the axle type. Refer to Section 205 - 02A for Ford 7.5 rear axles or
Section 205 - 02B for Ford 8.8 integral axles.
4. Inspect the gear set for scoring or damage. Klj . 64 ba
702003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Inspection and Verification
Certain axle noise or vibration symptoms are also common to the engine, transmission, wheel
bearings, tires, and other parts of the vehicle. For this reason, be sure that the cause of the trouble is
in the axle before disassembling, adjusting or repairing the axle. Refer to
Section 100 - 04 .
Certain driveshaft vibration symptoms are common to the front engine accessory drive (FEAD), the
engine, transmission or tires. Be sure the cause of the concern is the driveshaft before repairing or
installing a new driveshaft. Refer to Section 100 - 04 .
Certain symptoms may be caused by Traction- Lok® differentials (4026). Check the vehicle certification
label and axle identification tag to determine the type of differential. Refer to Section 100 - 01 .
Noise Acceptability
NOTE: A gear-driven unit will produce a certain amount of noise. Some noise is acceptable and
audible at certain speeds or under various driving conditions such as a newly paved blacktop road.
Slight noise is not detrimental to the operation of the axle and is considered normal.
With the Traction- Lok® differential axle, slight chatter noise on slow turns after extended highway
driving is considered acceptable and has no detrimental effect on the locking axle function.
Universal Joint (U- Joint) Inspection
Place the vehicle on a frame hoist and rotate the driveshaft (4602) by hand. Check for rough operation
or seized U- joints. Install a new U- joint if it shows signs of seizure, excessive wear, or incorrect
seating. Refer to Section 205 - 01 .
Analysis of Leakage
Clean up the leaking area enough to identify the exact source. An axle leak can be caused by the
following. zAxle lubricant level is too high.
z Worn or damaged axle shaft seals or differential seals.
z Differential housing is cracked.
z Flange yoke seat is worn or damaged.
z Pinion flange is scored or damaged.
z Axle cover is not sealed.
z Vent is plugged. Klj . 2 ba
192003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

off the floor.
With the engine off, raise only one rear wheel. Install the special tool on the wheel nuts.
Use a torque wrench with a capacity of at least 271 Nm (200 lb-
ft) to rotate the axle shaft. Be sure that
the transmission is in NEUTRAL, and that one rear wheel is on the floor while the other rear wheel is
raised off the floor. The breakaway torque required to start rotation must be at least 27 Nm (20 lb- ft).
The initial breakaway torque may be higher than the continuous turning torque.
The axle shaft must turn with even pressure throughout the check without slipping or binding. If the
torque reading is less than specified, check the differential case. Refer to Section 205 - 02A or
Section 205 - 02B .
Traction- Lok® Differential Check Road Test
1. Place one wheel on a dry surface and the other wheel on ice, mud or snow.
2. Gradually open the throttle to obtain maximum traction prior to break away. The ability to move the vehicle demonstrates correct operation of a Traction- Lok® rear axle assembly.
3. When starting with one wheel on an excessively slippery surface, a slight application of the parking brake may be necessary to help energize the Traction- Lok® feature of the differential.
Release the brake when traction is established. Use light throttle on starting to provide
maximum traction.
4. If, with unequal traction, both wheels slip, the limited slip rear axle has done all it can possibly do.
5. In extreme cases of differences in traction, the wheel with the least traction may spin after the Traction-Lok® has transferred as much torque as possible to the non- slipping wheel. Klj . 15 ba
192003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

PINPOINT TEST G: HYDRO-
BOOST BRAKE SYSTEM OPERATION
SUSPECT connections between the power steering pump reservoir and
between the power steering pump reservoir and the hydro-
boost
power brake booster.
z Are there any obstructions? REMOVE
obstructions or
INSTALL a new
hose.
No
GO to
F2 .
F2 CHECK BOOSTER OPERATION
z
Have an assistant check the fluid in the power steering pump
reservoir while rapidly applying the brake pedal approximately one
inch.
z Does the fluid show any movement or spouting? Yes
System OK.
No
INSTALL a new
hydro-boost
assembly. Test Step Result / Action to Take
G1 CHECK BASIC OPERATION
z
Key in OFF position.
z Press and release brake pedal several times to deplete all
hydraulic pressure from the hydro- boost power brake
booster.
z Press and hold brake pedal with light pressure.
z Key in START position.
z Does the brake pedal fall slightly and hold, and is less
pressure now required to hold brake pedal at the new
position? Yes
Hydro-
boost is OK.
No
GO to G2 .
G2 CHECK FOR HYDRAULIC BRAKE LEAK
z
With engine running, press and release brake pedal several
times.
z Hold brake pedal down with medium pressure, 34- 47 Nm
(25- 35 lb- ft).
z Does brake pedal move toward floor? Yes
GO to
G3 .
No
GO to G4 .
G3 CHECK FOR LEAKS —
BRAKE FLUID LINES z
Check for leaks at brake lines, including brake master
cylinder and brake hose.
z Do components check OK? Yes
COMPLETE master cylinder
By-
Pass Condition Test in
this section.
No
INSTALL new hoses and
lines as necessary. G4 CHECK HYDRO-
BOOST CONNECTIONS z
Clean the hydro- boost power brake booster, power steering
pressure hose, power steering gear pressure hose and
power steering return hose and connection.
z Start engine and run at idle.
z Check hose connections for leakage.
z Do hose connections check OK? Yes
GO to
G5 .
No
REPAIR or INSTALL new
hose and connections as
necessary. G5 CHECK FOR HYDRO-
BOOST LEAK Klj . 12 ba
152003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

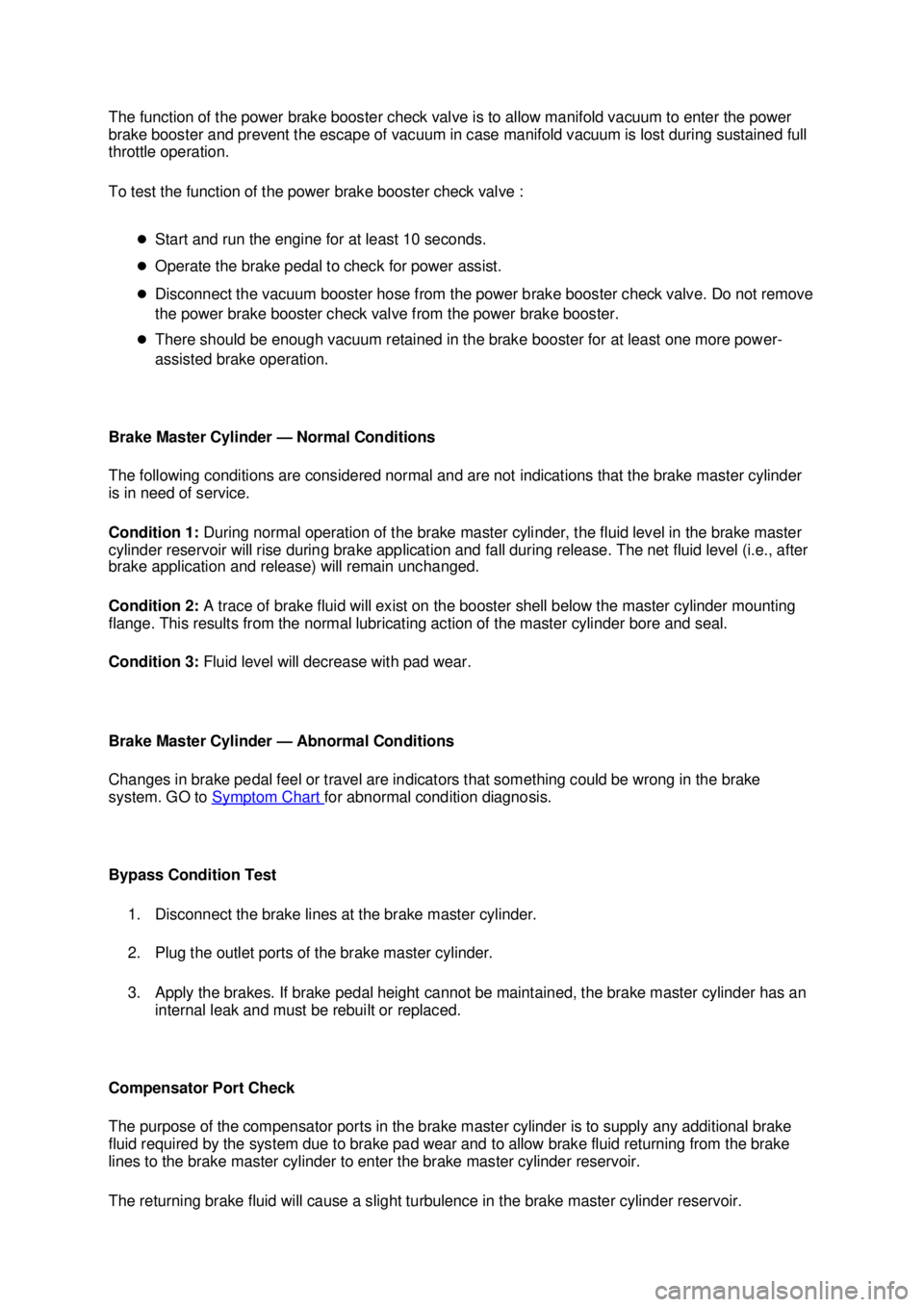

The function of the power brake booster check valve is to allow manifold vacuum to enter the power
brake booster and prevent the escape of vacuum in case manifold vacuum is lost during sustained full
throttle operation.
To test the function of the power brake booster check valve :
zStart and run the engine for at least 10 seconds.
z Operate the brake pedal to check for power assist.
z Disconnect the vacuum booster hose from the power brake booster check valve. Do not remove
the power brake booster check valve from the power brake booster.
z There should be enough vacuum retained in the brake booster for at least one more power-
assisted brake operation.
Brake Master Cylinder — Normal Conditions
The following conditions are considered normal and are not indications that the brake master cylinder
is in need of service.
Condition 1: During normal operation of the brake master cylinder, the fluid level in the brake master
cylinder reservoir will rise during brake application and fall during release. The net fluid level (i.e., after
brake application and release) will remain unchanged.
Condition 2: A trace of brake fluid will exist on the booster shell below the master cylinder mounting
flange. This results from the normal lubricating action of the master cylinder bore and seal.
Condition 3: Fluid level will decrease with pad wear.
Brake Master Cylinder — Abnormal Conditions
Changes in brake pedal feel or travel are indicators that something could be wrong in the brake
system. GO to Symptom Chart for abnormal condition diagnosis.
Bypass Condition Test 1. Disconnect the brake lines at the brake master cylinder.
2. Plug the outlet ports of the brake master cylinder.
3. Apply the brakes. If brake pedal height cannot be maintained, the brake master cylinder has an internal leak and must be rebuilt or replaced.
Compensator Port Check
The purpose of the compensator ports in the brake master cylinder is to supply any additional brake
fluid required by the system due to brake pad wear and to allow brake fluid returning from the brake
lines to the brake master cylinder to enter the brake master cylinder reservoir.
The returning brake fluid will cause a slight turbulence in the brake master cylinder reservoir. Klj . 14 ba
152003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

11. Turn (or have an assistant turn) the steering wheel slightly in both directions and release quickly
while watching the pressure gauge.
zThe pressure reading should move from the normal back pressure reading and snap
back as the steering wheel is released.
z If the pressure returns slowly or sticks, the rotary valve in the steering gear is sticking or
the steering column is binding. Check the steering column and linkages before servicing
the steering gear.
Tie- Rod Articulation Torque
1. NOTE: This check may be done with the steering gear on or off the vehicle.
Disconnect the tie- rod end from the front wheel spindle. For additional information, refer to
Section 211 - 02 .
2. Move the front wheel spindle tie- rod back and forth three times.
3. Hook the special tool 211- 034 (T74P-3504-Y) over the tie-rod end or the threaded portion of the
front wheel spindle tie- rod and measure the force required to move the front wheel spindle tie-
rod. Refer to Tie- Rod Articulation Torque in General Specifications in this section.
4. If the force required to move the front wheel spindle tie- rod does not meet the specifications,
install a new front wheel spindle tie- rod. For additional information, refer to Section 211 - 02 .
Steering Gear Valve 1. With the vehicle in motion, place the transmission in NEUTRAL and turn the engine OFF. zIf the vehicle does not pull with the engine OFF, install a new steering gear. For
additional information, refer to Section 211 - 02 .
2. If the vehicle pulls with the engine OFF, cross- switch the front wheels.
3. If the vehicle pulls to the opposite side, cross- switch the front and rear wheels on the same side.
4. If the vehicle pull direction does not change, check the front suspension components, wheel alignment and frame alignment. For additional information, refer to Section 204 - 00 or frame
dimensions manual. Klj . 10 ba
112003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

4. Inspect for normal burning.
zCheck for light tan or gray deposits on the firing tip.
5. Inspect for pre- ignition, identified by melted electrodes and a possibly damaged insulator.
Metallic deposits on the insulator indicate engine damage. This may be caused by incorrect
ignition timing, wrong type of fuel or the unauthorized installation of a heli- coil insert in place of
the spark plug threads.
zInstall a new spark plug.
6. Inspect for overheating, identified by a white or light gray spots and with bluish- burnt
appearance of electrodes. This is caused by engine overheating, wrong type of fuel, loose spark
plugs, spark plugs with an incorrect heat range, low fuel pump pressure or incorrect ignition
timing.
zInstall a new spark plug. Klj . 2 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
