2003 FORD MUSTANG ECO mode

NOTE:
Powertrain calibration information is limited to a maximum of five characters per line on the
Vehicle Certification Label. Because of this, calibration identification consisting of more than five
characters will wrap to the second line on the VC label.
Powertrain calibration information is printed in the lower right corner of the Vehicle Certification Label.
Only the base calibration information is printed. Revision levels will not appear, however, this
information can be found in the On Line Automotive Service Information System (OASIS). For the
current model year, Ford Motor Company is using three different protocols which describe powertrain
base calibration. These protocols are designed to provide worldwide standardization for vehicle
calibration. If the electronic calibration strategy has been used since 1998 and carried into the current
model year, protocol 1 will be used. Refer to Protocol 1 below. If the electronic calibration strategy has
been used since 1999 and is carried into the current model year, protocol 2 will be used. Refer to
Protocol 2 below. For new electronic calibration strategies introduced since the 2000 model year, use
protocol 3. Refer to Protocol 3 below.
Protocol 1
Protocol 2 Item Description
1 Model year (model year in which calibration strategy was first introduced)
2 Engine code
3 Engine revision level
Item Description
1 Model year (model year in which calibration strategy was first introduced)
2 Engine code
3 Transmission code
4 Emission standard (designates the specific country emission standard) Klj . 13 ba
162003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4920/S3B~us~en~ ...

WOT
The acronym for wide open throttle is WOT.
Tools and Techniques
Electronic Vibration Analyzer (EVA)
The EVA is a hand-
held electronic diagnostic tool which will assist in locating the source of
unacceptable vibrations. The vibration sensor can be remotely mounted anywhere in the vehicle for
testing purposes. The unit displays the three most common vibration frequencies and their
corresponding amplitudes simultaneously. A bar graph provides a visual reference of the relative
signal strength (amplitude) of each vibration being displayed and its relative G force. The keypad is
arranged to make the EVA simple to program and use. Some of the functions include the ability to
average readings as well as record, play back and freeze readings. The EVA has a strobe balancing
function that can be used to detect imbalance on rotating components such as a driveshaft or engine
accessories.
The EVA allows for a systematic collection of information that is necessary to accurately diagnose and
repair NVH problems. For the best results, carry out the test as follows:
a. Test drive the vehicle with the vibration sensor inside the vehicle.
b. Place the sensor in the vehicle according to feel. „If the condition is felt through the steering wheel, the source is most likely in the front of
the vehicle.
„ A vibration that is felt in the seat or floor only will most likely be found in the driveline,
drive axle or rear wheels and tires.
c. Record the readings. Also note when the condition begins, when it reaches maximum intensity, and if it tends to diminish above/below a certain speed.
„Frequencies should be read in the "average" mode. Item Description
1 EVA screen
2 Frequency mode displayed in rpm or Hz
3 Active sensor input (A or B)
4 Current active mode
5 G force indicators or the strongest frequencies in descending strength of each vibration
6 Strength of each vibration
7 Frequency in rpm/Hz of each vibration Klj . 11 ba
152003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

„
Frequencies have a range of plus or minus 2. A reading of 10 Hz can be displayed as an
8 Hz through 12 Hz.
d. Place the vibration sensor on or near the suspect area outside the vehicle.
e. Continue the road test, driving the vehicle at the speed the symptom occurs, and take another reading.
f. Compare the readings.
„A match in frequency indicates the problem component or area.
„ An unmatched test could indicate the concern is caused by the engine, torque converter,
or engine accessory. Use the EVA in the rpm mode and check if concern is rpm related.
„ Example: A vibration is felt in the seat. Place the sensor on the console. Record the
readings. Place the vibration sensor on the rear axle. Compare the readings. If the
frequencies are the same, the axle is the problem component.
Vibrate Software®
Vibrate Software® ( Rotunda tool number 215- 00003) is a diagnostic aid which will assist in pinpointing
the source of unacceptable vibrations. The engine's crankshaft is the point of reference for vibration
diagnosis. Every rotating component will have an angular velocity that is faster, slower, or the same as
the engine's crankshaft. Vibrate Software® calculates the angular velocity of each component and
graphically represents these velocities on a computer screen and on a printed vibration worksheet.
The following steps outline how Vibrate Software® helps diagnose a vibration concern:
zEnter the vehicle information. Vibrate will do all the calculations and display a graph showing
tire, driveshaft and engine vibrations.
z Print a Vibration Worksheet graph. The printed graph is to be used during the road test.
z Road test the vehicle at the speed where the vibration is most noticeable. Record the vibration
frequency (rpm) and the engine rpm on the worksheet graph. The point on the graph where the
vibration frequency (rpm) reading and the engine rpm reading intersect indicates the specific
component group causing the concern.
„An EVA or equivalent tool capable of measuring vibration frequency and engine rpm will
be needed.
z Provide pictures of diagnostic procedures to aid in testing components.
Combination EngineEAR/ChassisEAR
An electronic listening device used to quickly identify noise and the location under the chassis while
the vehicle is being road tested. The ChassisEARs can identify the noise and location of
damaged/worn wheel bearings, CV joints, brakes, springs, axle bearings or driveshaft carrier bearings.
EngineEAR Basic Unit
An electronic listening device used to detect even the faintest noises. The EngineEARs can detect the
noise of damaged/worn bearings in generators, water pumps, A/C compressors and power steering
pumps. They are also used to identify noisy lifters, exhaust manifold leaks, chipped gear teeth and for
detecting wind noise. The EngineEAR has a sensing tip, amplifier, and headphones. The directional
sensing tip is used to listen to the various components. Point the sensing tip at the suspect component
and adjust the volume with the amplifier. Placing the tip in direct contact with a component will reveal
structure-borne noise and vibrations, generated by or passing through, the component. Various
volume levels can reveal different sounds.
Ultrasonic Leak Detector
The Ultrasonic Leak Detector is used to detect wind noises caused by leaks and gaps in areas where
there is weather- stripping or other sealing material. It is also used to identify A/C leaks, vacuum leaks Klj . 12 ba
152003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Rear Suspension
WARNING: All vehicles are equipped with gas pressurized shock absorbers which will
extend unassisted. Do not apply heat or flame to the shock absorbers during removal or
component servicing. Failure to follow these instructions can result in personal injury.
CAUTION: Suspension fasteners are critical parts because they affect performance of vital
components and systems and their failure can result in major service expense. A new part with
the same part number must be installed if installation becomes necessary. If substitution is
necessary, the part must be of the same finish and property class. Torque values must be used
as specified during reassembly to make sure of correct retention of these parts.
The rear suspension consists of the following components:
zrear spring (4460)
z rear shock absorber (18125)
z rear upper suspension arm and bushings (5500)
„common LH and RH
z rear lower suspension arm and bushings (5A649)
„common LH and RH
z rear stabilizer bar (5A772) (4.6 2V- equipped models only)
z axle drive line vibration dampers (4.6 2V- equipped models only)
Rear Suspension SECTION 204-
02: Rear Suspension 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

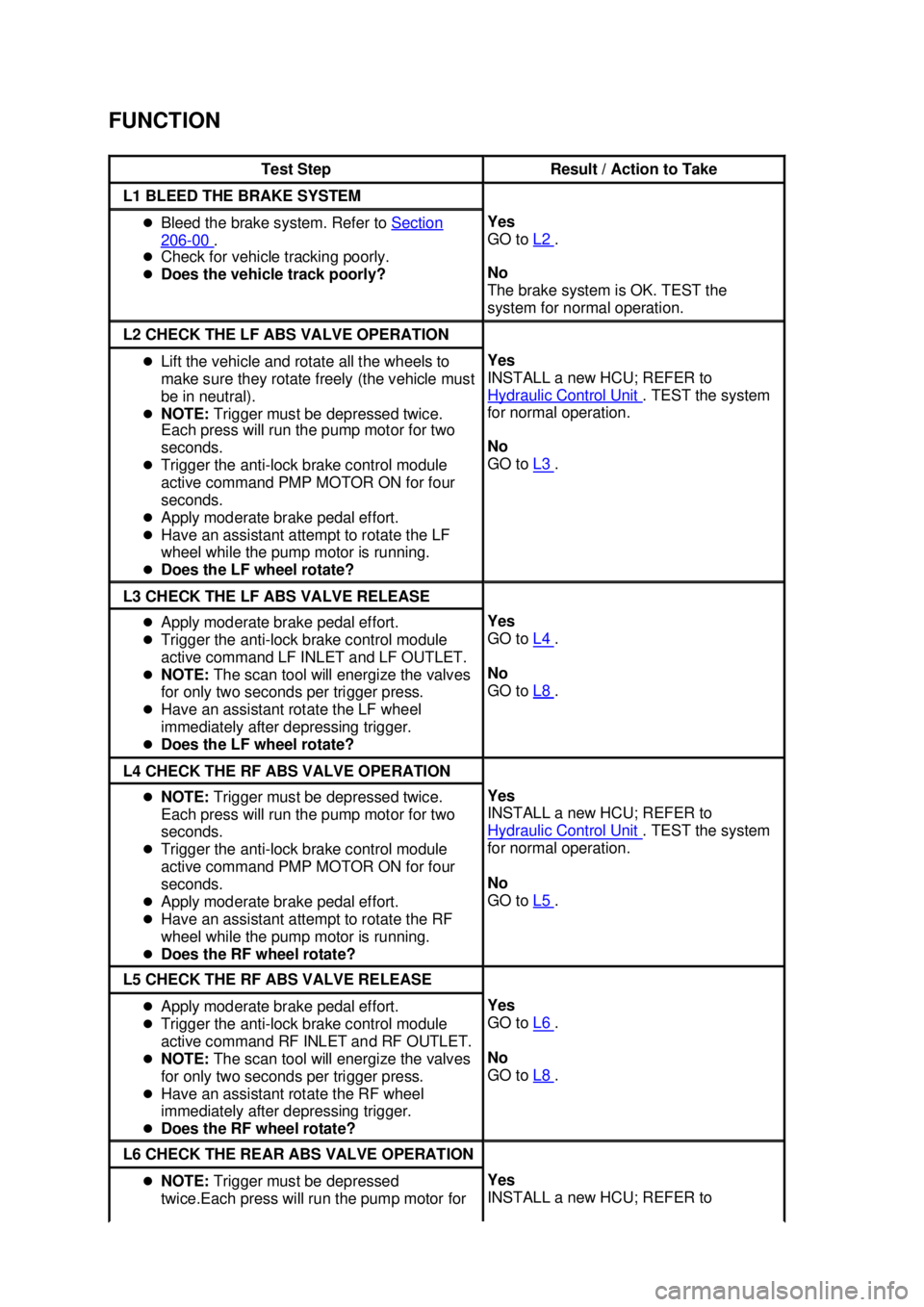

FUNCTION
Test Step Result / Action to Take
L1 BLEED THE BRAKE SYSTEM
z
Bleed the brake system. Refer to Section 206 - 00 .
z Check for vehicle tracking poorly.
z Does the vehicle track poorly? Yes
GO to
L2 .
No
The brake system is OK. TEST the
system for normal operation. L2 CHECK THE LF ABS VALVE OPERATION
z
Lift the vehicle and rotate all the wheels to
make sure they rotate freely (the vehicle must
be in neutral).
z NOTE: Trigger must be depressed twice.
Each press will run the pump motor for two
seconds.
z Trigger the anti- lock brake control module
active command PMP MOTOR ON for four
seconds.
z Apply moderate brake pedal effort.
z Have an assistant attempt to rotate the LF
wheel while the pump motor is running.
z Does the LF wheel rotate? Yes
INSTALL a new HCU; REFER to
Hydraulic Control Unit
. TEST the system
for normal operation.
No
GO to L3 .
L3 CHECK THE LF ABS VALVE RELEASE
z
Apply moderate brake pedal effort.
z Trigger the anti- lock brake control module
active command LF INLET and LF OUTLET.
z NOTE: The scan tool will energize the valves
for only two seconds per trigger press.
z Have an assistant rotate the LF wheel
immediately after depressing trigger.
z Does the LF wheel rotate? Yes
GO to
L4 .
No
GO to L8 .
L4 CHECK THE RF ABS VALVE OPERATION
z
NOTE: Trigger must be depressed twice.
Each press will run the pump motor for two
seconds.
z Trigger the anti- lock brake control module
active command PMP MOTOR ON for four
seconds.
z Apply moderate brake pedal effort.
z Have an assistant attempt to rotate the RF
wheel while the pump motor is running.
z Does the RF wheel rotate? Yes
INSTALL a new HCU; REFER to
Hydraulic Control Unit
. TEST the system
for normal operation.
No
GO to L5 .
L5 CHECK THE RF ABS VALVE RELEASE
z
Apply moderate brake pedal effort.
z Trigger the anti- lock brake control module
active command RF INLET and RF OUTLET.
z NOTE: The scan tool will energize the valves
for only two seconds per trigger press.
z Have an assistant rotate the RF wheel
immediately after depressing trigger.
z Does the RF wheel rotate? Yes
GO to
L6 .
No
GO to L8 .
L6 CHECK THE REAR ABS VALVE OPERATION
z
NOTE: Trigger must be depressed
twice.Each press will run the pump motor for Yes
INSTALL a new HCU; REFER to Klj . 15 ba
162003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

two seconds.
z Trigger the anti- lock brake control module
active command PMP MOTOR ON for four
seconds.
z Apply moderate brake pedal effort.
z Have an assistant attempt to rotate the LR
and RR wheels while the pump motor is
running.
z Does the LR or RR wheel rotate? Hydraulic Control Unit . TEST the system
for normal operation.
No
GO to L7 .
L7 CHECK THE REAR ABS VALVE RELEASE
z
Apply moderate brake pedal effort.
z Trigger the anti- lock brake control module
active command R INLET and R OUTLET.
z NOTE: The scan tool will energize the valves
for only two seconds per trigger press.
z Have an assistant rotate the LR and RR
wheels immediately after depressing trigger.
z Does the LR or RR wheel rotate? Yes
The ABS system is operating correctly.
No
GO to
L8 .
L8 CHECK FOR DTCS
z
Carry out the anti- lock brake control module
self- test.
z Are any DTCs retrieved? Yes
GO to the Anti-
Lock Brake Control Module
Diagnostic Trouble Code (DTC) Index.
No
INSTALL a new HCU; REFER to
Hydraulic Control Unit . TEST the system
for normal operation. Klj . 16 ba
162003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

z
Trigger the anti- lock brake control module
active command PMP MOTOR ON for four
seconds.
z Apply moderate brake pedal effort.
z Have an assistant attempt to rotate the LF
wheel while the pump motor is running.
z Does the LF wheel rotate? GO to
K3 .
K3 CHECK THE LF ABS VALVE RELEASE
z
Apply moderate brake pedal effort.
z Trigger the anti- lock brake control module
active command LF INLET and LF OUTLET.
z NOTE: Trigger must be depressed twice.
Each depress runs the pump motor for two
seconds.
z Have an assistant rotate the LF wheel
immediately after depressing trigger.
z Does the LF wheel rotate? Yes
GO to
K4 .
No
GO to K10 .
K4 CHECK THE RF ABS VALVE OPERATION
z
NOTE: Trigger must be depressed twice.
Each depress runs the pump motor for two
seconds.
z Trigger the anti- lock brake control module
active command PMP MOTOR ON for four
seconds.
z Apply moderate brake pedal effort.
z Have an assistant attempt to rotate the RF
wheel while the pump motor is running.
z Does the RF wheel rotate? Yes
INSTALL a new HCU; REFER to
Hydraulic Control Unit
. TEST the system
for normal operation.
No
GO to K5 .
K5 CHECK THE RF ABS VALVE RELEASE
z
Apply moderate brake pedal effort.
z Trigger the anti- lock brake control module
active command RF INLET and RF OUTLET.
z NOTE: The scan tool will energize the valves
for only two seconds per trigger press.
z Have an assistant rotate the RF wheel
immediately after depressing trigger.
z Does the RF wheel rotate? Yes
GO to
K6 .
No
GO to K10 .
K6 CHECK THE LR ABS VALVE OPERATION
z
NOTE: Trigger must be depressed twice.
Each depress runs the pump motor for two
seconds.
z Trigger the anti- lock brake control module
active command PMP MOTOR ON for four
seconds.
z Apply moderate brake pedal effort.
z Have an assistant attempt to rotate the LR
wheel while the pump motor is running.
z Does the LR wheel rotate? Yes
INSTALL a new HCU; REFER to
Hydraulic Control Unit
. TEST the system
for normal operation.
No
GO to K7 .
K7 CHECK THE LR ABS VALVE RELEASE
z
Apply moderate brake pedal effort.
z Trigger the anti- lock brake control module
active command LR INLET and LR OUTLET.
z NOTE: The scan tool will energize the valves
for only two seconds per trigger press.
z Have an assistant rotate the LR wheel
immediately after depressing trigger.
z Does the LR wheel rotate? Yes
GO to
K8 .
No
GO to K10 . Klj . 16 ba
202003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

PINPOINT TEST L: THE TRACTION CONTROL IS INOPERATIVE—
DOES NOT OPERATE CORRECTLY K8 CHECK THE RR ABS VALVE OPERATION
z
NOTE: Trigger must be depressed twice.
Each depress runs the pump motor for two
seconds.
z Trigger the anti- lock brake control module
active command PMP MOTOR ON for four
seconds.
z Apply moderate brake pedal effort.
z Have an assistant attempt to rotate the RR
wheel while the pump motor is running.
z Does the RR wheel rotate? Yes
INSTALL a new HCU; REFER to
Hydraulic Control Unit
. TEST the system
for normal operation.
No
GO to K9 .
K9 CHECK THE RR ABS VALVE RELEASE
z
Apply moderate brake pedal effort.
z Trigger the anti- lock brake control module
active command RF INLET and RF OUTLET.
z NOTE: The scan tool will energize the valves
for only two seconds per trigger press.
z Have an assistant rotate the RR wheel
immediately after depressing trigger.
z Does the RR wheel rotate? Yes
The ABS system is operating correctly.
No
GO to
K10 .
K10 CHECK FOR DTCS
z
Carry out the anti- lock brake control module
self- test.
z Are any DTCs retrieved? Yes
GO to the Anti-
Lock Brake Control Module
Diagnostic Trouble Code (DTC) Index.
No
INSTALL a new HCU; REFER to
Hydraulic Control Unit . TEST the system
for normal operation. Test Step Result / Action to Take
L1 CHECK THE TRACTION CONTROL SWITCH CIRCUITRY
z
Key in OFF position.
z Disconnect: Instrument Cluster C251.
z Key in ON position.
z Measure the voltage between instrument cluster C251 Pin 9,
Circuit 959 (GY), harness side and ground, while depressing
and releasing the traction control switch.
z Is the voltage greater than 10 volts with the traction control
switch depressed and zero volts with the traction control
switch released? Yes
INSTALL a new
instrument cluster,
REFER to
Section 413 -
01 . TEST the system
for normal operation.
No
GO to L2 . Klj . 17 ba
202003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
