2003 FORD MUSTANG ECO mode

C1 VERIFY DIAGNOSTIC TROUBLE CODES
z
Select PARK.
z Key in OFF position.
z NOTE: DTC codes P0705 and P0708 cannot be set by
an incorrectly adjusted digital TR sensor.
z Carry out on board diagnostic test.
z Are only DTC codes P0705, P0708 present? Yes
GO to
C4 .
No
GO to C2 .
C2 VERIFY DIGITAL TRANSMISSION RANGE SENSOR
ALIGNMENT z
Check to make sure the digital TR sensor harness
connector is fully seated, pins are fully engaged in
connector and in good condition before proceeding.
z Apply the parking brake.
z Select NEUTRAL.
z Disconnect the shift cable/linkage from the manual lever.
z Verify that the digital TR Sensor Alignment Tool fits in
the appropriate slots.
z Is the digital TR sensor adjustment OK? Yes
GO to
C3 .
No
ADJUST the digital TR sensor.
PLACE transmission range
selector lever in P and CLEAR
DTCs. REPEAT OBD Tests.GO
to C3 .
C3 VERIFY SHIFT CABLE/LINKAGE ADJUSTMENT
z
Place the manual lever in the overdrive position.
z Select DRIVE.
z Reconnect the shift cable/linkage.
z Verify that the shift cable/linkage is adjusted OK. Refer
to Section 307 - 05 .
z Is the shift cable/linkage adjusted OK? Yes
GO to
C4 .
No
ADJUST the shift cable/linkage.
REFER to Section 307 - 05 .
C4 CHECK ELECTRICAL SIGNAL OPERATION
z
Select PARK.
z Disconnect: Digital TR Sensor.
z CAUTION: Do not pry on connector. This will
damage the connector and result in a transmission
concern.
z Press the button and pull out on the digital TR harness
connector.
z Inspect both ends of the connector for damage or
pushed- out pins, corrosion, loose wires and missing or
damaged seals.
z Are the connector, pins and harness damaged? Yes
REPAIR as required. CLEAR
DTCs and REPEAT OBD
Tests.
No
If diagnosing a DTC, GO to
C5
.
If diagnosing a starting concern
or a reversing lamp concern,
GO to C10 .
C5 CHECK ELECTRICAL SYSTEM OPERATION (DIGITAL
TR AND PCM) z
Key in OFF position.
z Connect the diagnostic tool.
z Connect: Digital TR Sensor.
z Key in ON position.
z Enter the following diagnostic mode on the diagnostic
tool: TR PIDS TR, TR_D, TR_V.
z Move transmission range selector lever into each gear
and stop.
z Observe any of the following PIDs, TR and TR_D, TR_V
(vehicle dependent) while wiggling harness, tapping on
sensor, or driving the vehicle. Use PIDs TR, and TR_D
for DTCs P0705, P1704, and P1705. Use PIDs TR, and
TR_V for DTC P0708.
z Compare the PIDs to the Digital Transmission Range
(TR) Sensor Diagnosis Chart.
z Do the PIDs TR, TR_D and TR_V match the Digital
Transmission Range (TR) Sensor Diagnosis chart,
and does the TR_D PID remain steady when the Yes
The problem is not in the digital
TR sensor system. REFER to
Diagnosis By Symptom
in this
section for further diagnosis.
No
If TR_D changes when wiggling
harness, tapping on the sensor,
or driving the vehicle, the
problem may be intermittent.
GO to C6 . Klj . 10 ba
222003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

PINPOINT TEST D: ELECTRICAL PRESSURE CONTROL (EPC)
SOLENOID z
Are all the resistances greater than 10,000 ohms? C10 CHECK THE NON-
PCM INTERNAL CIRCUITS OF
SENSOR z
Connect: TRS- E Cable to Transmission.
z Connect: TRS- E Cable to Digital TR Sensor.
z Place the Digital TR Overlay onto Transmission Tester.
z Carry out Switch Test as instructed on the Digital TR
Overlay.
z Does the status lamp on the tester indicate RED for
the correct gear position? Yes
Concern is not in the digital TR
sensor. For starting system
concerns, REFER to
Section 303 - 06 . For reversing lamp
concerns, REFER to Section 417 - 01 . For optional circuits,
REFER to the Powertrain
Control/Emissions Diagnosis
(PC/ED) manual for diagnosis.
No
INSTALL a new digital TR
sensor. CLEAR DTCs.
REPEAT OBD Tests. Test Step Result / Action to Take
NOTE:
Refer to the Transmission Internal Harness illustration preceding these pinpoint tests. NOTE:
Read and record all DTCs. All digital TR Sensor and VSS DTCs must be repaired before
entering Output State Control (OSC). D1 ELECTRONIC DIAGNOSTICS
z
Key in OFF position.
z Select PARK.
z Check to make sure the transmission harness connector
is fully seated, pins are fully engaged in the connector and
in good condition before proceeding.
z Connect the diagnostic tool.
z Key in ON position.
z Enter the following diagnostic mode on the diagnostic tool:
Diagnostic Data Link.
z Enter the following diagnostic mode on the diagnostic tool:
PCM.
z Enter the following diagnostic mode on the diagnostic tool:
Active Command Modes.
z Enter the following diagnostic mode on the diagnostic tool:
Output State Control (OSC).
z Enter the following diagnostic mode on the diagnostic tool:
Trans- Bench Mode.
z Does the vehicle enter the Trans- Bench Mode? Yes
GO to
D2 .
No
REPEAT procedure to
ENTER Trans-Bench Mode. If
vehicle did not enter OSC,
REFER to the Powertrain
Control/Emissions Diagnosis
(PC/ED) manual for diagnosis
of PCM. Klj . 17 ba
222003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

PINPOINT TEST E: OUTPUT SHAFT SPEED (OSS) SENSORS
Test Step Result / Action to Take
NOTE:
Refer to the Output Shaft Speed (OSS) Sensor Harness Connector illustration preceding
these pinpoint tests. E1 ELECTRONIC DIAGNOSTICS
z
Check to make sure the transmission harness
connector is fully seated, pins are fully engaged in
connector and in good condition before proceeding.
z Connect the diagnostic tool.
z Key in ON position.
z Enter the following diagnostic mode on the diagnostic
tool: Diagnostic Data Link.
z Enter the following diagnostic mode on the diagnostic
tool: PCM.
z Select PID/Data Monitor and Record.
z Select the PID OSS.
z Does vehicle enter PID/Data Monitor and Record? Yes
GO to
E2 .
No
REPEAT procedure to ENTER
PID. If vehicle did not enter PID,
REFER to the Powertrain
Control/Emissions Diagnosis
(PC/ED) manual for diagnosis of
PCM. E2 DRIVE CYCLE TEST
z
While monitoring the OSS Speed PID, drive the
vehicle so that the transmission upshifts and
downshifts through all gears.
z Does the OSS Speed PID increase and decrease
with engine and vehicle speed? Yes
CLEAR all DTCs. ROAD TEST to
verify if concern is still present. If
concern is still present, REFER to
Diagnosis By Symptom
in this
section.
No
If the OSS Speed PID does not
increase and decrease with
engine and vehicle speed,
INSPECT for open or short in
vehicle harness, sensor, a PCM
concern, or internal hardware
concern.
If the sensor signal is erratic,
INSPECT for intermittent concern
in the internal/external harness,
sensor, or connector.
If the sensor signal is steady, GO
to E3 .
E3 CHECK RESISTANCE OF OSS SENSOR
z
Disconnect the vehicle harness connector from the
OSS sensor.
z Measure the resistance between the OSS sensor pins. Yes
REFER to
Diagnosis By Symptom for concern diagnosis.
No
INSTALL a new OSS sensor. Klj . 20 ba
222003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

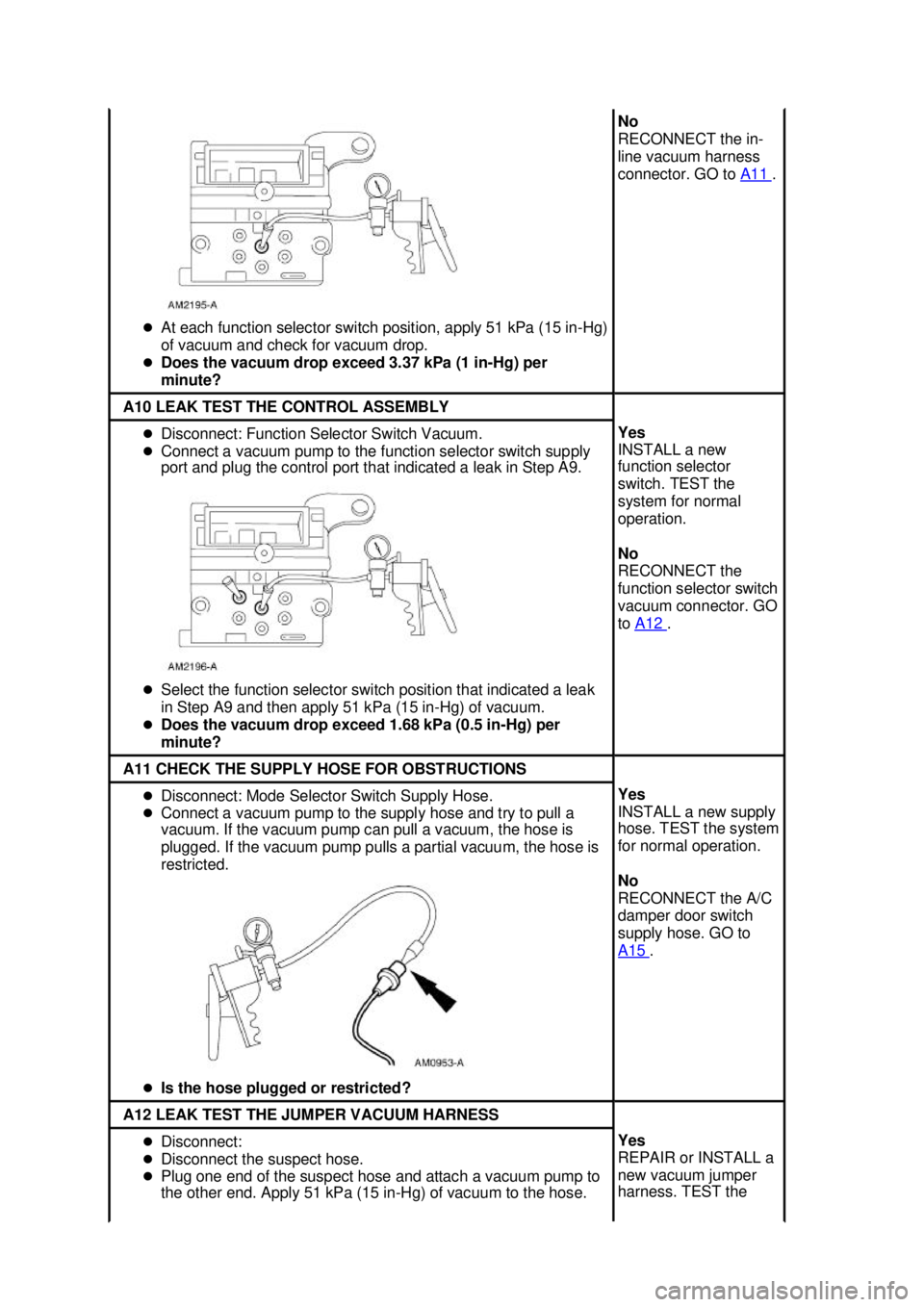

z
At each function selector switch position, apply 51 kPa (15 in- Hg)
of vacuum and check for vacuum drop.
z Does the vacuum drop exceed 3.37 kPa (1 in- Hg) per
minute? No
RECONNECT the in-
line vacuum harness
connector. GO to
A11 .
A10 LEAK TEST THE CONTROL ASSEMBLY
z
Disconnect: Function Selector Switch Vacuum.
z Connect a vacuum pump to the function selector switch supply
port and plug the control port that indicated a leak in Step A9.
z Select the function selector switch position that indicated a leak
in Step A9 and then apply 51 kPa (15 in- Hg) of vacuum.
z Does the vacuum drop exceed 1.68 kPa (0.5 in- Hg) per
minute? Yes
INSTALL a new
function selector
switch. TEST the
system for normal
operation.
No
RECONNECT the
function selector switch
vacuum connector. GO
to
A12 .
A11 CHECK THE SUPPLY HOSE FOR OBSTRUCTIONS
z
Disconnect: Mode Selector Switch Supply Hose.
z Connect a vacuum pump to the supply hose and try to pull a
vacuum. If the vacuum pump can pull a vacuum, the hose is
plugged. If the vacuum pump pulls a partial vacuum, the hose is
restricted.
z Is the hose plugged or restricted? Yes
INSTALL a new supply
hose. TEST the system
for normal operation.
No
RECONNECT the A/C
damper door switch
supply hose. GO to
A15
.
A12 LEAK TEST THE JUMPER VACUUM HARNESS
z
Disconnect:
z Disconnect the suspect hose.
z Plug one end of the suspect hose and attach a vacuum pump to
the other end. Apply 51 kPa (15 in- Hg) of vacuum to the hose. Yes
REPAIR or INSTALL a
new vacuum jumper
harness. TEST the Klj . 11 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

GENERAL PROCEDURES
Air Conditioning (A/C) System Check —
Retail Procedure
NOTE: This Retail Procedure is not eligible for claiming on Ford paid repairs (warranty and ESP).
NOTE: The engine should be run at idle for 10 minutes with the air conditioning on and set to MAX A/C
before carrying out this retail procedure.
NOTE: Read and follow all of the Warnings, Cautions and Notes at the beginning of this section before
continuing.
1. Visual inspection
Open the hood and visually inspect the heating and air conditioning systems for the following:
zCoolant reservoir for correct coolant level
z Heater hoses for deterioration or loose connections
z Radiator and condenser for debris or damaged fins restricting airflow, loose mounting or
connections
z Accessory drive belt(s) and cooling fan(s) for wear or physical damage
z Refrigerant lines and connections for physical damage or loose connections
z Compressor for physical damage or loose connections
z Suction accumulator/drier for physical damage or loose connections
z Wiring and connectors for excessive wear, loose or damaged connections, or incorrect
routing
2. A/C refrigerant analysis
zCarry out air conditioning refrigerant analysis. For additional information, refer to
Refrigerant Identification Testing in this section.
z If the refrigerant fails the analysis, discontinue diagnosis and make recommendations for
repairs.
z If the refrigerant passes the analysis, carry out the air conditioning system check.
3. Air conditioning system check
zConnect manifold gauge set or charging station with gauges to refrigerant system.
z With the vehicle in park, parking brake set, thermometer installed in center panel vent,
and air conditioning system on and set to MAX A/C, start the engine.
z Record air refrigerant system pressures while running the engine at 1,500 rpm and allow
engine to return to idle.
z Operate the blower motor in all control positions and check for correct blower speed
changes.
z With the blower motor on HI, operate air discharge mode selector in all positions and
check for correct airflow in each position.
z Operate the temperature blend selector in all positions and check for correct change in
discharge temperature. Check the air discharge temperature with the selector in the
coolest position and the air conditioning on and set to MAX A/C to determine if the air
discharge temperature is acceptable for the current ambient air temperature.
z Carry out the EATC self- test (if applicable).
If the refrigerant system pressures were low, carry out the refrigerant system leak test.
SECTION 412-
00: Climate Control System - General Information 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible)
before proceeding to the next step.
4. If the concern remains after the inspection, connect the diagnostic tool to the data link connector (DLC) located beneath the instrument panel and select the vehicle to be tested from the
diagnostic tool menu. If the diagnostic tool does not communicate with the vehicle:
zcheck that the program card is correctly installed.
z check the connections to the vehicle.
z check the ignition switch position.
5. If the diagnostic tool still does not power up, refer to the diagnostic tool operating manual.
6. Carry out the DATA LINK DIAGNOSTICS test. If the diagnostic tool responds with: zCKT914, CKT915 OR CKT70 = ALL ECUS NO RESP/NOT EQUIP, refer to Section 418 -
00 .
z NO RESP/NOT EQUIP for the instrument cluster, Go To Pinpoint Test A or for the
generic electronic module (GEM), Go To Pinpoint Test W .
z SYSTEM PASSED, retrieve and record the continuous diagnostic trouble codes (DTCs),
erase the continuous DTCs and carry out the self- test diagnostics for the instrument
cluster or the GEM.
7. If the DTCs retrieved are related to the concern, go to the Instrument Cluster Diagnostic Trouble Code (DTC) Index or the GEM Diagnostic Trouble Code Index to continue diagnostics.
8. If no DTCs related to the concern are retrieved, proceed to the Symptom Chart to continue diagnostics.
Instrument Cluster Self- Diagnostic Mode
To enter the instrument cluster self- diagnostic mode, press and hold the instrument cluster
SELECT/RESET button, turn the ignition switch to the RUN position, and then continue pressing the
SELECT/RESET button (five seconds) until tESt is displayed in the odometer. The SELECT/RESET
button must be released within three seconds of the odometer tESt display to begin the self- diagnostic
mode. Press the SELECT/RESET button to advance through the following steps until dtc is displayed.
Depressing the SELECT/RESET button will display any stored continuous DTCs before proceeding to
the next step. z
Engine coolant level
z Accessory drive belt
z Engine oil level
z Parking brake position switch
z Brake fluid level
z Boost gauge pressure line „
5 (15A)
„ 7 (15A)
„ 11 (15A)
„ 13 (15A)
„ 21 (5A)
„ 23 (15A)
„ 24 (30A)
„ 29 (15A)
„ 30 (15A)
„ 32 (15A)
„ 34 (20A)
„ 35 (15A)
„ 37 (5A)
„ 38 (20A)
„ 39 (5A)
z Circuitry Klj . 5 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

To exit the instrument cluster self-
diagnostic mode, turn the ignition switch to the OFF position or press
and hold the SELECT/RESET button for three or more seconds and release. z
93- 102 = 6.9- 9.1 volts (low voltage)
z 115- 124 = 8.5- 10.7 volts (norm band start)
z 215- 225 = 15.8- 18 volts (norm band end)
z 230- 241 = 16.9- 19.1 volts (high voltage) rhEo Displays the present decimal rheostat dimming input, 0-
255 (used when requesting
assistance from the hotline). rhi
rhS rho Not used.
Cr Displays the present RUN/START sense input. Display will show -
h for high input with
the ignition switch in the START position and - L for low input with the ignition switch in
the RUN position. PA-
PE7 Not used.
GAGE Repeats test display cycle.
Instrument Cluster Diagnostic Trouble Code (DTC) Index Diagnostic
Tool
Displayed DTC Self-
Diagnostic
Mode Displayed DTC Description Source Action
B1202 9202 Fuel Sender
Open Circuit Instrument
Cluster Go To Pinpoint Test B .
B1204 9204 Fuel Sender
Short to Ground Instrument
Cluster Go To Pinpoint Test B .
B1317 9317 Battery Voltage
High Instrument
Cluster Section 414 - 00 .
B1318 9318 Battery Voltage
Low Instrument
Cluster Section 414 - 00 .
B1342 9342 ECU is Defective Instrument
Cluster INSTALL a new instrument
cluster; REFER to Instrument Cluster in this section. TEST the
system for normal operation. B1343 9343 Heated Backlight
Input Circuit Failure Instrument
Cluster Section 501 - 11 .
B1356 9356 Ignition Run
Circuit Open Instrument
Cluster Go To Pinpoint Test A .
B1364 9364 Ignition Start
Circuit Open Instrument
Cluster Go To Pinpoint Test A .
B2143 A143 Odometer NVM
Mmory Failure Instrument
Cluster Go To Pinpoint Test J .
C1284 5284 Oil Pressure
Switch Failure Instrument
Cluster Go To Pinpoint Test C .
P1197 1197 Mileage Switch
Circuit Failure Instrument
Cluster Go To Pinpoint Test J . Klj . 7 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

z
Key in ON position.
z Enter the following diagnostic mode on the diagnostic tool:
Generic Electronic Module (GEM) PID.
z Monitor the GEM PIDs IGN_KEY, IGN_S, IGN_R, and
IGN_A, while inserting the ignition key and cycling the
ignition switch through all the positions.
z Did the PIDs agree with the ignition switch positions? K2 CHECK IF THE GEM IS RECEIVING THE CORRECT
SAFETY BELT SWITCH STATUS z
Monitor GEM PID D_SBELT while buckling and unbuckling
the driver safety belt.
z Did the PID display IN with the safety belt buckled and
OUT with the safety belt unbuckled? Yes
GO to
K3 .
No
REFER to Section 413 - 09 .
K3 CHECK THE GEM FOR INTERNAL OPEN OR SHORT
z
Key in OFF position.
z Monitor the safety belt warning indicator when turning the
ignition from the OFF to the ON position.
z Key in ON position.
z Did the safety belt warning indicator illuminate for
approximately three seconds and turn off? Yes
GO to
K10 .
No
GO to K4 .
K4 DETERMINE IF SAFETY BELT INDICATOR CIRCUIT IS
SHORTED TO GROUND z
Buckle the driver safety belt.
z Is the safety belt indicator always on? Yes
GO to
K5 .
No
GO to K7 .
K5 CHECK IF THE GEM IS INTERNALLY GROUNDED
z
Key in OFF position.
z Disconnect: GEM C201e.
z Key in ON position.
z Observe the safety belt warning indicator.
z Is the safety belt warning indicator always on? Yes
GO to
K6 .
No
GO to K10 .
K6 CHECK CIRCUIT 450 (DG/LG) FOR A SHORT TO GROUND
z
Key in OFF position.
z Disconnect: Instrument Cluster C220a.
z Measure the resistance between the GEM C201e pin 26,
circuit 450 (DG/LG), harness side and ground.
z Is the resistance greater than 10,000 ohms? Yes
GO to
K11 .
No
REPAIR the circuit. TEST
the system for normal
operation. K7 CHECK CIRCUIT 450 (DG/LG) FOR A SHORT TO
BATTERY z
Key in OFF position.
z Disconnect: GEM C201e.
z Disconnect: Instrument Cluster C220a. Yes
REPAIR the circuit. TEST
the system for normal Klj . 24 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
