2003 FORD MUSTANG ECO mode

DIAGNOSIS AND TESTING
Wipers and Washers
Refer to Wiring Diagrams Cell
59 , Generic Electronic Module for schematic and connector
information.
Refer to Wiring Diagrams Cell 81 , Interval Wiper/Washer for schematic and connector information.
Principles of Operation
Multifunction Wipers
The front wiper/washer feature controls the speed of the front windshield wipers and the amount of
washer fluid sprayed on the front windshield when requested by the customer. There are five (5) wiper
modes: OFF, LOW, HIGH, INTERVAL, and WASH.
Wiper Motor Speeds HIGH and LOW
There are two wiper speeds, HIGH and LOW. When the GEM detects the ignition switch circuits are in
the RUN or ACC states, and the GEM detects a high or low speed request from the wiper mode
circuits, the GEM will activate the wiper ON and OFF and the wiper speed circuits accordingly.
Wiper Motor Speeds Interval
There are one to seven wiper speed intervals, ranging from 1.5 seconds to 20 seconds in delay time
respectively, which can be selected. When the GEM detects the ignition switch circuits are in the RUN
or ACC states, and the GEM detects an interval selection of 1 through 7 from the delay/wash circuits, the GEM will activate the wiper ON and OFF and the wiper speed circuits accordingly. SECTION 501-
16: Wipers and Washers 2003 Mustang Workshop Manual Special Tool(s)
Alternator, Regulator, Battery
and Starter Tester (ARBST) or
equivalent
010-
00725 73 Digital Multimeter or
equivalent
105-
R0051 Worldwide Diagnostic System
(WDS)
418-
F224
New Generation STAR (NGS)
Tester
418- F052, or equivalent
diagnostic tool Klj . 1 ba
202003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Washers
When the GEM detects the ignition switch circuits are in RUN or ACC states, and the GEM detects a
WASH request from the wiper delay/wash circuits, the GEM will activate the washer pump relay circuit
for as long as the request is present up to 10 seconds.
Activation of the washer pump when in INTERVAL or OFF is delayed until a wash request is active for
a minimum amount of time. In this scenario, the wash request must be present continuously for at least
210 ms. This allows a wash request that is present for less than 210 ms, to provide additional
functionality by initiating a single wipe, called "mist wipe". The mist wipe function is a single wipe at low
speed without activating the washer motor.
When in LOW or HIGH, any WASH request, regardless of the length of time it is present, will activate
the washer pump. When in INTERVAL or OFF mode, upon deactivation of the washer motor, this
feature shall provide two wipes at low speed before returning to the INTERVAL or OFF state as
defined by the inputs. These additional wipes are provided to clear residual washer fluid from the front
windshield.
Inspection and Verification
1. Verify the customer concern by operating the wiper/washer system.
2. Visually inspect for obvious signs of mechanical and electrical damage.
3. If the concern remains after the inspection, connect the diagnostic tool to the data link connector (DLC) located beneath the instrument panel and select the vehicle to be tested from the
diagnostic tool menu. If diagnostic tool does not communicate with the vehicle:
zCheck that the program card is correctly installed.
z Check the connections to the vehicle.
z Check the ignition switch position.
4. If diagnostic tool still does not communicate with the vehicle, refer to the diagnostic tool manual.
5. Carry out the DATA LINK DIAGNOSTIC TEST. If diagnostic tool responds with: zCKT914, CKT915 or CKT70 = ALL ECUS NO RESP/NOT EQUIP, refer to Section 418 -
00 .
z NO RESPONSE/NOT EQUIPPED for GEM, go to Pinpoint Test A.
z SYSTEM PASSED, retrieve and record the continuous diagnostic trouble codes (DTCs),
erase the continuous DTCs and carry out self- test diagnostics for the GEM.
Visual Inspection Chart Mechanical Electrical
z
Hoses to windshield washer pump
z Wiper linkage z
CJB Fuse 39 (5A)
z CJB Fuse 26 (30A)
z Wiring harness
z Loose or corroded connector(s)
z Relays
z Motors
z Multifunction switch
z GEM Klj . 2 ba
202003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Safety Belt System
WARNING: All safety belt assemblies include retractors, buckles, front seat belt buckle
support assemblies (slide bar, if so equipped), shoulder belt height adjuster (if equipped), child
safety seat tether bracket assemblies (if equipped) and attaching hardware should be inspected
after any collision. Ford recommends new safety belt assemblies be installed unless a qualified
technician finds the assemblies show no damage and operate correctly. Safety belt assemblies
not in use during a collision should also be inspected and new assemblies installed if either
damage or incorrect operation is noted.
WARNING: Each seating position in the vehicle has a specific safety belt assembly which
consists of one buckle and one tongue. The safety belt assembly is designed to be used as a
pair and is not to be used across seating positions.
A continuous- loop, single retractor active restraint system is used on this vehicle for both the front
seats and the rear seats.
Safety Belt, Lap/Shoulder— Dual Locking Mode
WARNING: Rear- facing infant seats should never be placed in the front seats. Failure to
follow these instructions may result in personal injury.
The dual locking mode retractor on the shoulder belt portion of the combination lap/shoulder safety belt
for the front seat passenger and rear seat outboard passengers operates in two ways:
1. In the vehicle- sensitive (emergency locking) mode, the shoulder belt retractor will allow the
occupant freedom of movement, locking tightly only on hard braking, hard cornering or impacts
of approximately 8 km/h (5 mph) or more. The front and rear outboard safety belt retractors can
also be made to lock by pulling/jerking on the belt.
2. In the automatic locking mode, the shoulder belt retractor locks automatically and remains locked when the combination lap/shoulder safety belt is buckled, restricting occupant
movement. This mode provides tight lap/shoulder belt fit on the occupant and on a child safety
seat or infant carrier installation restraint.
When the combination lap/shoulder belt is unbuckled and allowed to retract completely, the retractor
switches to the vehicle sensitive (emergency) locking mode.
The automatic locking mode must be used when installing a child safety seat on the front passenger
seat and rear outboard seats where dual locking retractors are provided.
Safety Belt Warning System
The safety belt warning indicator illuminates and a chime sounds to remind the occupants to fasten
their safety belts.
The conditions of operation for the safety belt warning indicator and chime are as follows:
zIf the driver safety belt is not buckled before the ignition switch is turned to ON, then the safety
belt warning indicator illuminates for one to two minutes and the warning chime sounds for four
to eight seconds.
SECTION 501-
20A: Safety Belt System 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Diagnostic Instructions —
Air Bag Supplemental Restraint
System (SRS)
The symptom chart can be used to help locate the air bag supplemental restraint system (SRS)
concerns if no diagnostic trouble codes (DTCs) are retrieved and the listed symptoms are observed.
Whether or not the listed symptoms are observed, always perform the following.
1. Retrieve all DTCs stored in the restraints control module (RCM) memory. Refer to Retrieve/Clear Continuous DTCs in this section.
2. Run the On- Demand Self Test to determine what DTCs are currently being sensed by the
restraints control module (RCM) (14B321). Refer to On- Demand Self Test in this section.
3. If the stored DTCs are different than the current DTCs, always repair the current DTCs first.
4. If memory displays different continuous DTCs than the On- Demand Self-Test, perform in the
following order:
z On- Demand Self- Test.
z Memory (Retrieve/Clear Continuous DTCs).
A DTC can indicate several concerns. The DTCs are to assist in system diagnosis and are not to be
considered definitive. Always refer to the pinpoint test corresponding to the DTC to determine where
the concern lies and to repair the concern correctly.
The SRS diagnostics can be divided into three sections.
zDiagnostic test modes
z PID/data monitor and record
z Active command modes
Diagnostic Test Modes
Two menu options are available under the diagnostic test modes.
zRetrieve/Clear Continuous DTCs.
z On- Demand Self Test.
SECTION 501-
20B: Supplemental Restraint System 2003 Mustang Workshop Manual Special Tool(s)
Worldwide Diagnostic System
(WDS)
418-
F224,
New Generation STAR (NGS)
Tester
418- F052, or equivalent scan
tool Klj . 1 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

An air bag indicator that is illuminated continuously can be caused by one of the following:
zworn or damaged shorting bar or camming beam.
z the ignition circuit damaged.
z the RCM disconnected from the vehicle harness.
z a loss of RCM ground circuits.
z the RCM inoperative.
z circuitry.
PINPOINT TEST A: THE AIR BAG WARNING INDICATOR IS
ILLUMINATED CONTINUOUSLY — RCM DISCONNECTED,
INOPERATIVE, OR LOST/LOW IGNITION FEED Test Step Result / Action to
Take A1 CHECK FOR CONTINUOUS OR ON-
DEMAND SELF TEST DTCs z
Key in OFF position.
z Connect the diagnostic tool. Scan Tool
z Key in ON position.
z Enter the following diagnostic mode on the diagnostic tool:
Retrieve/Clear Continuous DTCs.
z Retrieve and record any continuous DTCs for use later in this pinpoint
test.
z Enter the following diagnostic mode on the diagnostic tool: On-
Demand Self Test.
z Were any continuous or on- demand self test DTCs retrieved? Yes
If continuous
DTCs were
retrieved, GO to
A3
. If on-
demand
DTCs were
retrieved, GO to
the Restraints
Control Module
(RCM) Diagnostic
Trouble Code
(DTC) Priority
Table in this
section for
pinpoint test
direction.
No
GO to A2 .
A2 CHECK THE RCM CONNECTION
WARNING: If the supplemental restraint system (SRS) is
being serviced, the system must be deactivated and restraint
system diagnostic tools must be installed. Refer to Air Bag Supplemental Restraint System (SRS) in this section.
The air bag restraint system diagnostic tools must be removed
and the air bag modules reconnected when the system is
reactivated to avoid non- deployment in a collision, resulting in
possible personal injury. NOTE: Diagnostics or repairs are not to
be performed on a seat equipped with a seat side air bag with the
seat in the vehicle. Prior to attempting to diagnose or repair a seat
concern when equipped with a seat side air bag, the seat must be
removed from the vehicle and the restraint system diagnostic tools
must be installed in the seat side air bag electrical connectors. The
restraint system diagnostic tools must be removed prior to
operating the vehicle over the road. NOTE: After diagnosing or Yes
GO to
A3 .
No
CONNECT C2041
and engage the
locking tabs. GO
to A7 . Klj . 2 ba
462003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Pinpoint Test B: LFC 21/DTC B1921 —
RCM Bracket Ground Resistance High
Normal Operation
WARNING: The tightening torque of the restraints control module (RCM) retaining bolts is
critical for proper air bag supplemental restraint system (SRS) operation. Refer to Restraints Control Module (RCM) in this section for correct torque values.
The restraints control module (RCM) monitors the resistance between the ground connections at its
housing and the reference ground at pin 21. If the RCM detects a resistance greater than 100 ohms, it
will store a diagnostic trouble code (DTC) B1921 in memory and flash a lamp fault code (LFC) 21 (or
higher priority code if one exists) on the air bag indicator.
Possible Causes
High resistance between the RCM housing ground and pin ground can be caused by:
zincorrect seating of the RCM retaining bolts.
z incorrect tightening torque of the RCM retaining bolts.
z high resistance on RCM logic ground circuit 397 (BK/WH).
PINPOINT TEST B: LFC 21/DTC B1921 — RCM BRACKET GROUND
RESISTANCE HIGH section for
pinpoint test
direction.
No
RECONNECT the
system.
REACTIVATE the
system. PROVE
OUT the system.
REFER to
Air Bag Supplemental
Restraint System
(SRS) in this
section. CLEAR all
DTCs. Test Step Result / Action to Take
B1 CHECK FOR A HARD OR INTERMITTENT DTC
z
Key in OFF position.
z Connect the diagnostic tool. Scan Tool
z Key in ON position.
z Enter the following diagnostic mode on the diagnostic tool:
Retrieve/Clear Continuous DTCs.
z Retrieve and record any continuous DTCs for use later in
this pinpoint test.
z Enter the following diagnostic mode on the diagnostic tool:
On- Demand Self Test.
z Was DTC B1921 retrieved during the on- demand self Yes
This is a hard fault. The fault
condition is still present. This
fault cannot be cleared until it
is corrected and the DTC is
no longer retrieved during the
on-demand self test. GO to
B2 .
No Klj . 5 ba
462003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

z
Key in OFF position.
z Connect the diagnostic tool. Scan Tool
z Key in ON position.
z Enter the following diagnostic mode on the diagnostic tool:
Retrieve/Clear Continuous DTCs.
z Retrieve and record any continuous DTCs for use later in this pinpoint
test.
z Enter the following diagnostic mode on the diagnostic tool: On-
Demand Self Test.
z Was DTC C1414 retrieved during the on- demand self test? Yes
This is a hard
fault. The fault
condition is still
present. This fault
cannot be cleared
until it is corrected
and the DTC is no
longer retrieved
during the on-
demand self test.
GO to
C2 .
No
This is an
intermittent fault.
The fault condition
is not present at
this time. GO to
C5 .
C2 CHECK THE VEHICLE IDENTIFICATION PINS NO. 1 AND NO. 2
WARNING: If the supplemental restraint system (SRS) is
being serviced, the system must be deactivated and restraint
system diagnostic tools must be installed. Refer to Air Bag Supplemental Restraint System (SRS) in this section.
The air bag restraint system diagnostic tools must be removed
and the air bag modules reconnected when the system is
reactivated to avoid non- deployment in a collision, resulting in
possible personal injury. NOTE: Diagnostics or repairs are not to be
performed on a seat equipped with a seat side air bag with the seat in
the vehicle. Prior to attempting to diagnose or repair a seat concern
when equipped with a seat side air bag, the seat must be removed
from the vehicle and the restraint system diagnostic tools must be
installed in the seat side air bag electrical connectors. The restraint
system diagnostic tools must be removed prior to operating the
vehicle over the road. NOTE: After diagnosing or repairing an SRS,
the restraint system diagnostic tools must be removed before
operating the vehicle over the road. NOTE: After diagnosing or
repairing a seat system, the restraint system diagnostic tools must
be removed before operating the vehicle over the road. NOTE:
The SRS must be fully operational and free of faults before releasing
the vehicle to the customer. NOTE: For this vehicle application, RCM
C2041 pins 10 and 13 should be open circuited.
z Key in OFF position.
z Deactivate the system. Refer to Air Bag Supplemental Restraint System (SRS) in the Diagnosis and Testing portion of this section.
z Key in OFF position.
z Disconnect: RCM C2041.
z Make sure the RCM C2041 pin 10 and pin 13 connector slots are
empty and no connection is made when connected to the RCM.
z Are the RCM C2041 pin 10 and pin 13 connector slots empty? Yes
GO to
C3 .
No
REPAIR any
concern found at
the RCM C2041
pin 10 and pin 13
connector slots.
GO to C6 .
C3 CHECK THE VEHICLE IDENTIFICATION PIN NO. 3
NOTE:
For this vehicle application, RCM C2041 pin 14, circuit 611
(WH/OG) should be connected to ignition voltage.
z Measure the voltage at RCM C2041 pin 14, circuit 611 (WH/OG),
harness side and ground. Yes
GO to
C4 .
No
REPAIR the
circuit. GO to C6 . Klj . 8 ba
462003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

z

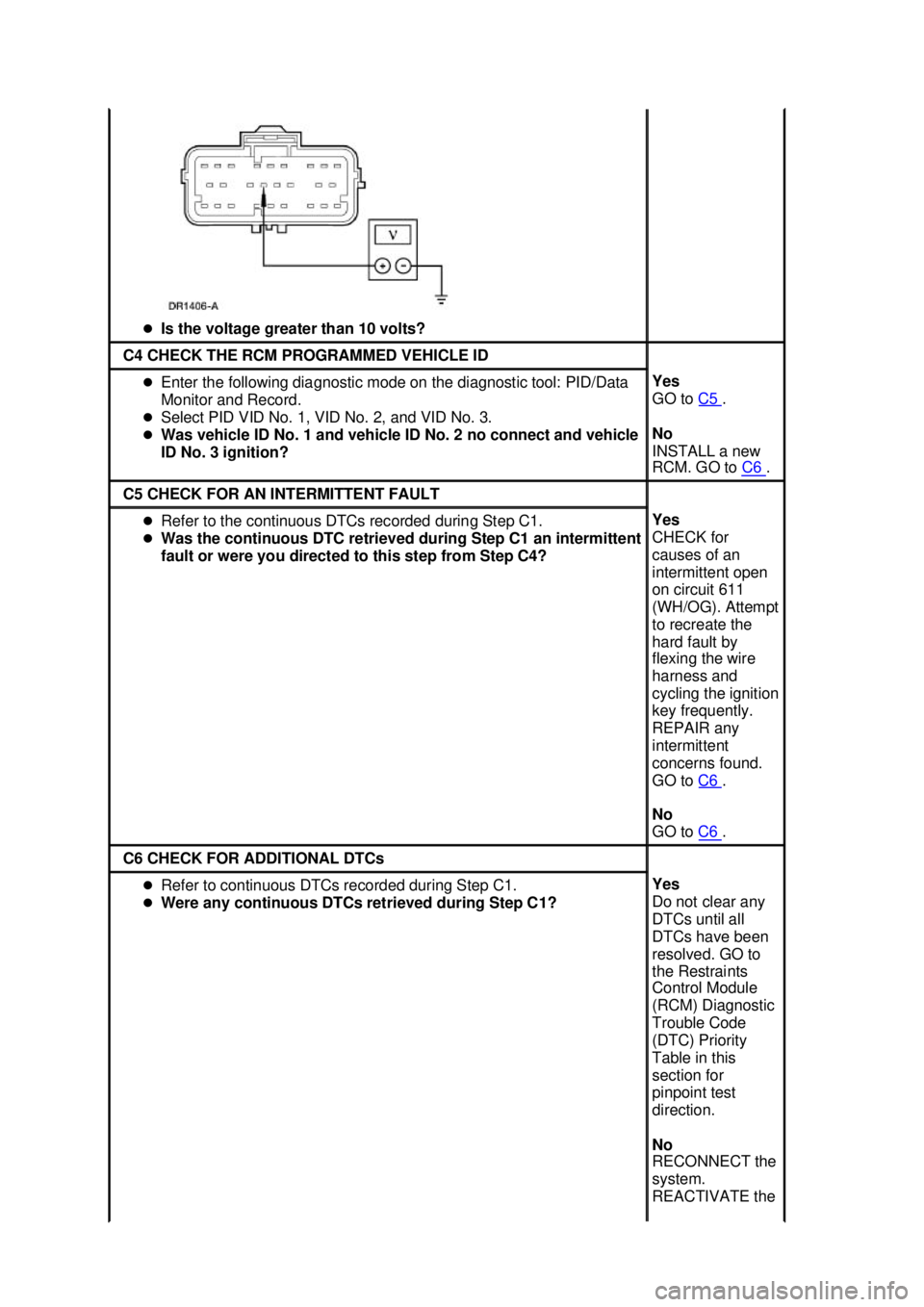

Is the voltage greater than 10 volts? C4 CHECK THE RCM PROGRAMMED VEHICLE ID
z
Enter the following diagnostic mode on the diagnostic tool: PID/Data
Monitor and Record.
z Select PID VID No. 1, VID No. 2, and VID No. 3.
z Was vehicle ID No. 1 and vehicle ID No. 2 no connect and vehicle
ID No. 3 ignition? Yes
GO to
C5 .
No
INSTALL a new
RCM. GO to C6 .
C5 CHECK FOR AN INTERMITTENT FAULT
z
Refer to the continuous DTCs recorded during Step C1.
z Was the continuous DTC retrieved during Step C1 an intermittent
fault or were you directed to this step from Step C4? Yes
CHECK for
causes of an
intermittent open
on circuit 611
(WH/OG). Attempt
to recreate the
hard fault by
flexing the wire
harness and
cycling the ignition
key frequently.
REPAIR any
intermittent
concerns found.
GO to
C6 .
No
GO to C6 .
C6 CHECK FOR ADDITIONAL DTCs
z
Refer to continuous DTCs recorded during Step C1.
z Were any continuous DTCs retrieved during Step C1? Yes
Do not clear any
DTCs until all
DTCs have been
resolved. GO to
the Restraints
Control Module
(RCM) Diagnostic
Trouble Code
(DTC) Priority
Table in this
section for
pinpoint test
direction.
No
RECONNECT the
system.
REACTIVATE the Klj . 9 ba
462003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
