2003 FORD MUSTANG fog light

DESCRIPTION AND OPERATION

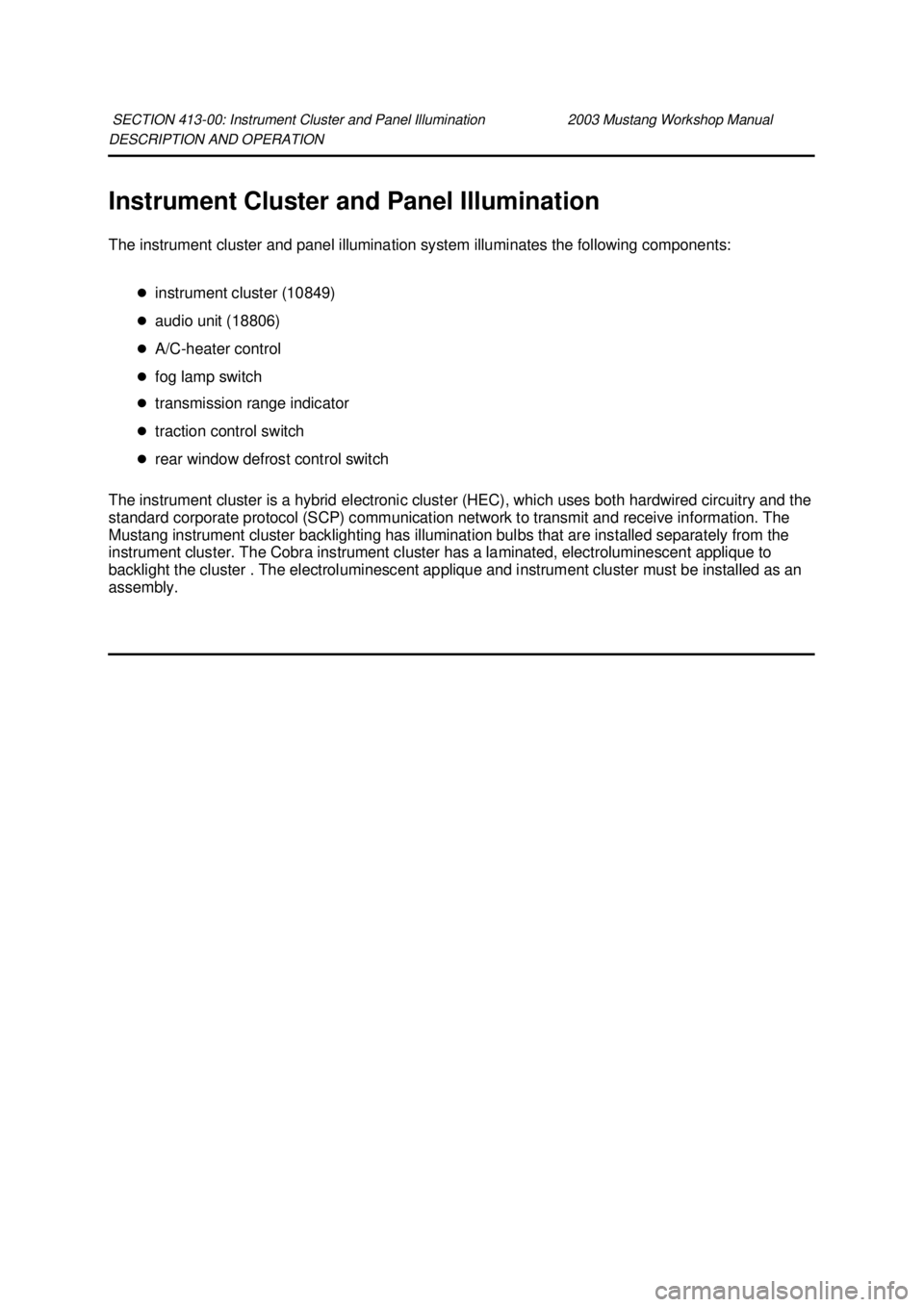

Instrument Cluster and Panel Illumination
The instrument cluster and panel illumination system illuminates the following components:
zinstrument cluster (10849)
z audio unit (18806)
z A/C- heater control
z fog lamp switch
z transmission range indicator
z traction control switch
z rear window defrost control switch
The instrument cluster is a hybrid electronic cluster (HEC), which uses both hardwired circuitry and the
standard corporate protocol (SCP) communication network to transmit and receive information. The
Mustang instrument cluster backlighting has illumination bulbs that are installed separately from the
instrument cluster. The Cobra instrument cluster has a laminated, electroluminescent applique to
backlight the cluster . The electroluminescent applique and instrument cluster must be installed as an
assembly. SECTION 413-
00: Instrument Cluster and Panel Illumination 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Exterior Lighting
The exterior lighting system consists of the following components:
zheadlamps (13008)
z parking lamps
z rear lamps (13404)
z high mounted stoplamp
z license lamps
z front turn lamps
z reversing lamps
z fog lamps (if equipped)
z headlamp switch (11654)
z fog lamp switch (if equipped)
z brake pedal position (BPP) switch (13480)
z multifunction switch (13K359)
z digital transmission range (DTR) sensor (A/T)
z reversing lamp switch (M/T)
z electronic flasher
z fog lamp relays (if equipped)
SECTION 417-
01: Exterior Lighting 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Fog Lamps
Refer to Wiring Diagrams Cell
86 , Fog Lamps for schematic and connector information.
Principles of Operation
The fog lamps will only illuminate when the low beam or parking lamps are illuminated. Voltage from
the parking lamp circuit is used to activate the fog lamp relay when the fog lamp switch is ON. Voltage
from the high beam headlamp circuit will activate the fog lamp interrupt relay. When the fog lamp
interrupt relay is active, the ground path is removed from the fog lamp relay, turning off the fog lamps.
Inspection and Verification 1. Verify the customer concern by operating the fog lamps.
2. Visually inspect for the following obvious signs of mechanical and electrical damage.
3. If the concern is not visually evident, determine the symptom and proceed to Symptom Chart.
Symptom Chart SECTION 417-
01: Exterior Lighting 2003 Mustang Workshop Manual Special Tool(s)
73 III Automotive Meter or
equivalent
105-
R0057
Visual Inspection Chart Mechanical Electrical
z
Damaged headlamp switch (11654)
z Damaged fog lamp switch
z Damaged multifunction switch
(13K359) z
Blown battery junction box (BJB) Fuse 27
(20A)
z Blown central junction box (CJB) Fuse 38
(20A)
z Damaged wiring harness
z Loose or corroded connections
z Damaged fog lamp relay
z Damaged fog lamp interrupt relay
z Damaged fog lamp
Symptom Chart Klj . 1 ba
62003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Lamp Assembly —
Fog Lamp (GT)
Removal 1. Raise and support the vehicle.
2. Remove the screw.
3. Partially lower the vehicle and remove the fog lamp assembly. 1. Disconnect the electrical connector.
2. Remove the two screws.
3. Remove the fog lamp assembly and replace the bulb if necessary.
Installation 1. NOTE: Be sure the fascia clip is correctly installed on the bottom side of the fog lamp assembly
bracket.
To install, reverse the removal procedure.
SECTION 417-
01: Exterior Lighting 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Lamp Assembly —

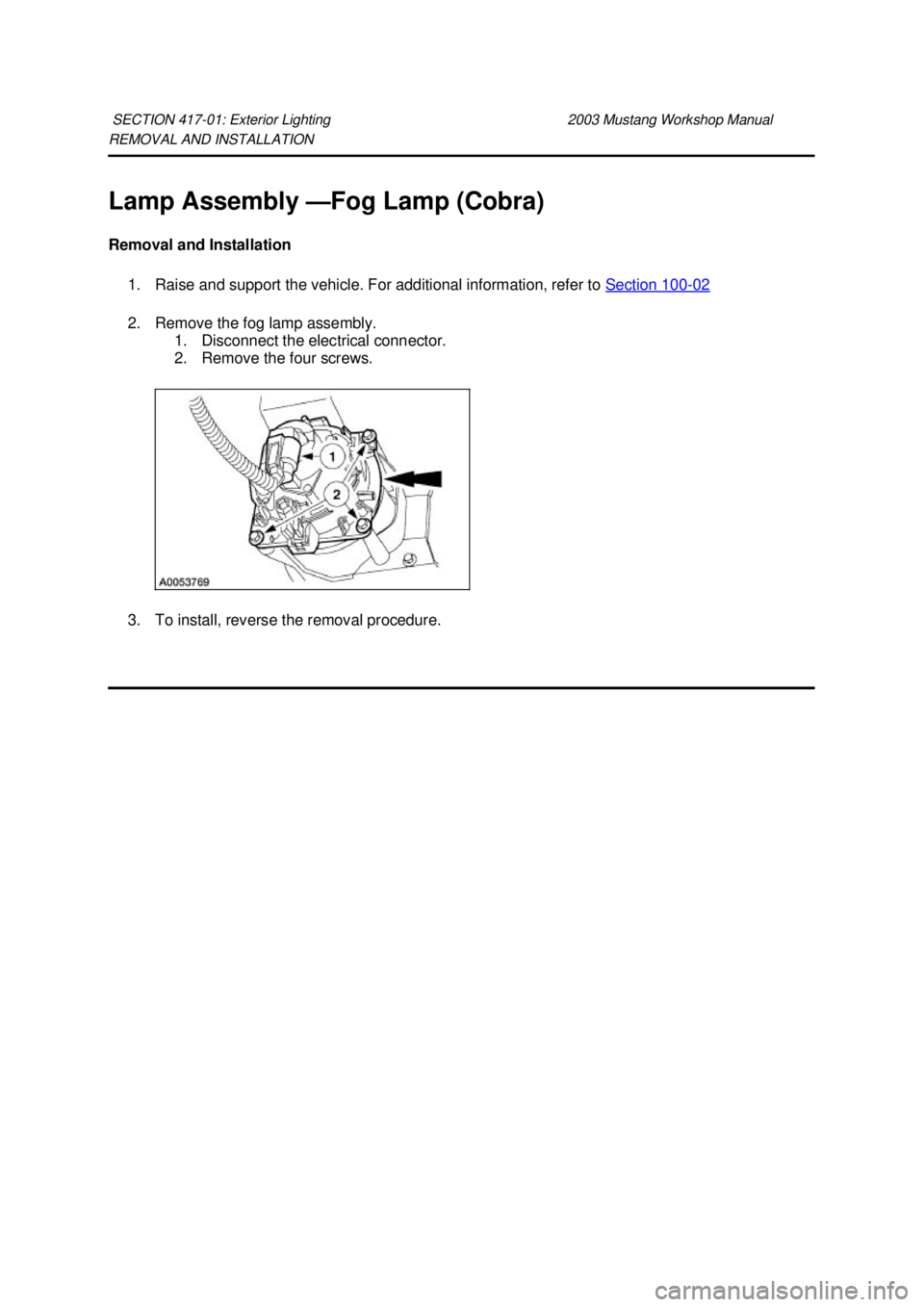

Fog Lamp (Cobra)
Removal and Installation 1. Raise and support the vehicle. For additional information, refer to Section 100 - 02
2. Remove the fog lamp assembly.
1. Disconnect the electrical connector.
2. Remove the four screws.
3. To install, reverse the removal procedure.
SECTION 417-
01: Exterior Lighting 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
