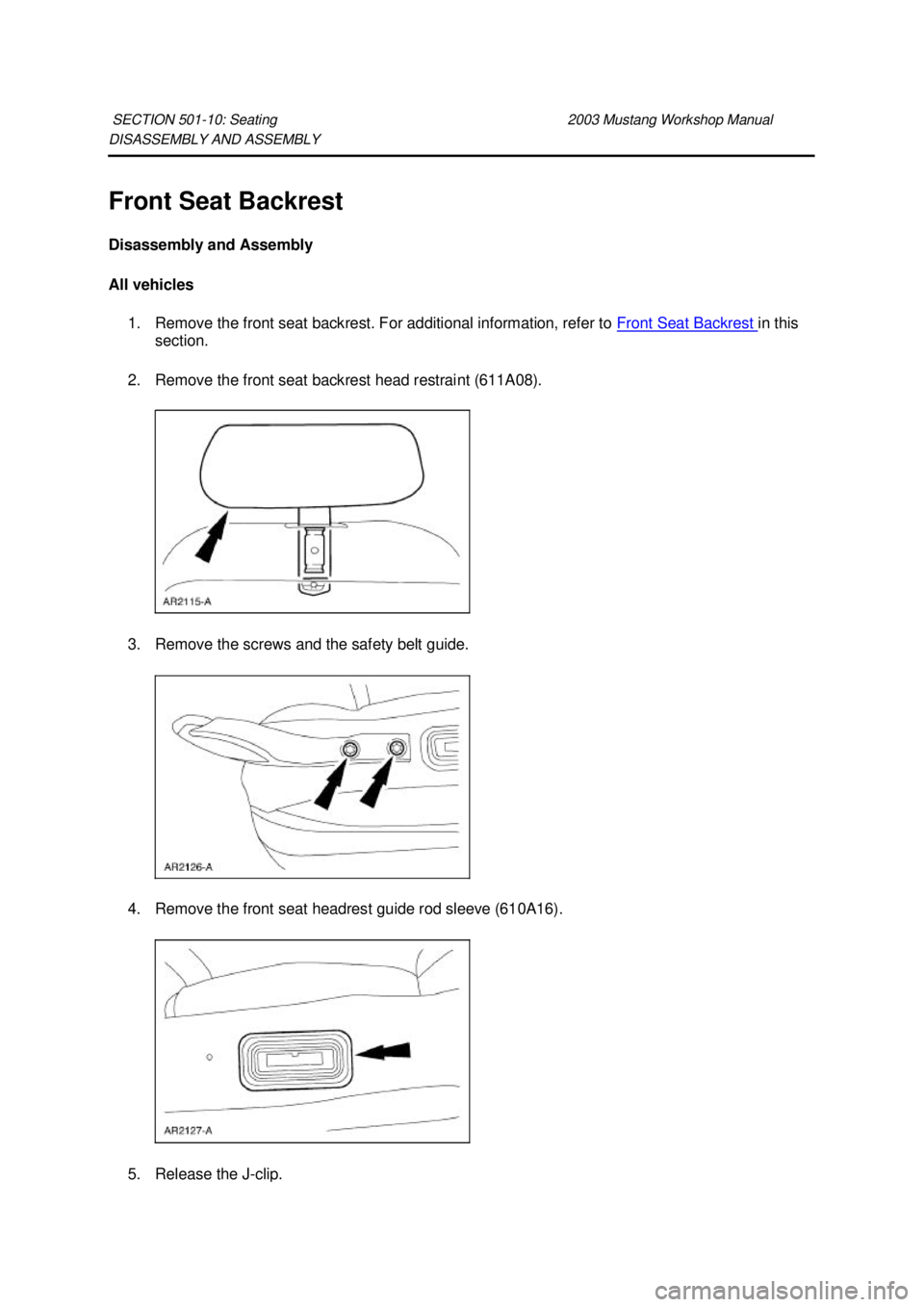

DISASSEMBLY AND ASSEMBLY
Front Seat Backrest
Disassembly and Assembly
All vehicles
1. Remove the front seat backrest. For additional information, refer to Front Seat Backrest in this
section.
2. Remove the front seat backrest head restraint (611A08).
3. Remove the screws and the safety belt guide.
4. Remove the front seat headrest guide rod sleeve (610A16). 5. Release the J - clip. SECTION 501-
10: Seating 2003 Mustang Workshop Manual Klj . 1 ba
