2003 FORD MUSTANG diagnostic menu

3. If the concern remains after the inspection, connect the scan tool to the data link connector
(DLC) located beneath the instrument panel and select the vehicle to be tested from the scan
tool menu. If the scan tool does not communicate with the vehicle: 1. Check that the program card is correctly installed.
2. Check the connections to the vehicle.
3. Check the ignition switch position.
4. If the scan tool still does not communicate with the vehicle, refer to the scan tool Manual.
5. Carry out the DATA LINK DIAGNOSTIC TEST. If the scan tool responds with: 1. CKT914, CKT915 or CKT70 = ALL ECUS NO RESP/NOT EQUIP, refer to Section 418-00.
2. NO RESP/NOT EQUIP for the anti- lock brake control module, Go To Pinpoint Test A .
3. SYSTEM PASSED, retrieve and record the continuous diagnostic trouble codes (DTCs), erase the continuous DTCs and carry out self- test diagnostics for the anti-lock brake
control module.
6. If the DTCs retrieved are related to the concern, go to the Anti- Lock Brake Control Module
Diagnostic Trouble Code (DTC) Reference Chart to continue diagnostics.
7. If no DTCs related to the concern are retrieved, GO to Symptom Chart to continue diagnostics.
Anti-Lock Brake Control Module Diagnostic Trouble Code (DTC) Index
NOTE: If a wheel speed signal fault or a pump motor fault is detected, the yellow ABS warning
indicator cannot be reset with the key OFF and key ON method. The vehicle must be driven over 12
km/h (8 mph) for the anti- lock brake control module to carry out a re- check of the system before the
yellow ABS warning indicator is turned OFF. Visual Inspection Chart Mechanical Electrical
z
Low brake fluid
z Anti- lock brake sensor
z Anti- lock brake sensor indicator
z Base brake system z
Central junction box (CJB)Fuse:
„15 (10A)
„ 29 (15A)
„ 33 (15A)
„ 35 (15A)
z Battery junction box (BJB) Fuse:
„ABS 1 (50A)
„ ABS 2 (20A)
z Circuitry
z Damaged or corroded connectors
z Yellow ABS warning indicator
z Loose grounds
Anti-Lock Brake Control Module Diagnostic Trouble Code (DTC) Index DTC Description Source Action
B1318 Battery Voltage Low ABS Go To Pinpoint Test C .
B1342 ECU Is Defective ABS INSTALL a new anti-
lock brake control module;
REFER to Module . REPEAT the self-
test. B1484 Brake Pedal Input Open Circuit ABS Go To Pinpoint Test D . Klj . 2 ba
162003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Inspection and Verification
1. Verify the customer concern by operating the system.
2. Visually inspect for obvious signs of mechanical and electrical damage.
3. If the concern remains after the inspection, connect the scan tool to the data link connector (DLC) located beneath the instrument panel and select the vehicle to be tested from the scan
tool menu. If the scan tool does not communicate with the vehicle: 1. Check that the program card is correctly installed.
2. Check the connections to the vehicle.
3. Check the ignition switch position.
4. If the scan tool still does not communicate with the vehicle, refer to the scan tool manual.
5. Carry out the DATA LINK DIAGNOSTIC TEST. If the scan tool responds with: 1. CKT914, CKT915 or CKT70 = ALL ECUS NO RESP/NOT EQUIP, refer to Section 418-00.
2. NO RESP/NOT EQUIP for the anti- lock brake control module, Go To Pinpoint Test A .
3. SYSTEM PASSED, retrieve and record the continuous diagnostic trouble codes (DTCs),
erase the continuous DTCs and carry out self- test diagnostics for the anti-lock brake
control module.
6. If the DTCs retrieved are related to the concern, go to the Anti- Lock Brake Control Module
Diagnostic Trouble Code (DTC) Index to continue diagnostics.
7. If no DTCs related to the concern are retrieved, GO to Symptom Chart to continue diagnostics.
Anti-Lock Brake Control Module Diagnostic Trouble Code (DTC) Index
NOTE: If a wheel speed signal fault or a pump motor fault is detected, the yellow ABS warning
indicator cannot be reset with the key OFF and key ON method. The vehicle must be driven over 12
km/h (8 mph) for the anti- lock brake control module to do a re- check of the system before the yellow
ABS warning indicator is turned OFF. Visual Inspection Chart Mechanical Electrical
z
Low brake fluid
z Anti- lock brake sensor
z Anti- lock brake sensor indicator
z Base brake system
z Wheel bearings z
Central junction box (CJB) Fuse:
„5 (15A)
„ 15 (10A)
„ 29 (15A)
„ 33 (15A)
„ 35 (15A)
z Battery junction box (BJB) Fuse:
„ABS 1 (50A)
„ ABS 2 (20A)
z Circuitry
z Damaged or corroded connectors
z ABS warning indicator
z Loose grounds Klj . 2 ba
202003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Steering Column Switches
Refer to Wiring Diagrams Cell
13 , Power Distribution for schematic and connector information.
Refer to Wiring Diagrams Cell 81 , Interval Wiper/Washer for schematic and connector information.
Refer to Wiring Diagrams Cell 85 , Headlamps for schematic and connector information.
Refer to Wiring Diagrams Cell 90 , Turn/Stop/Hazard Lamps for schematic and connector information.
Inspection and Verification 1. Verify the customer concern by operating the multifunction or ignition switch.
2. Visually inspect for obvious signs of mechanical and electrical damage.
3. If the concern remains after the inspection, connect the scan tool to the data link connector (DLC) located beneath the instrument panel and select the vehicle to be tested from the scan
tool menu. If the scan tool does not communicate with the vehicle:
zcheck that the program card is correctly installed.
SECTION 211-
05: Steering Column Switches 2003 Mustang Workshop Manual Special Tool(s)
Worldwide Diagnostic System
(WDS)
418-
F224,
New Generation STAR (NGS)
Tester
418- F052, or equivalent scan
tool 73 Digital Multimeter
105-
R0051 or equivalent
Visual Inspection Chart Mechanical Electrical
z
Ignition key
z Ignition switch
z Multifunction switch
z Turn signal switch
z Hazard/flasher switch z
Battery junction box (BJB) Fuses:
„(3) IGN (40A)
z Central junction box (CJB) Fuses:
„6 (25A)
„ 39 (5A)
z Damaged wiring harness
z Loose or corroded connections Klj . 1 ba
82003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

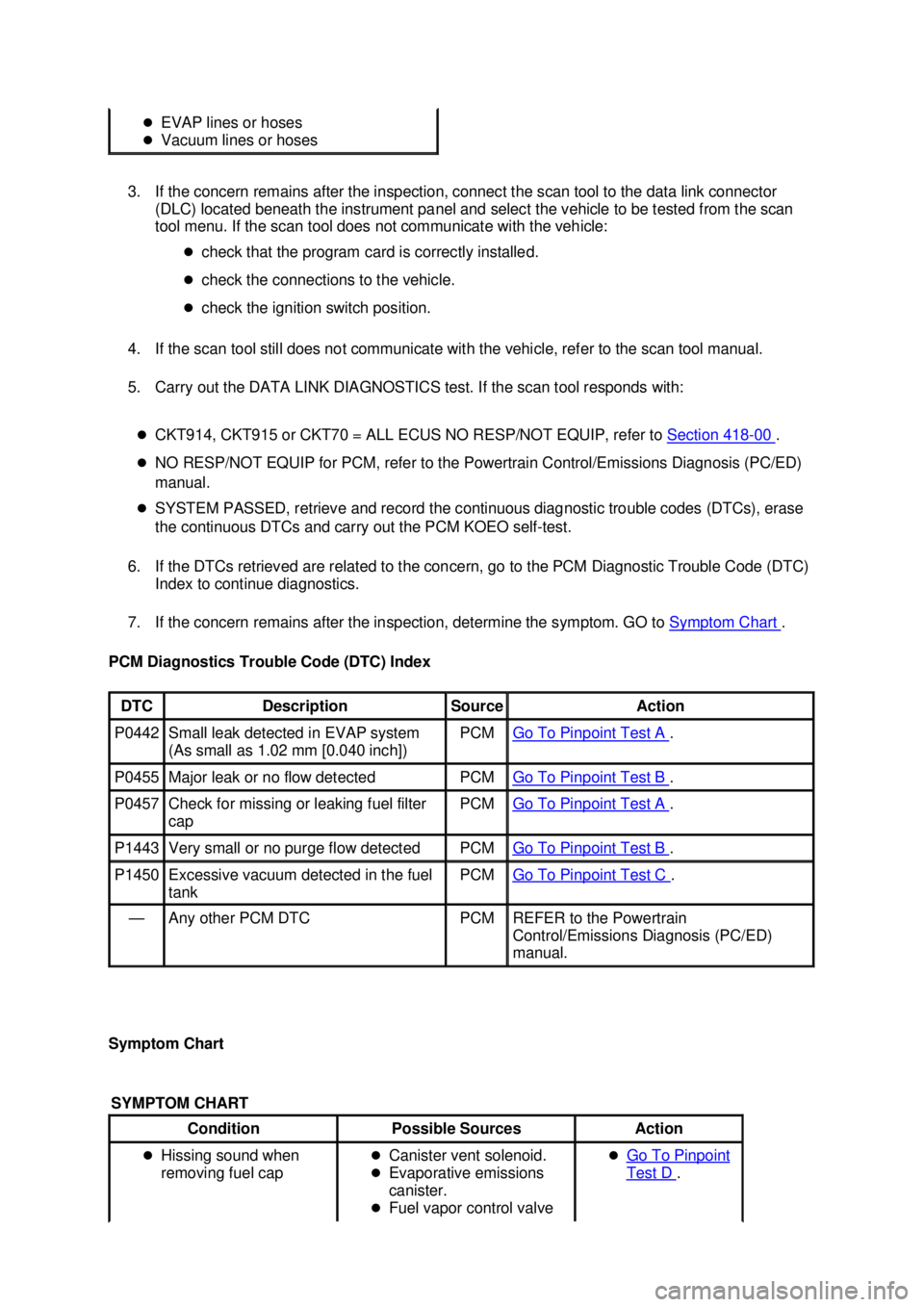

3. If the concern remains after the inspection, connect the scan tool to the data link connector
(DLC) located beneath the instrument panel and select the vehicle to be tested from the scan
tool menu. If the scan tool does not communicate with the vehicle:
zcheck that the program card is correctly installed.
z check the connections to the vehicle.
z check the ignition switch position.
4. If the scan tool still does not communicate with the vehicle, refer to the scan tool manual.
5. Carry out the DATA LINK DIAGNOSTICS test. If the scan tool responds with:
z CKT914, CKT915 or CKT70 = ALL ECUS NO RESP/NOT EQUIP, refer to Section 418 - 00 .
z NO RESP/NOT EQUIP for PCM, refer to the Powertrain Control/Emissions Diagnosis (PC/ED)
manual.
z SYSTEM PASSED, retrieve and record the continuous diagnostic trouble codes (DTCs), erase
the continuous DTCs and carry out the PCM KOEO self- test.
6. If the DTCs retrieved are related to the concern, go to the PCM Diagnostic Trouble Code (DTC) Index to continue diagnostics.
7. If the concern remains after the inspection, determine the symptom. GO to Symptom Chart .
PCM Diagnostics Trouble Code (DTC) Index
Symptom Chart z
EVAP lines or hoses
z Vacuum lines or hoses DTC Description Source Action
P0442 Small leak detected in EVAP system
(As small as 1.02 mm [0.040 inch]) PCM Go To Pinpoint Test A .
P0455 Major leak or no flow detected PCM Go To Pinpoint Test B .
P0457 Check for missing or leaking fuel filter
cap PCM Go To Pinpoint Test A .
P1443 Very small or no purge flow detected PCM Go To Pinpoint Test B .
P1450 Excessive vacuum detected in the fuel
tank PCM Go To Pinpoint Test C .
— Any other PCM DTC PCM REFER to the Powertrain
Control/Emissions Diagnosis (PC/ED)
manual.
SYMPTOM CHART Condition
Possible Sources Action
z Hissing sound when
removing fuel cap z
Canister vent solenoid.
z Evaporative emissions
canister.
z Fuel vapor control valve z
Go To Pinpoint Test D . Klj . 4 ba
252003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Output State Control (OSC) Mode
Output State Control (OSC) allows the technician to take control of certain parameters to function the
transmission. For example, OSC allows the technician to shift the transmission only when he/she
commands a gear change. If the technician commands 1st gear in OSC, the transmission will remain
in 1st gear until the technician commands the next gear. Another example, the technician can
command a shift solenoid to turn on or off when carrying out an electrical circuit check. OSC has two
modes of operation for transmission, the BENCH MODE and the DRIVE MODE. Each
mode/parameter has a unique set of vehicle operating requirements that the technician is required to
meet before being allowed to operate OSC.
NOTE:
To operate OSC the digital transmission range (TR) sensor must be operational. No Diagnostic
Trouble Codes (DTCs) related to the digital TR sensor can be present.
To operate OSC the vehicle speed source must be operational. No diagnostic codes (DTCs) related to
this source can be present. The vehicle speed source can vary depending on vehicle configuration.
Technicians should verify which input source is applicable for their vehicle application. The following
are potential vehicle speed sources:
„anti- lock braking system (ABS)
„ output shaft speed (OSS) sensor
„ vehicle speed sensor
z The vehicle requirements MUST BE MET when SENDING the OSC value. Refer to individual
test modes for vehicle requirements.
z If the vehicle requirements are NOT MET when SENDING the OSC value, an ERROR
MESSAGE will appear. When the ERROR MESSAGE is received, OSC is aborted and must be
restarted.
z If AFTER SENDING an OSC value, and the vehicle requirements are no longer met, the PCM
will cancel the OSC value and NO ERROR message will appear. Once the vehicle requirements
are met again, the PCM will automatically SEND the previous OSC value without any additional
actions required by the service technician.
z The OSC value XXX may be sent anytime to cancel OSC.
Output State Control (OSC) Procedures
zCarry out visual inspection and vehicle preparation as required.
z Select "Vehicle and Engine Selection" menu.
z Select appropriate vehicle and engine.
z Select "Diagnostic Data Link."
z Select "Powertrain Control Module."
z Select "Output Test Mode."
z Select "KOEO On- Demand Self Test and KOER On- Demand Self Tests."
z Carry out test and record DTCs.
z Repair all NON- Transmission DTCs.
z Repair all digital TR Sensor DTCs.
SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Klj . 1 ba
92003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

z
Repair all vehicle speed DTCs.
z Make sure that the vehicle speed sensor and digital TR sensors are functional.
z Select "Active Command Modes."
z Select "Trans - Bench Mode or Trans - Drive Mode."
OSC — Transmission Bench Modes
The following Transmission Bench Modes may be used or required during diagnostics.
SSA, SSB and TCC in BENCH MODE
The BENCH MODE allows the technician to carry out electrical circuit checks on the following
components:
zSSA - activates SSA OFF or ON.
z SSB - activates SSB OFF or ON.
z Transmission converter clutch (TCC) - activates TCC OFF or ON.
OSC "SSA, SSB, TCC" BENCH MODE operates ONLY when:
zthe digital TR sensor is operational and no digital TR sensor DTCs are present.
z the vehicle speed input is operational and no VSS sensor DTCs are present.
z the transmission range selector lever is in P.
z the key is ON.
z the engine is OFF.
OSC Command Values
zOFF - turns solenoid OFF.
z ON - turns solenoid ON.
z XXX - cancels OSC value sent.
z SEND - sends the values to PCM.
BENCH MODE Procedure for SSA, SSB and TCC
Follow operating instructions from the scan tool menu screen:
zSelect "Output State Control."
z Select "Trans - Bench Mode."
z Select "PIDs" to be monitored.
z Monitor all selected PIDs during test.
z Select "Parameters - SSA, SSB or TCC."
z Select "ON" to turn solenoid ON.
z Press "SEND" to send command ON.
z Select "OFF" to turn solenoid OFF.
z Press "SEND" to send command OFF. Klj . 2 ba
92003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

2. Inspect to determine if one of the following mechanical or electrical concerns apply:
a A leak in the vacuum control circuit may occur during acceleration (slow leak), at all times
(large leak), or only when specific functions are selected (indicating a leak in that portion of the
circuit). The vacuum hoses used in the passenger compartment control circuit are constructed
from PVC plastic material. The vacuum hoses used in the engine compartment are constructed
of Hytrel® . Because of the materials used, never pinch the vacuum hoses off during diagnosis
to locate a leak. A wood golf tee can be used as a plug when it is necessary to plug one end of
a vacuum hose for leak test purposes.
3. If the inspection reveals obvious concerns that can be readily identified, repair as required.
4. If the concern remains after the inspection, connect the scan tool to the data link connector (DLC) located beneath the instrument panel and select the vehicle to be tested from the scan
tool menu. If the vehicle selection cannot be entered:
zcheck that the program card is correctly installed.
z check the connections to the vehicle.
z check the ignition switch position.
If the scan tool still does not allow the vehicle selection to be entered, refer to the scan tool manual. 5. Carry out the DATA LINK DIAGNOSTIC TEST using the scan tool. If the scan tool responds with:
zCKT 914, CKT 915 or CKT 70 = ALL MODULE NO RESPONSE/NOT EQUIPPED, go to
Communication System Diagnostics in Section 418 - 00 to diagnose network concern.
z If the powertrain control module (PCM) is not listed for a communication concern, turn
the A/C function selector switch to OFF and execute self- test diagnostics for the PCM.
6. If any PCM DTCs are retrieved, and are related to the concern, go to the Powertrain Control Module Diagnostic Trouble Code (DTC) Index to continue diagnostics.
7. If no DTCs related to the concern are retrieved, go to the Symptom Chart to continue diagnostics.
Symptom Chart Visual Inspection Chart Mechanical Electrical
z
Loose, missing or damaged A/C compressor
drive belt.
z Loose or disconnected A/C clutch.
z Loose, misrouted or damaged vacuum lines. a
z Broken or leaking refrigerant lines.
z Broken or leaking vacuum control motor. z
Open fuses.
z Blower motor inoperative.
z A/C compressor inoperative.
z Circuitry open/shorted.
z Disconnected electrical
connectors.
Powertrain Control Module Diagnostic Trouble Code (DTC) Index DTC Description Action
P1460 WOT A/C cutout circuit
malfunction Refer to the Powertrain Control/Emissions Diagnosis
(PC/ED) manual.
P1464 A/C demand out of self-
test
range GO to DTC P1464. Klj . 5 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible)
before proceeding to the next step.
4. If the concern remains after the inspection, connect the diagnostic tool to the data link connector (DLC) located beneath the instrument panel and select the vehicle to be tested from the
diagnostic tool menu. If the diagnostic tool does not communicate with the vehicle:
zcheck that the program card is correctly installed.
z check the connections to the vehicle.
z check the ignition switch position.
5. If the diagnostic tool still does not power up, refer to the diagnostic tool operating manual.
6. Carry out the DATA LINK DIAGNOSTICS test. If the diagnostic tool responds with: zCKT914, CKT915 OR CKT70 = ALL ECUS NO RESP/NOT EQUIP, refer to Section 418 -
00 .
z NO RESP/NOT EQUIP for the instrument cluster, Go To Pinpoint Test A or for the
generic electronic module (GEM), Go To Pinpoint Test W .
z SYSTEM PASSED, retrieve and record the continuous diagnostic trouble codes (DTCs),
erase the continuous DTCs and carry out the self- test diagnostics for the instrument
cluster or the GEM.
7. If the DTCs retrieved are related to the concern, go to the Instrument Cluster Diagnostic Trouble Code (DTC) Index or the GEM Diagnostic Trouble Code Index to continue diagnostics.
8. If no DTCs related to the concern are retrieved, proceed to the Symptom Chart to continue diagnostics.
Instrument Cluster Self- Diagnostic Mode
To enter the instrument cluster self- diagnostic mode, press and hold the instrument cluster
SELECT/RESET button, turn the ignition switch to the RUN position, and then continue pressing the
SELECT/RESET button (five seconds) until tESt is displayed in the odometer. The SELECT/RESET
button must be released within three seconds of the odometer tESt display to begin the self- diagnostic
mode. Press the SELECT/RESET button to advance through the following steps until dtc is displayed.
Depressing the SELECT/RESET button will display any stored continuous DTCs before proceeding to
the next step. z
Engine coolant level
z Accessory drive belt
z Engine oil level
z Parking brake position switch
z Brake fluid level
z Boost gauge pressure line „
5 (15A)
„ 7 (15A)
„ 11 (15A)
„ 13 (15A)
„ 21 (5A)
„ 23 (15A)
„ 24 (30A)
„ 29 (15A)
„ 30 (15A)
„ 32 (15A)
„ 34 (20A)
„ 35 (15A)
„ 37 (5A)
„ 38 (20A)
„ 39 (5A)
z Circuitry Klj . 5 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
