Page 1217 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Oil Level Indicator and Tube Removal and Installation 1. Remove the oil level indicator. 2. Remove the LH exhaust manifold. For additional information, refer to Exhaust Manifol

Page 1218 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1219 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Oil Pan Removal 1. Disconnect the battery ground cable. 2. Remove the air cleaner outlet tube. For additional information, refer to Section 303 - 12 . 3. Remove the radiator

Page 1220 of 4378

FORD MUSTANG 2003 Workshop Manual 4. Install the special tool. 5. Using the special tools, support the engine. 6. Raise and support the vehicle. For additional information, refer to Section 100 - 02 . 7. Remove the two engine mou

Page 1221 of 4378

FORD MUSTANG 2003 Workshop Manual 10. Raise and support the vehicle. For additional information, refer to Section 100 - 02 . 11. Drain the engine oil. �zRemove the oil pan drain plug. 12. Using the special tool, compress the fron

Page 1222 of 4378

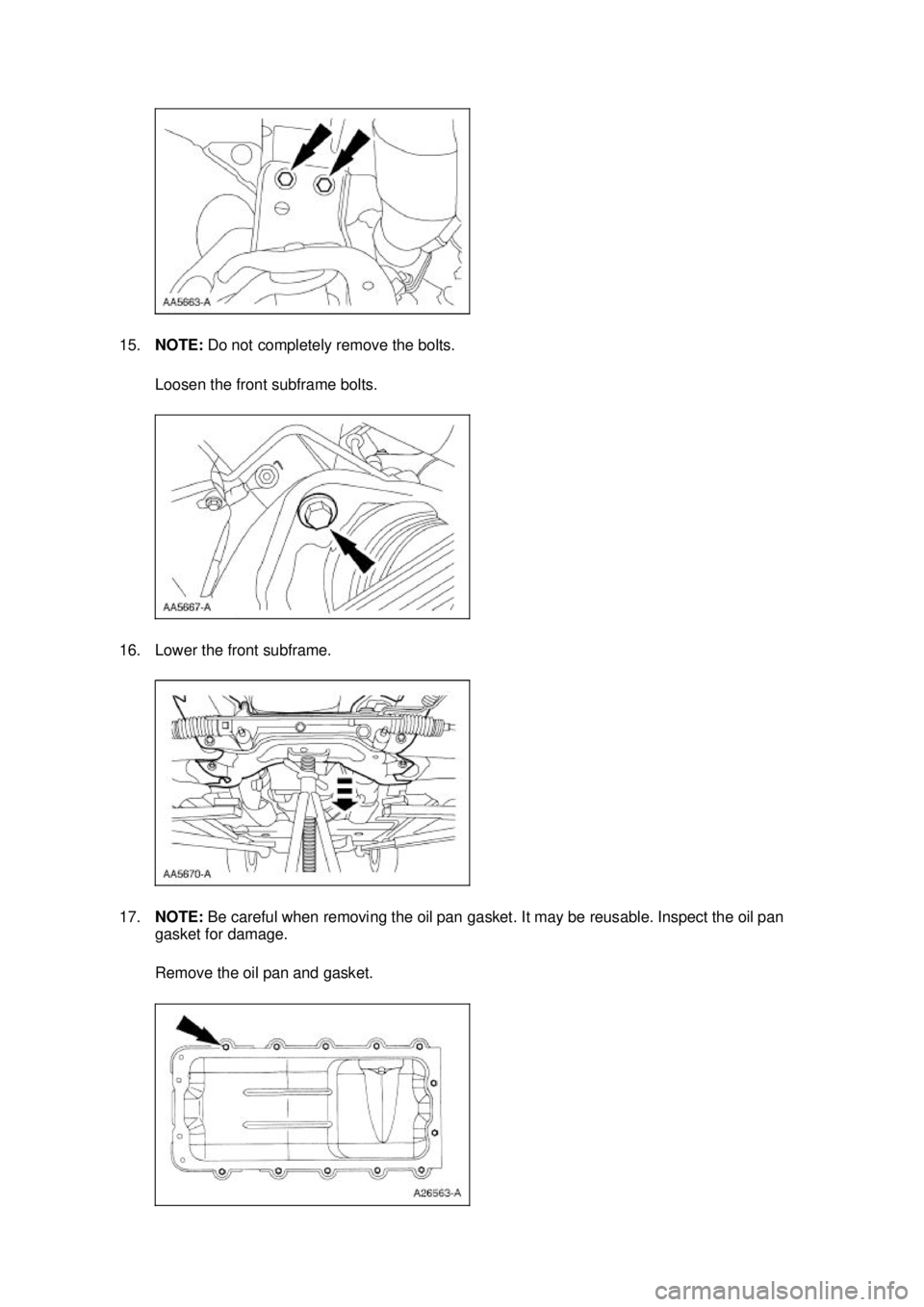

FORD MUSTANG 2003 Workshop Manual 15. NOTE: Do not completely remove the bolts. Loosen the front subframe bolts. 16. Lower the front subframe. 17. NOTE: Be careful when removing the oil pan gasket. It may be reusable. Inspect the

Page 1223 of 4378

FORD MUSTANG 2003 Workshop Manual Installation 1. CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak

Page 1224 of 4378

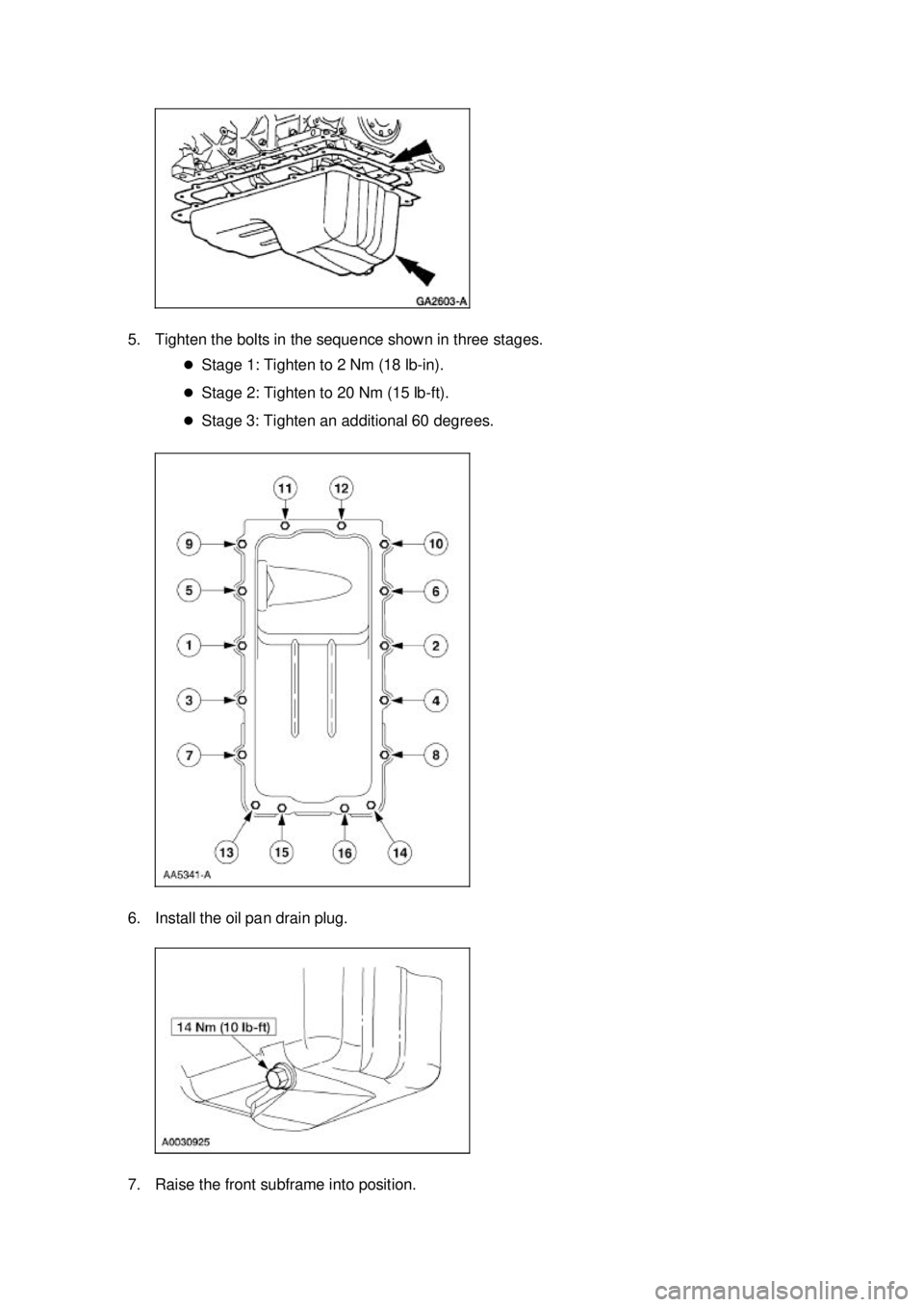

FORD MUSTANG 2003 Workshop Manual 5. Tighten the bolts in the sequence shown in three stages. �zStage 1: Tighten to 2 Nm (18 lb- in). �z Stage 2: Tighten to 20 Nm (15 lb- ft). �z Stage 3: Tighten an additional 60 degrees. 6. Insta
