Page 2073 of 4378

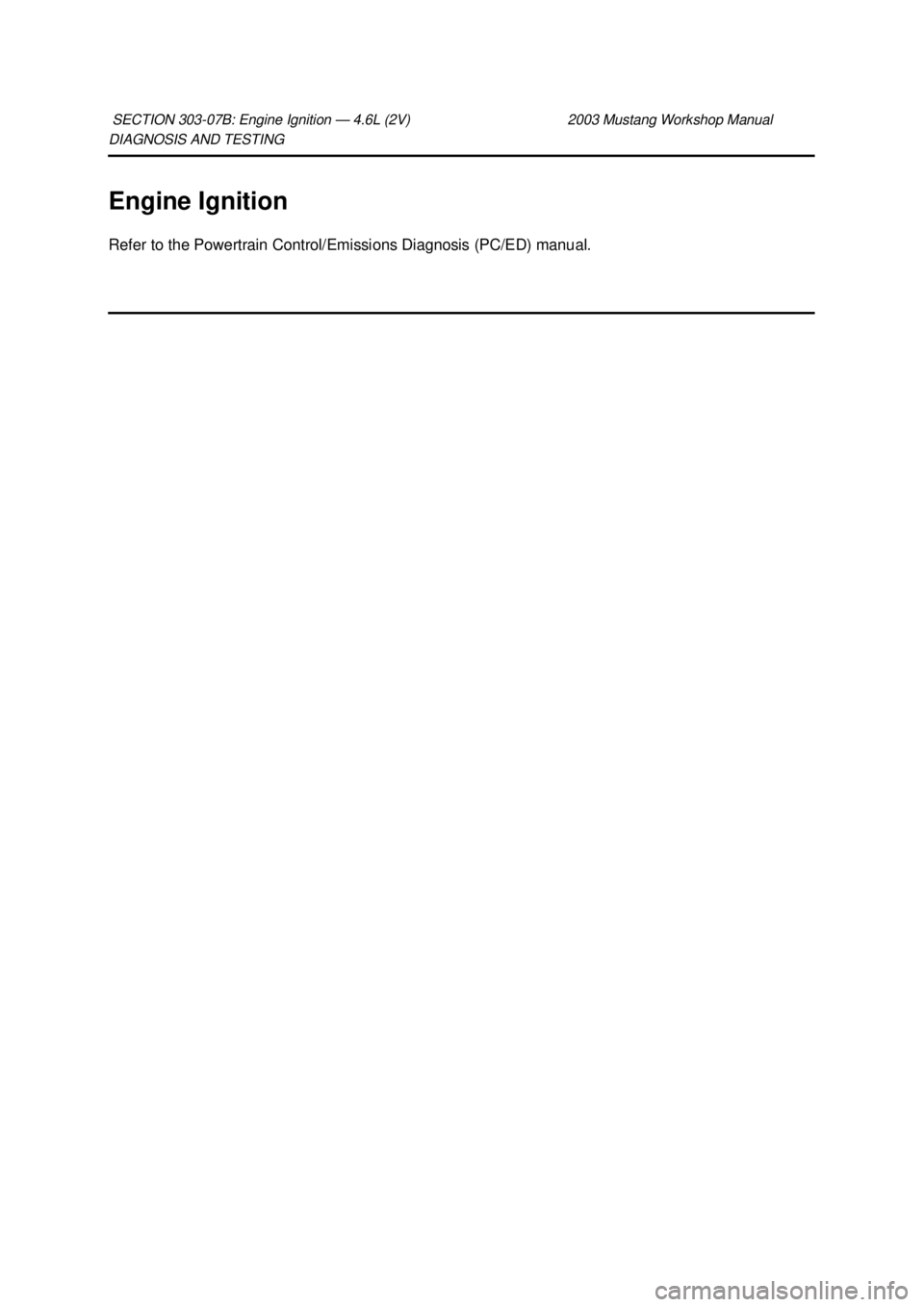

FORD MUSTANG 2003 Workshop Manual DIAGNOSIS AND TESTING Engine Ignition Refer to the Powertrain Control/Emissions Diagnosis (PC/ED) manual. SECTION 303- 07B: Engine Ignition — 4.6L (2V) 2003 Mustang Workshop Manual Klj . 1

Page 2074 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Ignition Coil — Coil On Plug Removal 1. Disconnect the battery ground cable (14301). For additional information, refer to Section 414 - 01 . 2. Remove the air cleaner

Page 2075 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 2076 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Spark Plug Removal 1. Remove the ignition coil on plug. For additional information, refer to Ignition Coil — Coil On Plug in this section. 2. NOTE: Use compressed air

Page 2077 of 4378

FORD MUSTANG 2003 Workshop Manual �z Install a new spark plug. 5. Inspect for carbon fouling. �zThis can be identified by black, dry fluffy carbon deposits on insulator tips, exposed shell surfaces and electrodes. �z This may be c

Page 2078 of 4378

FORD MUSTANG 2003 Workshop Manual 8. Inspect for overheating. �zThis can be identified by a white or light gray insulator with small black or gray brown spots and with bluish- burnt appearance of the electrodes. �z This may be caus

Page 2079 of 4378

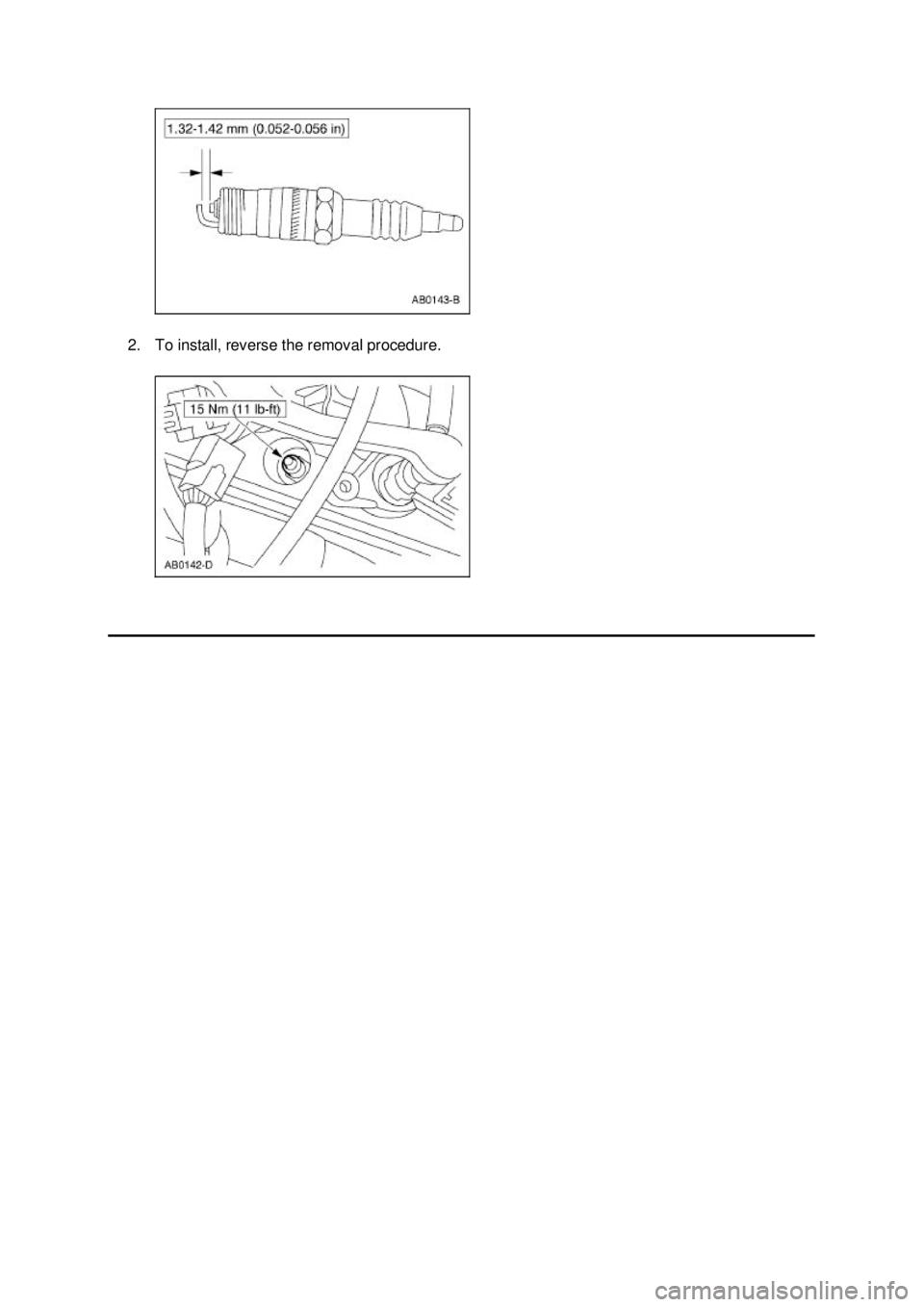

FORD MUSTANG 2003 Workshop Manual 2. To install, reverse the removal procedure. Klj . 4 ba 42003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 2080 of 4378

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS SECTION 303- 07C: Engine Ignition — 4.6L (4V) 2003 Mustang Workshop Manual General Specifications Item Specification Ignition timing 10 degrees BTDC ± 2 degrees non-adjustable
