Page 3241 of 4378

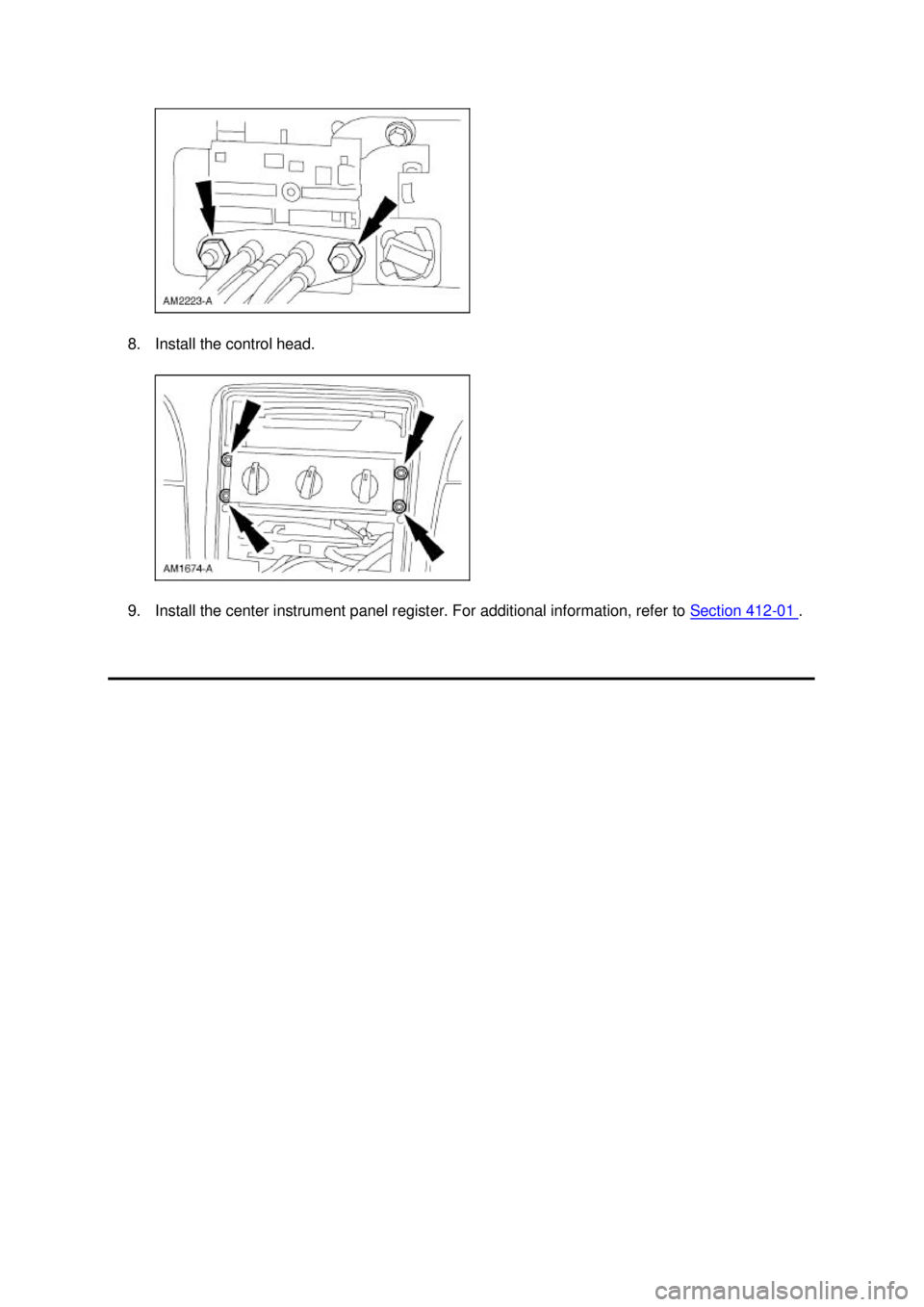

FORD MUSTANG 2003 Workshop Manual 8. Install the control head. 9. Install the center instrument panel register. For additional information, refer to Section 412 - 01 . Klj . 4 ba 42003 Mustang Workshop Manual 18. 11. 2011fi

Page 3242 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Switch Removal 1. Remove the climate control assembly. For additional information, refer to Control Assembly in this section. 2. NOTE: All three switches are removed t

Page 3243 of 4378

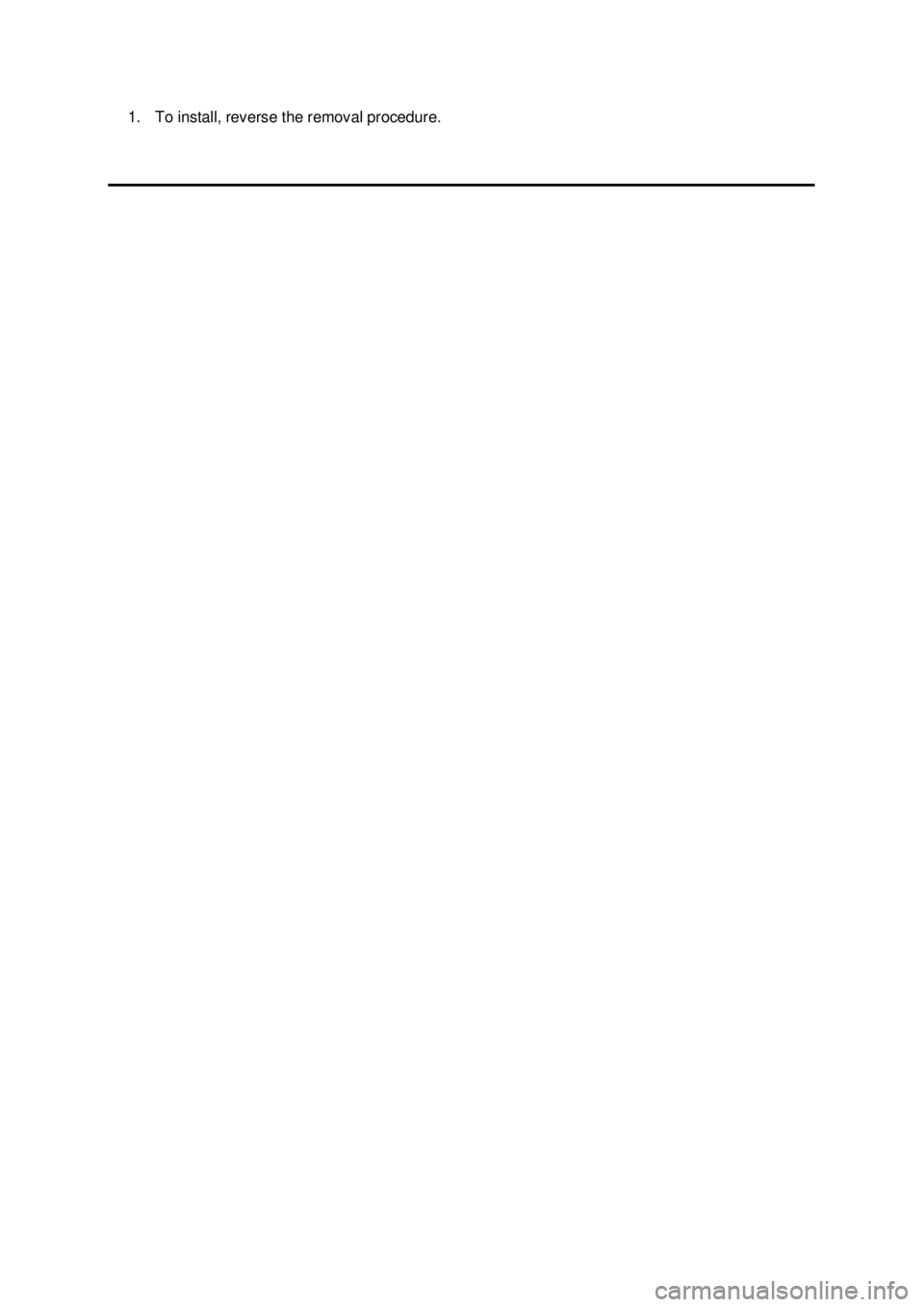

FORD MUSTANG 2003 Workshop Manual 1. To install, reverse the removal procedure. Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3244 of 4378

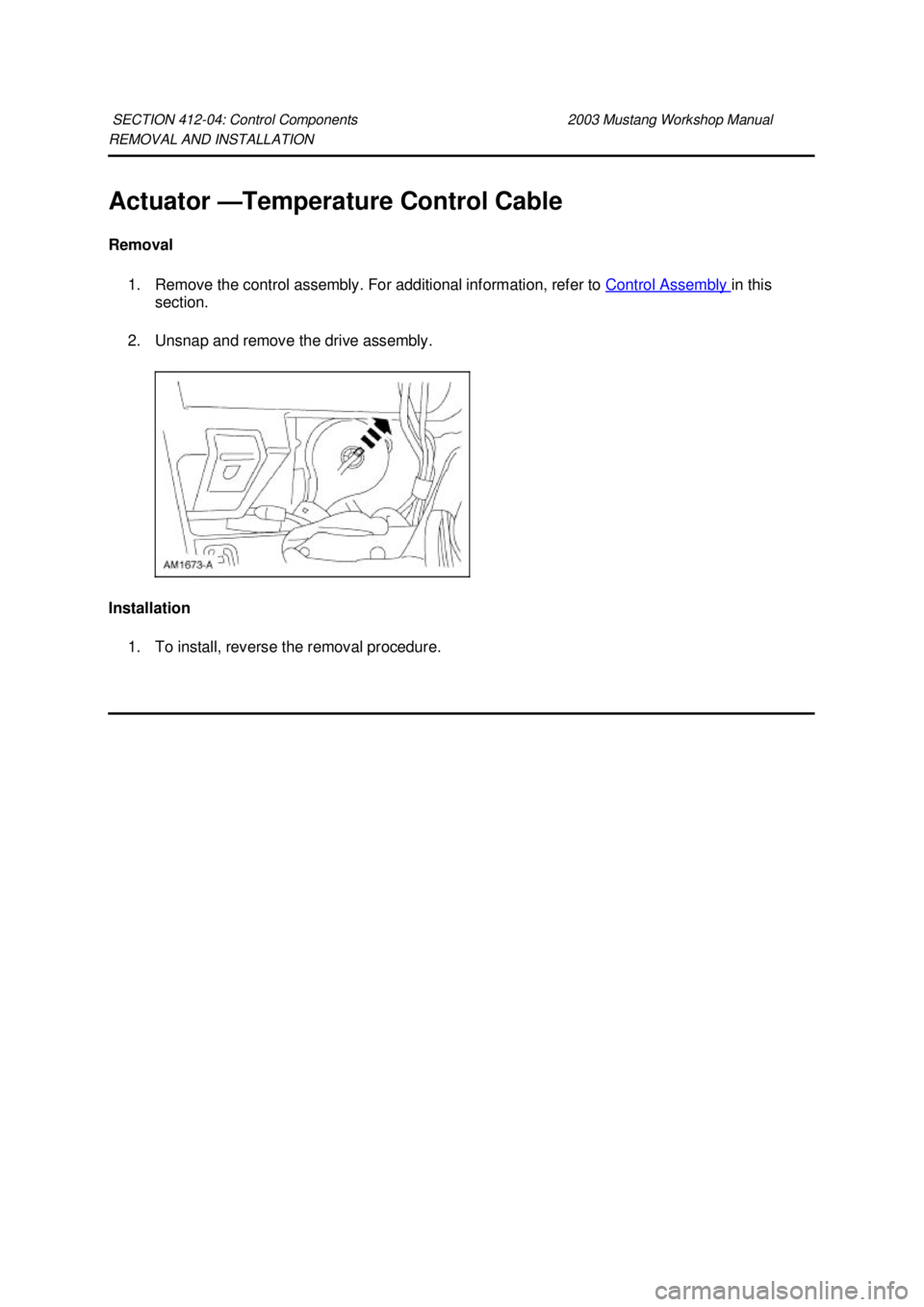

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Actuator — Temperature Control Cable Removal 1. Remove the control assembly. For additional information, refer to Control Assembly in this section. 2. Unsnap and remo

Page 3245 of 4378

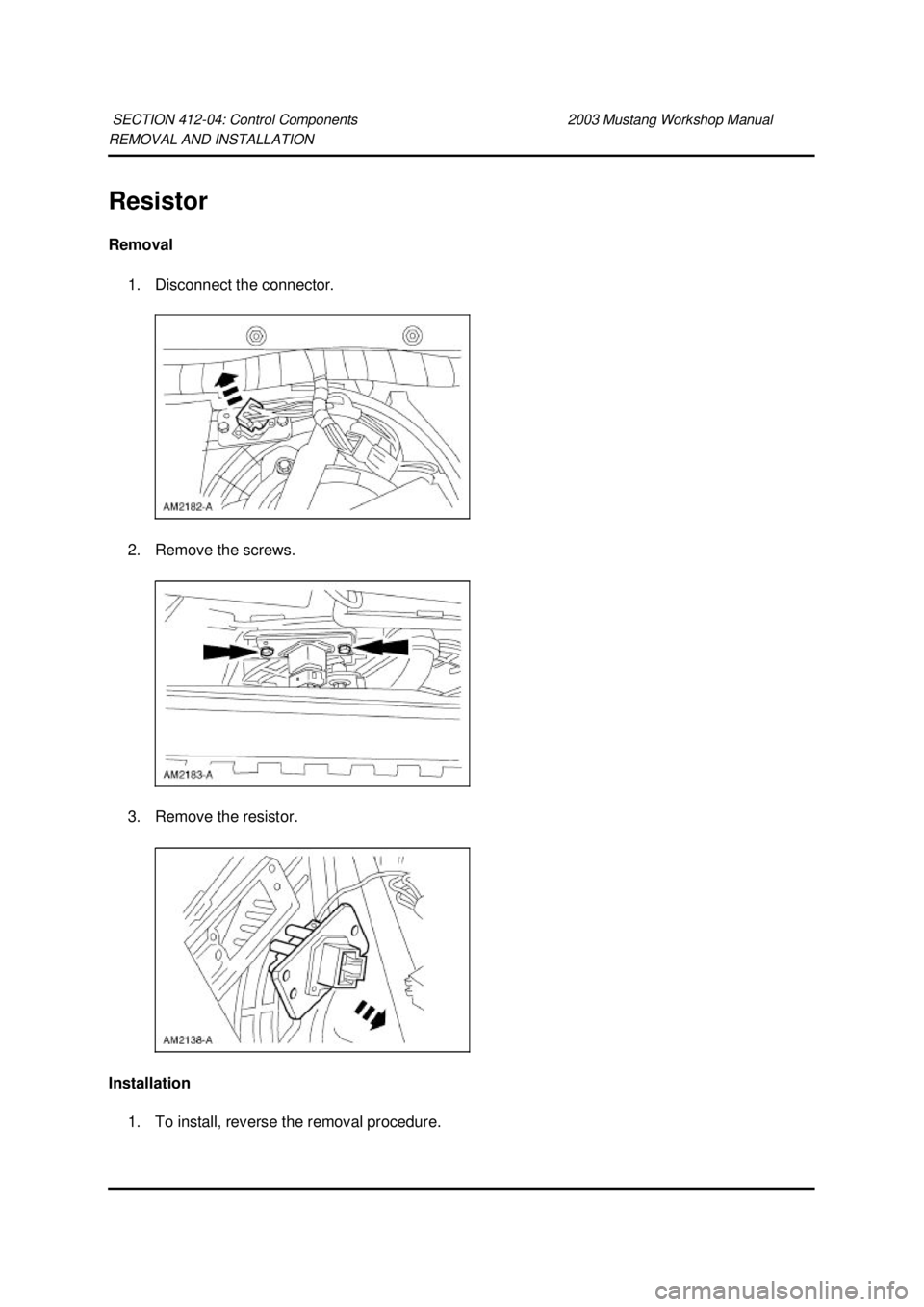

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Resistor Removal 1. Disconnect the connector. 2. Remove the screws. 3. Remove the resistor. Installation 1. To install, reverse the removal procedure. SECTION 412- 04:

Page 3246 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3247 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Vacuum Control Motor —Air Inlet Duct Door Removal 1. Remove the instrument panel. For additional information, refer to Section 501 - 12 . 2. Disconnect the vacuum hose

Page 3248 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
