Page 3113 of 4378

GENERAL PROCEDURES
Electronic Leak Detection
CAUTION: Good ventilation is necessary in the area where electronic A/C leak testing is to
be carried out. If the surrounding air is contaminated with refrigerant gas, the leak detector will
indicate this gas all the time. Odors from other chemicals such as anti- freeze, diesel fuel, disc
brake cleaner, or other cleaning solvents can cause the same problem. A fan, even in a well-
ventilated area, is very helpful in removing small traces of contamination from the air that
might affect the leak detector.
1. NOTE: The system pressure should be between 413- 551 kPa (60-80 psi) at 24°C (75°F) with
the engine off.

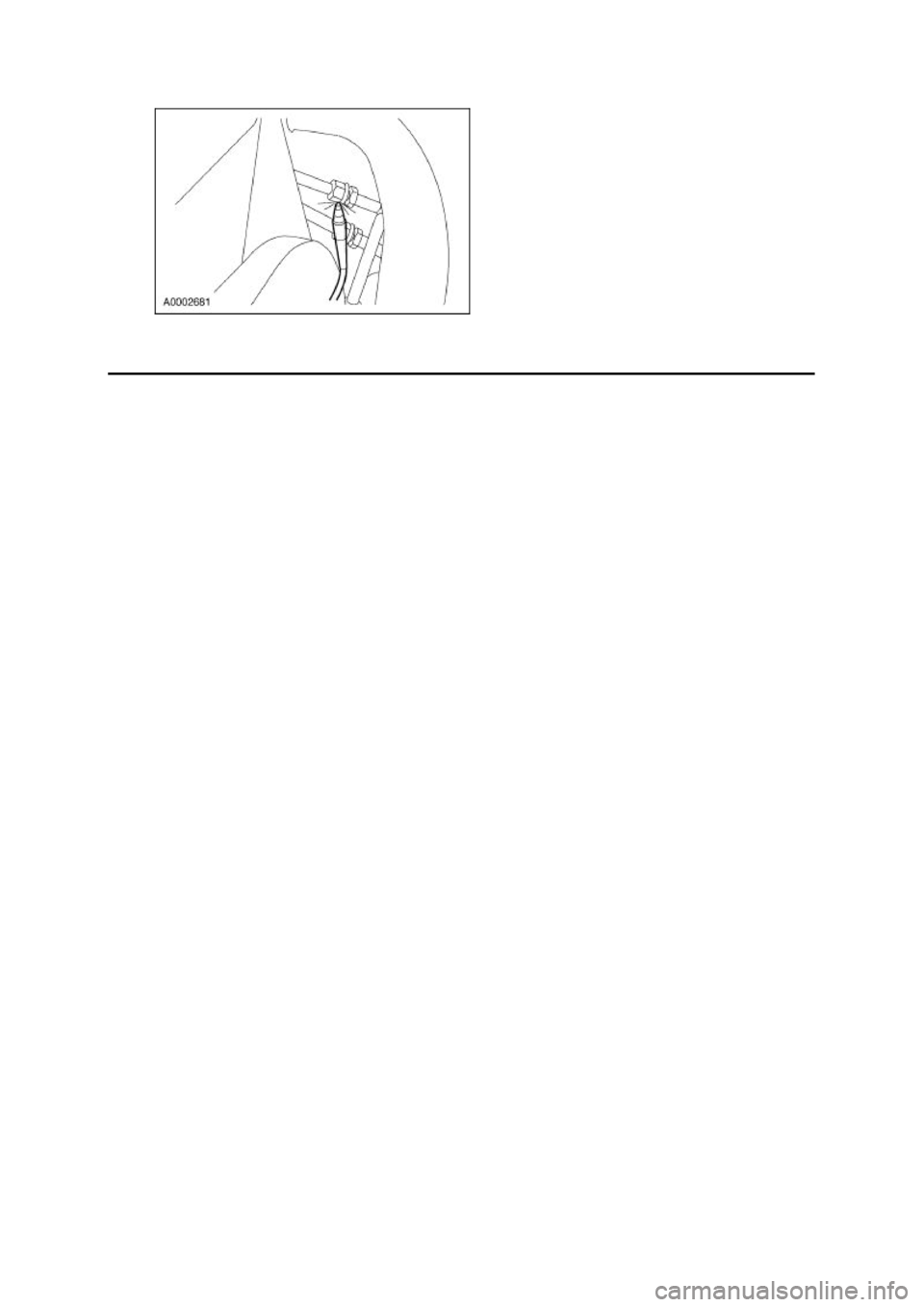

Leak test the refrigerant system using the Refrigerant Leak Detector. Follow the instructions
included with the leak detector for handling and operation techniques.
2. If a leak is found, discharge and recover the refrigerant. For additional information, refer to Air Conditioning (A/C) System Recovery, Evacuation and Charging in this section.
z Repair the system.
z Test the system for normal operation.
SECTION 412-
00: Climate Control System - General Information 2003 Mustang Workshop Manual Special Tool(s)
H10PM Refrigerant Leak
Detector With Battery
216-
00001 or equivalent Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
Page 3114 of 4378
Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
Page 3115 of 4378
GENERAL PROCEDURES
Tracer Dye Leak Detection
NOTE:
Ford Motor Company vehicles are produced with a permanent leak tracer dye incorporated into
the A/C system. The location of leaks can be pinpointed by the bright yellow- green glow of the tracer
dye. Since more than one leak can exist, always inspect each component.
1. Check for leaks using a 120 Watt UV spot lamp. zScan all components, fittings and lines of the A/C system.
2. After the leak is repaired, remove any traces of tracer dye with a general purpose oil solvent.
3. Verify the repair by operating the system for a short time and inspect with the UV spot lamp.
SECTION 412-
00: Climate Control System - General Information 2003 Mustang Workshop Manual Special Tool(s)
120 Watt 110 Volt UV Lamp
20°C
164-
R0721 or equivalent Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
Page 3116 of 4378
Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
Page 3117 of 4378

GENERAL PROCEDURES
Air Conditioning (A/C) System Flushing
WARNING: Use extreme care and observe all safety and service precautions related to the
use of refrigerants.
WARNING: Due to refrigerant hazards, always wear safety goggles and non- penetrable
gloves when working on or flushing A/C systems.
CAUTION: An A/C refrigerant analyzer must be used before the recovery of any vehicle's
A/C refrigerant. Failure to do so puts the shop's bulk refrigerant at risk of contamination. If the
vehicle's A/C refrigerant is contaminated, refer the customer to the service facility that carried
out the last A/C service. If the customer wishes to pay the additional cost, use the A/C recovery
equipment that is designated for recovering contaminated A/C refrigerant. All contaminated
A/C refrigerant must be disposed of as hazardous waste. For all equipment, follow the
equipment manufacturer's procedures and instructions.
CAUTION: Suction accumulator/drier, muffler, hoses, thermal expansion valve, and fixed
orifice tube should be removed when flushing the A/C system. Internal plumbing of these
devices makes it impossible to correctly remove any residual- flushing agent. Except for the
hoses, these components are typically discarded after A/C system contamination. Hoses can
normally be reused unless they are clogged with foreign material. The 3.785 liters (1 gallon) of
A/C Systems Flushing Solvent F4AZ-19579- A and FL1-A filter used in A/C Flush and Purge
Machine 219- 00022 are intended for use on one vehicle only. They may be used to flush both
the A/C condenser core and the A/C evaporator core on an individual vehicle, but under no
circumstances should they be used on more than one vehicle.
1. NOTE: Prior to using the A/C Flush and Purge Machine 219- 00022 for the first time, review the
operating instructions.
NOTE: Only the A/C Flush and Purge Machine kit 219- 00023, which includes A/C Flush and
Purge Machine 219- 00022, A/C Flush and Purge Fitting Kit 219- 00024, and the Ford Part
number F4AZ-19579- A A/C Systems Flushing Solvent, is approved for use on Ford vehicles. No
other flushing device or solvent is approved for flushing heat exchangers. Use of any other
flusher or solvent may cause damage to the A/C system and the flushing unit.
SECTION 412-
00: Climate Control System - General Information 2003 Mustang Workshop Manual Special Tool(s)
A/C Flush and Purge Machine
219-
00022 (part of 219- 00023)
or equivalent A/C Flush and Purge Fitting Kit
219-
00024 (part of 219- 00023)
or equivalent Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
Page 3118 of 4378

Ford Motor Company has approved a procedure to provide technicians with a non-
CFC method
of flushing contaminated A/C system heat exchangers, A/C evaporator core, and A/C
condenser core. The procedure allows the specific components to be cleaned and flushed while
installed in their normal in- vehicle location. The types of contamination flushed include particle
matter that results from A/C compressor or desiccant failure within the suction accumulator/drier
and gummy residue that can form when refrigerant oil is overheated during A/C compressor
seizure. The flushing process is a two- step procedure that involves the use of an A/C Flush and
Purge Machine 219- 00022 to:
z Circulate the flushing solvent through the heat exchanger in the reverse direction of
normal refrigerant flow (back- flushing). Particulate matter picked up during flushing is
filtered from the returning solvent before the solvent is returned to the reservoir for
continued circulation.
z Remove the flushing solvent from the heat exchanger. In this step of the procedure,
pressurized air 621- 862 kPa (90-125 psi) is used to push and evaporate any remaining
flush solvent from the heat exchanger.
2. Discharge the A/C system. Observe all safety precautions. For additional information, refer to the procedure in this section.
3. Disconnect the refrigerant lines from the heat exchanger(s) to be flushed.
4. Connect the A/C Flush and Purge Machine 219- 00022 and A/C Flush and Purge Fitting Kit 219-
00024 to the heat exchanger to be flushed. Do not flush through the A/C evaporator core orifice,
mufflers or hoses. Internal plumbing and material make- up of these components make it
impossible to correctly remove foreign material or residual flushing solvent.
5. Use 3.785 liters (one gallon) of A/C Systems Flushing Solvent part number F4AZ-19579- A to
flush the heat exchanger for a minimum of 15 minutes. The flush solvent may be used for one
or both heat exchangers in the A/C system. However, the flush solvent is intended for one
vehicle only. The filter used on the flushing unit is also intended for use on one vehicle only.
6. Flush the component for a minimum of 15 minutes.
7. Apply 621- 862 kPa (90-125 psi) pressurized air to the component for a minimum of 30 minutes.
The 30- minute purge time is required to force and evaporate all residual solvent from the A/C
system component. Failure to successfully remove all residual solvent within the component
can result in system damage when reconnected and operated. Dispose of the used flush
solvent and filter in accordance with local, state and federal emissions.
8. NOTE: A/C system filtering as described in this section is optional if system flushing is carried
out. However, the filter kit use is recommended after flushing if the A/C system contamination is
extensive.
Install a new A/C evaporator core orifice in any vehicle being serviced for A/C compressor or
desiccant failure.
9. Install new refrigerant hoses if clogged with foreign material.
10. Reconnect the heat exchanger being serviced.
11. Add additional refrigerant oil as required. For additional information, refer to the procedure in this section.
12. Evacuate, leak test and charge the A/C system. For additional information, refer to the procedure in this section.
13. Check the system for normal operation. Klj . 2 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
Page 3119 of 4378
Klj . 3 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
Page 3120 of 4378

GENERAL PROCEDURES
Air Conditioning (A/C) System Recovery, Evacuation and
Charging
Refrigerant System Recovery
NOTE:
Ford Motor Company recommends use of an A/C service center to carry out recovery,
evacuation, and charging of the refrigerant system. If an A/C service center is not available, refrigerant
system recovery, evacuation, and charging may be accomplished using a separate recovery station,
vacuum pump, charging cylinder, and manifold gauge set.
1. Prior to recovering the refrigerant system, you must verify the purity of the refrigerant. For additional information, refer to Refrigerant Identification Testing in this section.
2. NOTE: Some R- 134a service centers require the use of an A/C manifold gauge set. For
additional information, refer to Manifold Gauge Set Connection in this section.
SECTION 412-
00: Climate Control System - General Information 2003 Mustang Workshop Manual Special Tool(s)
R-
134a A/C Refrigerant Center
176- 00002 or equivalent R-
134a A/C Refrigerant Center
023- 00153 or equivalent R-
134a Manifold Gauge Set
176- R032A or equivalent 1.2 CFM Vacuum Pump
023-
00162 or equivalent 4.0 CFM Vacuum Pump
023-
00163 or equivalent Klj . 1 ba
