Page 3209 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Air Conditioning (A/C) Pressure Relief Valve — 3.8L Removal and Installation 1. Recover the refrigerant. For additional information, refer to Section 412 - 00 . 2. Unl

Page 3210 of 4378

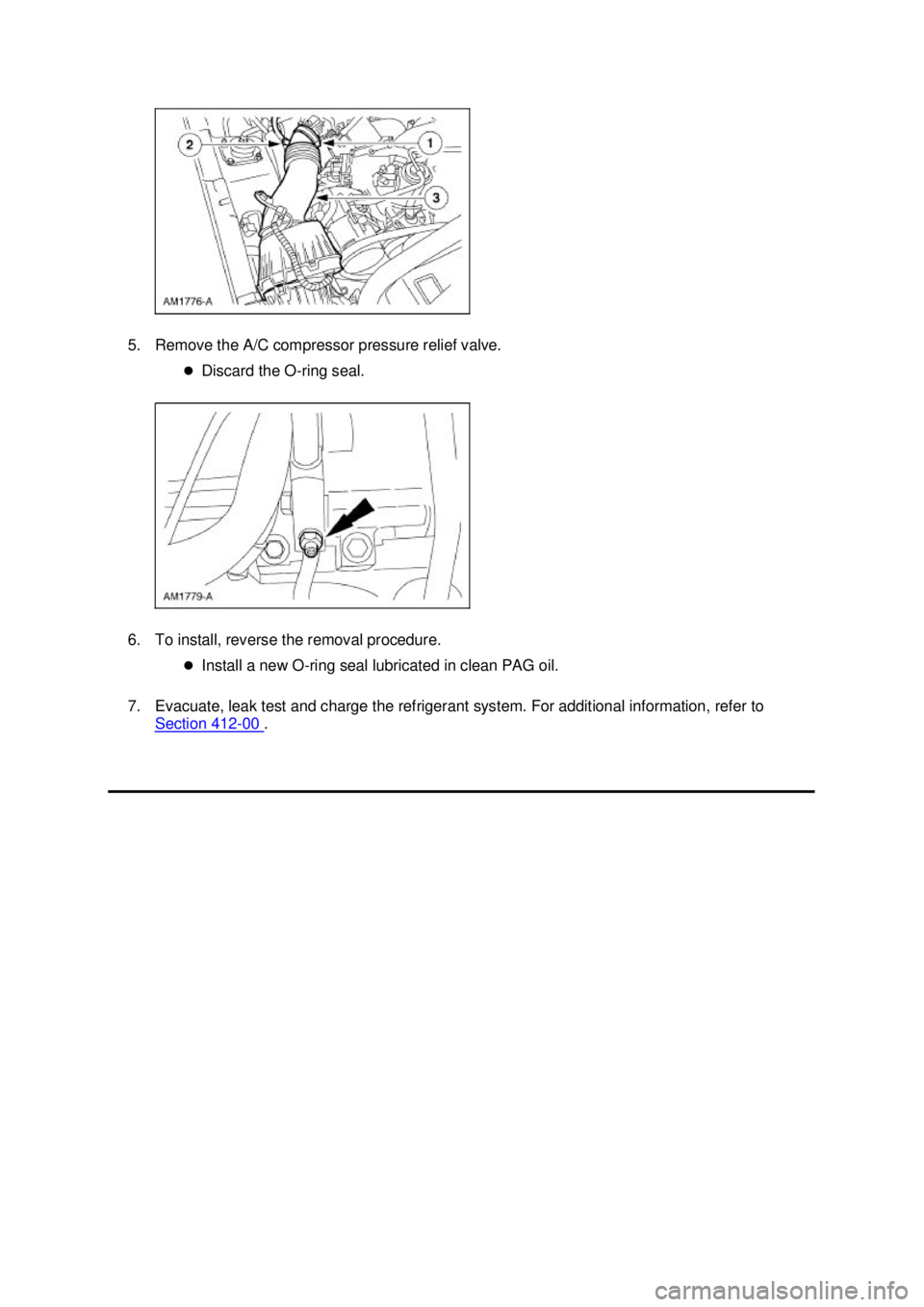

FORD MUSTANG 2003 Workshop Manual 5. Remove the A/C compressor pressure relief valve. �zDiscard the O- ring seal. 6. To install, reverse the removal procedure. �zInstall a new O- ring seal lubricated in clean PAG oil. 7. Evacuate,

Page 3211 of 4378

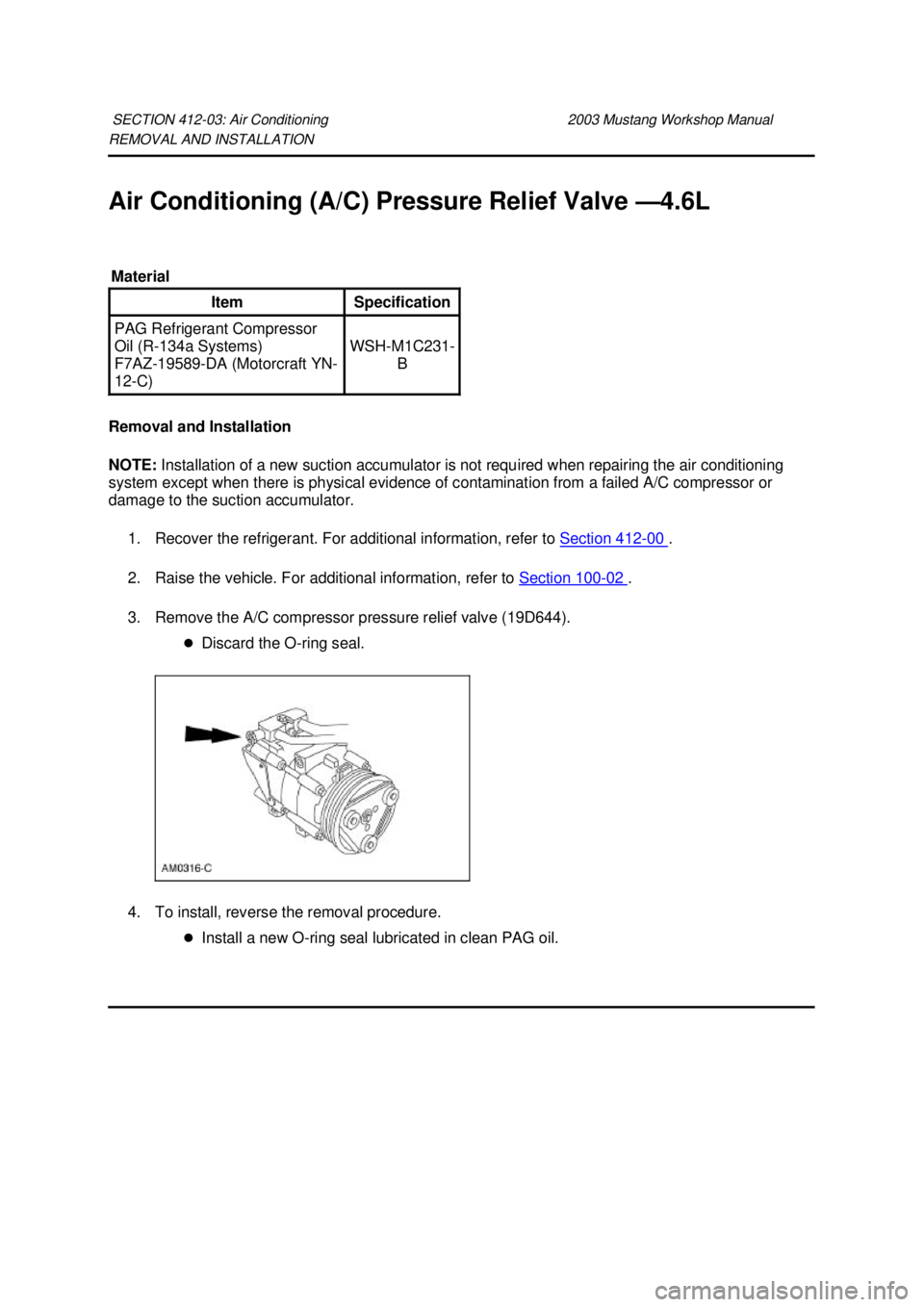

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Air Conditioning (A/C) Pressure Relief Valve — 4.6L Removal and Installation NOTE: Installation of a new suction accumulator is not required when repairing the air condi

Page 3212 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3213 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Condenser Core Removal and Installation NOTE: If an A/C condenser core leak is suspected, the A/C condenser core must be leak tested before it is removed from the vehicle

Page 3214 of 4378

FORD MUSTANG 2003 Workshop Manual 4.6L (4V) vehicles 5. Remove the bolts and position the coolant bottle aside. 3.8L vehicles 6. Remove the bolts. 7. Remove the bracket and the coolant bottle. Klj . 2 ba 52003 Mustang Wor

Page 3215 of 4378

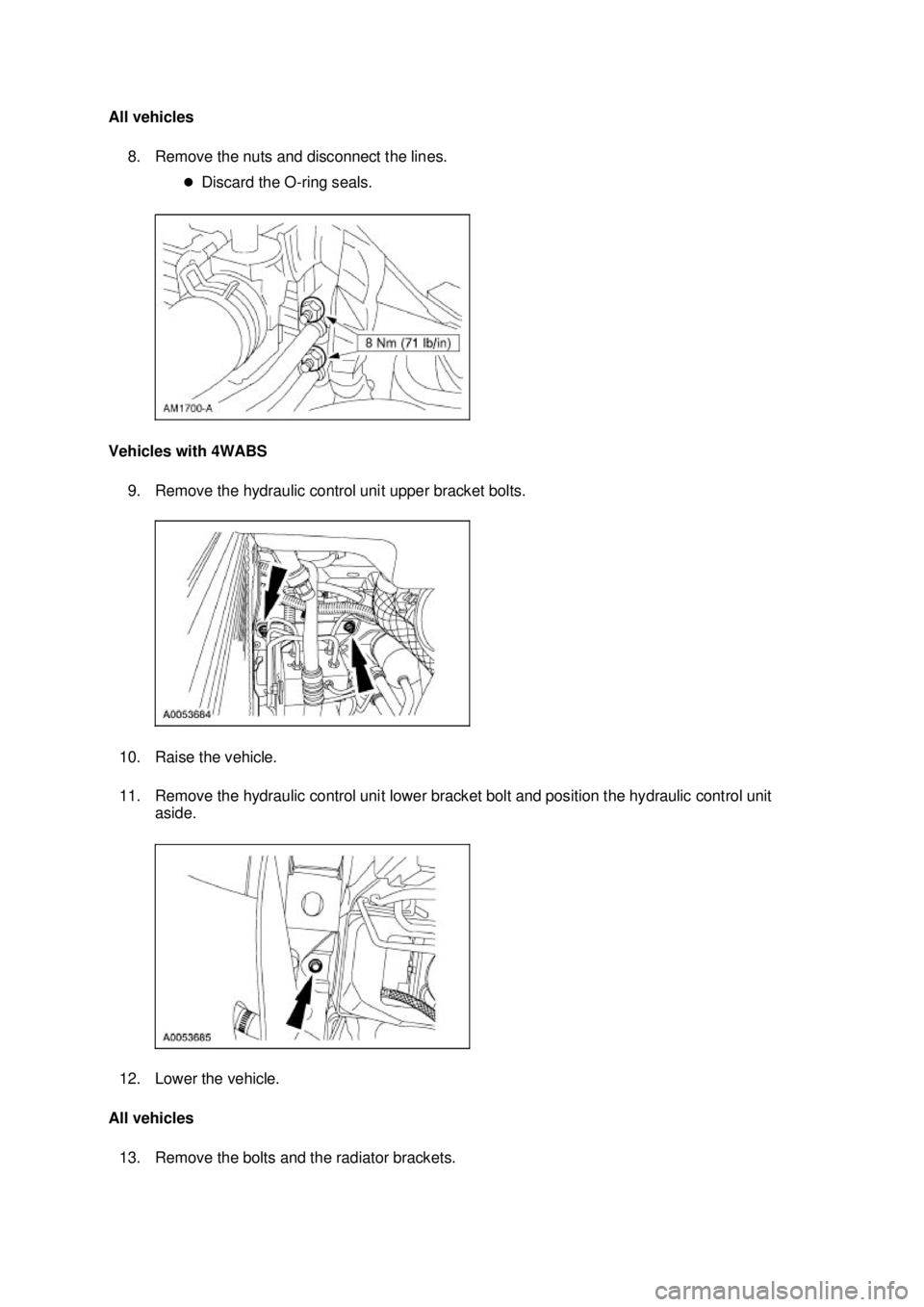

FORD MUSTANG 2003 Workshop Manual All vehicles 8. Remove the nuts and disconnect the lines. �zDiscard the O- ring seals. Vehicles with 4WABS 9. Remove the hydraulic control unit upper bracket bolts. 10. Raise the vehicle. 11. Re

Page 3216 of 4378

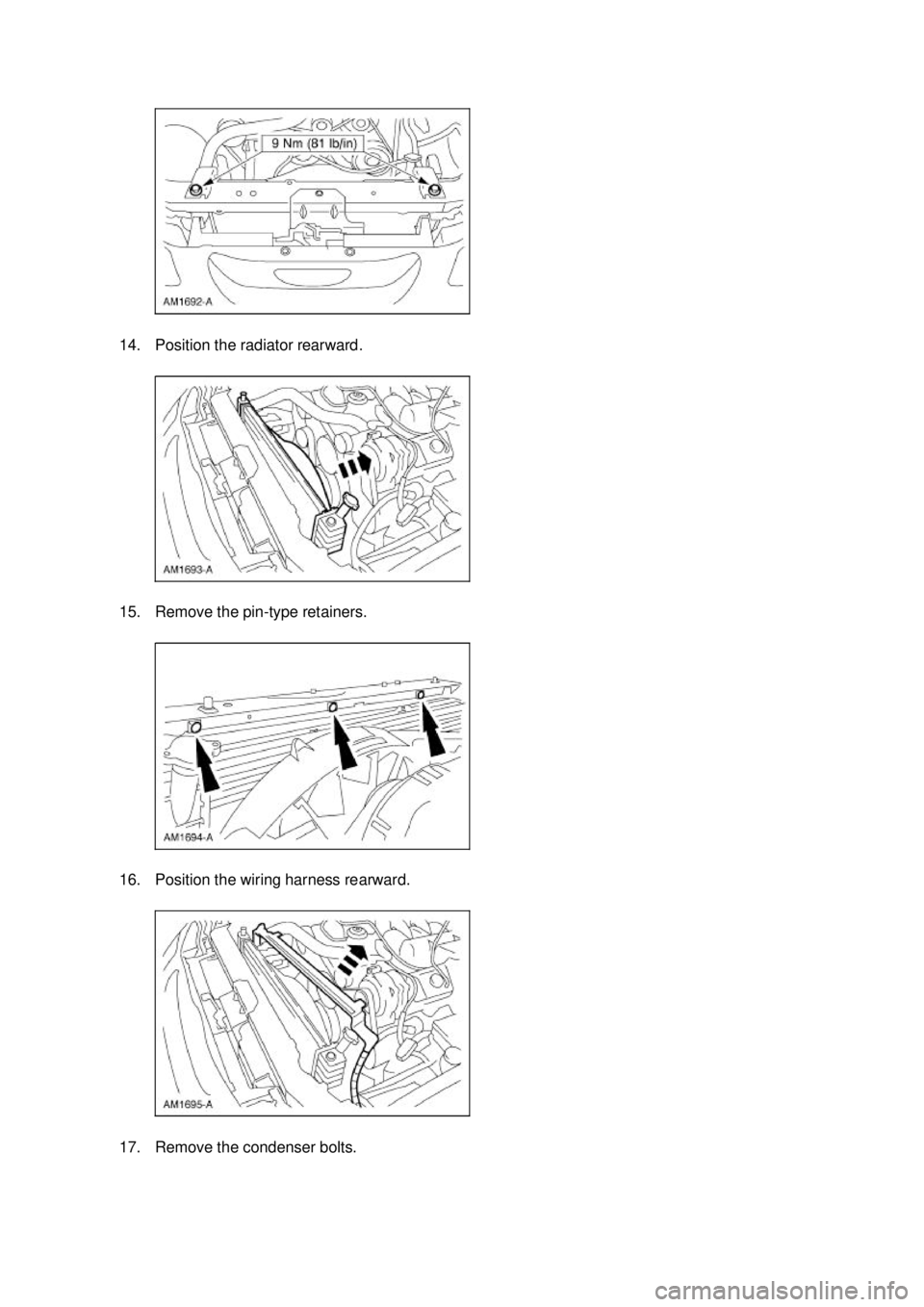

FORD MUSTANG 2003 Workshop Manual 14. Position the radiator rearward. 15. Remove the pin- type retainers. 16. Position the wiring harness rearward. 17. Remove the condenser bolts. Klj . 4 ba 52003 Mustang Workshop Manual 1
