Page 1489 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1490 of 4378

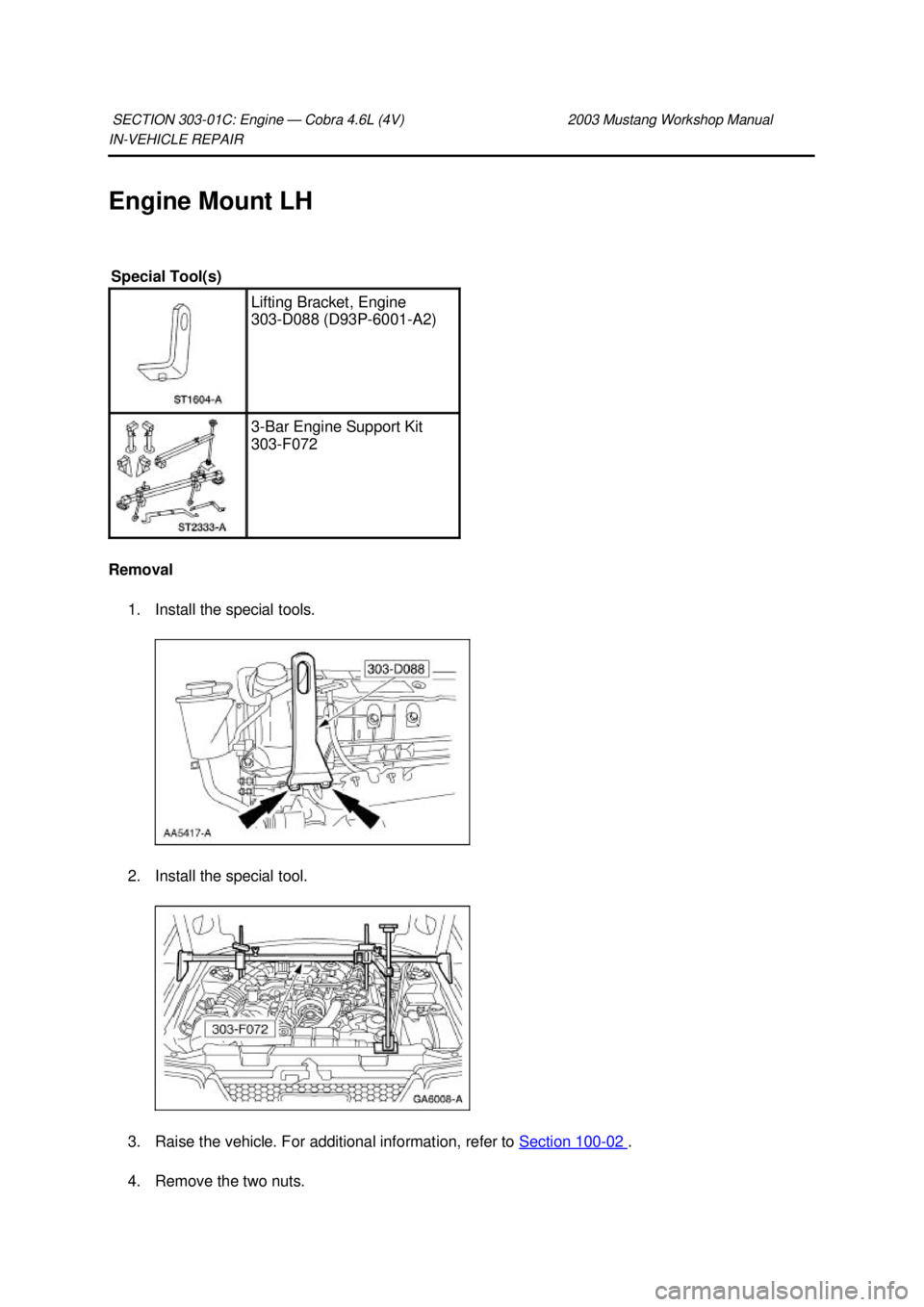

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Engine Mount LH Removal 1. Install the special tools. 2. Install the special tool. 3. Raise the vehicle. For additional information, refer to Section 100 - 02 . 4. Remove th

Page 1491 of 4378

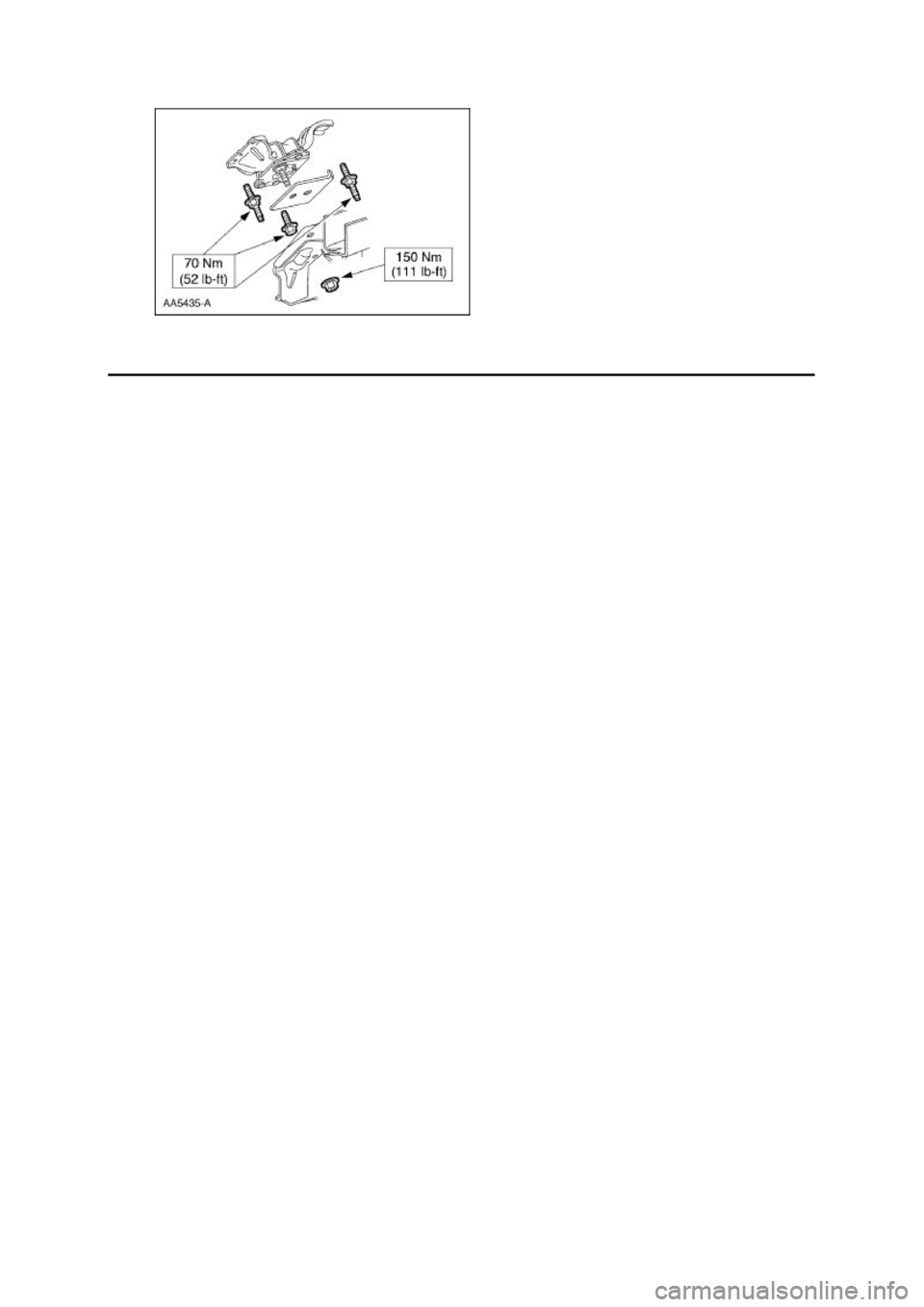

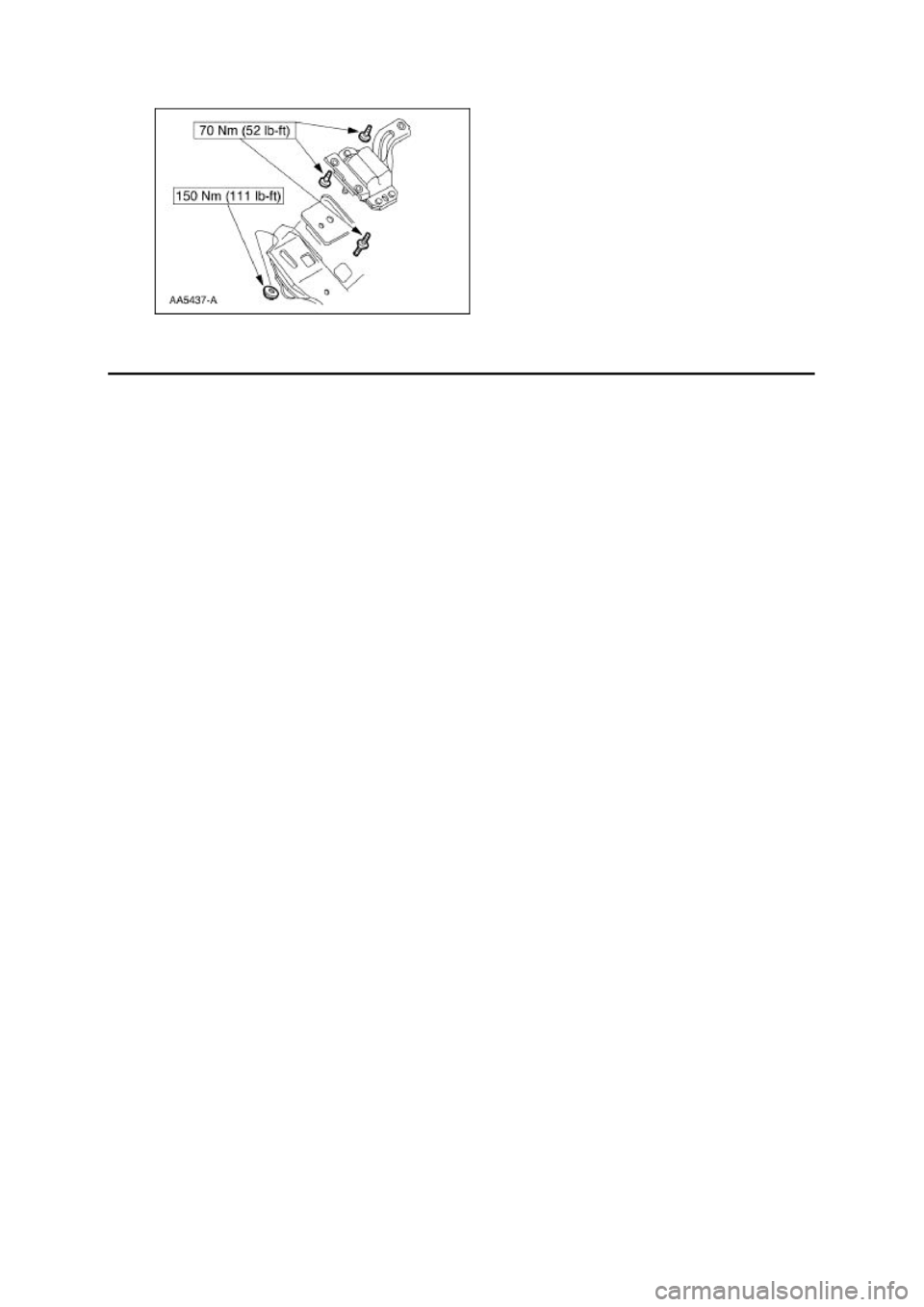

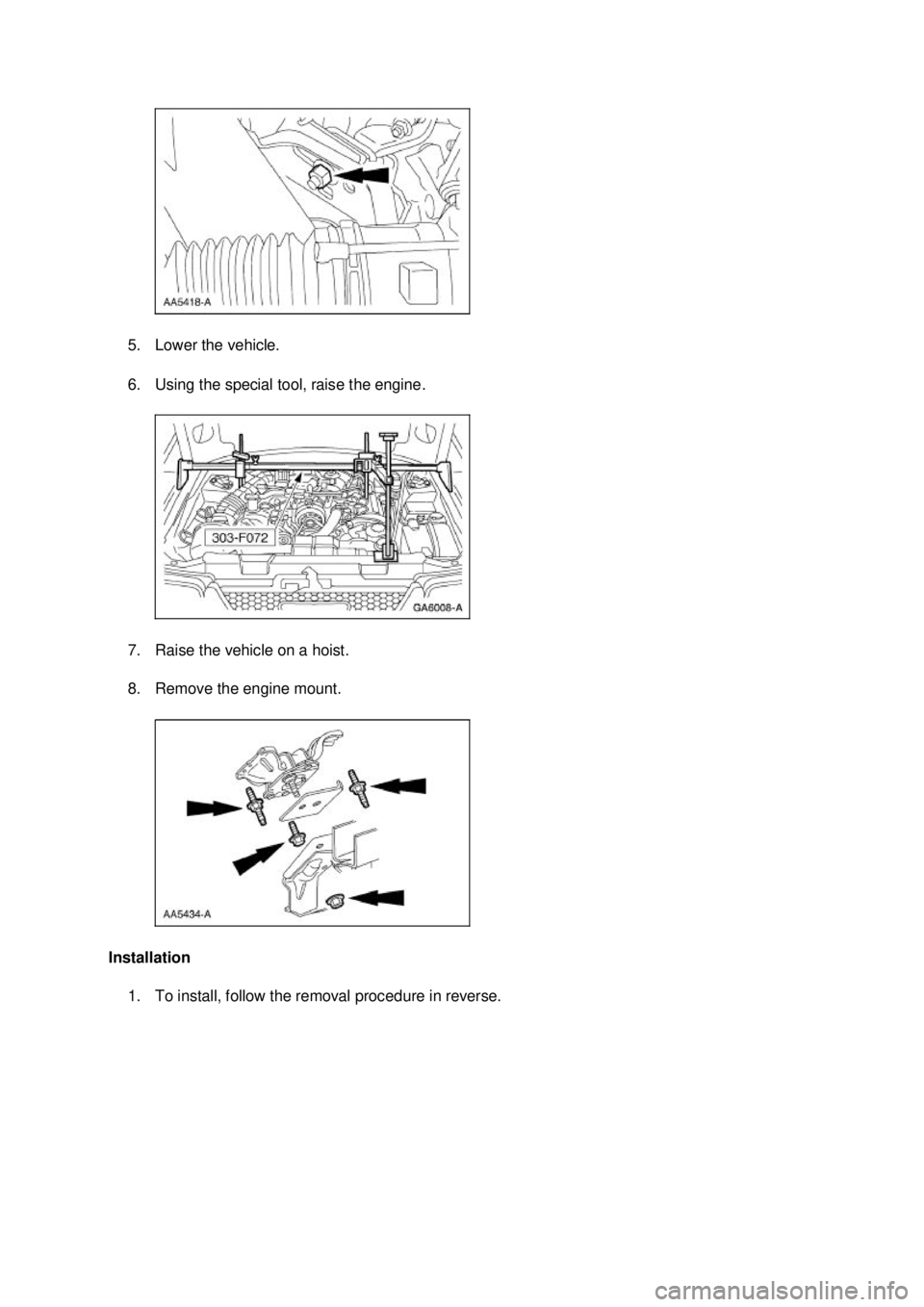

FORD MUSTANG 2003 Workshop Manual 5. Lower the vehicle. 6. Using the special tool, raise the engine. 7. Raise the vehicle on a hoist. 8. Remove the engine mount. Installation 1. To install, follow the removal procedure in reverse

Page 1492 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1493 of 4378

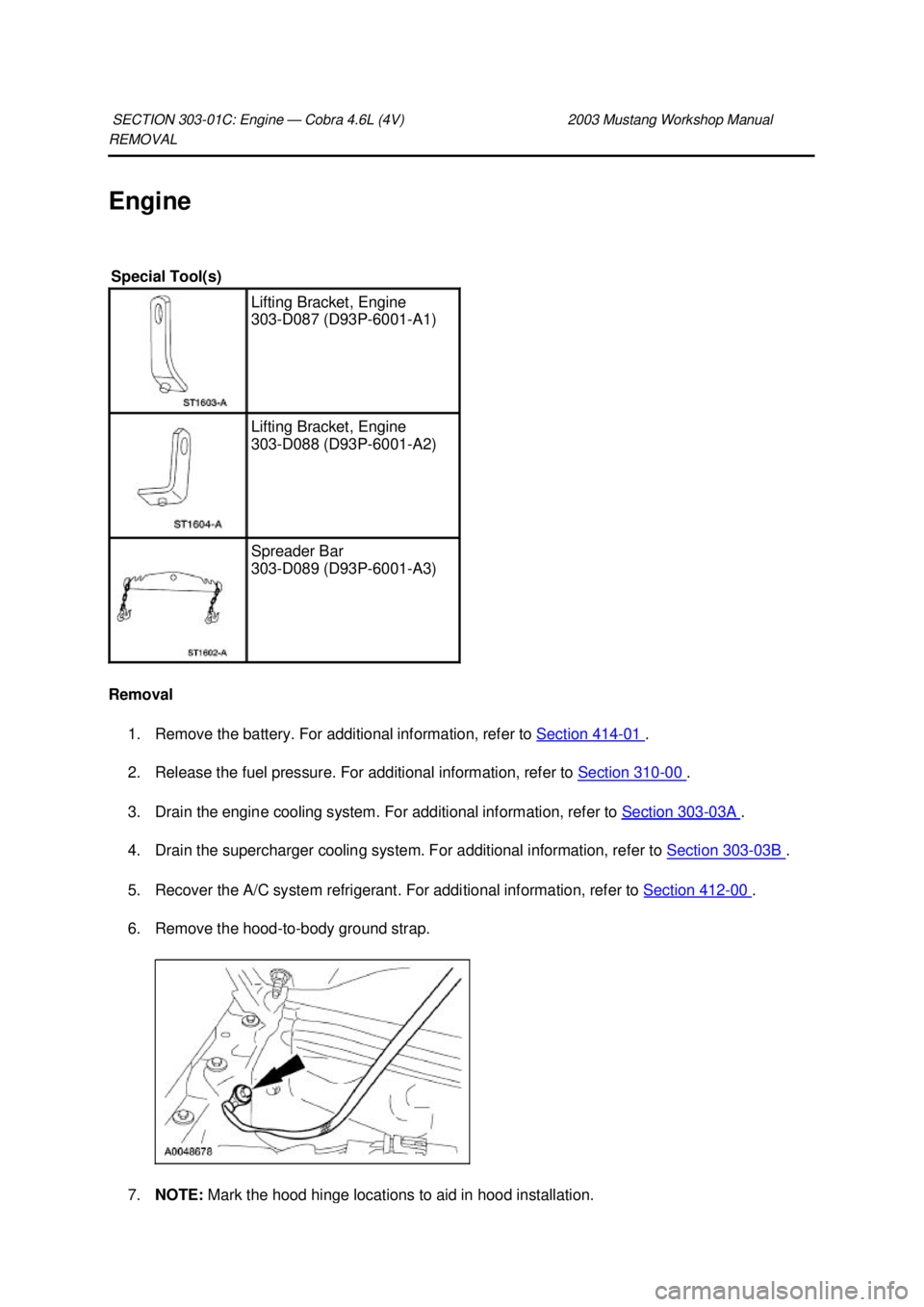

FORD MUSTANG 2003 Workshop Manual REMOVAL Engine Removal 1. Remove the battery. For additional information, refer to Section 414 - 01 . 2. Release the fuel pressure. For additional information, refer to Section 310 - 00 . 3.

Page 1494 of 4378

FORD MUSTANG 2003 Workshop Manual Remove the four nuts and the hood. 8. Disconnect the intake air temperature (IAT) sensor. 9. Disconnect the breather hose. 10. Disconnect the vacuum hose. 11. Loosen the clamps and remove the air

Page 1495 of 4378

FORD MUSTANG 2003 Workshop Manual 12. Disconnect the throttle position (TP) sensor and the idle air control (IAC) valve electrical connectors. 13. Disconnect the vacuum hose. 14. Disconnect the A/C pressure switch electrical connec

Page 1496 of 4378

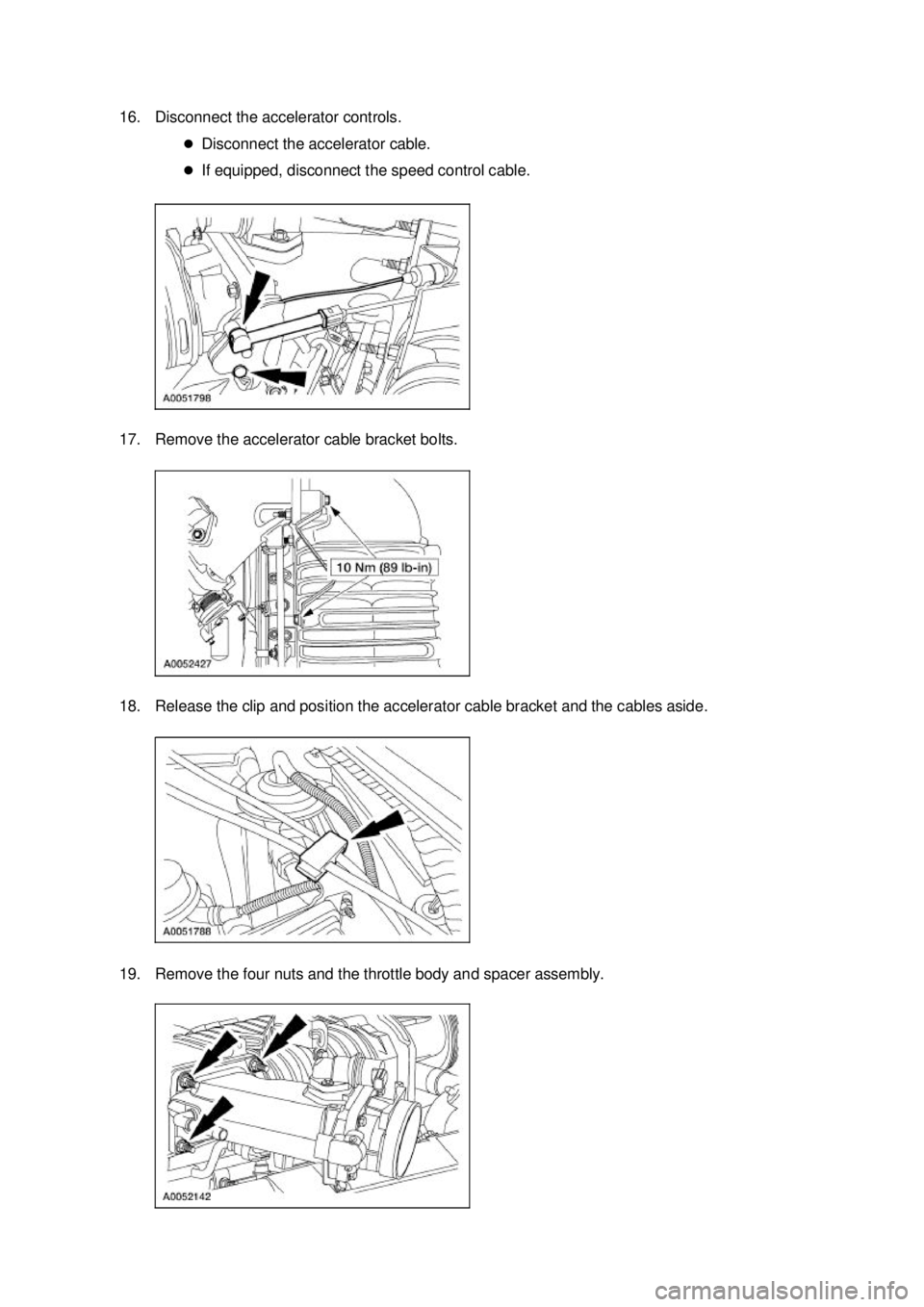

FORD MUSTANG 2003 Workshop Manual 16. Disconnect the accelerator controls. �zDisconnect the accelerator cable. �z If equipped, disconnect the speed control cable. 17. Remove the accelerator cable bracket bolts. 18. Release the cli
