Page 1673 of 4378

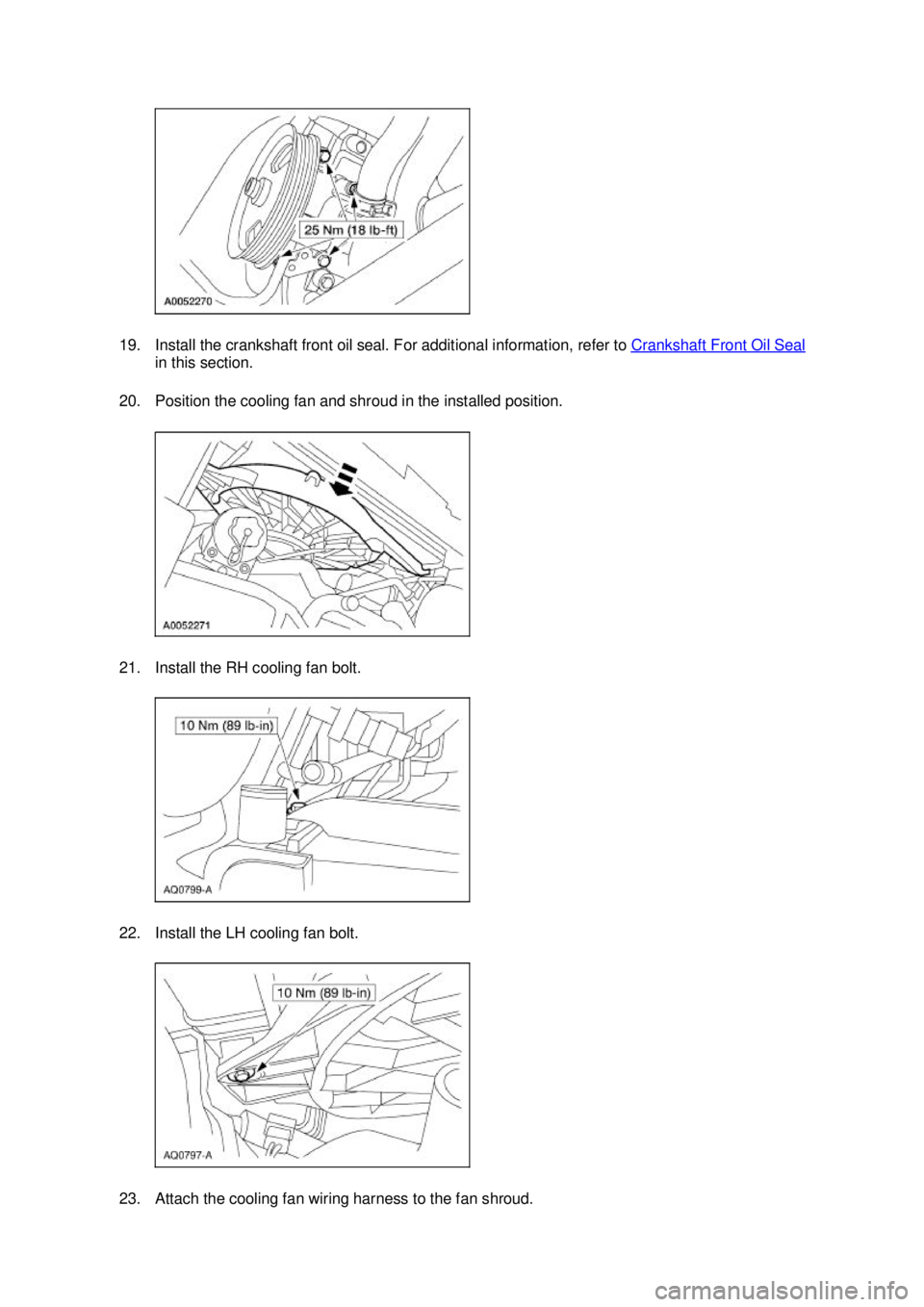

FORD MUSTANG 2003 Workshop Manual 19. Install the crankshaft front oil seal. For additional information, refer to Crankshaft Front Oil Seal in this section. 20. Position the cooling fan and shroud in the installed position. 21. Ins

Page 1674 of 4378

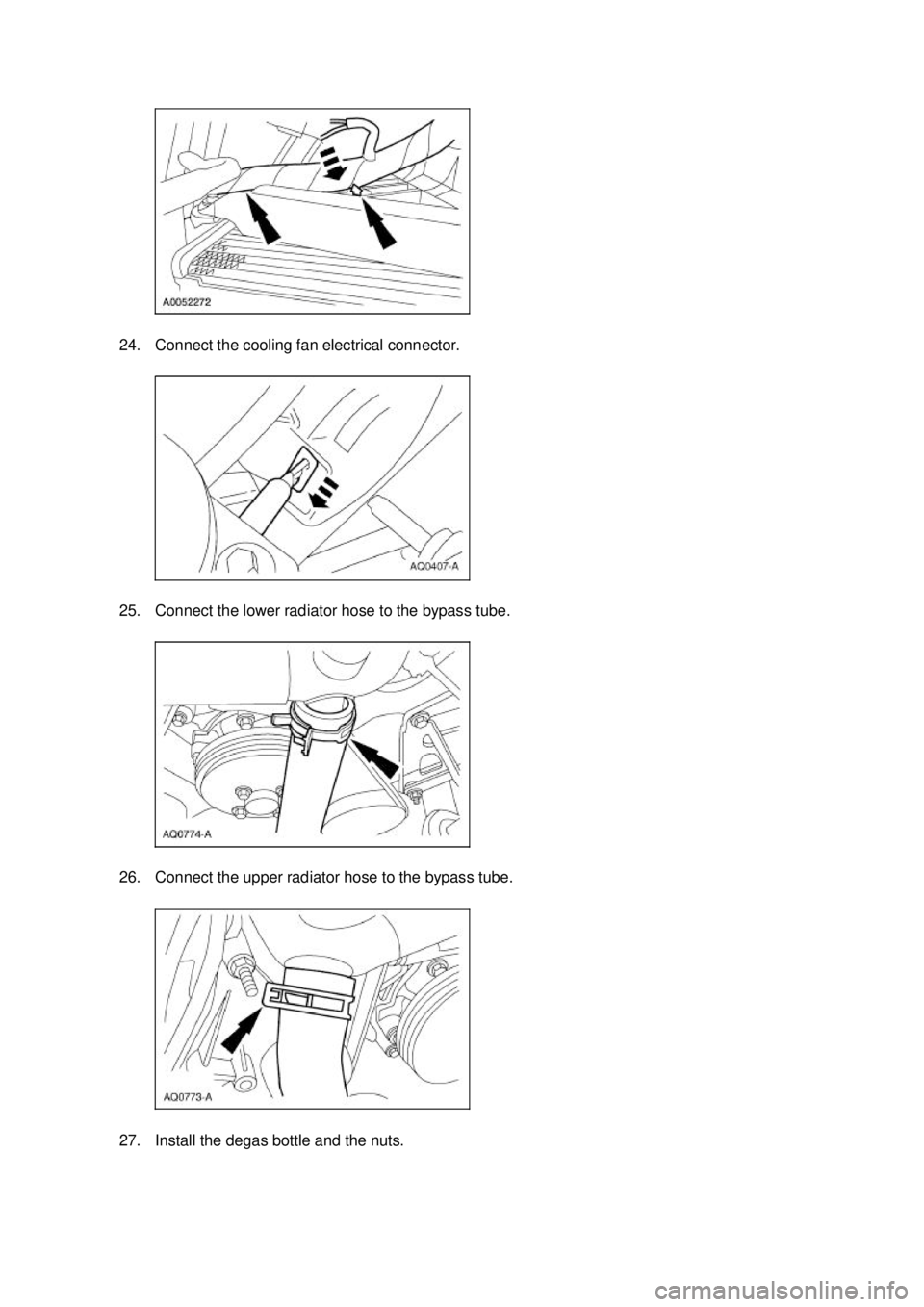

FORD MUSTANG 2003 Workshop Manual 24. Connect the cooling fan electrical connector. 25. Connect the lower radiator hose to the bypass tube. 26. Connect the upper radiator hose to the bypass tube. 27. Install the degas bottle and th

Page 1675 of 4378

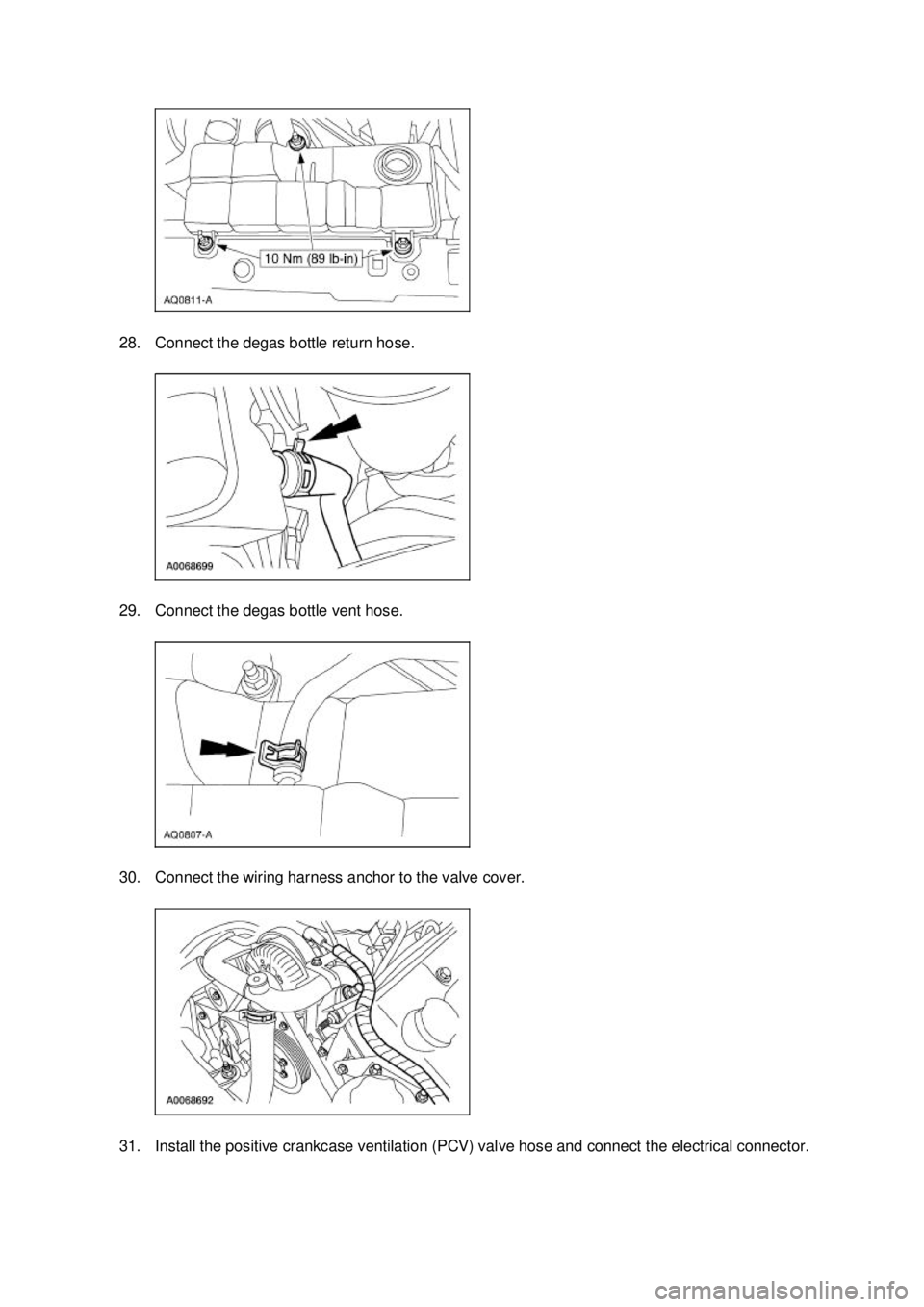

FORD MUSTANG 2003 Workshop Manual 28. Connect the degas bottle return hose. 29. Connect the degas bottle vent hose. 30. Connect the wiring harness anchor to the valve cover. 31. Install the positive crankcase ventilation (PCV) valv

Page 1676 of 4378

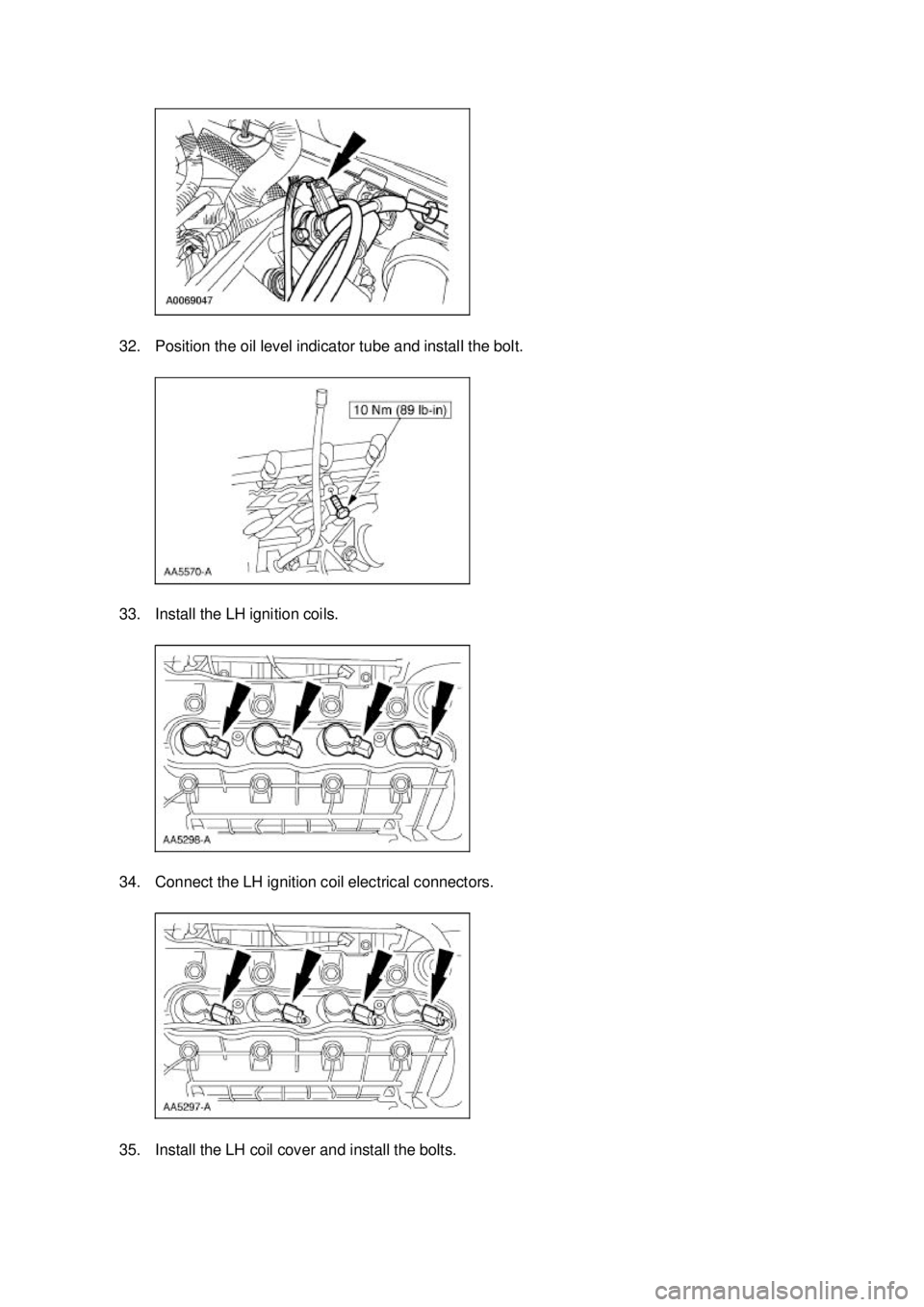

FORD MUSTANG 2003 Workshop Manual 32. Position the oil level indicator tube and install the bolt. 33. Install the LH ignition coils. 34. Connect the LH ignition coil electrical connectors. 35. Install the LH coil cover and install

Page 1677 of 4378

FORD MUSTANG 2003 Workshop Manual Manual transmission vehicles 36. Install the clutch release cable screws. All vehicles 37. Install the RH valve cover. For additional information, refer to Valve Cover RH in this section. 38. In

Page 1678 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 21 ba 212003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1679 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Timing Drive Components Removal CAUTION: Since the engine is not free- wheeling, if the crankshaft or the camshafts are moved in any manner during removal and installation, the

Page 1680 of 4378

FORD MUSTANG 2003 Workshop Manual 4. CAUTION: The camshaft timing marks must be correctly lined up or damage to the valves and pistons can occur. NOTE: The copper links on the timing chain may not line up with the timing marks on
