Page 3921 of 4378

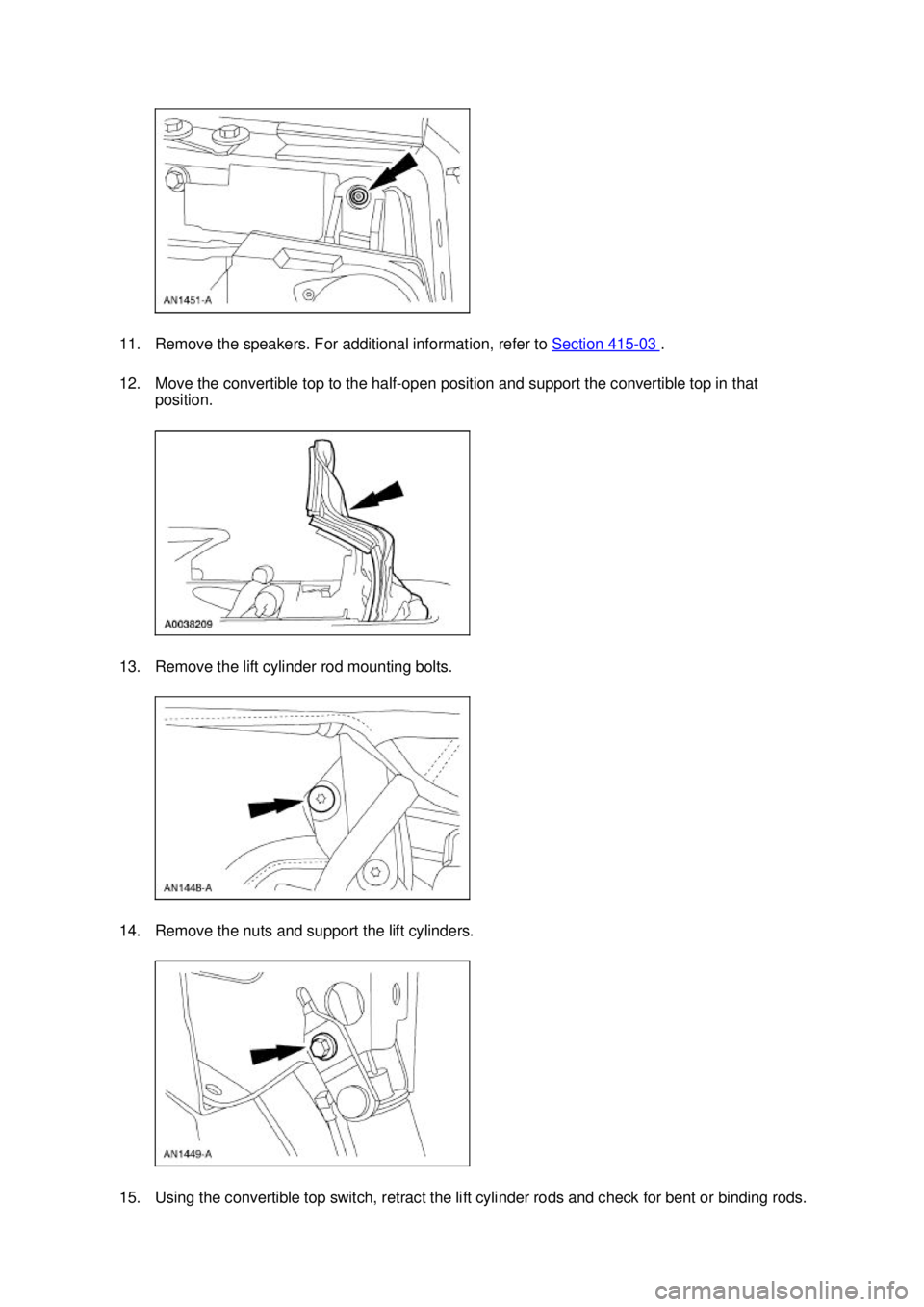

FORD MUSTANG 2003 Workshop Manual 11. Remove the speakers. For additional information, refer to Section 415 - 03 . 12. Move the convertible top to the half- open position and support the convertible top in that position. 13. Remo

Page 3922 of 4378

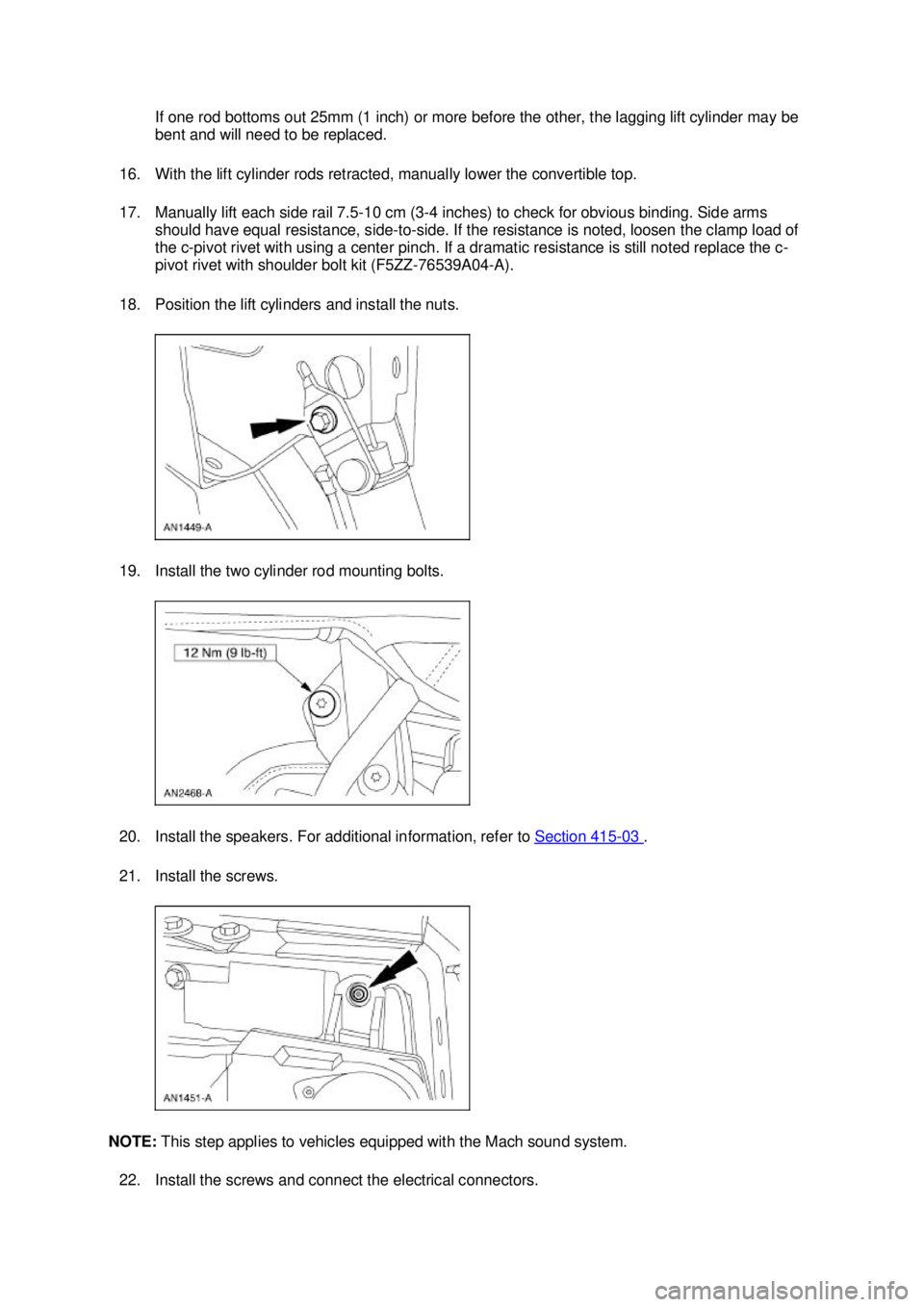

FORD MUSTANG 2003 Workshop Manual If one rod bottoms out 25mm (1 inch) or more before the other, the lagging lift cylinder may be bent and will need to be replaced. 16. With the lift cylinder rods retracted, manually lower the conve

Page 3923 of 4378

FORD MUSTANG 2003 Workshop Manual 23. Install the quarter trim panel. For additional information, refer to Section 501 - 05 . 24. Make sure the convertible top operate correctly. 25. Close the convertible top. Convertible Top No.

Page 3924 of 4378

FORD MUSTANG 2003 Workshop Manual 29. Make sure the convertible top operates correctly. 30. Install the quarter trim panel. For additional information, refer to Section 501 - 05 . 31. Close the convertible top. Convertible Top Ap

Page 3925 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 7 ba 72003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3926 of 4378

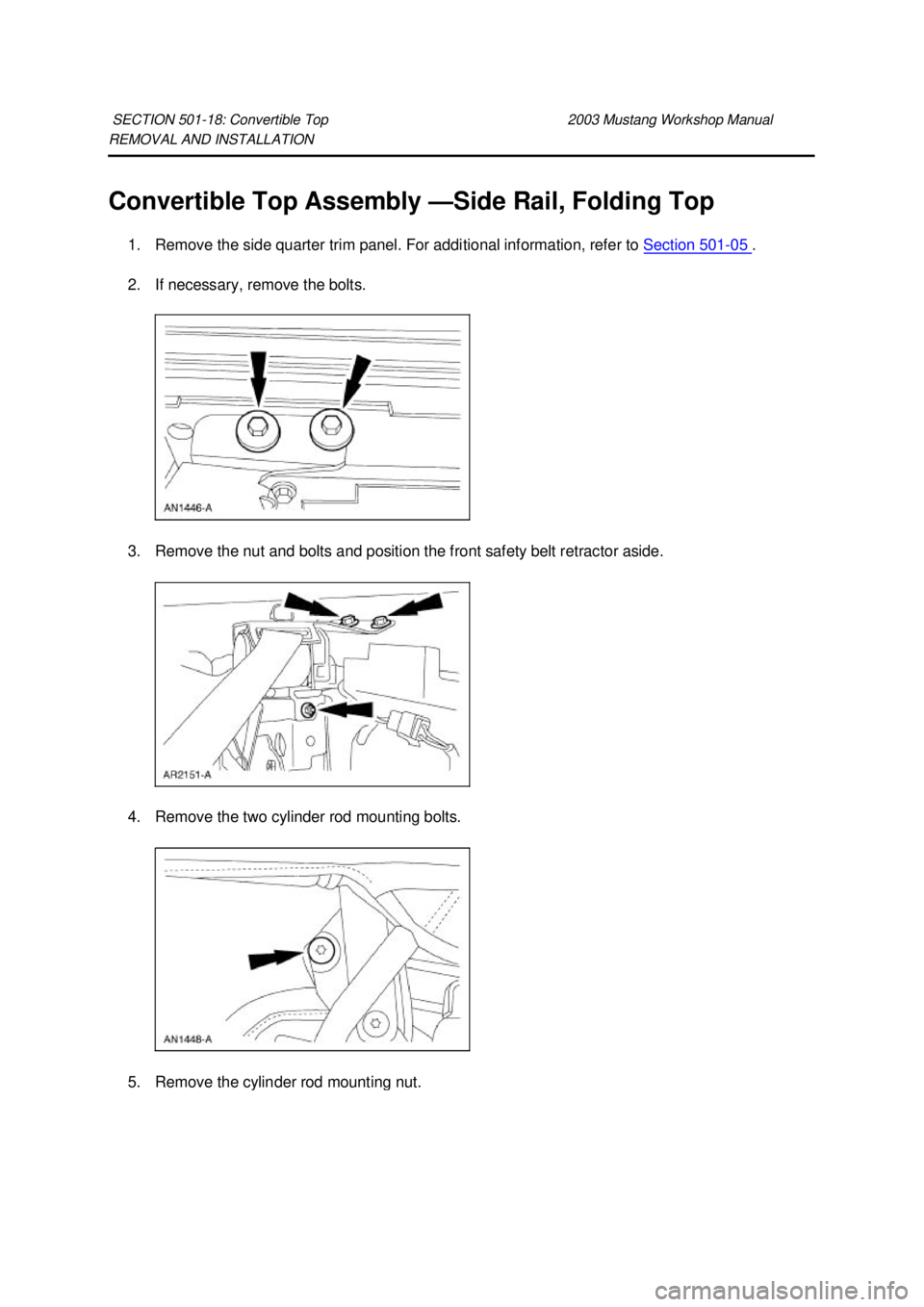

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Convertible Top Assembly — Side Rail, Folding Top 1. Remove the side quarter trim panel. For additional information, refer to Section 501 - 05 . 2. If necessary, remove

Page 3927 of 4378

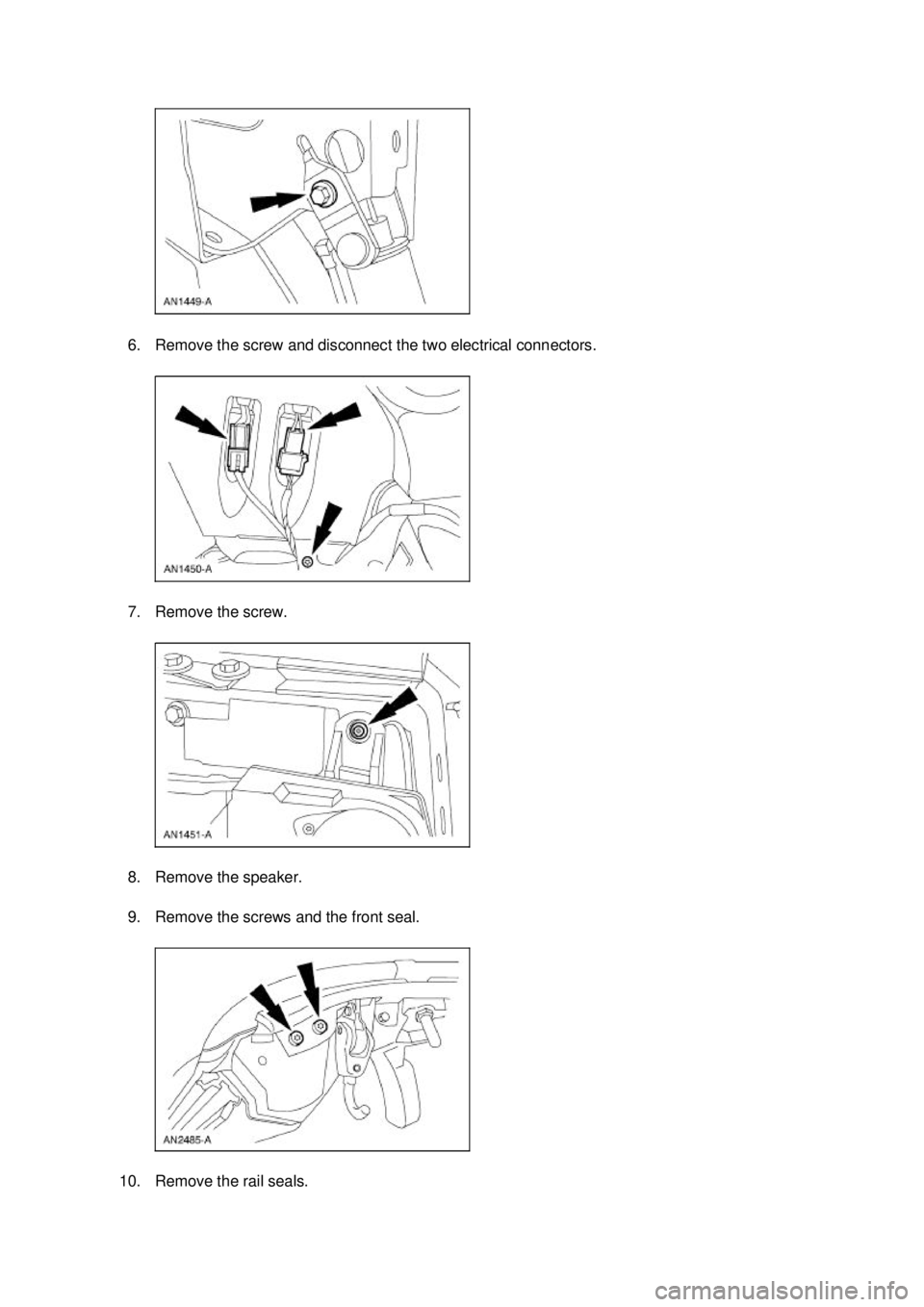

FORD MUSTANG 2003 Workshop Manual 6. Remove the screw and disconnect the two electrical connectors. 7. Remove the screw. 8. Remove the speaker. 9. Remove the screws and the front seal. 10. Remove the rail seals. Klj . 2 ba

Page 3928 of 4378

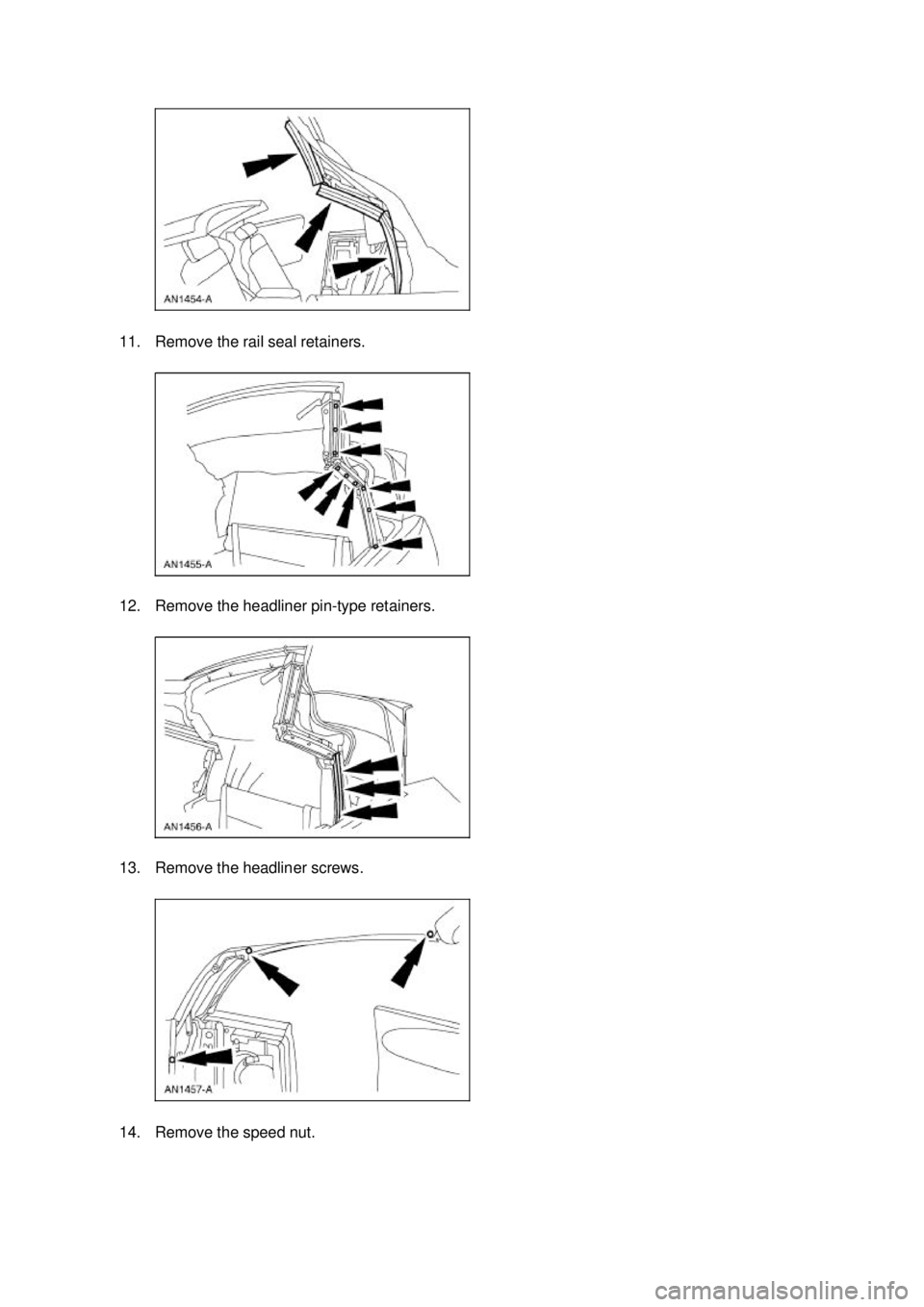

FORD MUSTANG 2003 Workshop Manual 11. Remove the rail seal retainers. 12. Remove the headliner pin- type retainers. 13. Remove the headliner screws. 14. Remove the speed nut. Klj . 3 ba 122003 Mustang Workshop Manual 18. 1
