REMOVAL AND INSTALLATION
Generator —
3.8L
Removal and Installation 1. Disconnect the battery (10655). For additional information, refer to Section 414 - 01 .
2. Relieve the accessory drive belt (8620) tension and remove the belt from the generator pulley. Leave the belt in place for reinstallation. For additional information, refer to Section 303 - 05 .
3. CAUTION: This is a new style connector that has a press- to-release tab. Pulling on
the tab could result in damage to the connector or harness.

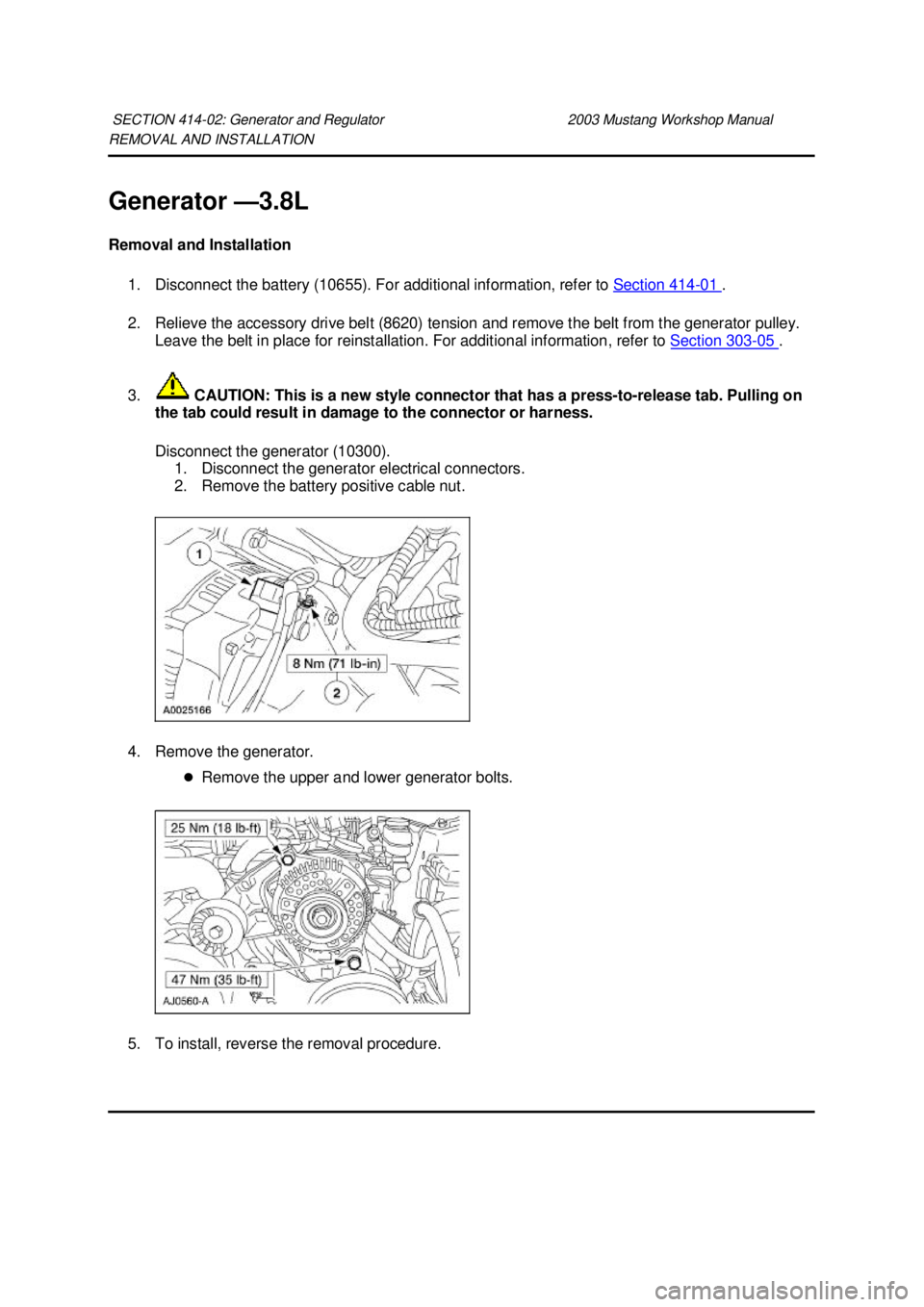

Disconnect the generator (10300). 1. Disconnect the generator electrical connectors.
2. Remove the battery positive cable nut.
4. Remove the generator. zRemove the upper and lower generator bolts.
5. To install, reverse the removal procedure.
SECTION 414-
02: Generator and Regulator 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3386 of 4378
Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3387 of 4378
REMOVAL AND INSTALLATION
Generator —
4.6L 2V
Removal and Installation 1. Disconnect the battery (10655). For additional information, refer to Section 414 - 01 .
2. Relieve the accessory drive belt (8620) tension and remove the belt from the generator pulley. Leave the belt in place for reinstallation. For additional information, refer to Section 303 - 05 .

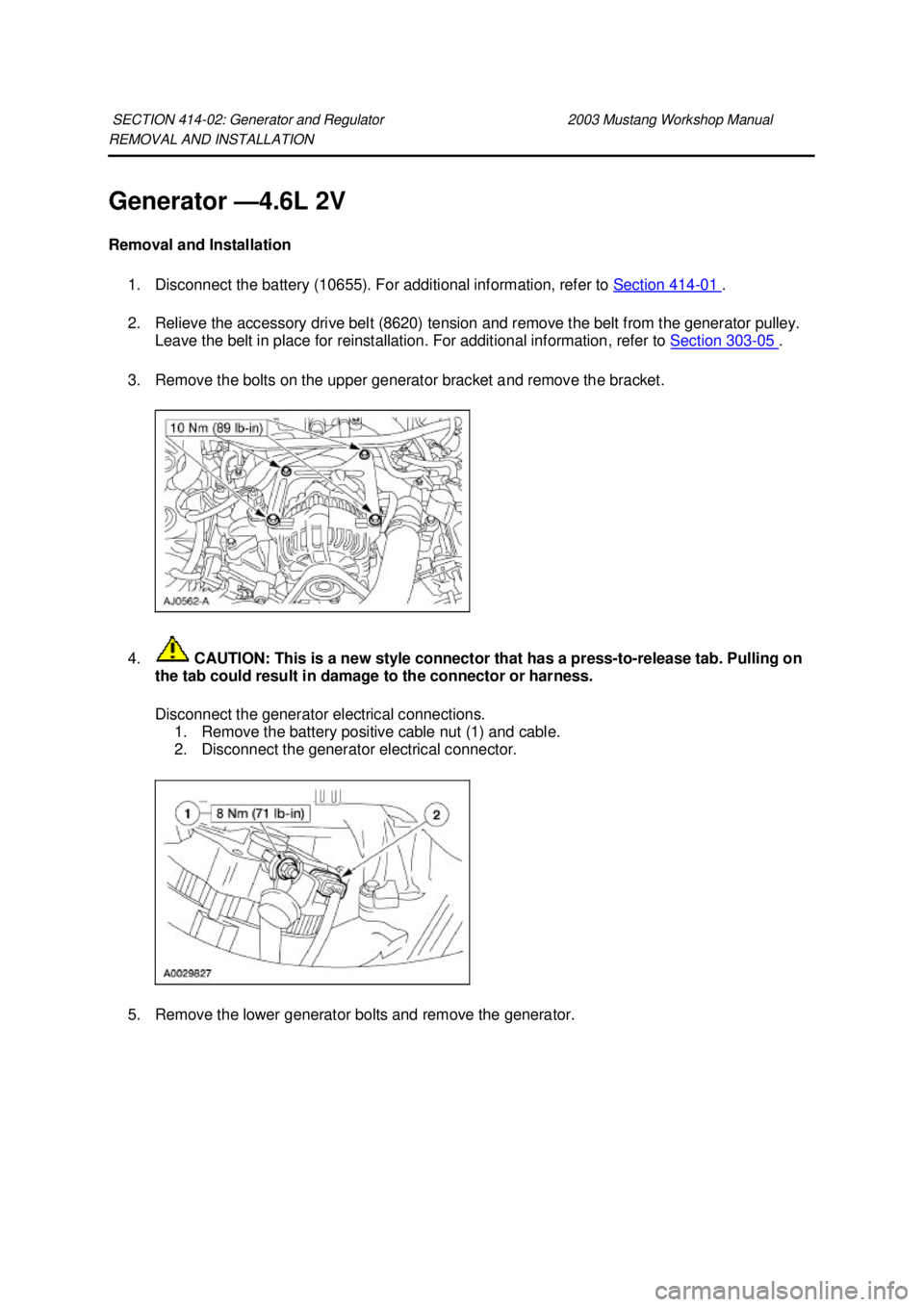

3. Remove the bolts on the upper generator bracket and remove the bracket.
4. CAUTION: This is a new style connector that has a press- to-release tab. Pulling on
the tab could result in damage to the connector or harness.
Disconnect the generator electrical connections. 1. Remove the battery positive cable nut (1) and cable.
2. Disconnect the generator electrical connector.
5. Remove the lower generator bolts and remove the generator.
SECTION 414-
02: Generator and Regulator 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3388 of 4378

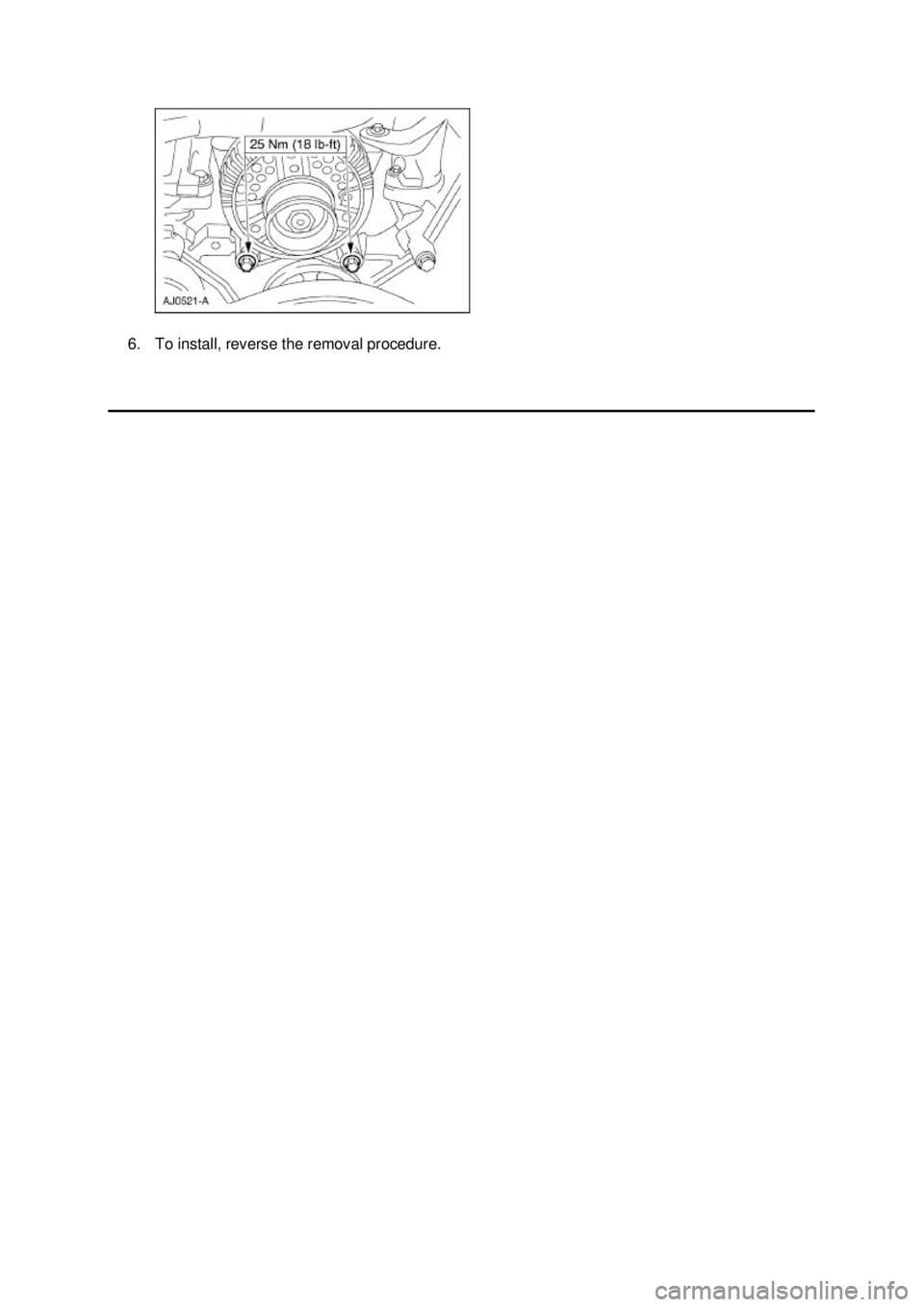

6. To install, reverse the removal procedure. Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3389 of 4378
REMOVAL AND INSTALLATION

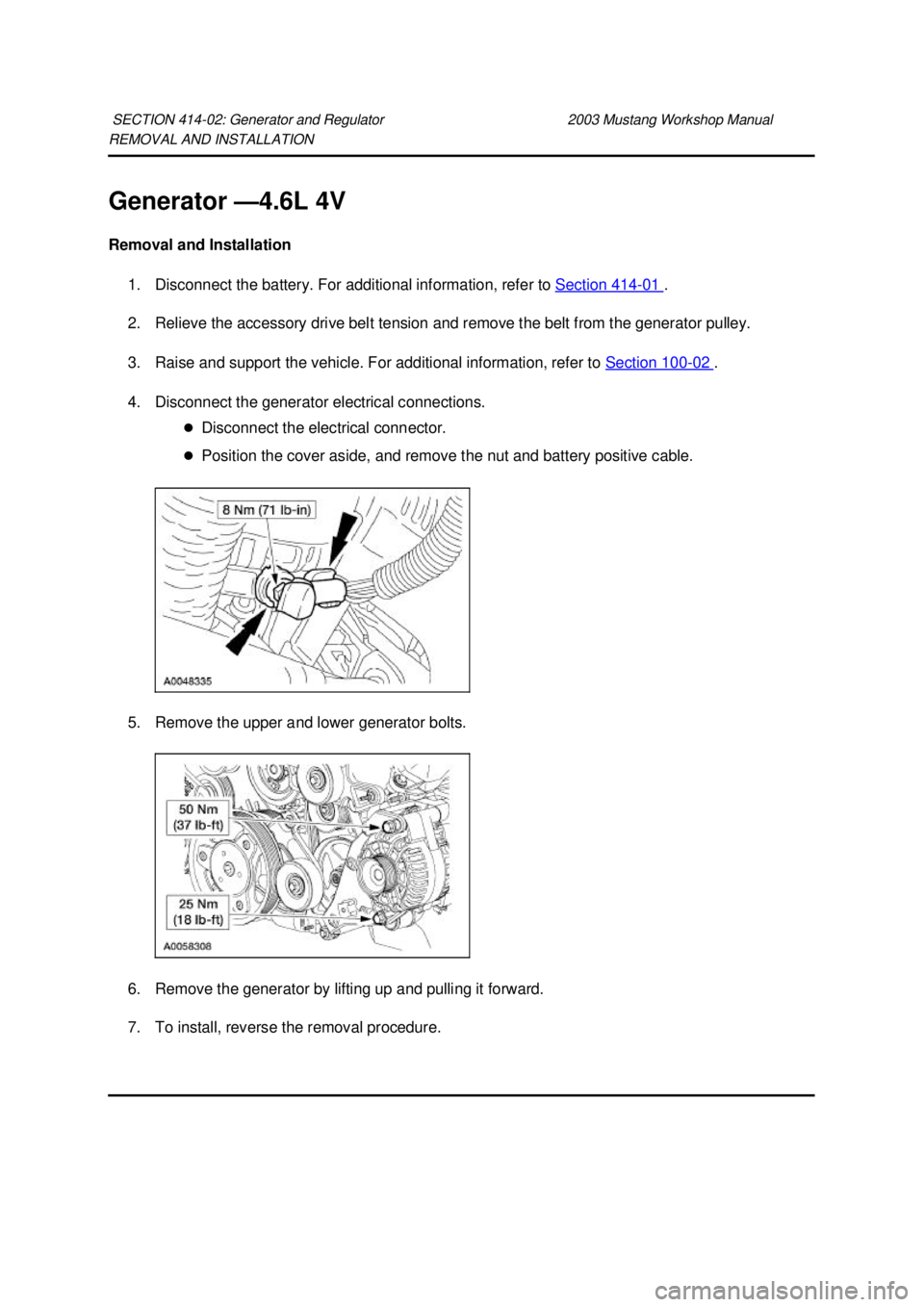

Generator —
4.6L 4V
Removal and Installation 1. Disconnect the battery. For additional information, refer to Section 414 - 01 .
2. Relieve the accessory drive belt tension and remove the belt from the generator pulley.
3. Raise and support the vehicle. For additional information, refer to Section 100 - 02 .
4. Disconnect the generator electrical connections. zDisconnect the electrical connector.
z Position the cover aside, and remove the nut and battery positive cable.
5. Remove the upper and lower generator bolts.
6. Remove the generator by lifting up and pulling it forward.
7. To install, reverse the removal procedure.
SECTION 414-
02: Generator and Regulator 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3390 of 4378
Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3391 of 4378

DIAGNOSIS AND TESTING
Audio System
Refer to Wiring Diagrams Cell
130 , Radio for schematic and connector information.
Inspection and Verification 1. Verify the customer concern by operating the electronic audio system with the engine running.
2. Visually inspect the following for obvious signs of mechanical and electrical damage.
3. If the concern remains and the fault is not detected, proceed to the Symptom Chart to continue diagnostics.
Symptom Chart SECTION 415-
00: Entertainment System — General Information 2003 Mustang Workshop Manual Special Tool(s)
73III Automotive Meter
105-
R0057 or equivalent
Visual Inspection Chart Mechanical Electrical
z
Audio unit
z Antenna or antenna cable
z Speakers mounting/speaker cones
z Radio ignition interference capacitor, radio frequency
interference suppression bond or radio receiver hood bonding
strap cleanliness z
Battery junction box
(BJB) fuses:
„3 (40A)
„ 4 (40A)
„ 6 (40A)
z Central junction box
(CJB) fuses:
„6 (20A)
„ 27 (25A)
„ 32 (15A)
z Ignition switch
z Circuitry
z Audio unit
Symptom Chart Condition
Possible Sources Action
z The audio unit is
inoperative/does not operate z
Central
junction box z
Go To Pinpoint Test A . Klj . 1 ba
