Page 1689 of 4378

FORD MUSTANG 2003 Workshop Manual 4. Using the special tool, install the intake valve spring, the spring retainer and the valve spring retainer keys. 5. Install the Valve Spring Compressor Spacer between the valve spring coils to pr

Page 1690 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 5 ba 52003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1691 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Hydraulic Lash Adjusters Removal 1. Remove the roller followers. For additional information, refer to Roller Followers in this section. 2. Remove the 16 hydraulic lash adjuste

Page 1692 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Roller Followers Removal and Installation 1. Remove the LH and RH valve cover. For additional information, refer to Valve Cover LH and Valve Cover RH in this section. 2. Pos

Page 1693 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1694 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Camshaft Removal 1. Remove the roller followers. For additional information, refer to Roller Followers in this section. 2. Remove the LH timing chain for the LH side and both

Page 1695 of 4378

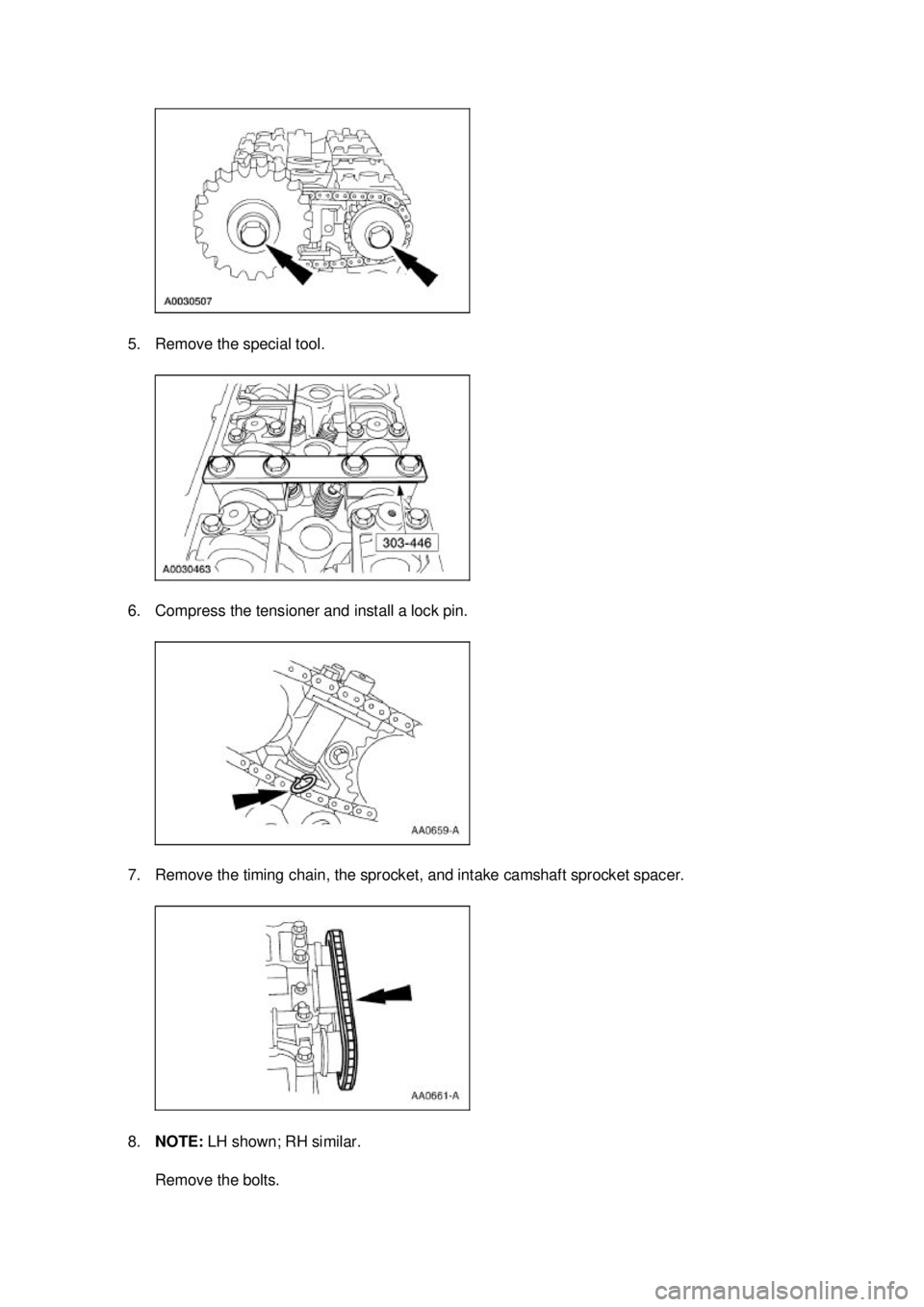

FORD MUSTANG 2003 Workshop Manual 5. Remove the special tool. 6. Compress the tensioner and install a lock pin. 7. Remove the timing chain, the sprocket, and intake camshaft sprocket spacer. 8. NOTE: LH shown; RH similar. Remove

Page 1696 of 4378

FORD MUSTANG 2003 Workshop Manual 9. CAUTION: The outer bolts on the outer cam bearing cap (exhaust) are longer and must be returned to the same location or engine damage may occur. NOTE: Identify the camshaft to cylinder head loc
