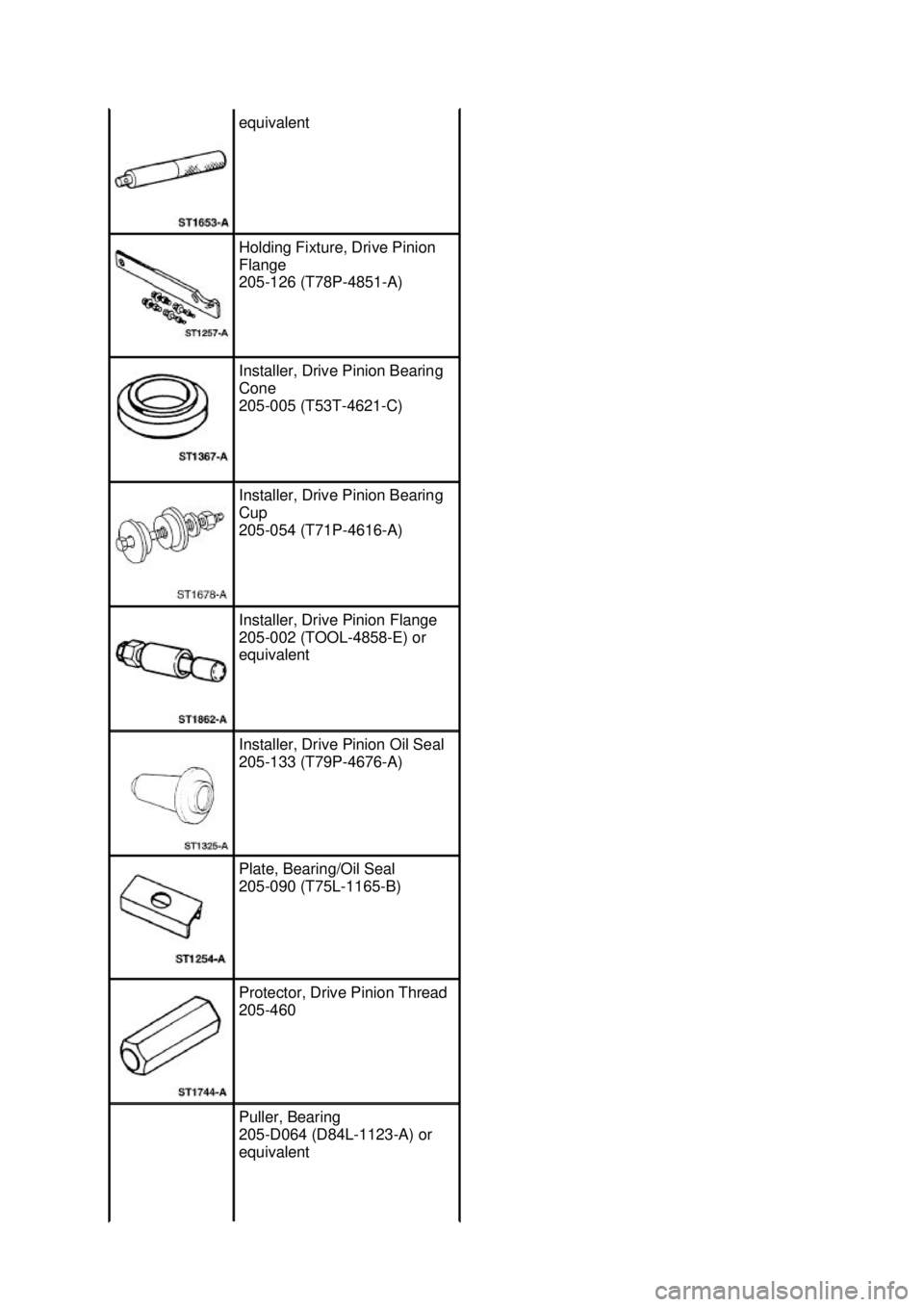

FORD MUSTANG 2003 Workshop Manual equivalent Holding Fixture, Drive Pinion Flange 205- 126 (T78P-4851- A) Installer, Drive Pinion Bearing Cone 205- 005 (T53T-4621- C) Installer, Drive Pinion Bearing Cup 205- 054 (T71P-4616- A

Page 330 of 4378

FORD MUSTANG 2003 Workshop Manual Removal 1. Remove the differential assembly from the differential housing. For additional information, refer to Differential Case in this section. 2. CAUTION: Record the torque necessary to maint

Page 331 of 4378

FORD MUSTANG 2003 Workshop Manual 6. Remove the outer differential pinion bearing. 7. Remove and discard the collapsible spacer (4662). 8. Using the special tool and a suitable press, remove the inner differential pinion bearing (46

Page 332 of 4378

FORD MUSTANG 2003 Workshop Manual sides of the cup to prevent the cup from cocking in the casting. Installation Using special tool 205- 054 NOTE: This is the preferred method for installing the pinion bearing cups. If necessary, p

Page 333 of 4378

FORD MUSTANG 2003 Workshop Manual Check that the cups have seated correctly in their bores. Using special tools 205-153, 205- 054, and 205-D055 NOTE: This is an alternate method for installing the pinion bearing cups. Carry out thi

Page 334 of 4378

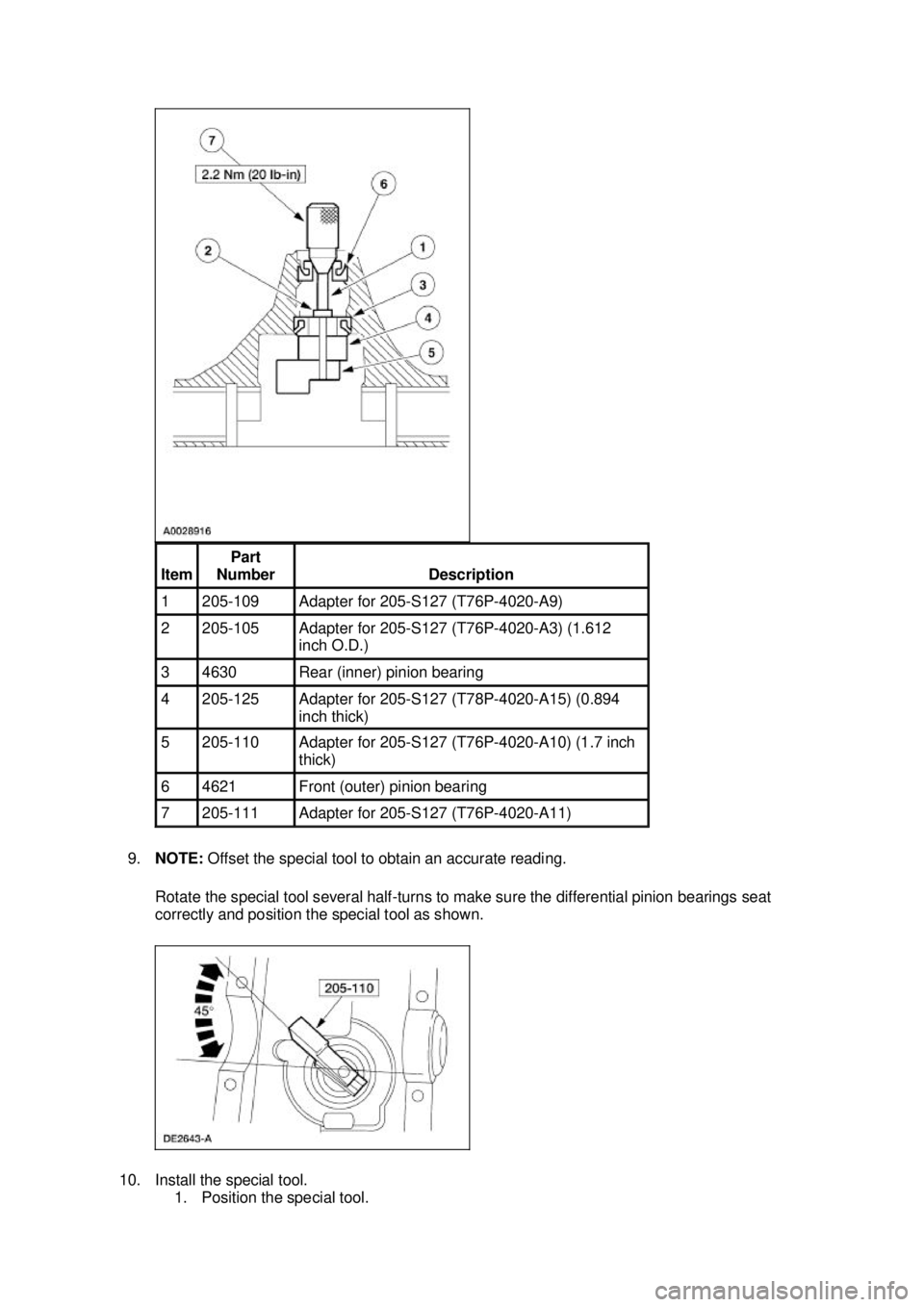

FORD MUSTANG 2003 Workshop Manual Setting pinion depth 7. NOTE: Apply only a light oil film on the differential pinion bearings before assembling the tools. Assemble and position the following in the differential housing. 1. Posit

Page 335 of 4378

FORD MUSTANG 2003 Workshop Manual 9. NOTE: Offset the special tool to obtain an accurate reading. Rotate the special tool several half- turns to make sure the differential pinion bearings seat correctly and position the special too

Page 336 of 4378

FORD MUSTANG 2003 Workshop Manual 2. Install the bearing caps. 3. Install the four bolts. 11. NOTE: Use only flat, clean drive pinion bearing adjustment shims (4663). NOTE: Selection of too thick a shim results in a deep tooth co
