Page 3777 of 4378

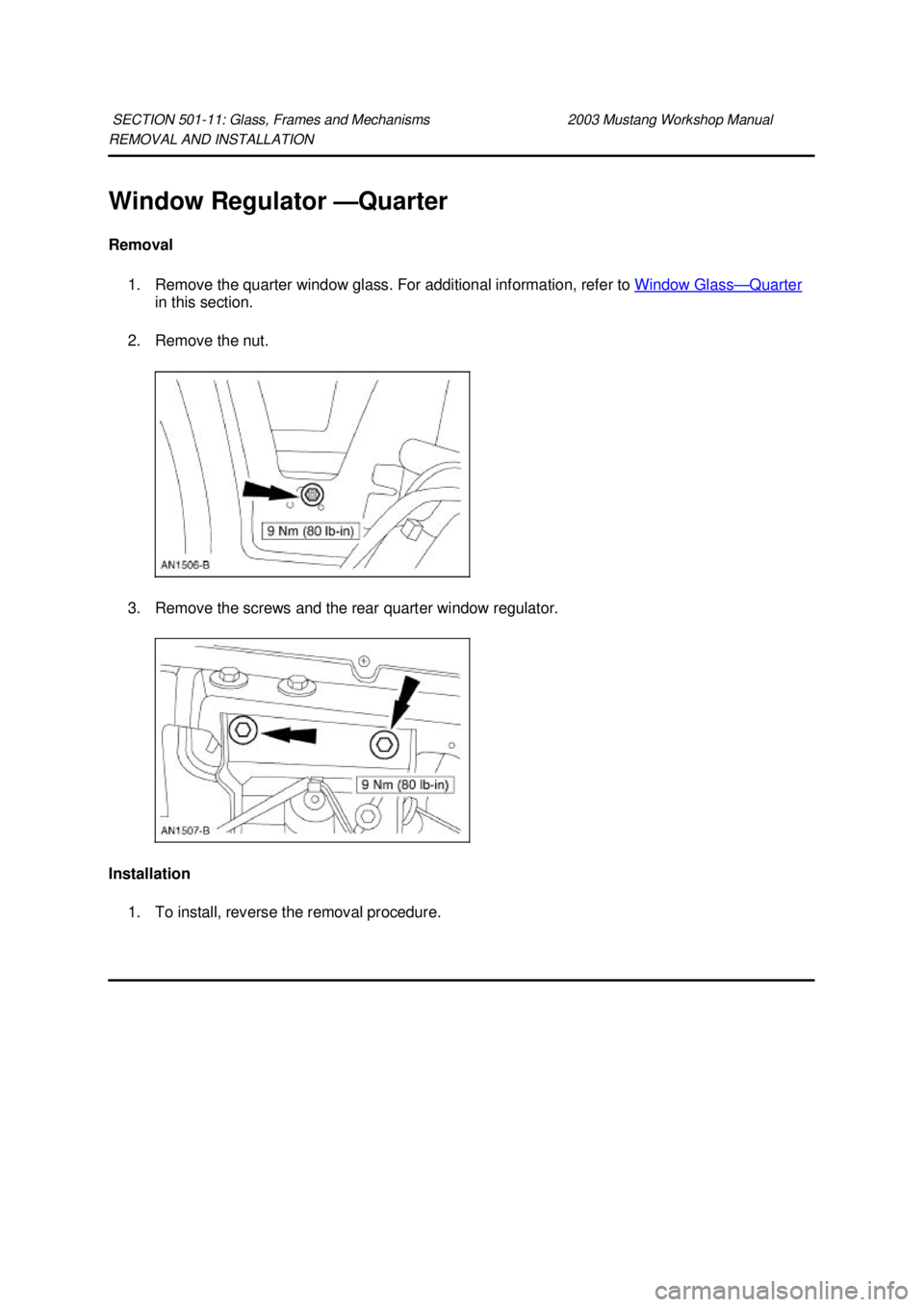

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Window Regulator — Quarter Removal 1. Remove the quarter window glass. For additional information, refer to Window Glass — Quarter in this section. 2. Remove the nut

Page 3778 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3779 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Windshield Glass Removal All vehicles WARNING: To prevent glass splinters from entering eyes or cutting hands, wear safety glasses and heavy gloves when cutting glass fr

Page 3780 of 4378

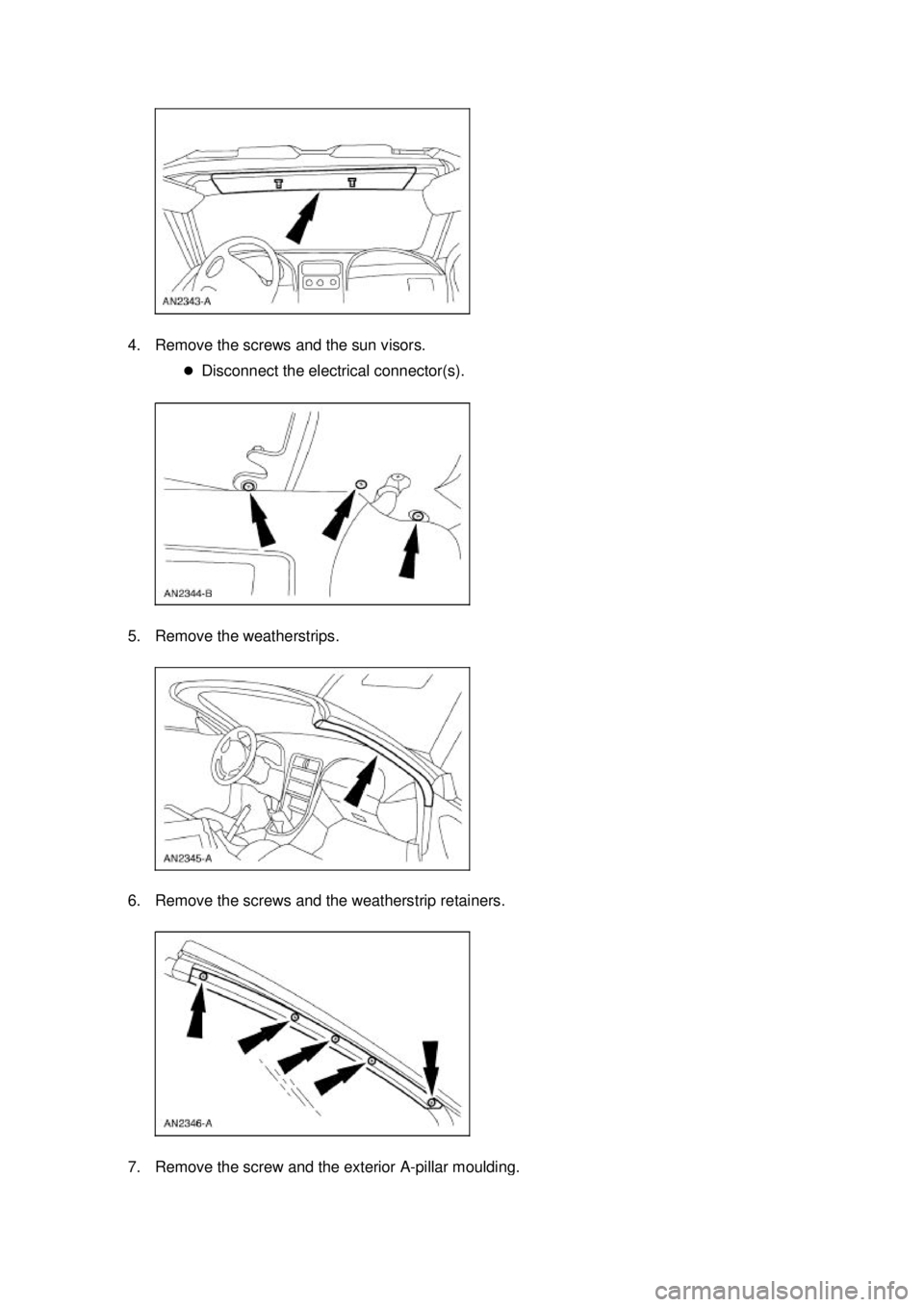

FORD MUSTANG 2003 Workshop Manual 4. Remove the screws and the sun visors. �zDisconnect the electrical connector(s). 5. Remove the weatherstrips. 6. Remove the screws and the weatherstrip retainers. 7. Remove the screw and the ext

Page 3781 of 4378

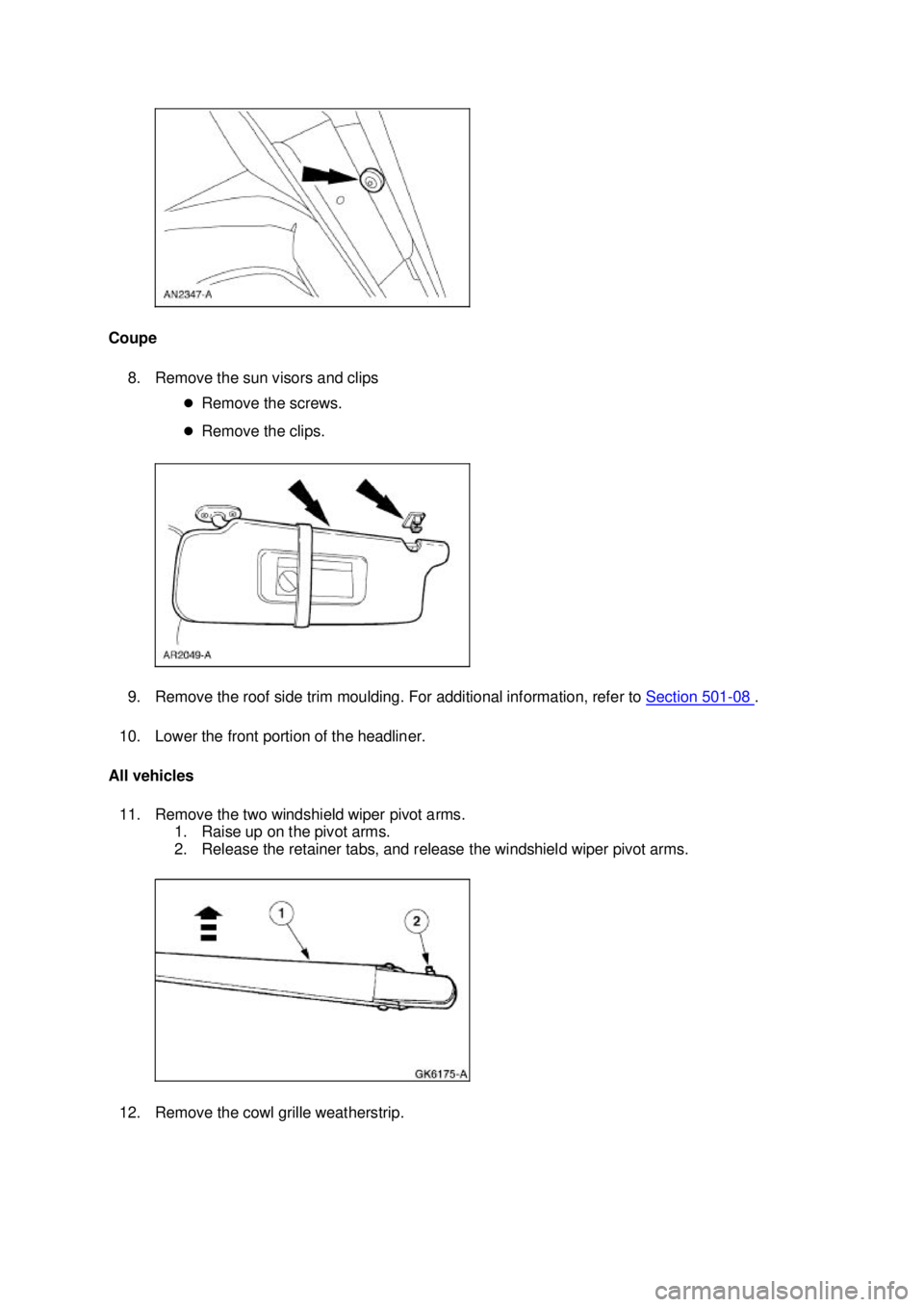

FORD MUSTANG 2003 Workshop Manual Coupe 8. Remove the sun visors and clips �zRemove the screws. �z Remove the clips. 9. Remove the roof side trim moulding. For additional information, refer to Section 501 - 08 . 10. Lower the f

Page 3782 of 4378

FORD MUSTANG 2003 Workshop Manual 13. Remove the cowl grille. 14. Using a soft brush or vacuum, clean any dirt or foreign material from the pinch weld. 15. CAUTION: Cover the instrument panel to prevent possible damage. CAUTION:

Page 3783 of 4378

FORD MUSTANG 2003 Workshop Manual 17. Using the special tool cut the urethane adhesive and remove the windshield. 18. Using a soft brush or vacuum, remove any dirt or foreign material from the pinch weld. Installation All vehicles

Page 3784 of 4378

FORD MUSTANG 2003 Workshop Manual 3. Using a wool applicator, apply the Urethane Metal Primer Essex U- 413 meeting Ford specification WSB-M2G234- C to any exposed metal on the pinch weld. Allow 6 to 10 minutes to dry. 4. If reinsta
