FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION
Control Components
Manual A/C
The climate control system heats or cools the vehicle interior depending on the function selector
position and the temperature selected. Fun

Page 3234 of 4378

FORD MUSTANG 2003 Workshop Manual Control System Inputs
Climate Control Assembly
The climate control assembly has three system controls:
�zThe blower motor switch controls blower motor speed by adding or bypassing resistors in the

Page 3235 of 4378

FORD MUSTANG 2003 Workshop Manual COOL (blue) to WARM (red) causes a corresponding movement on the air temperature control
door and determines the temperature that the system will maintain.
�z The A/C heater function selector switch

COOL (blue) to WARM (red) causes a corresponding movement on the air temperature control
door and determines the temperature that the system will maintain.
z The A/C heater function selector switch combines a vacuum selector valve for direct control of
the vacuum control motors and electrical input to the instrument control module.
Control System Outputs
Blower Motor Switch Resistor
The heater blower motor switch resistor has the following features:
zThe assembly is located on the passenger side of the plenum assembly behind the glove
compartment (06010).
z Three resistance elements are mounted on the resistor board to provide four A/C blower motor
speeds.
z Depending on the heater blower motor switch position, series resistance is added or bypassed
in the A/C blower motor circuit to decrease or increase A/C blower motor speed.
z An overheating protective device (thermal limiter) will open the resistor coil circuit when the
temperature reaches 105°- 110°C (221°-230°F), interrupting the blower motor operation in all
speeds except HI.
z The thermal limiter cannot be reset and is not serviceable.
Control Actuators
Temperature Control Cable
The temperature control cable (19988) has the following features:
zThe cable assembly has a constant tension (pull- pull) dual cable design.
z The pull- pull design allows for constant smooth communication between the temperature control
knob and the air temperature blend door.
z The control cable can only be installed as an assembly.
Vacuum Control Motors
The vacuum control motors (18A318) control the position of the doors directing the air flow to the
different outlets. There are two types of vacuum control motors used in this system:
zSingle- diaphragm for air inlet and windshield defroster door operations.
z Double- diaphragm for air damper door operations.
Single- diaphragm motors have two positions:
z Shaft extended with no vacuum applied.
z Shaft retracted with vacuum applied.
Double- diaphragm motors have three positions:
z Shaft extended with no vacuum applied to either port.
z Shaft halfway retracted with vacuum applied to only one port. Klj . 3 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3236 of 4378

FORD MUSTANG 2003 Workshop Manual �z
Shaft fully retracted with vacuum applied to both ports. Klj . 4 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3237 of 4378

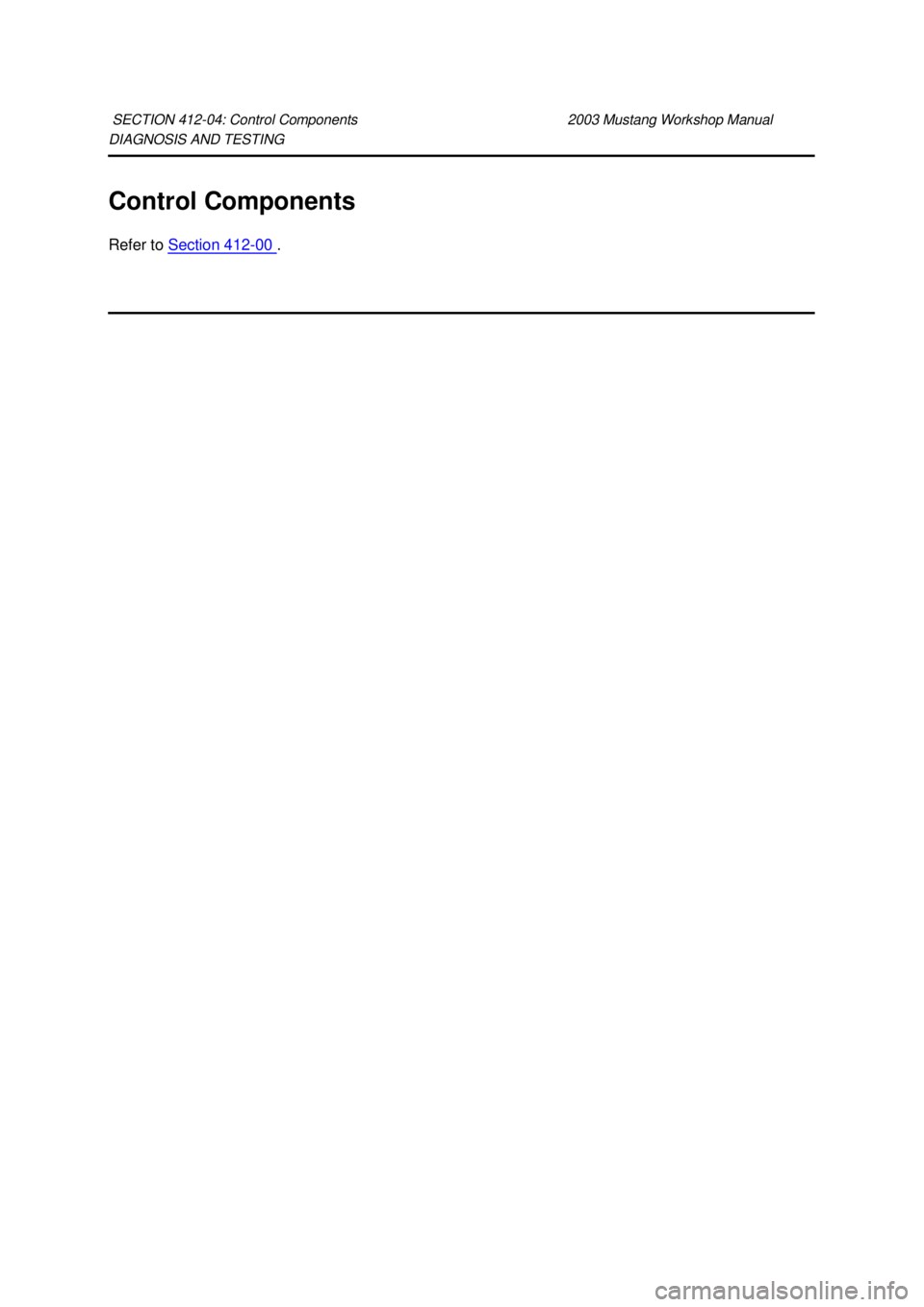

FORD MUSTANG 2003 Workshop Manual DIAGNOSIS AND TESTING
Control Components
Refer to
Section 412 - 00 .
SECTION 412-
04: Control Components 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 20

Page 3238 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION
Control Assembly
Removal
1. Remove the center instrument panel register. For additional information, refer to Section 412 -
01 .
2. Remove the screws.
3. Disconnect the

Page 3239 of 4378

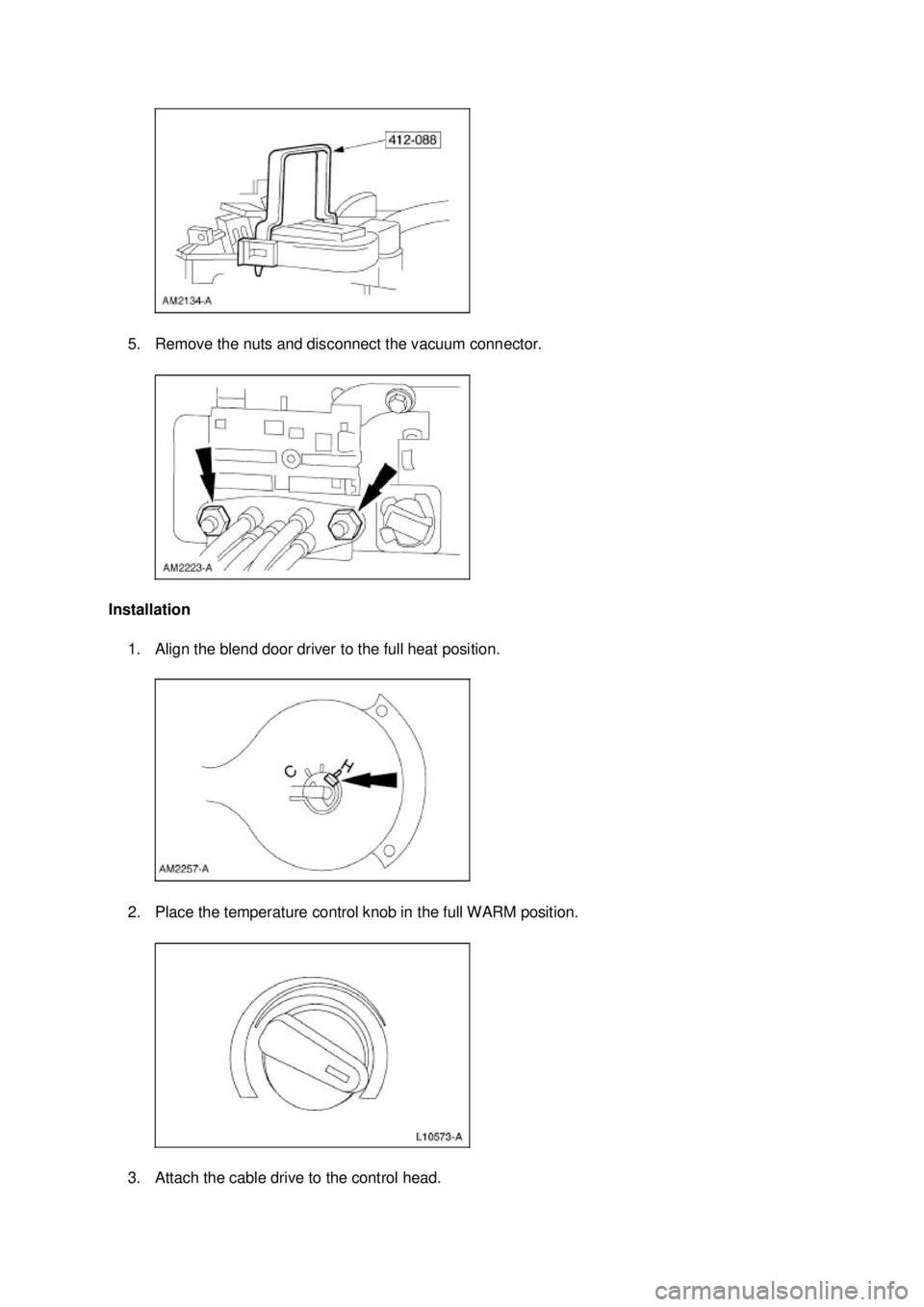

FORD MUSTANG 2003 Workshop Manual 5. Remove the nuts and disconnect the vacuum connector.
Installation 1. Align the blend door driver to the full heat position.
2. Place the temperature control knob in the full WARM position.
3. A

Page 3240 of 4378

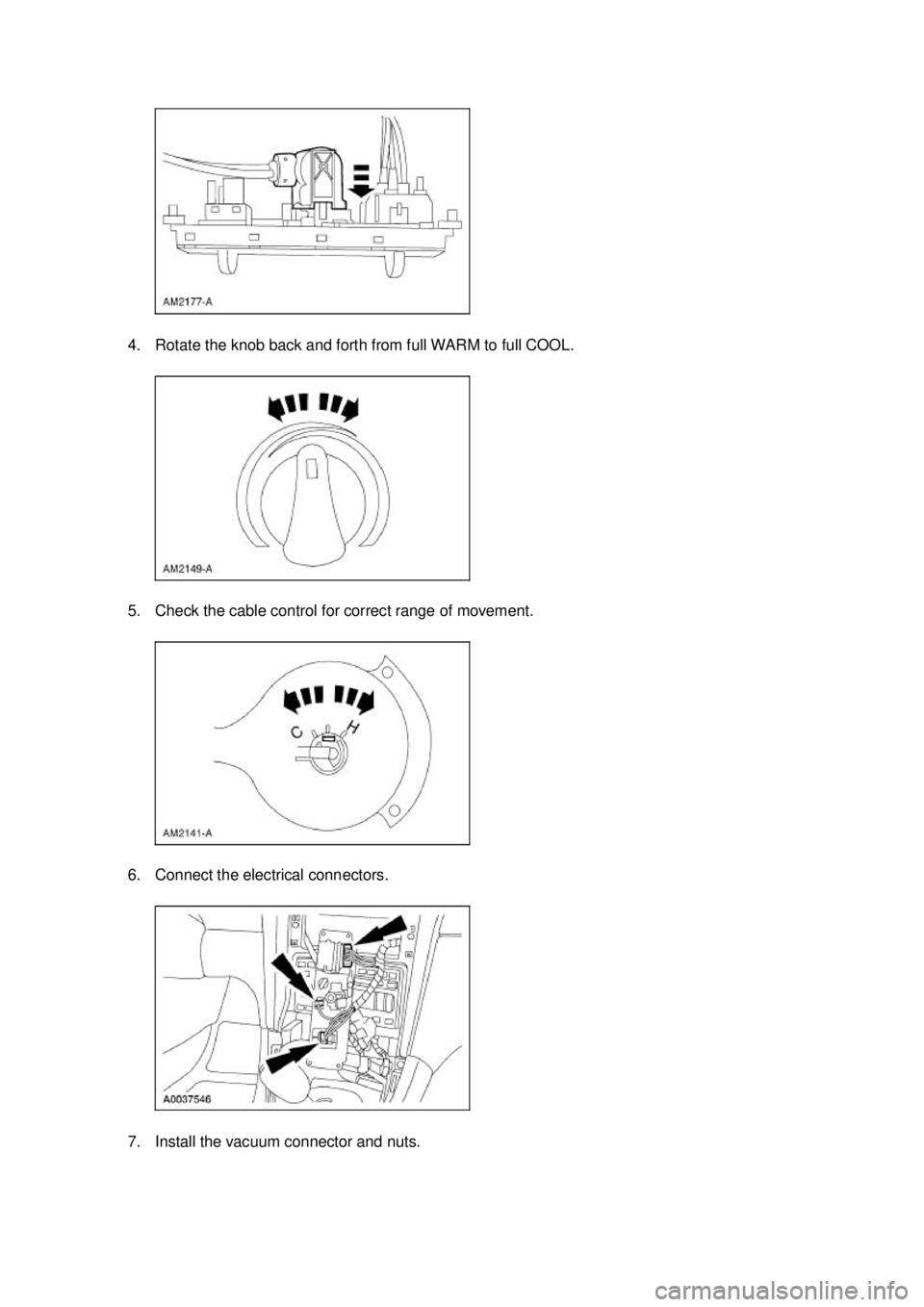

FORD MUSTANG 2003 Workshop Manual 4. Rotate the knob back and forth from full WARM to full COOL.
5. Check the cable control for correct range of movement.
6. Connect the electrical connectors.
7. Install the vacuum connector and nu
