Page 369 of 4378

FORD MUSTANG 2003 Workshop Manual �z The axle housing assembly consists of a cast center section with two steel tube assemblies and a stamped differential housing cover (4033). The differential housing cover uses silicone sealant as

Page 370 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Axle Shaft Removal 1. Raise and support the vehicle. For additional information, refer to Section 100 - 02 . 2. Remove the wheel and tire assembly. For additional information,

Page 371 of 4378

FORD MUSTANG 2003 Workshop Manual 206 - 09A . 8. CAUTION: Do not damage the wheel bearing oil seal. Remove the axle shaft. Installation 1. Lubricate the lip of the wheel bearing oil seal �zUse Premium Long- Life Grease XG-1-C o

Page 372 of 4378

FORD MUSTANG 2003 Workshop Manual 1. Position the two U- washers on the button end of the axle shaft. 2. Pull the axle shaft outward. 4. NOTE: If a new pinion shaft lock bolt is unavailable, coat the threads with Threadlock and Se

Page 373 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 4 ba 42003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 374 of 4378

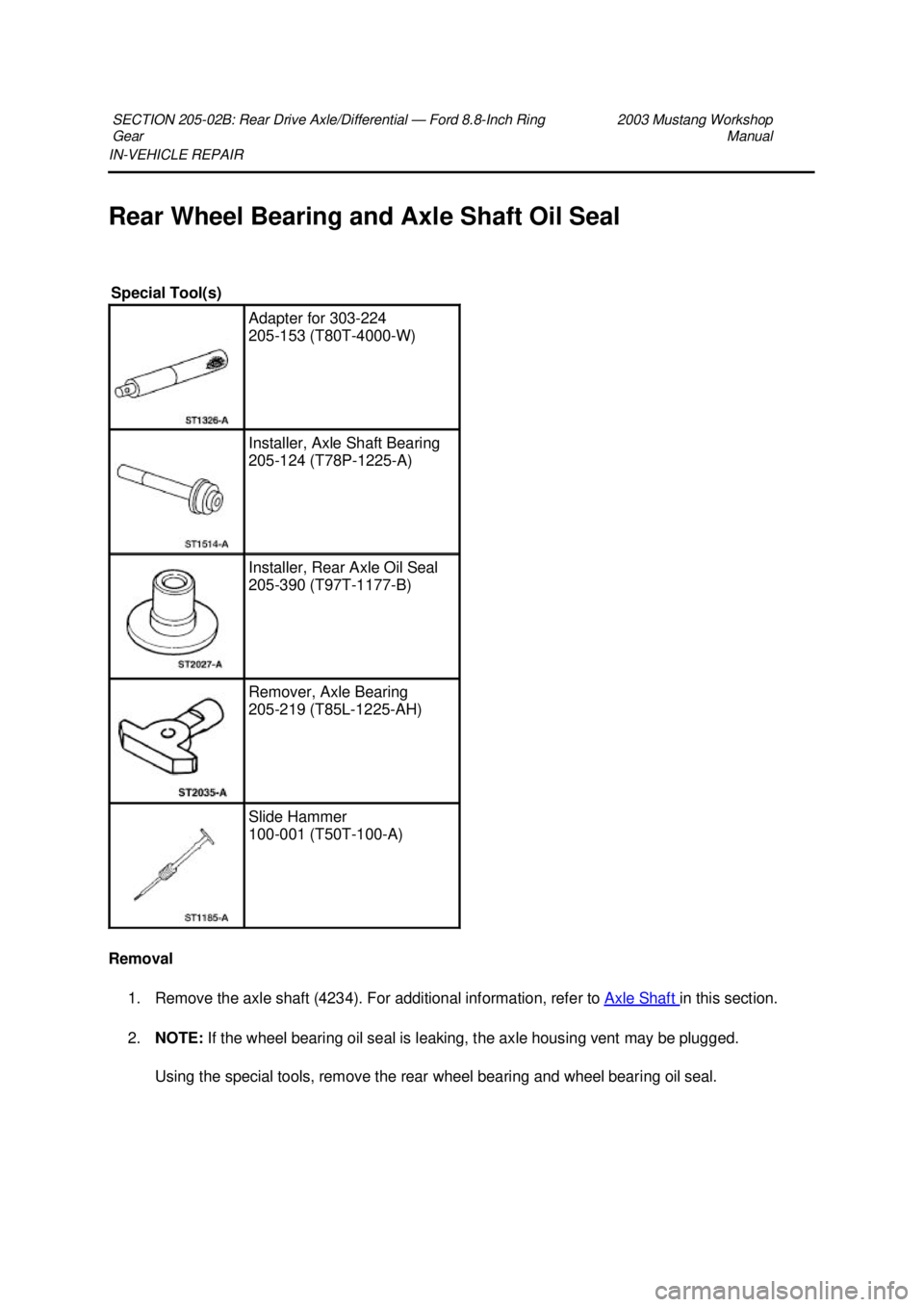

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Rear Wheel Bearing and Axle Shaft Oil Seal Removal 1. Remove the axle shaft (4234). For additional information, refer to Axle Shaft in this section. 2. NOTE: If the wheel bea

Page 375 of 4378

FORD MUSTANG 2003 Workshop Manual Installation 1. Lubricate the new rear wheel bearing with the specified lubricant. 2. Using the special tools, install the new rear wheel bearing. 3. Lubricate the lip of the new wheel bearing oil

Page 376 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
