Page 3769 of 4378

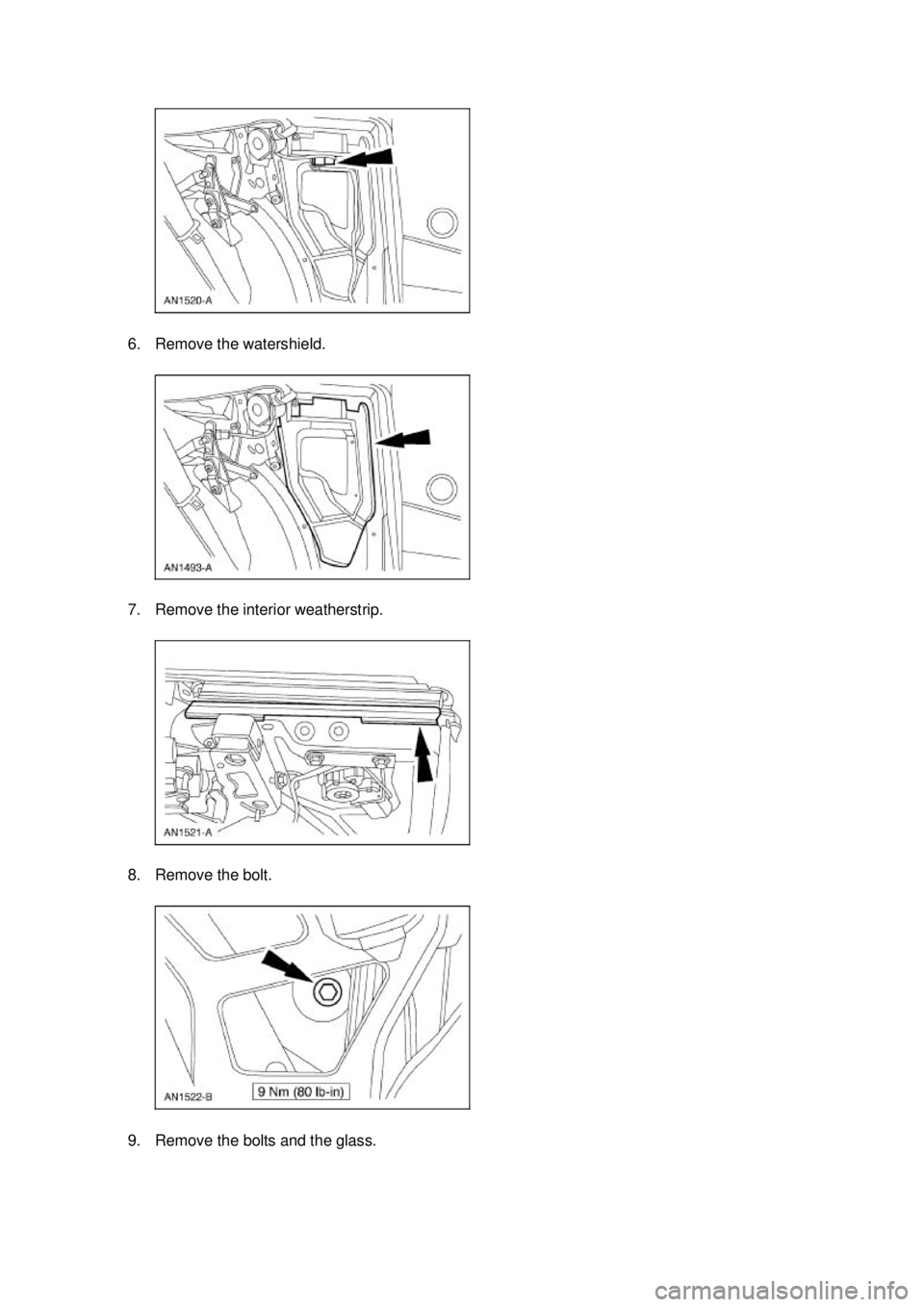

6. Remove the watershield.
7. Remove the interior weatherstrip.
8. Remove the bolt.
9. Remove the bolts and the glass. Klj . 2 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3770 of 4378

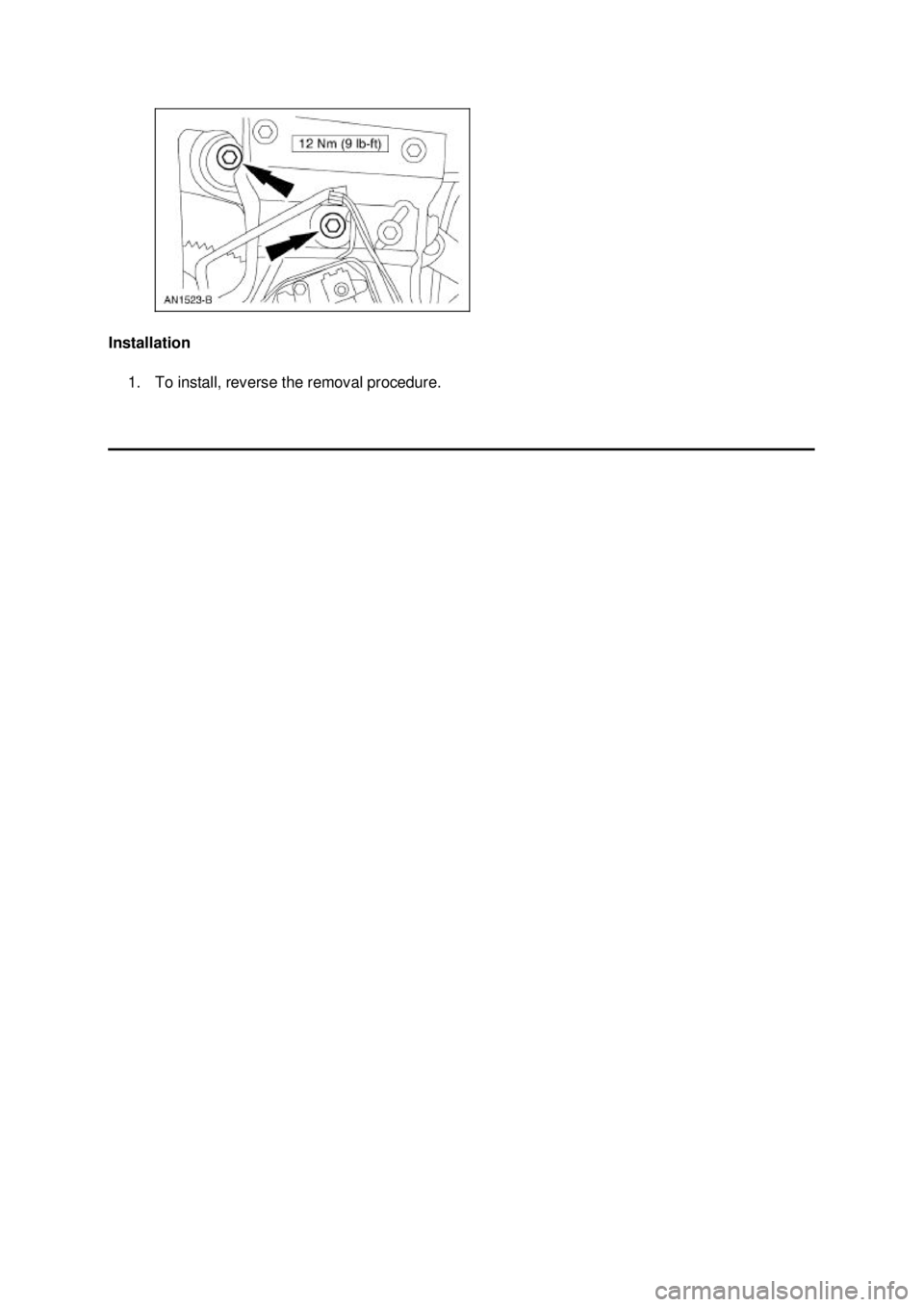

Installation
1. To install, reverse the removal procedure. Klj . 3 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3771 of 4378

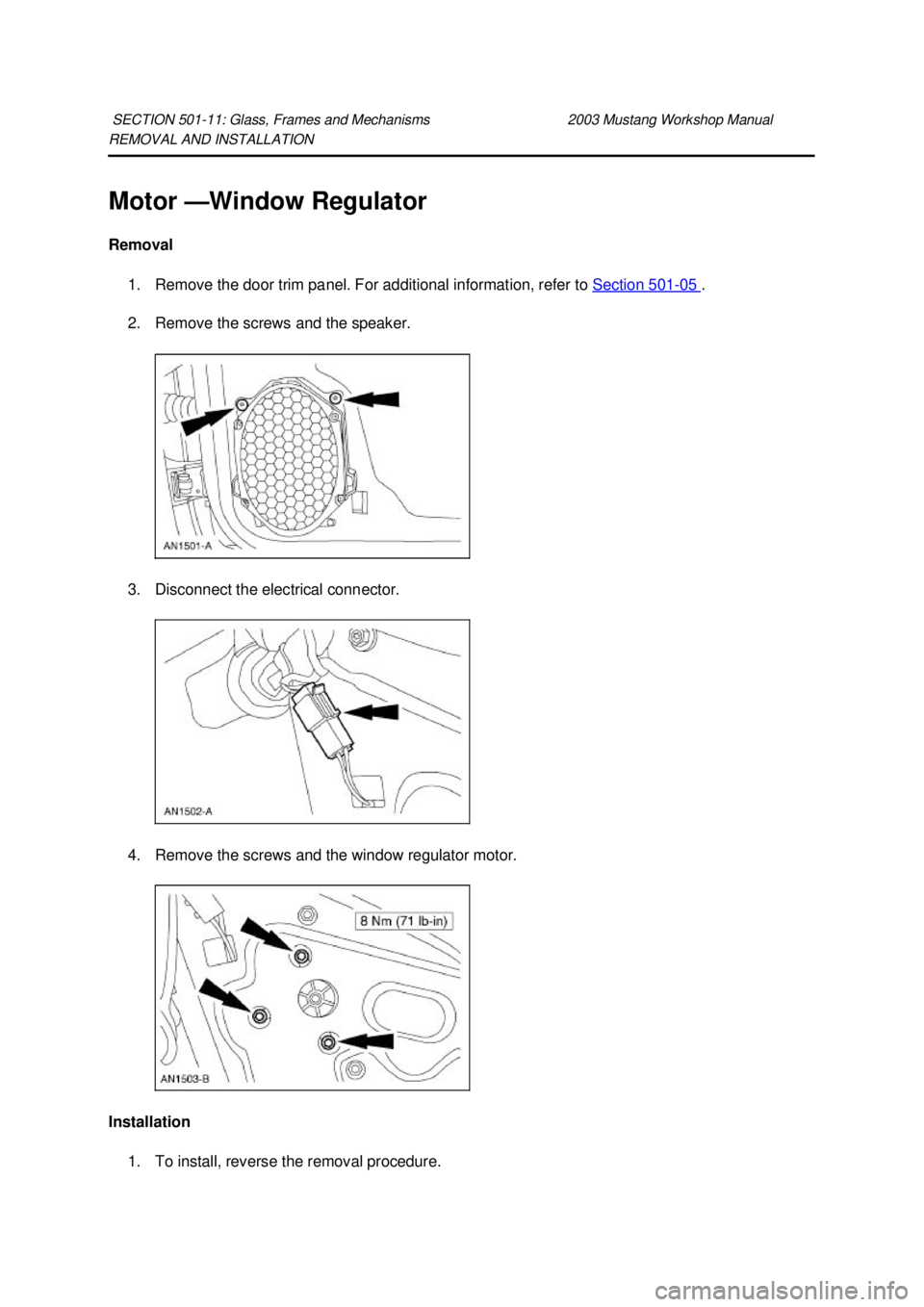

REMOVAL AND INSTALLATION
Motor —
Window Regulator
Removal 1. Remove the door trim panel. For additional information, refer to Section 501 - 05 .
2. Remove the screws and the speaker.
3. Disconnect the electrical connector.
4. Remove the screws and the window regulator motor.
Installation 1. To install, reverse the removal procedure.
SECTION 501-
11: Glass, Frames and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3772 of 4378
Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3773 of 4378

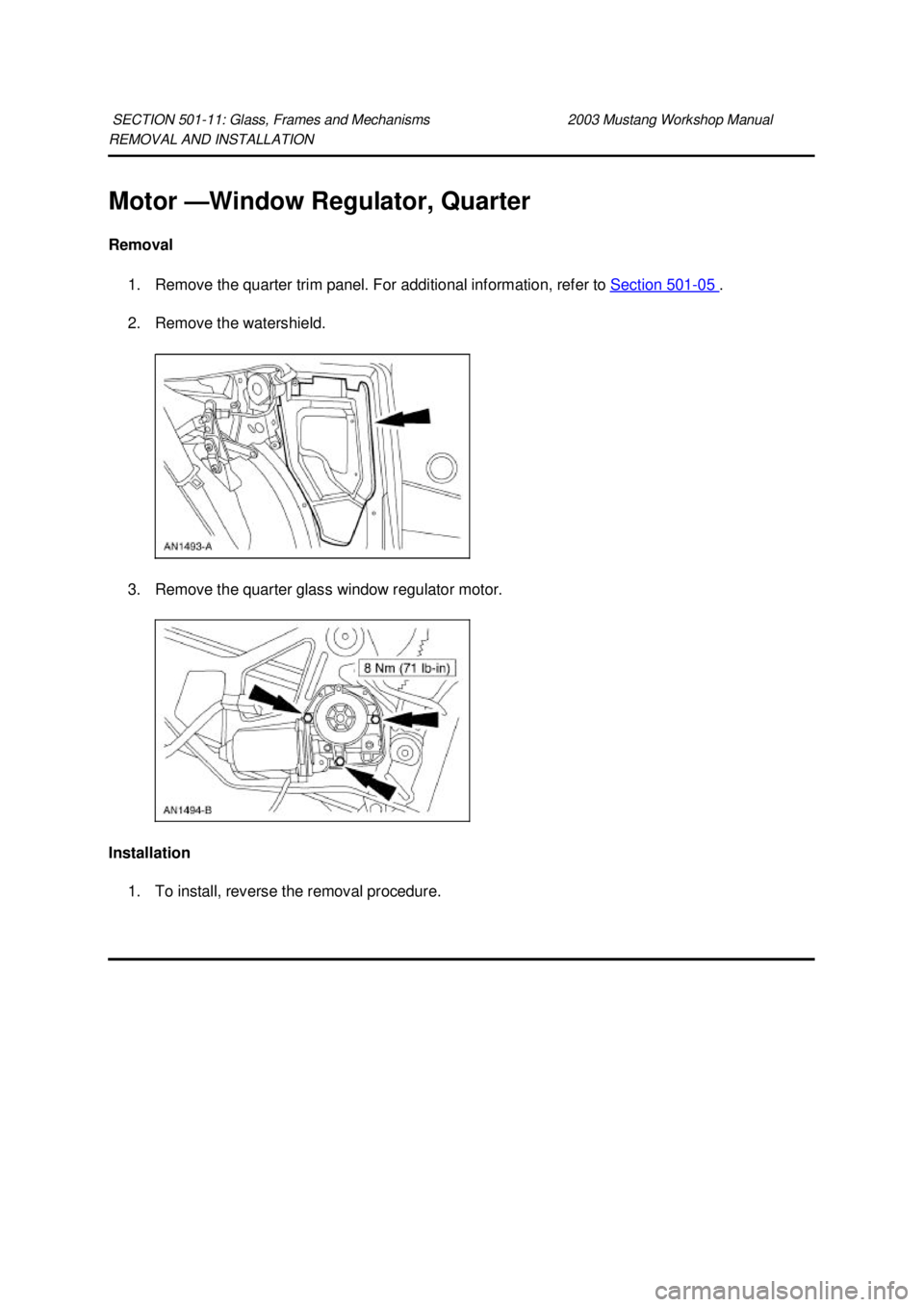

REMOVAL AND INSTALLATION
Motor —
Window Regulator, Quarter
Removal 1. Remove the quarter trim panel. For additional information, refer to Section 501 - 05 .
2. Remove the watershield.
3. Remove the quarter glass window regulator motor.
Installation 1. To install, reverse the removal procedure.
SECTION 501-
11: Glass, Frames and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3774 of 4378
Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3775 of 4378

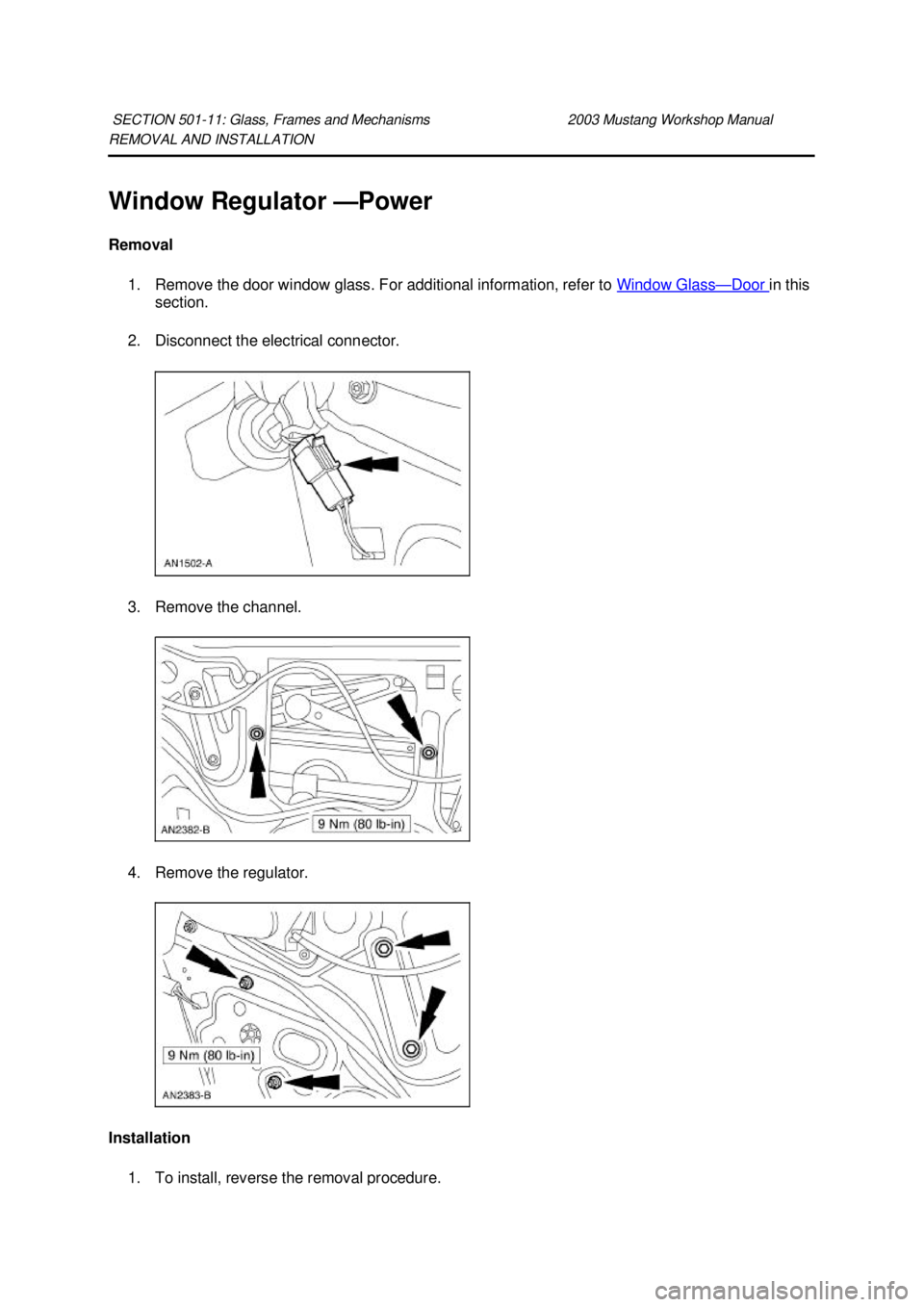

REMOVAL AND INSTALLATION
Window Regulator —
Power
Removal 1. Remove the door window glass. For additional information, refer to Window Glass — Door in this
section.
2. Disconnect the electrical connector.
3. Remove the channel.
4. Remove the regulator.
Installation 1. To install, reverse the removal procedure. SECTION 501-
11: Glass, Frames and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3776 of 4378
Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
