Page 1713 of 4378

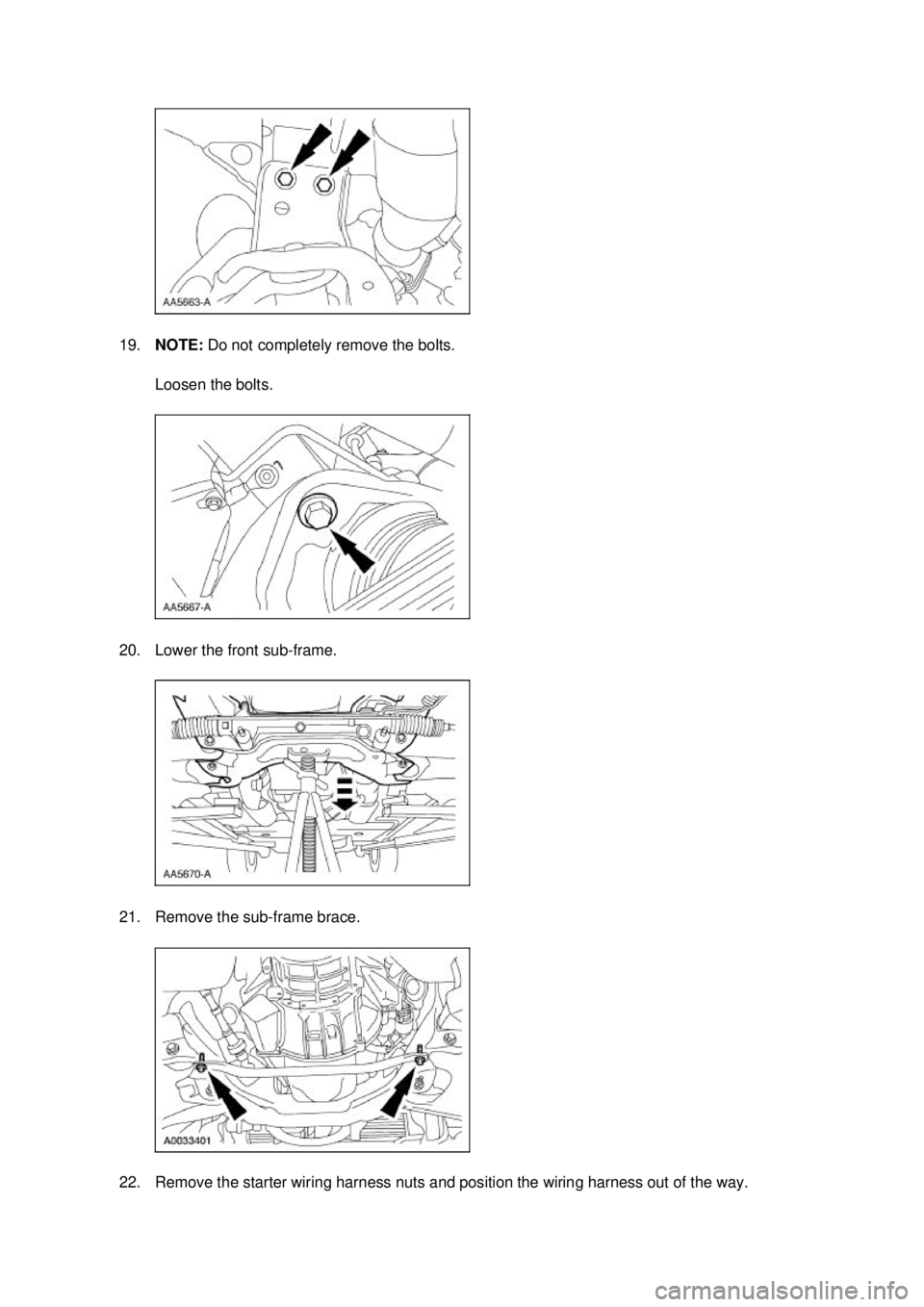

FORD MUSTANG 2003 Workshop Manual 19. NOTE: Do not completely remove the bolts. Loosen the bolts. 20. Lower the front sub- frame. 21. Remove the sub- frame brace. 22. Remove the starter wiring harness nuts and position the wiring

Page 1714 of 4378

FORD MUSTANG 2003 Workshop Manual 23. NOTE: Be careful when removing the oil pan gasket. It is reusable. Remove the oil pan and gasket. �zInspect the oil pan gasket for damage. Installation 1. CAUTION: Do not use metal scrapers,

Page 1715 of 4378

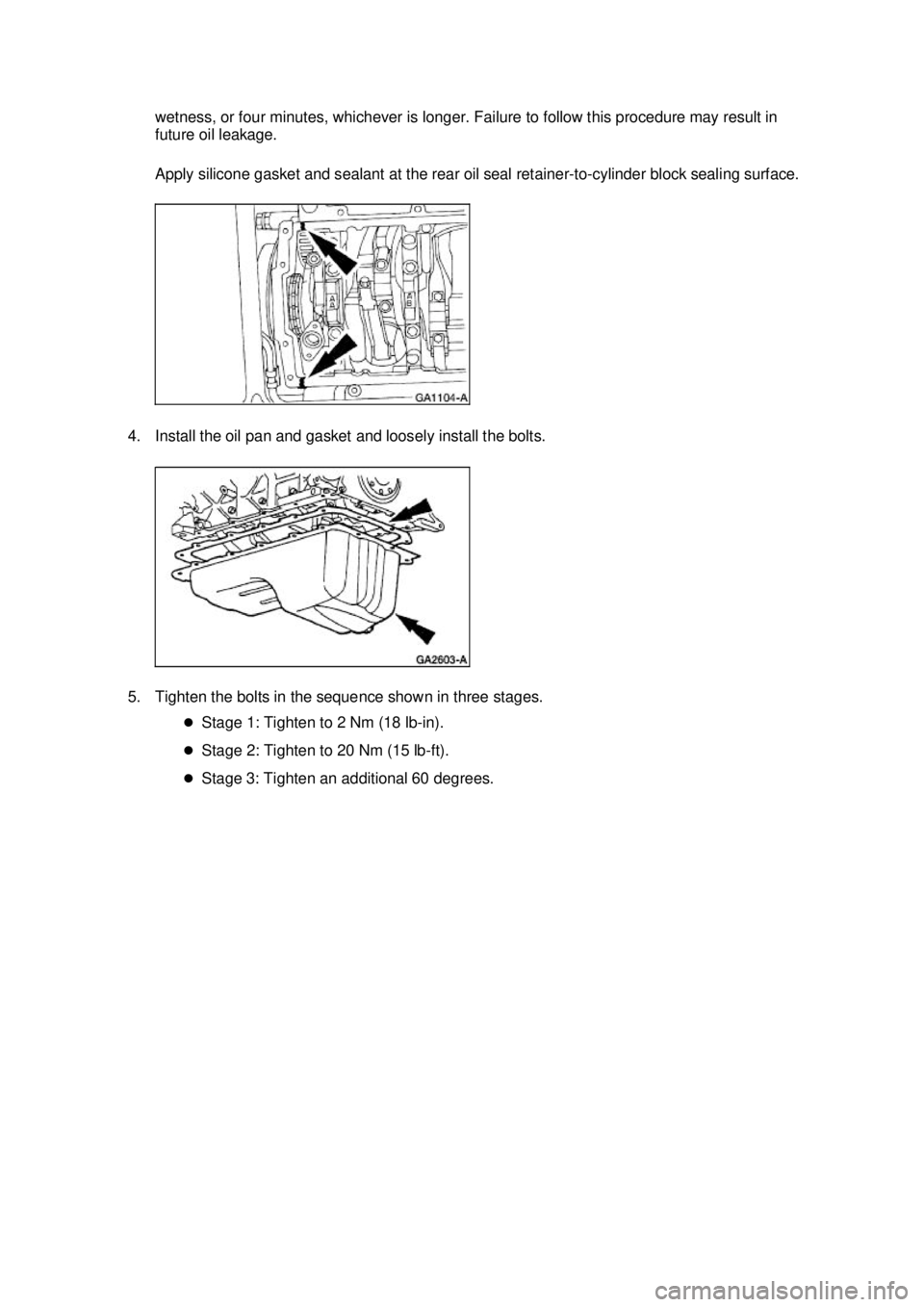

FORD MUSTANG 2003 Workshop Manual wetness, or four minutes, whichever is longer. Failure to follow this procedure may result in future oil leakage. Apply silicone gasket and sealant at the rear oil seal retainer- to-cylinder block s

Page 1716 of 4378

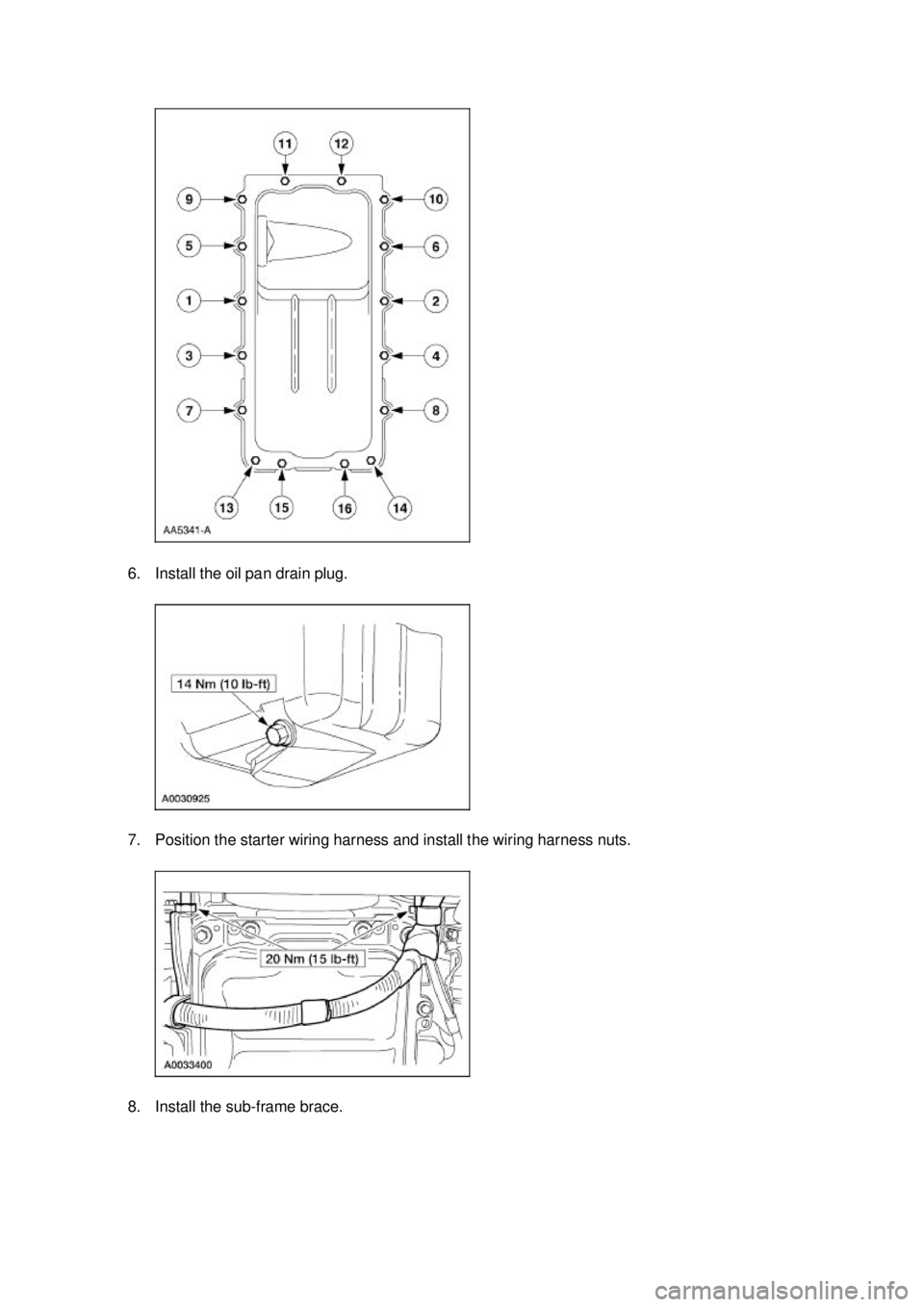

FORD MUSTANG 2003 Workshop Manual 6. Install the oil pan drain plug. 7. Position the starter wiring harness and install the wiring harness nuts. 8. Install the sub- frame brace. Klj . 7 ba 112003 Mustang Workshop Manual 17.

Page 1717 of 4378

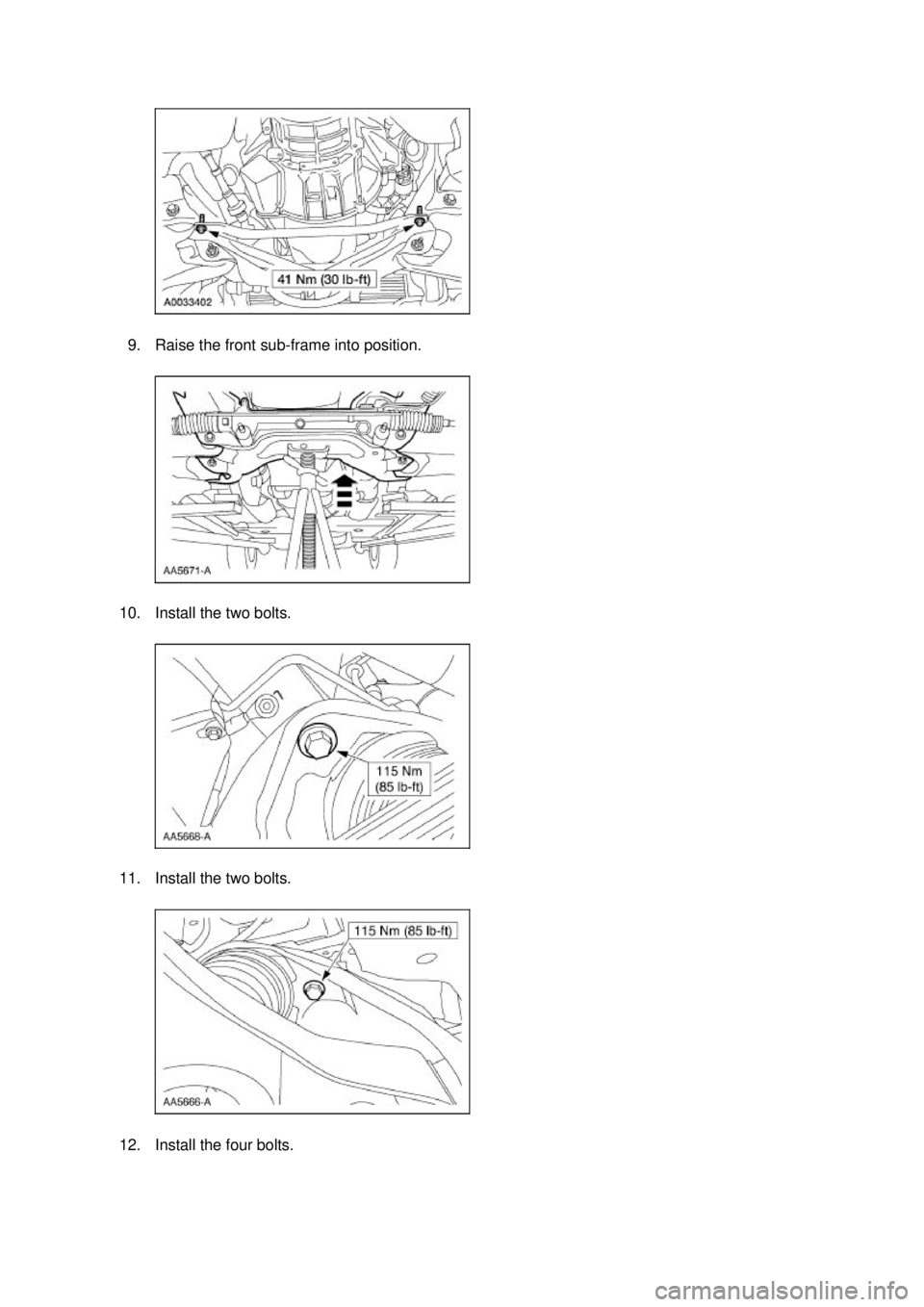

FORD MUSTANG 2003 Workshop Manual 9. Raise the front sub- frame into position. 10. Install the two bolts. 11. Install the two bolts. 12. Install the four bolts. Klj . 8 ba 112003 Mustang Workshop Manual 17. 11. 2011file://

Page 1718 of 4378

FORD MUSTANG 2003 Workshop Manual 13. Position the safety stand aside. 14. Release the tension from the front coil springs and remove the special tool. 15. Raise the vehicle. 16. Using the special tool, lower the engine and remove

Page 1719 of 4378

FORD MUSTANG 2003 Workshop Manual 18. Install the two engine mount nuts. 19. Install the transmission. For additional information, refer to Section 307 - 01 or Section 308 - 03B . 20. Lower the vehicle. 21. Fill the engine cran

Page 1720 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 11 ba 112003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
