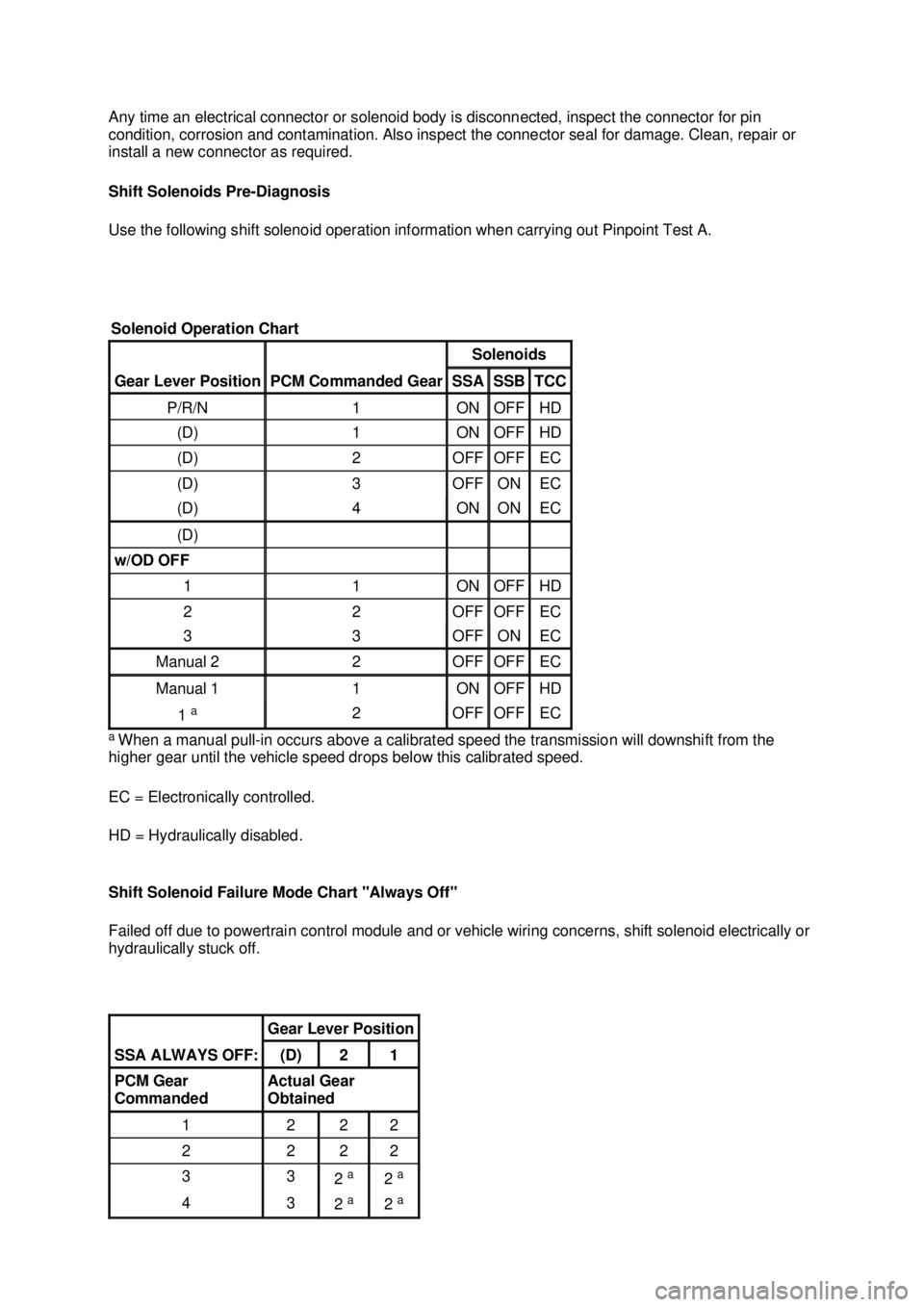

FORD MUSTANG 2003 Workshop Manual Any time an electrical connector or solenoid body is disconnected, inspect the connector for pin
condition, corrosion and contamination. Also inspect the connector seal for damage. Clean, repair or

Page 2346 of 4378

FORD MUSTANG 2003 Workshop Manual a
No engine braking.
Shift Solenoid Failure Mode Chart "Always On"
Failed on due to powertrain control module and or vehicle wiring concerns, shift solenoid electrically or
hydraulically stuck on.

Page 2347 of 4378

FORD MUSTANG 2003 Workshop Manual NOTE:
Refer to the Transmission Vehicle Harness Connector illustration preceding these
pinpoint tests. A1 ELECTRONIC DIAGNOSTICS
�z
Select PARK.
�z Key in OFF position.
�z Check to make sure the

NOTE:
Refer to the Transmission Vehicle Harness Connector illustration preceding these
pinpoint tests. A1 ELECTRONIC DIAGNOSTICS
z
Select PARK.
z Key in OFF position.
z Check to make sure the transmission harness connector
is fully seated, pins are fully engaged in connector and
in good condition before proceeding.
z Connect the diagnostic tool.
z Key in ON position.
z Enter the following diagnostic mode on the diagnostic
tool: Diagnostic Data Link.
z Enter the following diagnostic mode on the diagnostic
tool: PCM.
z Enter the following diagnostic mode on the diagnostic
tool: Active Command Modes.
z Enter the following diagnostic mode on the diagnostic
tool: Output State Control (OSC).
z Enter the following diagnostic mode on the diagnostic
tool: Trans- Bench Mode.
z Does vehicle enter Trans- Bench Mode? Yes
GO to
A2 .
No
REPEAT procedure to enter
Trans-Bench Mode. If vehicle
did not enter Trans- Bench
Mode, REFER to the Powertrain
Control/Emissions Diagnosis
(PC/ED) manual for diagnosis
of PCM. A2 WIGGLE TEST
z
Select PIDs to be monitored.
z Select "ON" to turn suspect solenoid on.
z Press "SEND".
z Wiggle all wiring and connectors to the transmission.
Monitor the Solenoid State for changes.
z Select "OFF" to turn solenoid off.
z Press "SEND".
z Does the suspect solenoid(s) fault state change? PID Command PID Actual
SSA SS1F
SSB SS2F
TCC TCCF Yes
REPAIR open or short in the
vehicle harness or connector.
No
GO to
A3 .
A3 SOLENOID FUNCTIONAL CHECK
z
Monitor each solenoid state.
z Turn each solenoid ON and OFF.
z Does the solenoid turn ON and OFF when
commanded and can solenoid activation be heard? Yes
GO to
A4 .
No
GO to A5 .
A4 OSC TRANS-
DRIVE MODE (GR_CM OR TCC) z
Carry out OSC Trans- Drive Mode.
z Select GR_CM for Shift Solenoids or follow procedures
for GR_CM as listed.
z Select TCC for Torque Converter Clutch Solenoid.
Follow procedures of TCC in Drive Mode as listed.
z Does the transmission upshift and downshift or
torque converter engage/disengage when
commanded? Yes
CLEAR all DTCs. ROAD TEST
to verify if concern is still
present. If concern is still
present, REFER to
Diagnosis By Symptom in this section to
diagnose shift or torque
converter concern.
No
GO to A5 .
A5 CHECK FOR BATTERY VOLTAGE
z
Remove transmission fluid pan. Yes Klj . 4 ba
222003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Page 2348 of 4378

FORD MUSTANG 2003 Workshop Manual �z
Visually inspect the lead frame and connectors for
damage.
�z Key in ON position.
�z Measure the voltage with the positive lead to VPWR
solenoid pin and negative lead to a good ground.
�z Is t

Page 2349 of 4378

FORD MUSTANG 2003 Workshop Manual and listen for the solenoid to activate (click).
�z Select "OFF", press "SEND".
�z Does the voltage and solenoid state change? A7 CHECK LEAD FRAME CONNECTIONS
�z
Key in OFF position.
�z Disconnec

Page 2350 of 4378

FORD MUSTANG 2003 Workshop Manual �z
Measure the resistance for each solenoid (SSA, SSB or
TCC) as follows:
�z Are the resistances correct? Solenoid Resistance (ohms)
SSA 20-
30 SSB 20-
30 TCC 10-
16 A9 CHECK SOLENOID FOR S

Page 2351 of 4378

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST B: TRANSMISSION FLUID TEMPERATURE (TFT)
SENSOR
Test Step Result / Action to Take
NOTE:
Refer to the Transmission Connector Layouts preceding these pinpoint tests. B1 ELECTRONIC DIA

PINPOINT TEST B: TRANSMISSION FLUID TEMPERATURE (TFT)
SENSOR
Test Step Result / Action to Take
NOTE:
Refer to the Transmission Connector Layouts preceding these pinpoint tests. B1 ELECTRONIC DIAGNOSTICS
z
Check to make sure the transmission harness
connector is fully seated, pins are fully engaged in
connector and in good condition before proceeding.
z Connect the diagnostic tool.
z Key in ON position.
z Select Diagnostic Data Link.
z Select PCM.
z Select PID/Data Monitor and Record.
z Enter the following diagnostic mode on the diagnostic
tool: PIDs; TFT, TFTV.
z Does the vehicle enter PID/Data Monitor and
Record? Yes
GO to
B2 .
No
REPEAT procedure to enter PID. If
vehicle did not enter PID, REFER
to the Powertrain
Control/Emissions Diagnosis
(PC/ED) manual for diagnosis of
PCM. B2 WARM-
UP/COOL-DOWN CYCLE z
While monitoring the TFT PIDs, carry out the
following test: If transmission is cold, run transmission
to warm it up. If transmission is warm, allow
transmission to cool down.
z Do the TFT PIDs increase as the transmission is
warmed up or decrease as the transmission is
cooled or does the TFT or TFTV drop in and out
of range? Yes
If the TFT PIDs increase as the
transmission is warmed or
decrease as the transmission is
cooled, CLEAR all DTCs. ROAD
TEST to verify if concern is still
present. If concern is still present,
REFER to
Diagnosis By Symptom in this section to diagnose
transmission overheating.
If the TFT or TFTV drop in and out
of range, INSPECT for intermittent
concern in the internal/external
harness, sensor or connector.
No
GO to
B3 .
B3 ELECTRICAL SIGNAL CHECK
z
Key in ON position.
z Remove transmission fluid pan.
z Visually inspect the lead frame and connectors for
damage.
z Measure the voltage with the positive lead to positive
TFT at sensor pin and negative lead to a good
ground. Yes
GO to
B4 .
No
CHECK for open or short circuit in
vehicle harness, internal harness
or a PCM concern. Klj . 8 ba
222003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Page 2352 of 4378

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST C: DIGITAL TRANSMISSION RANGE (TR) SENSOR �z
Is the voltage present? B4 CHECK RESISTANCE OF TFT SENSOR
�z
Disconnect: Transmission Harness .
�z Measure the resistance between the pos
