Page 2729 of 4378

FORD MUSTANG 2003 Workshop Manual 12. Remove the output shaft bearing snap ring and the second speed synchronizer thrust washer (7117). 13. Remove the second speed synchronizer inner cone (7175), the second speed synchronizer outer

Page 2730 of 4378

FORD MUSTANG 2003 Workshop Manual Assembly 1. Soak the blocking rings in transmission fluid for ten minutes. �zUse MERCON® Multi- Purpose ATF Transmission Fluid XT -2-QDX or equivalent. 2. Assemble the first and second synchronize

Page 2731 of 4378

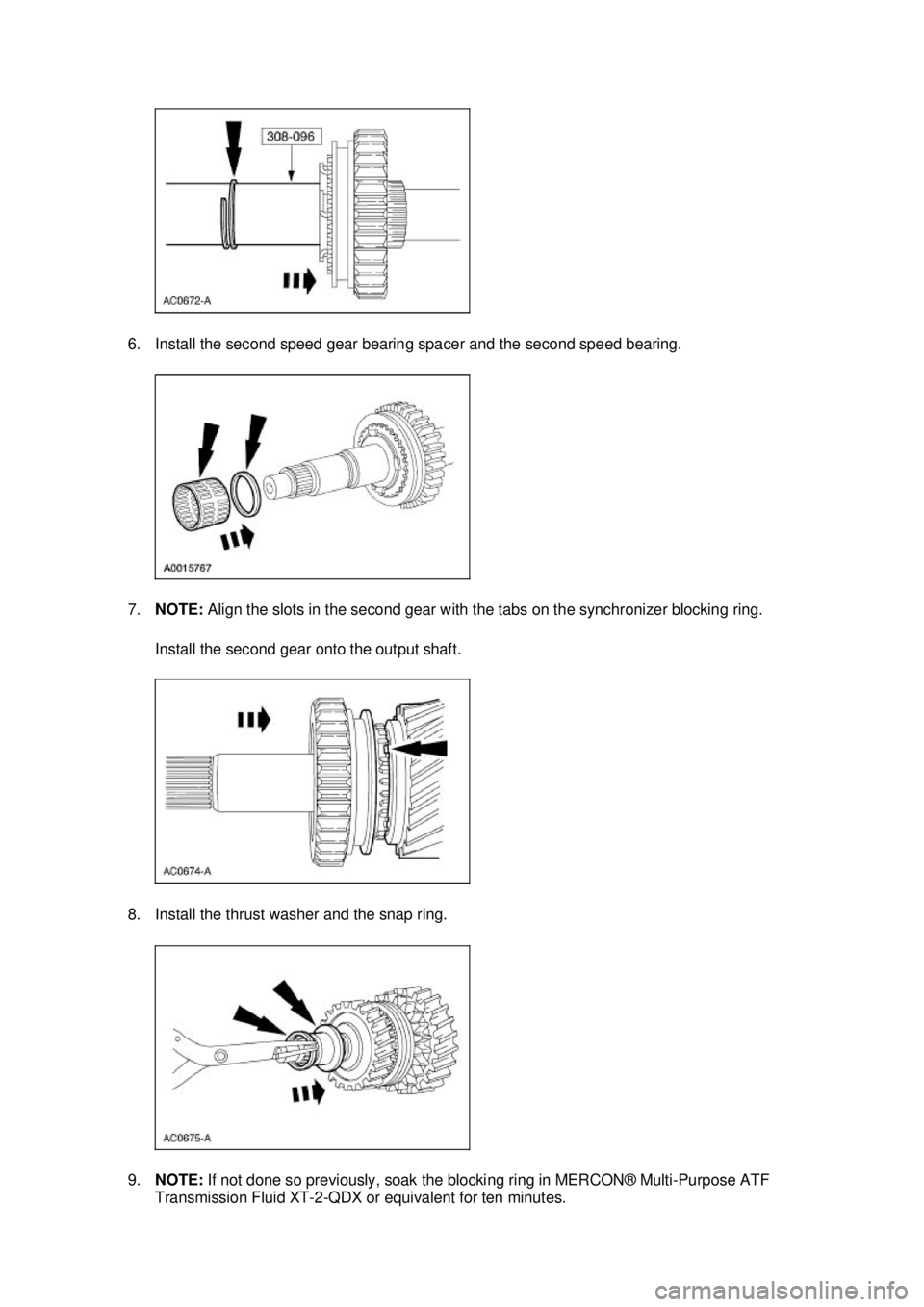

FORD MUSTANG 2003 Workshop Manual 6. Install the second speed gear bearing spacer and the second speed bearing. 7. NOTE: Align the slots in the second gear with the tabs on the synchronizer blocking ring. Install the second gear on

Page 2732 of 4378

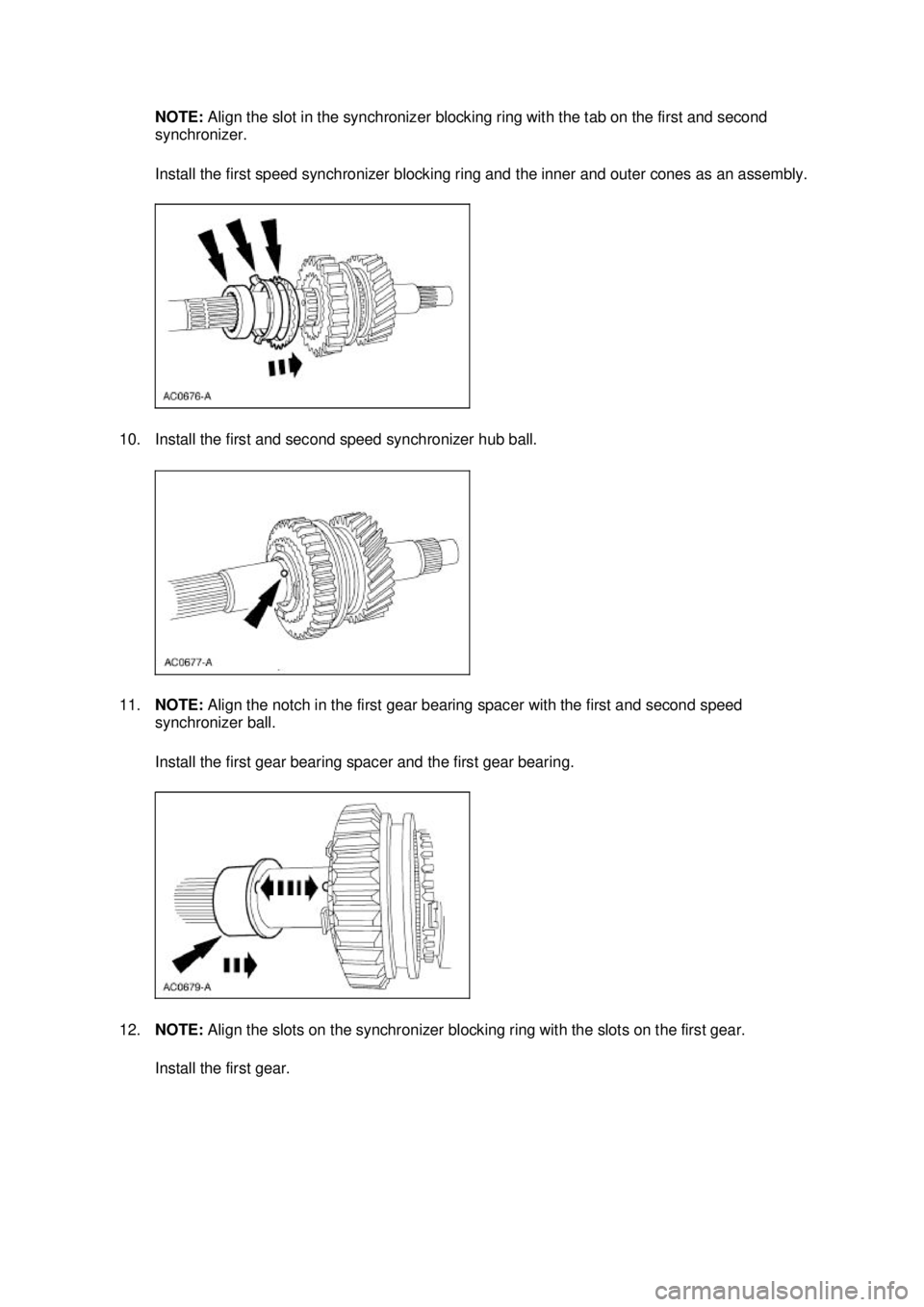

FORD MUSTANG 2003 Workshop Manual NOTE: Align the slot in the synchronizer blocking ring with the tab on the first and second synchronizer. Install the first speed synchronizer blocking ring and the inner and outer cones as an asse

Page 2733 of 4378

FORD MUSTANG 2003 Workshop Manual 13. Install the output shaft rear bearing. 14. Lubricate the splines of the fifth speed driven gear with petroleum jelly. 15. CAUTION: Align the output shaft splines and the splines of the fifth sp

Page 2734 of 4378

FORD MUSTANG 2003 Workshop Manual 17. Install the third speed gear bearing spacer and the third speed bearing. 18. CAUTION: Before pressing the components together, verify that the synchronizer hub faces the short end of the output

Page 2735 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 10 ba 102003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 2736 of 4378

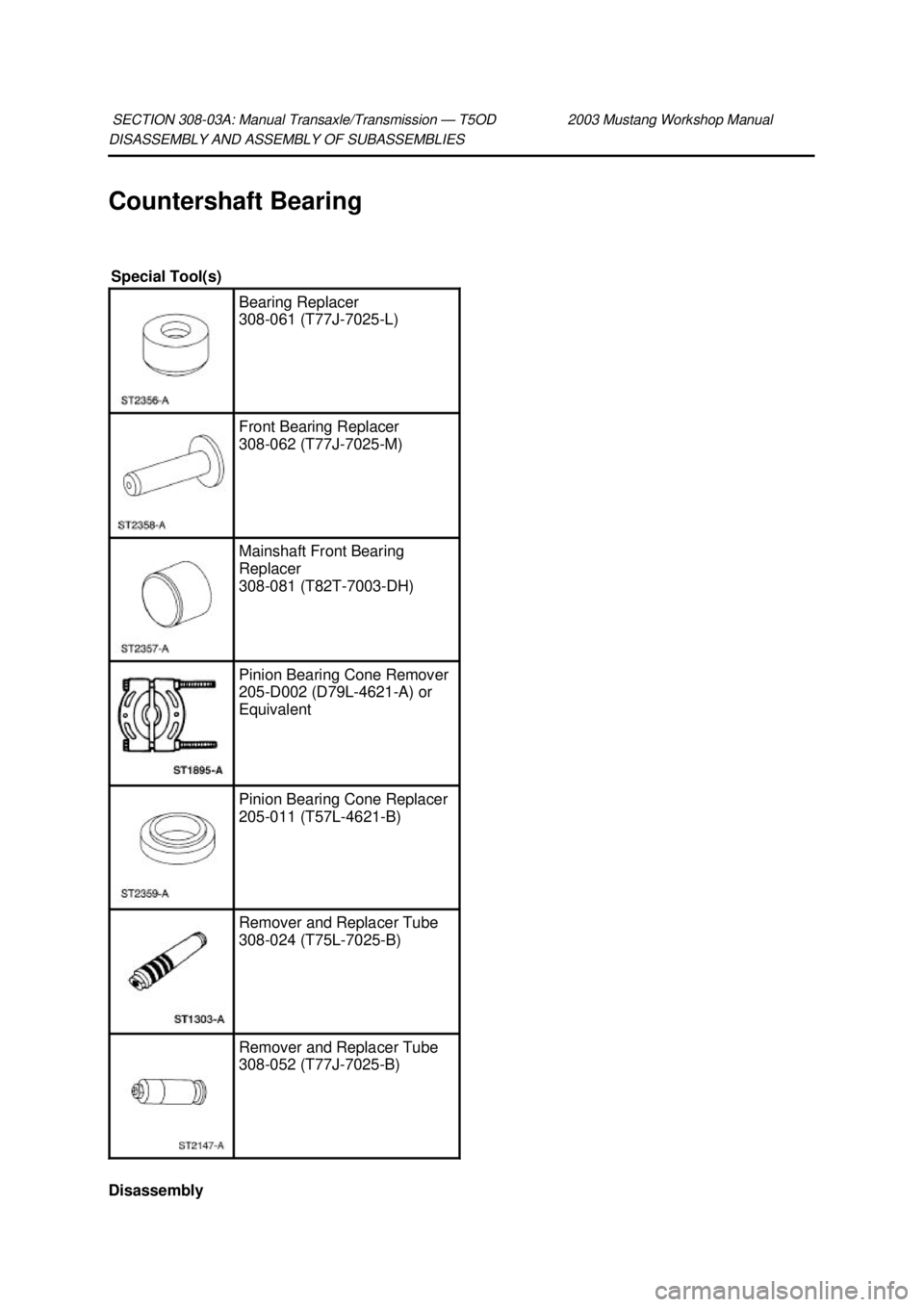

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES Countershaft Bearing Disassembly SECTION 308- 03A: Manual Transaxle/Transmission — T5OD 2003 Mustang Workshop Manual Special Tool(s) Bearing Replacer
