Page 1825 of 4378

FORD MUSTANG 2003 Workshop Manual 13. Install the clutch release lever cover and bolt. All vehicles 14. Connect the output shaft speed (OSS) sensor electrical connector and attach the left and right oxygen sensor electrical connect

Page 1826 of 4378

FORD MUSTANG 2003 Workshop Manual 17. Install the degas bottle support bracket. 18. Connect the engine ground strap to the frame. 19. Using the special tool, install a new seal ring. 20. Install the high pressure power steering hos

Page 1827 of 4378

FORD MUSTANG 2003 Workshop Manual 21. Position the clip and install the bolt. 22. Connect the hose to the power steering reservoir. 23. Connect the lower radiator hose. 24. Connect the hose to the oil filter adapter. Klj . 7

Page 1828 of 4378

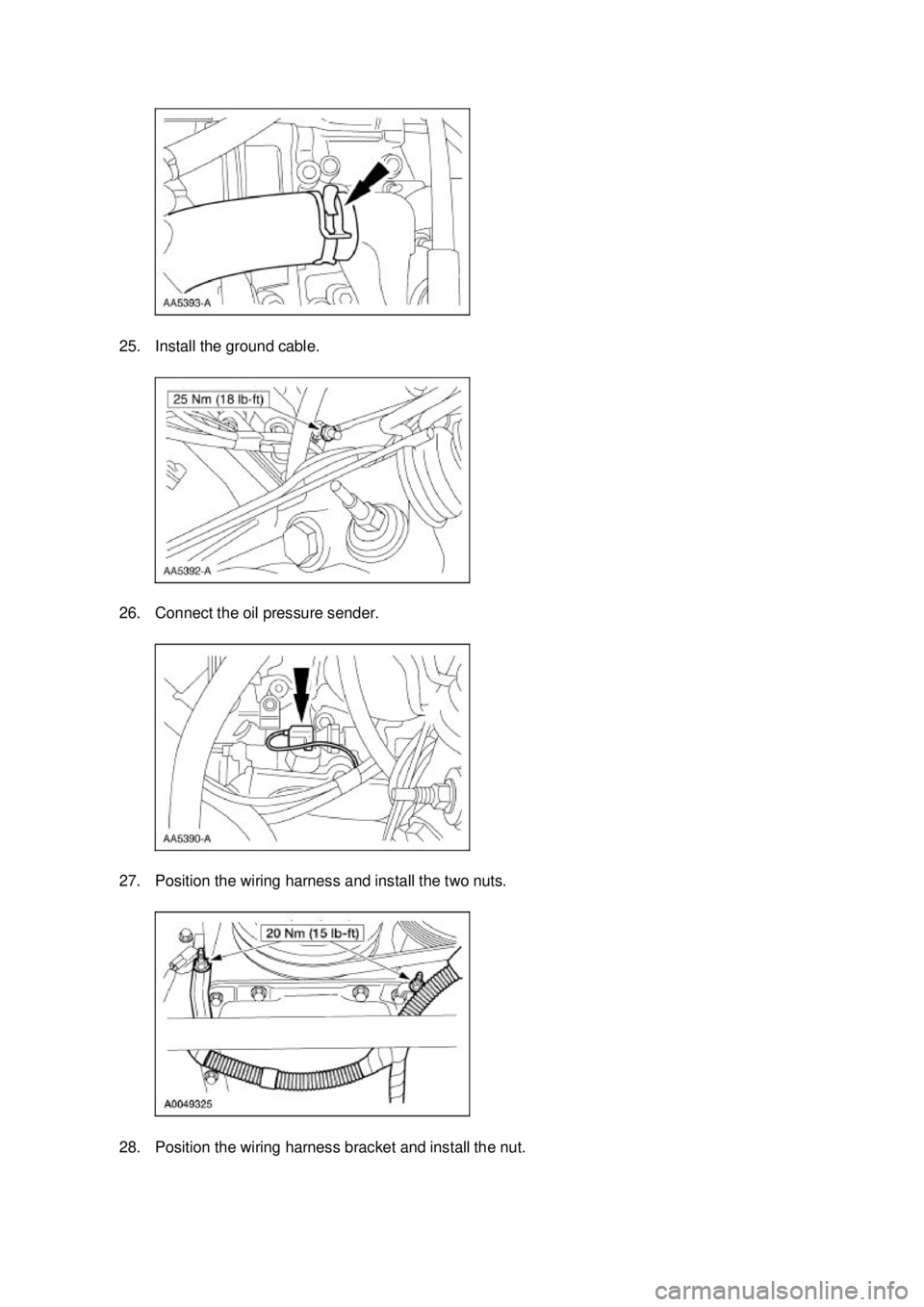

FORD MUSTANG 2003 Workshop Manual 25. Install the ground cable. 26. Connect the oil pressure sender. 27. Position the wiring harness and install the two nuts. 28. Position the wiring harness bracket and install the nut. Klj .

Page 1829 of 4378

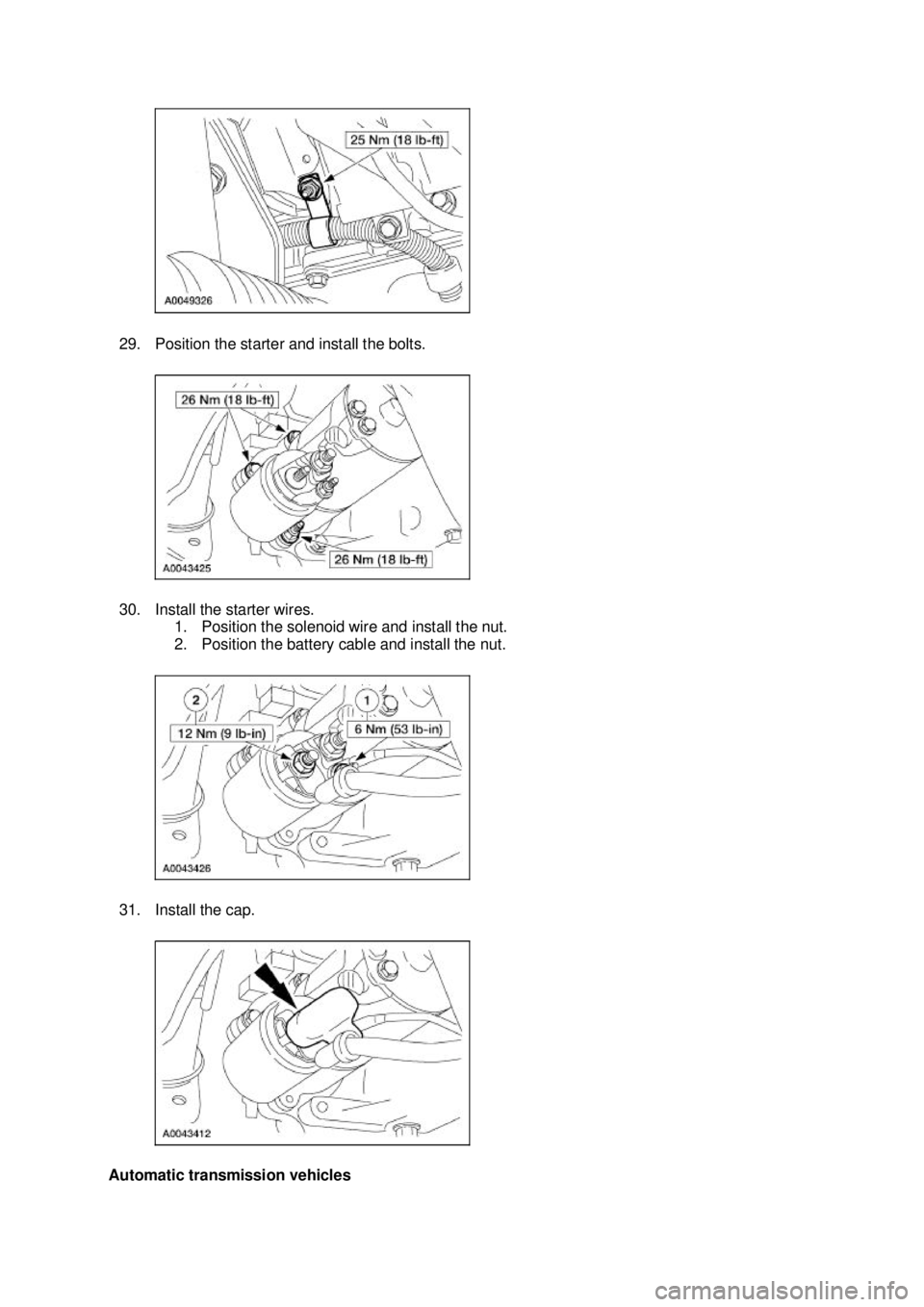

FORD MUSTANG 2003 Workshop Manual 29. Position the starter and install the bolts. 30. Install the starter wires. 1. Position the solenoid wire and install the nut. 2. Position the battery cable and install the nut. 31. Install the

Page 1830 of 4378

FORD MUSTANG 2003 Workshop Manual 32. Install the torque converter nuts. 33. Install the flywheel inspection cover. 34. Install the driveshaft onto the transmission output shaft, aligning the index- mark in the six oclock position

Page 1831 of 4378

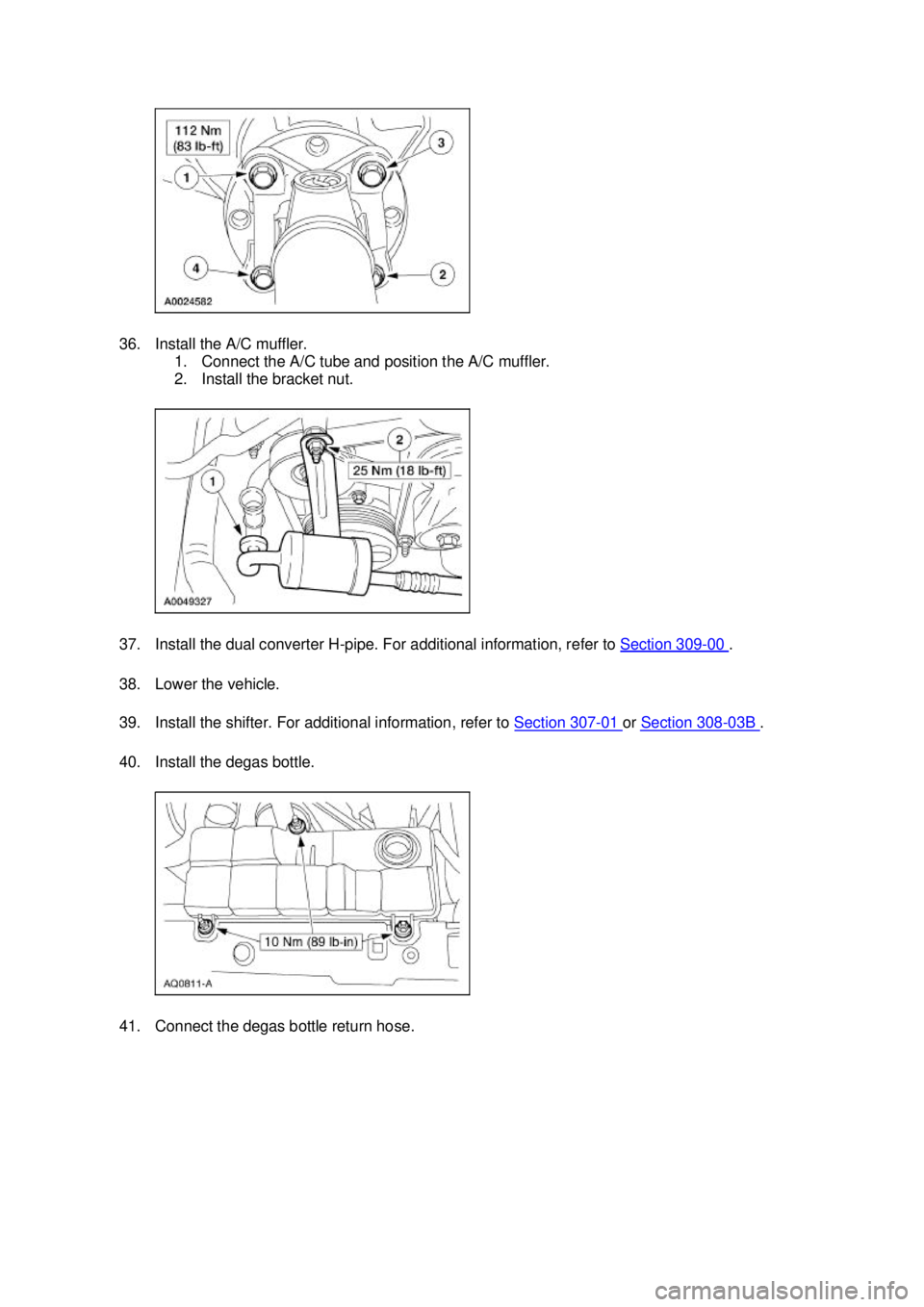

FORD MUSTANG 2003 Workshop Manual 36. Install the A/C muffler. 1. Connect the A/C tube and position the A/C muffler. 2. Install the bracket nut. 37. Install the dual converter H- pipe. For additional information, refer to Section

Page 1832 of 4378

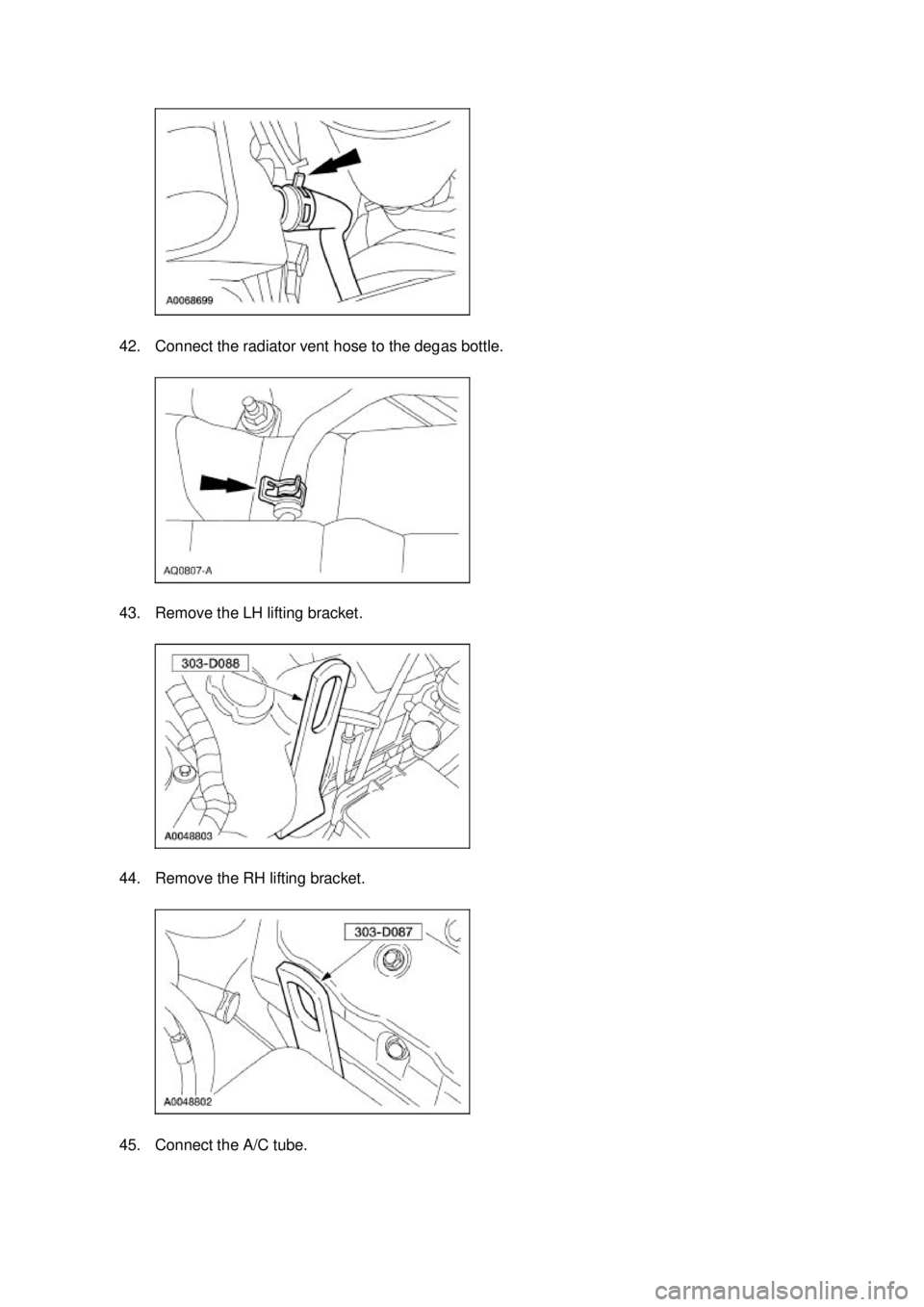

FORD MUSTANG 2003 Workshop Manual 42. Connect the radiator vent hose to the degas bottle. 43. Remove the LH lifting bracket. 44. Remove the RH lifting bracket. 45. Connect the A/C tube. Klj . 12 ba 182003 Mustang Workshop
