Page 1729 of 4378

FORD MUSTANG 2003 Workshop Manual Remove the six splash-shield pushpins. 10. Remove the 13 bolts and the cross- brace support. 11. NOTE: RH shown, LH similar. Remove the two engine mount nuts. 12. Using two jackstands, support th

Page 1730 of 4378

FORD MUSTANG 2003 Workshop Manual 13. NOTE: Mark the bolts and the crossmember location for assembly reference. NOTE: RH shown, LH similar. Remove the four bolts. 14. NOTE: RH shown, LH similar. Remove the four bolts. 15. Usin

Page 1731 of 4378

FORD MUSTANG 2003 Workshop Manual LH mount 18. Remove the nuts and detach the ground cables. 19. Remove the bolt, the studbolts and the engine mount. Installation LH mount 1. Position the engine mount and install the bolt and stu

Page 1732 of 4378

FORD MUSTANG 2003 Workshop Manual 2. Attach the ground cables and install the nuts. RH mount 3. Position the engine mount and install the bolts and studbolt. 4. Attach the wiring harness and install the nut. Both mounts Klj .

Page 1733 of 4378

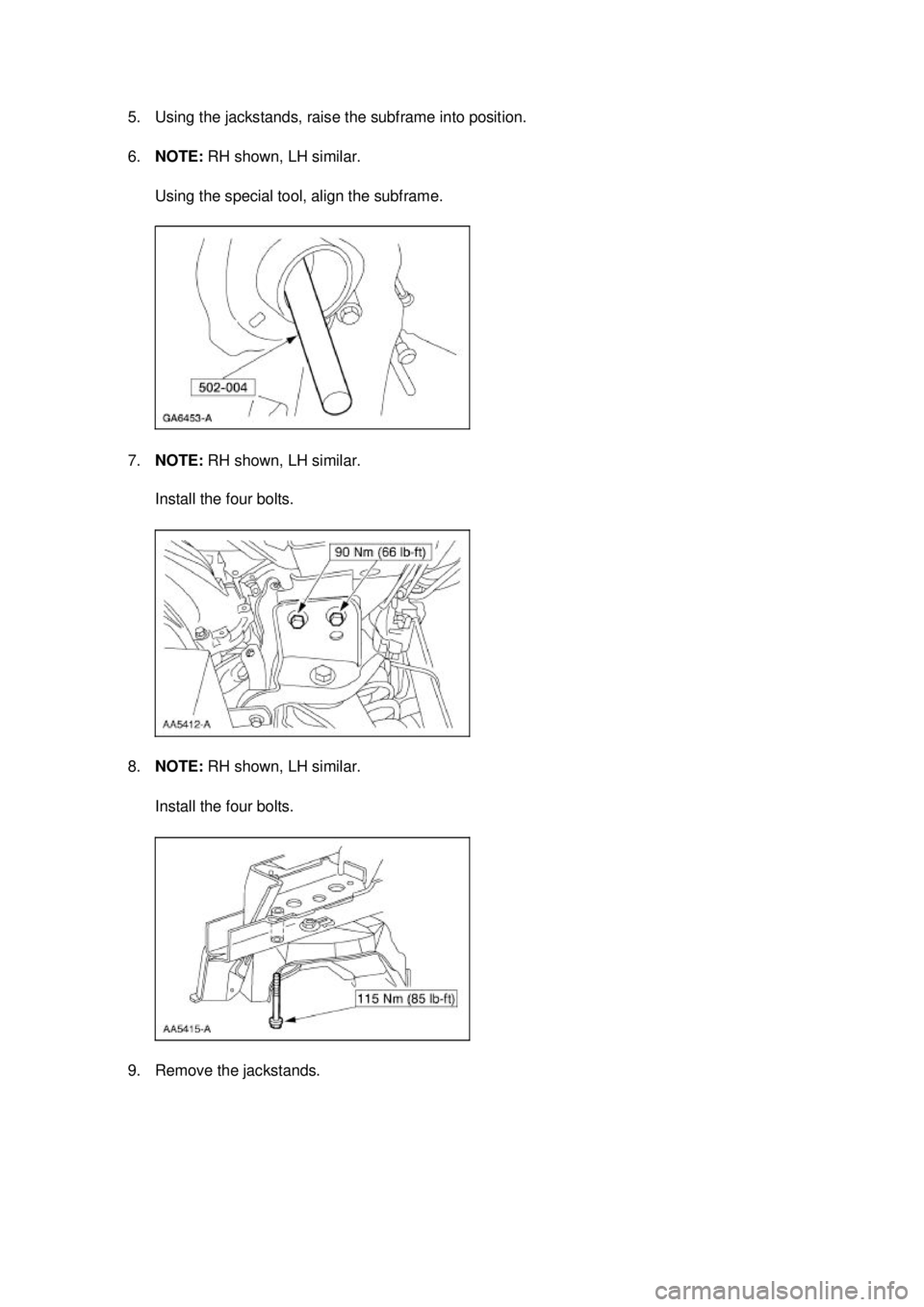

FORD MUSTANG 2003 Workshop Manual 5. Using the jackstands, raise the subframe into position. 6. NOTE: RH shown, LH similar. Using the special tool, align the subframe. 7. NOTE: RH shown, LH similar. Install the four bolts. 8. N

Page 1734 of 4378

FORD MUSTANG 2003 Workshop Manual 10. NOTE: RH shown, LH similar. Install the two engine mount nuts. 11. Position the cross- brace support and install the 13 bolts. 12. NOTE: RH shown, LH similar Install the six splash- shield p

Page 1735 of 4378

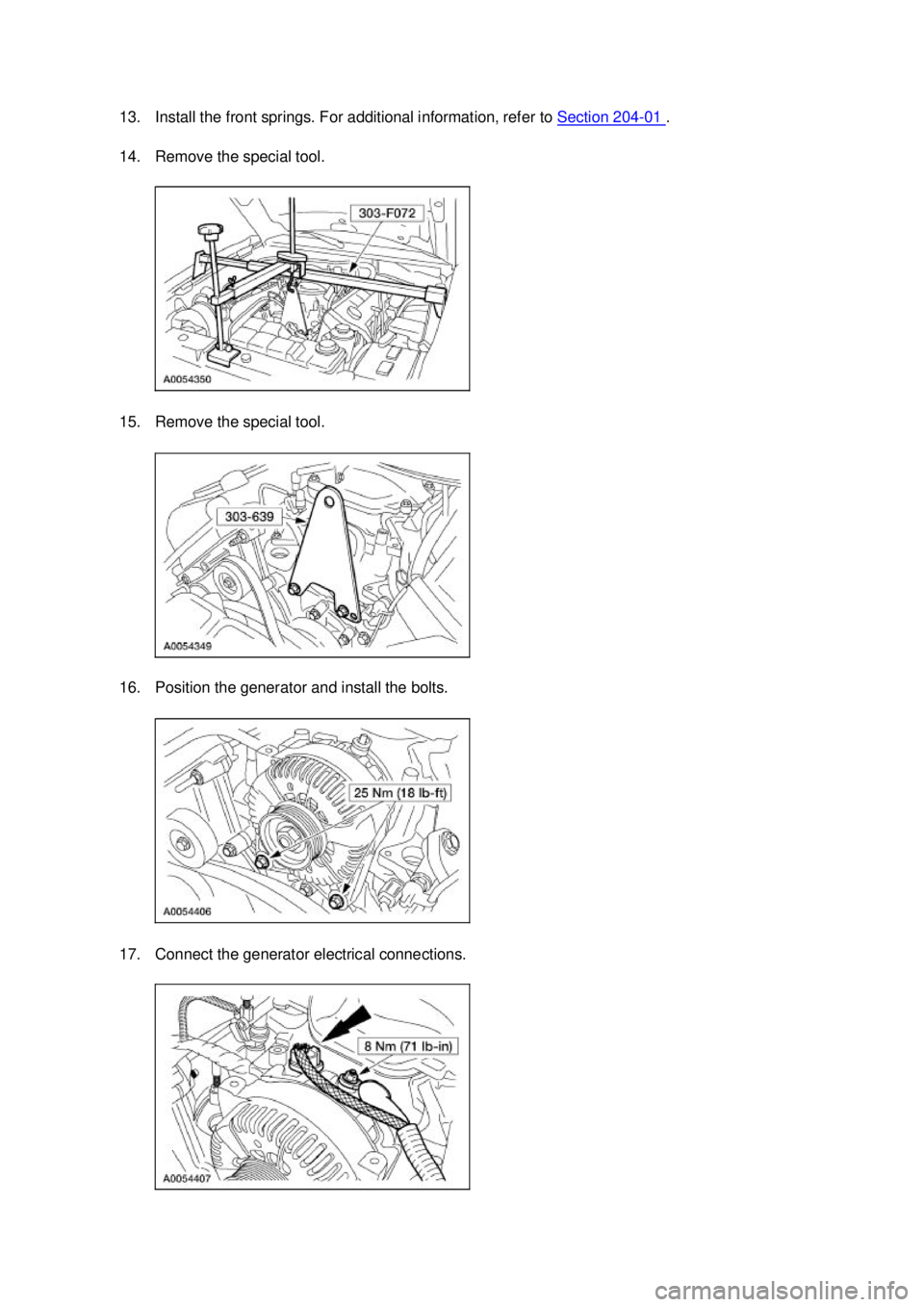

FORD MUSTANG 2003 Workshop Manual 13. Install the front springs. For additional information, refer to Section 204 - 01 . 14. Remove the special tool. 15. Remove the special tool. 16. Position the generator and install the bolts.

Page 1736 of 4378

FORD MUSTANG 2003 Workshop Manual 18. Rotate the drive belt tensioner clockwise and attach the drive belt to the generator pulley. �zMake sure the drive belt is routed correctly and is aligned correctly installed on each pulley. 19
