Page 3761 of 4378

FORD MUSTANG 2003 Workshop Manual 7. Using the special tool, distance the back window glass from the body. 8. Using the special tool, cut the remaining urethane adhesive and remove the back window glass 9. Using a soft brush or vacu

Page 3762 of 4378

FORD MUSTANG 2003 Workshop Manual or non- staining grease pencil on both the glass and the vehicle body. 3. CAUTION: Care must be taken to avoid scratching the pinch weld. Trim the remaining urethane adhesive on the pinch weld usin

Page 3763 of 4378

FORD MUSTANG 2003 Workshop Manual 10. CAUTION: If the vehicle is to be driven within 24 hours of urethane adhesive application, Urethane Adhesive Essex U- 216 meeting Ford specification WSB-M2G316- B must be used due to its one hou

Page 3764 of 4378

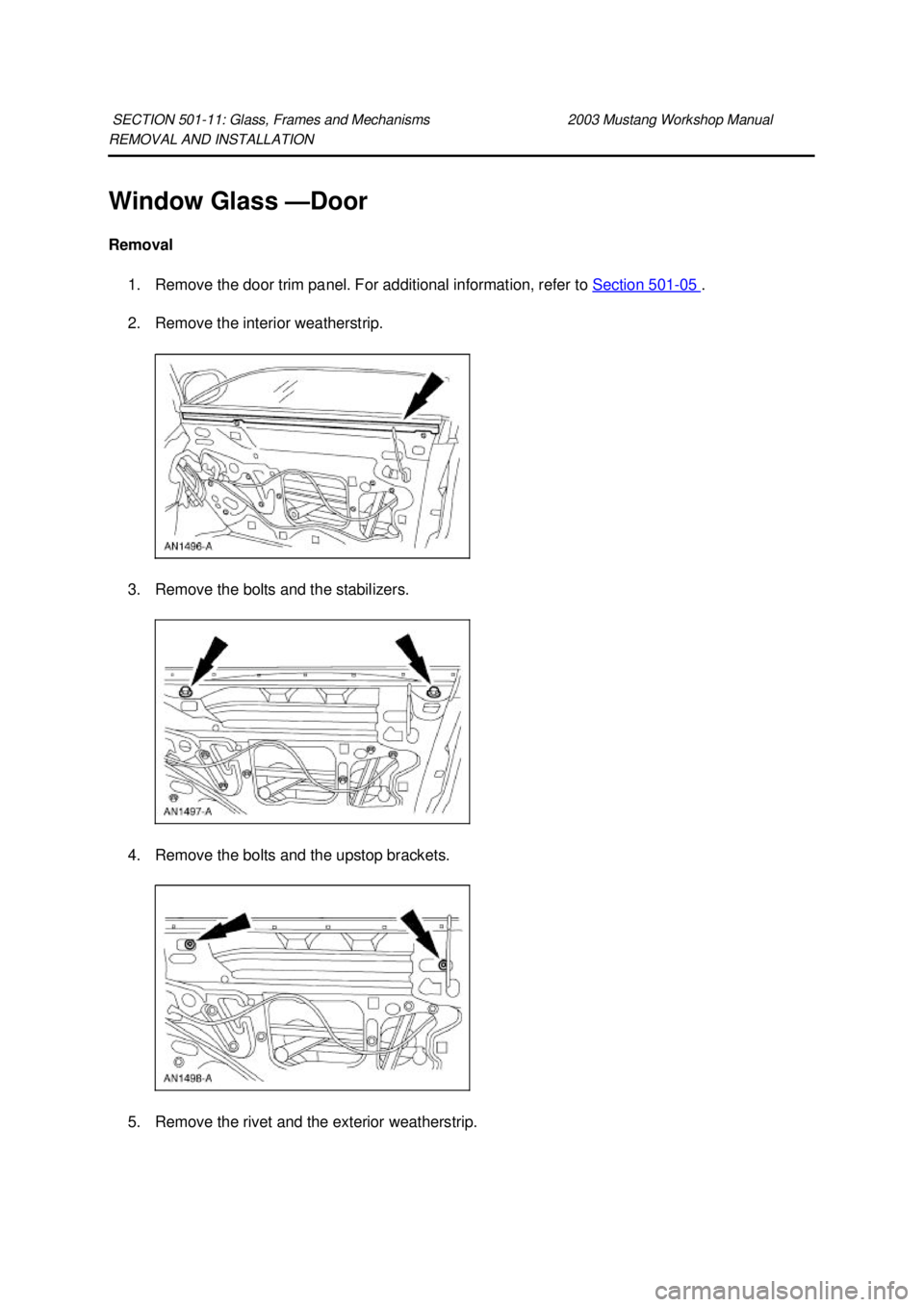

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Window Glass — Door Removal 1. Remove the door trim panel. For additional information, refer to Section 501 - 05 . 2. Remove the interior weatherstrip. 3. Remove the

Page 3765 of 4378

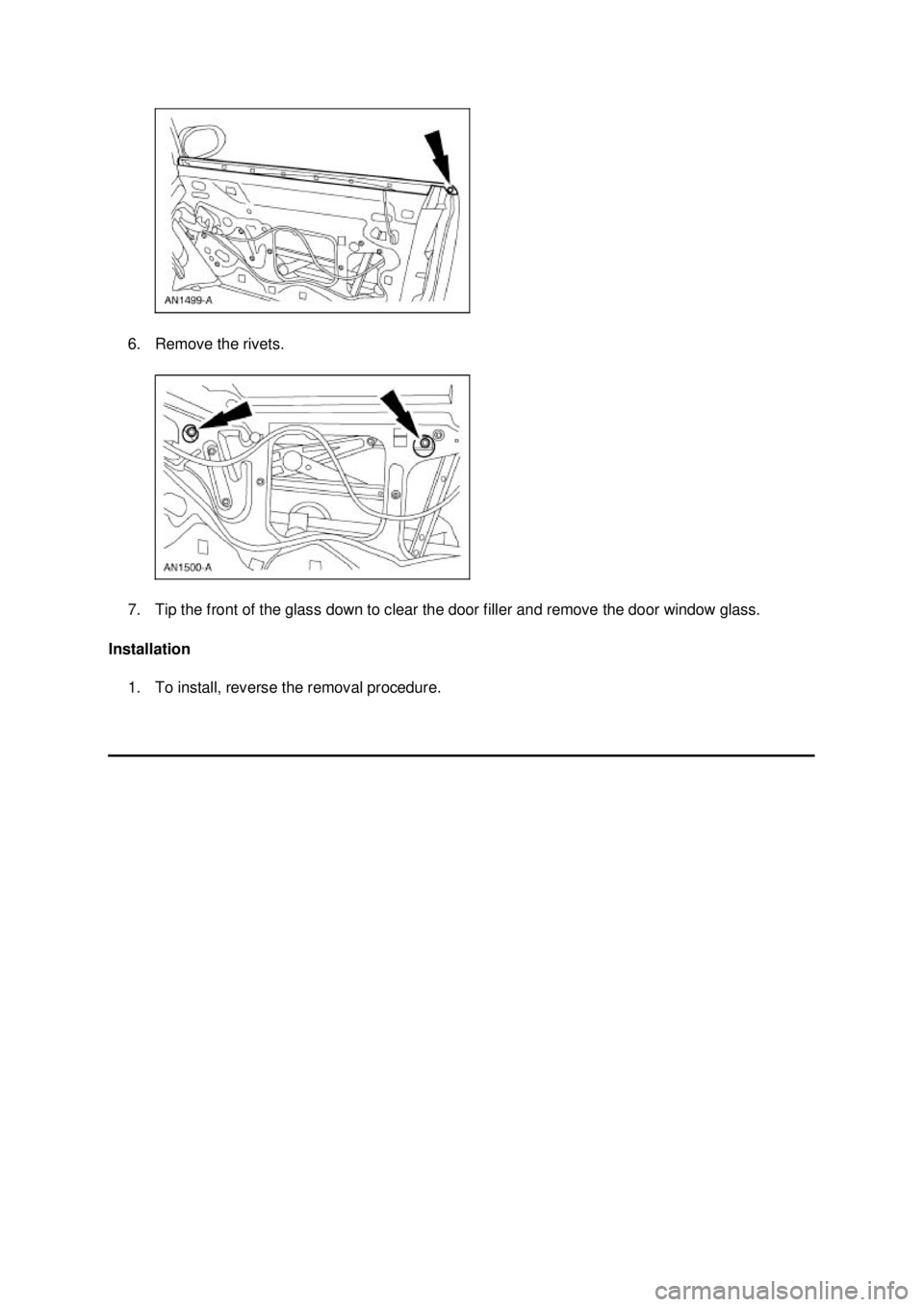

FORD MUSTANG 2003 Workshop Manual 6. Remove the rivets. 7. Tip the front of the glass down to clear the door filler and remove the door window glass. Installation 1. To install, reverse the removal procedure. Klj . 2 ba 22

Page 3766 of 4378

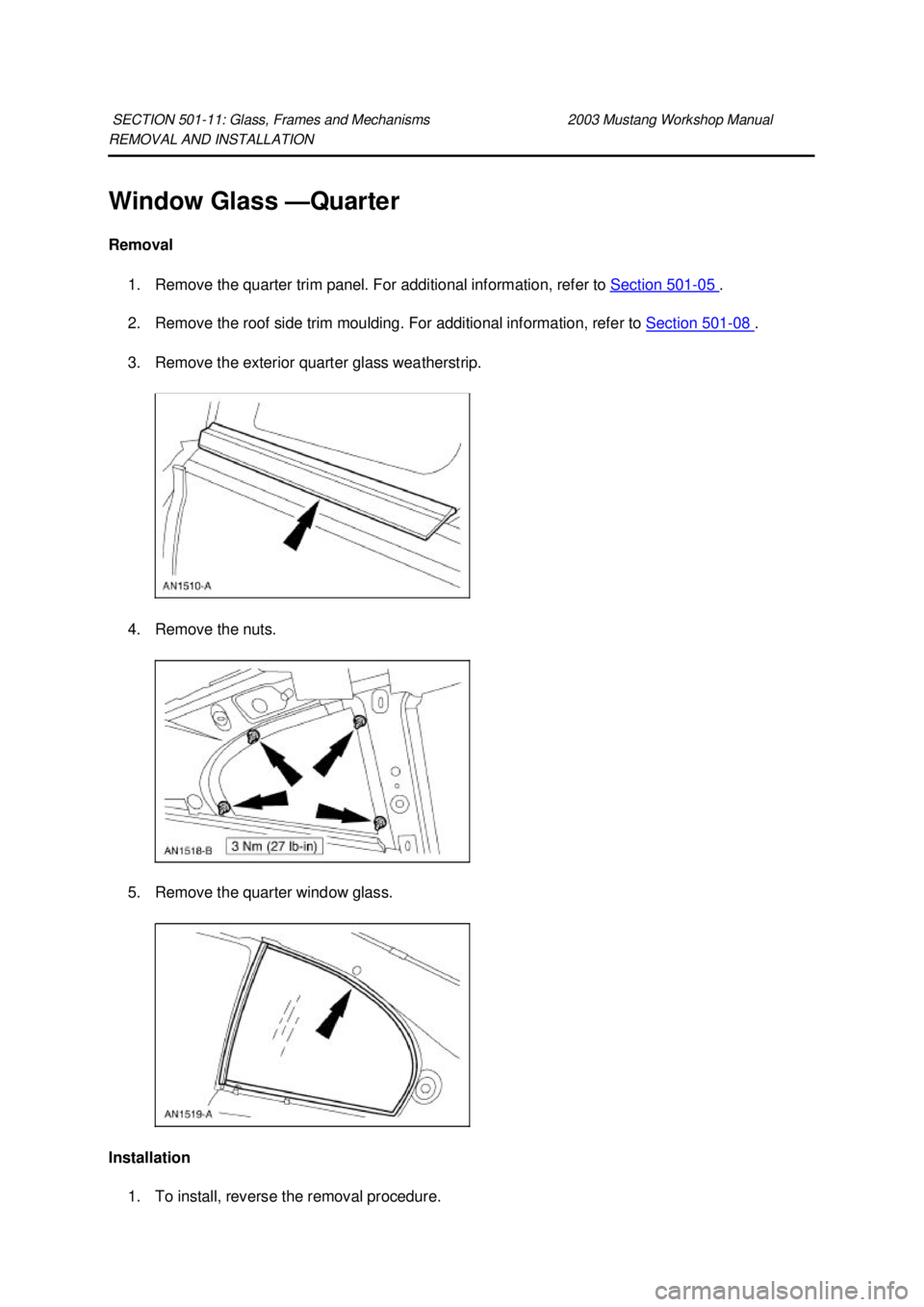

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Window Glass — Quarter Removal 1. Remove the quarter trim panel. For additional information, refer to Section 501 - 05 . 2. Remove the roof side trim moulding. For addi

Page 3767 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3768 of 4378

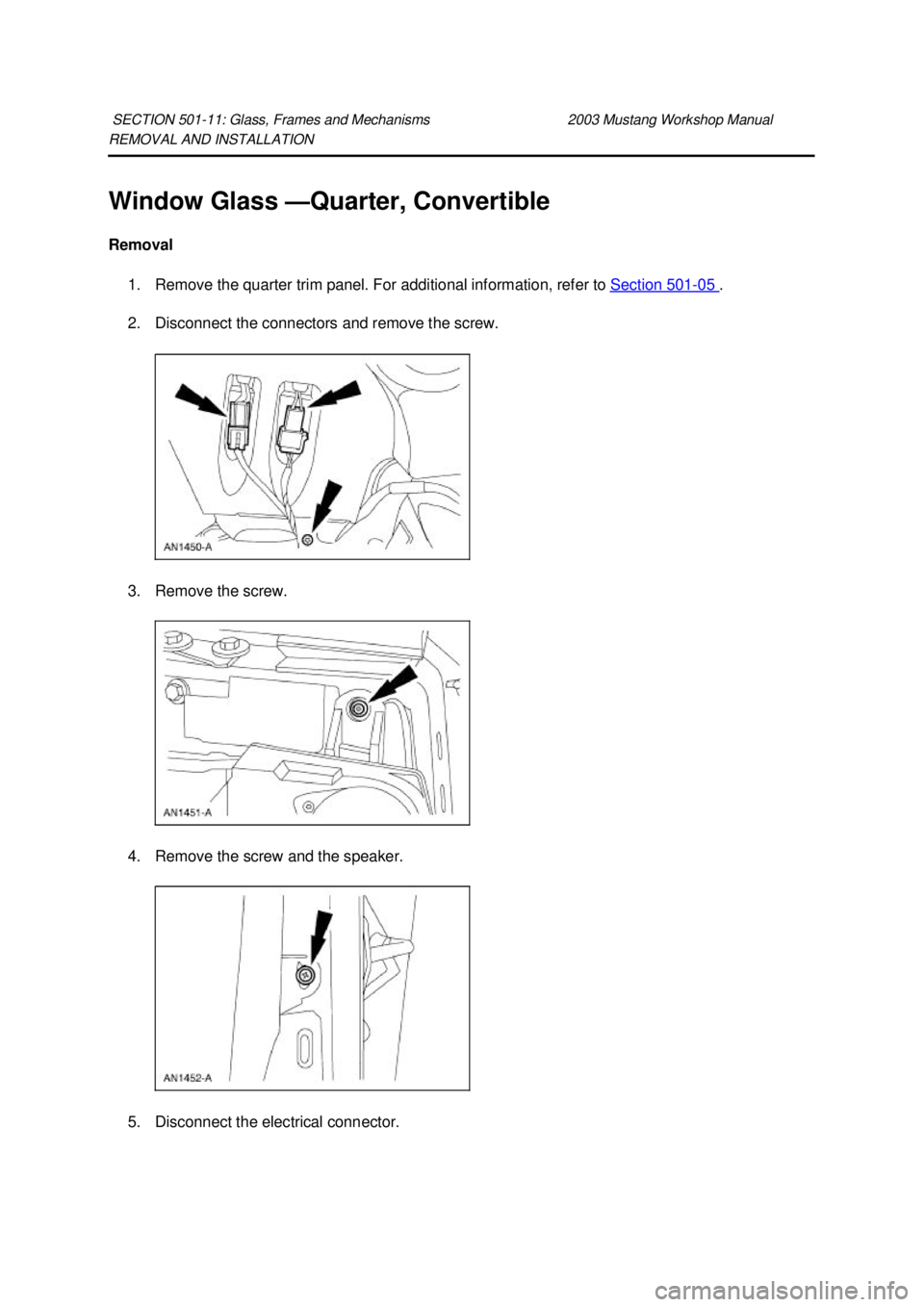

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Window Glass — Quarter, Convertible Removal 1. Remove the quarter trim panel. For additional information, refer to Section 501 - 05 . 2. Disconnect the connectors and r
