Page 4009 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION

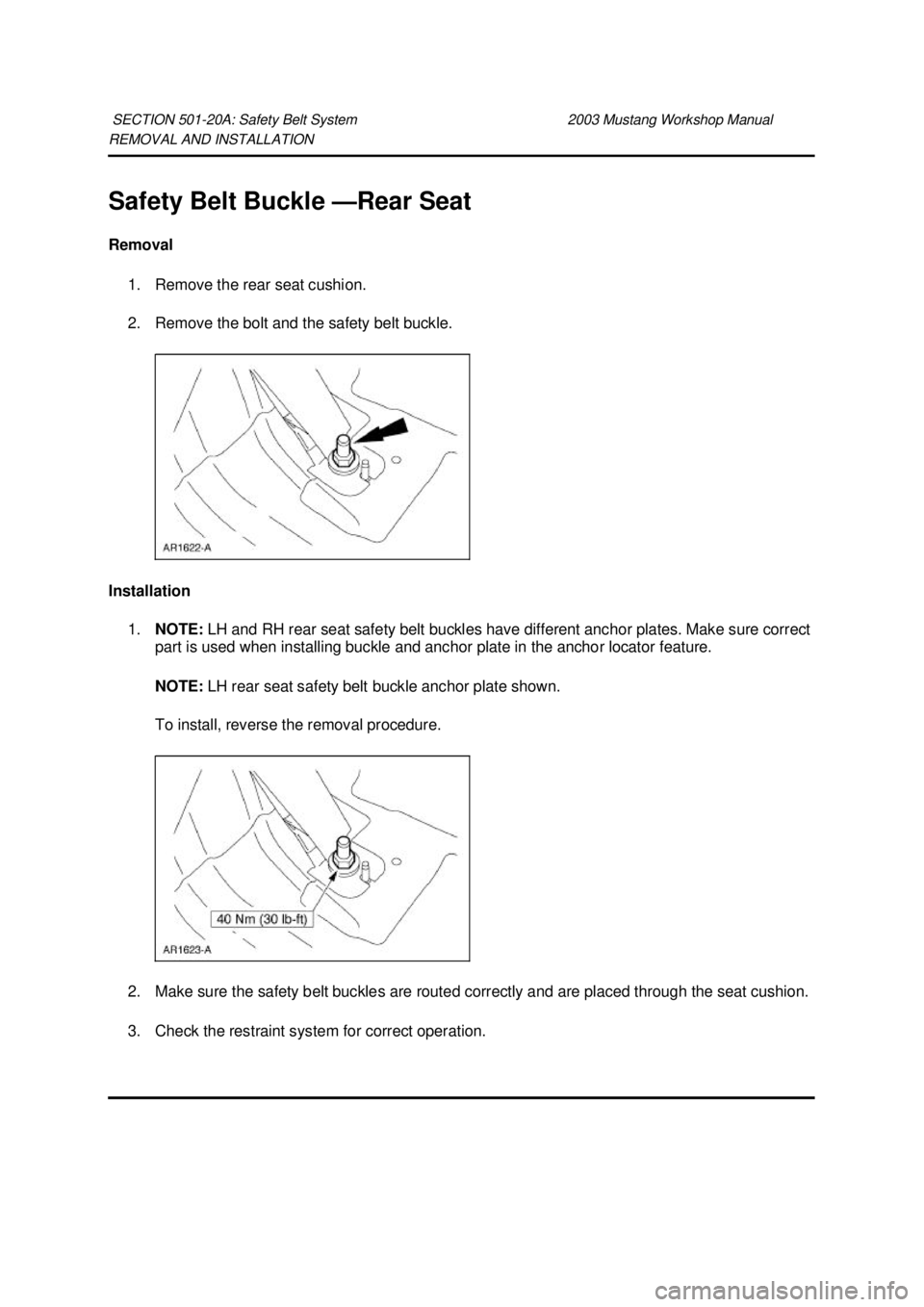

Safety Belt Buckle —
Rear Seat
Removal 1. Remove the rear seat cushion.
2. Remove the bolt and the safety belt buckle.
Installation 1. NOTE: LH and RH rear seat safet

Page 4010 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 4011 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION

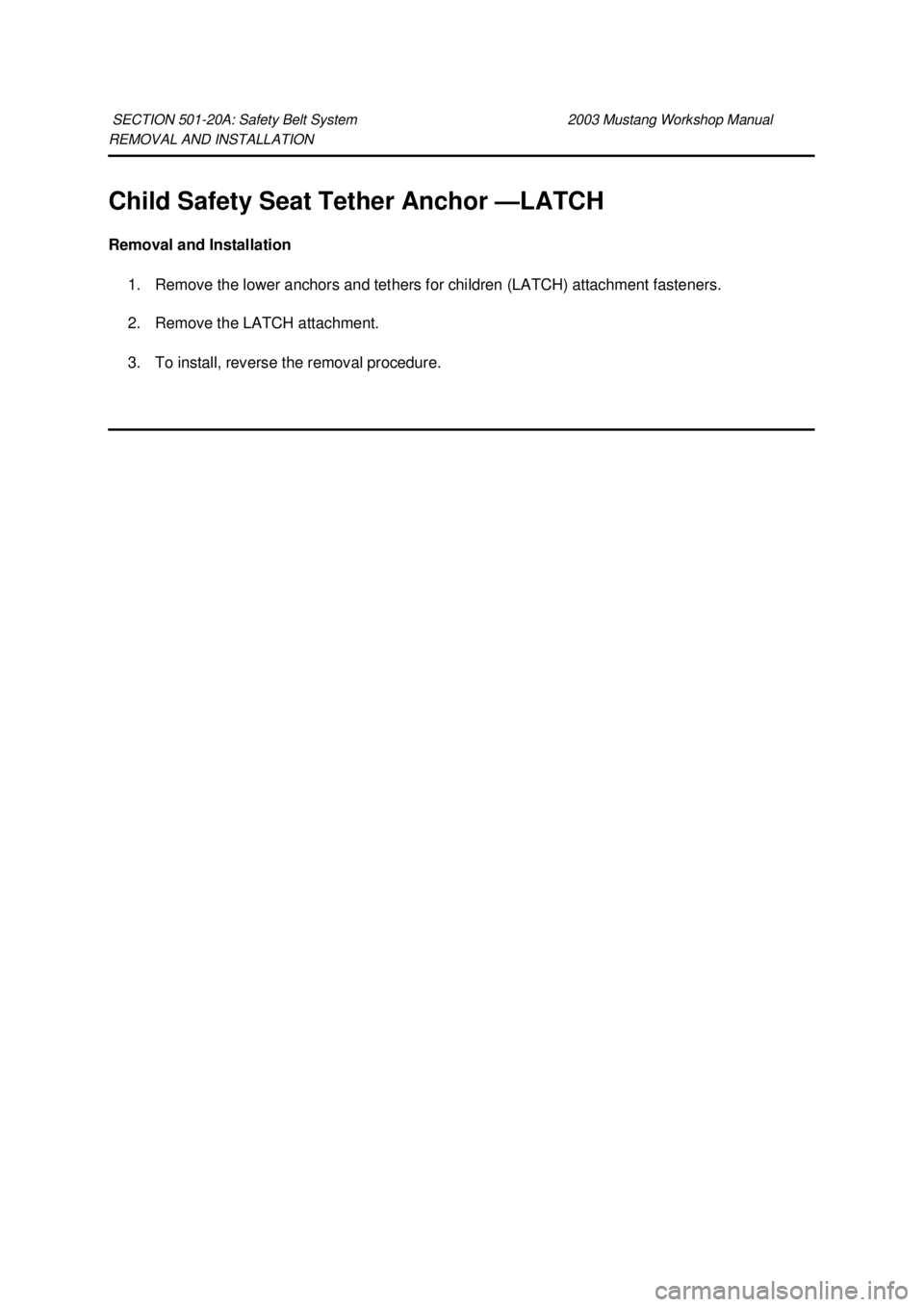

Child Safety Seat Tether Anchor —
LATCH
Removal and Installation 1. Remove the lower anchors and tethers for children (LATCH) attachment fasteners.
2. Remove the LATCH a

Page 4012 of 4378

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS
SECTION 501-
20B: Supplemental Restraint System 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
ft lb-
in Restraints control module bracket bolts 12 9 �

Page 4013 of 4378

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION
Air Bag Supplemental Restraint System (SRS)
The air bag supplemental restraint system (SRS) is designed to provide increased collision protection
for front seat occupants

Page 4014 of 4378

FORD MUSTANG 2003 Workshop Manual Driver Air Bag Module
The driver air bag module:
�zis installed as an assembly.
�z is mounted in the center of the steering wheel.
Clockspring
The clockspring: �zis mounted on the steering colum

Page 4015 of 4378

FORD MUSTANG 2003 Workshop Manual current and historical DTCs through the DLC, using a scan tool. If the air bag indicator does not
function, and the system detects a fault condition, the RCM will signal the GEM to activate an audibl

current and historical DTCs through the DLC, using a scan tool. If the air bag indicator does not
function, and the system detects a fault condition, the RCM will signal the GEM to activate an audible
chime. The chime is a series of five sets of five tone bursts. If the chime is heard, the SRS and the air
bag indicator require repair.
LFCs are prioritized. If two or more faults occur at the same time, the fault having the highest priority
will be displayed. After that fault has been corrected, the next highest priority fault will be displayed.
The RCM includes a backup power supply. This feature provides sufficient backup power to deploy the
air bags in the event that the ignition circuit is damaged in a collision before the safing and air bag
sensors determine that deployment is required. The backup power supply will deplete its stored energy
approximately one minute after the battery ground cable is disconnected.
Electrical System
The electrical system that supports the air bag supplemental restraint system (SRS):
zis powered from the battery through the ignition circuit.
z provides the electrical path from the restraints control module (RCM) to the air bag modules.
z provides the electrical path from the RCM to the air bag indicator.
z provides the electrical path from the RCM to the data link connector (DLC).
z provides the electrical path from the RCM to the generic electronic module (GEM).
Sensor WARNING: The restraints control module (RCM) orientation is critical for proper system
operation. If a vehicle equipped with an air bag supplemental restraint system (SRS) has been
involved in a collision in which the center tunnel area has been damaged, inspect the mounting
and bracket for deformation. If damaged, the RCM must be replaced whether or not the air bags
have deployed. In addition, make sure the area of the RCM mounting is restored to its original
condition.
The SRS contains two sensors which are integral to the RCM. The RCM is mounted on the center
tunnel under the instrument panel. Klj . 3 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 4016 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 4 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
