Page 1753 of 4378

FORD MUSTANG 2003 Workshop Manual 65. Remove the bolts. All vehicles 66. Lower the transmission, remove the seven bolts, and remove the transmission. 67. NOTE: RH side shown, LH side similar. Remove the two engine mount nuts. 68

Page 1754 of 4378

FORD MUSTANG 2003 Workshop Manual 69. Lower the vehicle. Manual transmission vehicles 70. Remove the two screws and position the clutch cable aside. All vehicles 71. Attach the special tool to a floor crane and the engine, and rem

Page 1755 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 19 ba 192003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1756 of 4378

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY Engine SECTION 303- 01D: Engine — Mach I 4.6L (4V) 2003 Mustang Workshop Manual Special Tool(s) Impact Slide Hammer 100- 001 (T50T-100- A) Remover, Crankshaft Vibration Damper 30

Page 1757 of 4378

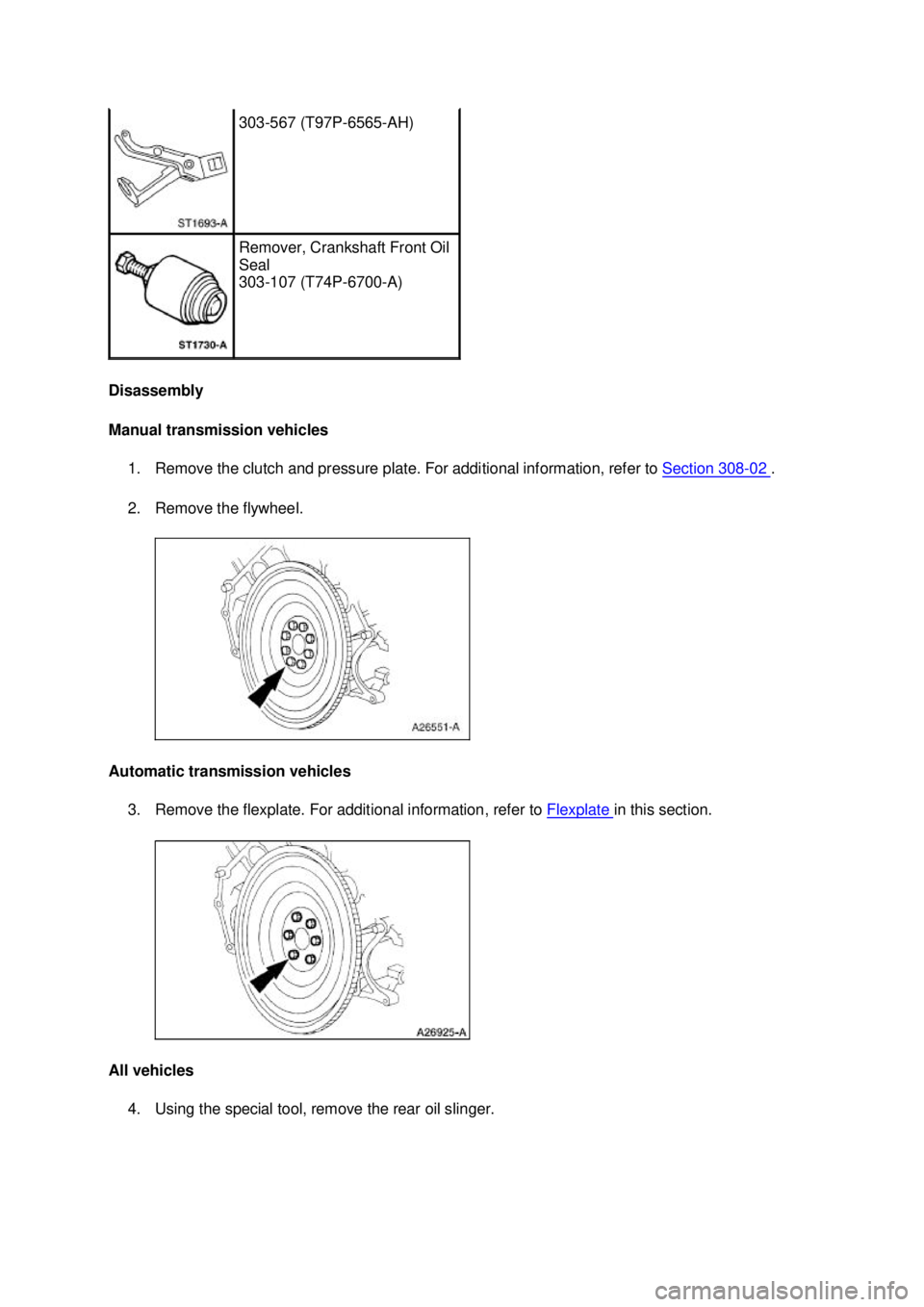

FORD MUSTANG 2003 Workshop Manual Disassembly Manual transmission vehicles 1. Remove the clutch and pressure plate. For additional information, refer to Section 308 - 02 . 2. Remove the flywheel. Automatic transmission vehicles

Page 1758 of 4378

FORD MUSTANG 2003 Workshop Manual 5. Using the special tool, remove the rear main seal. 6. Remove the rear seal retainer plate. 7. Mount the engine on a work stand. 8. Remove the special tools. Klj . 3 ba 212003 Mustang Wo

Page 1759 of 4378

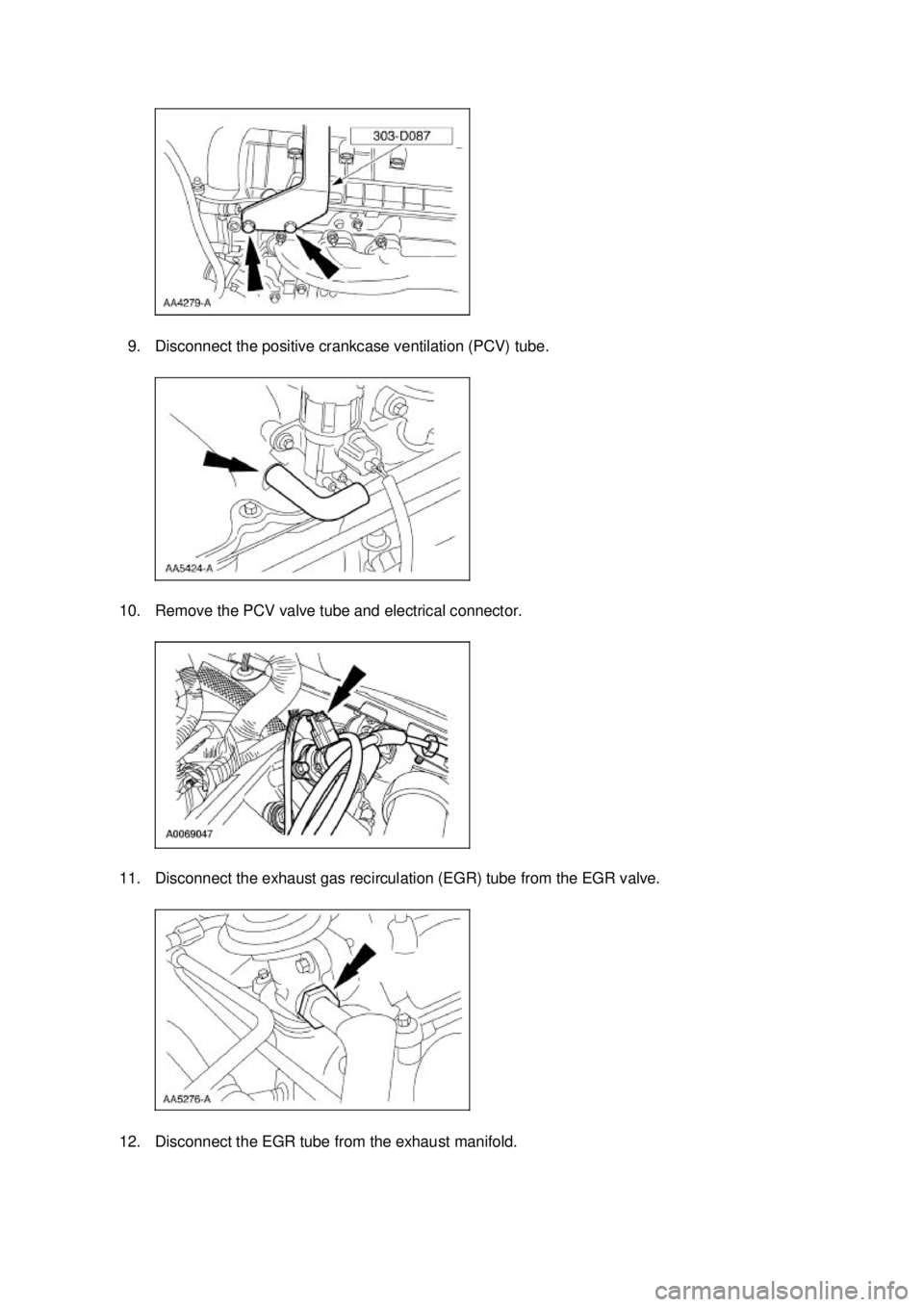

FORD MUSTANG 2003 Workshop Manual 9. Disconnect the positive crankcase ventilation (PCV) tube. 10. Remove the PCV valve tube and electrical connector. 11. Disconnect the exhaust gas recirculation (EGR) tube from the EGR valve. 12.

Page 1760 of 4378

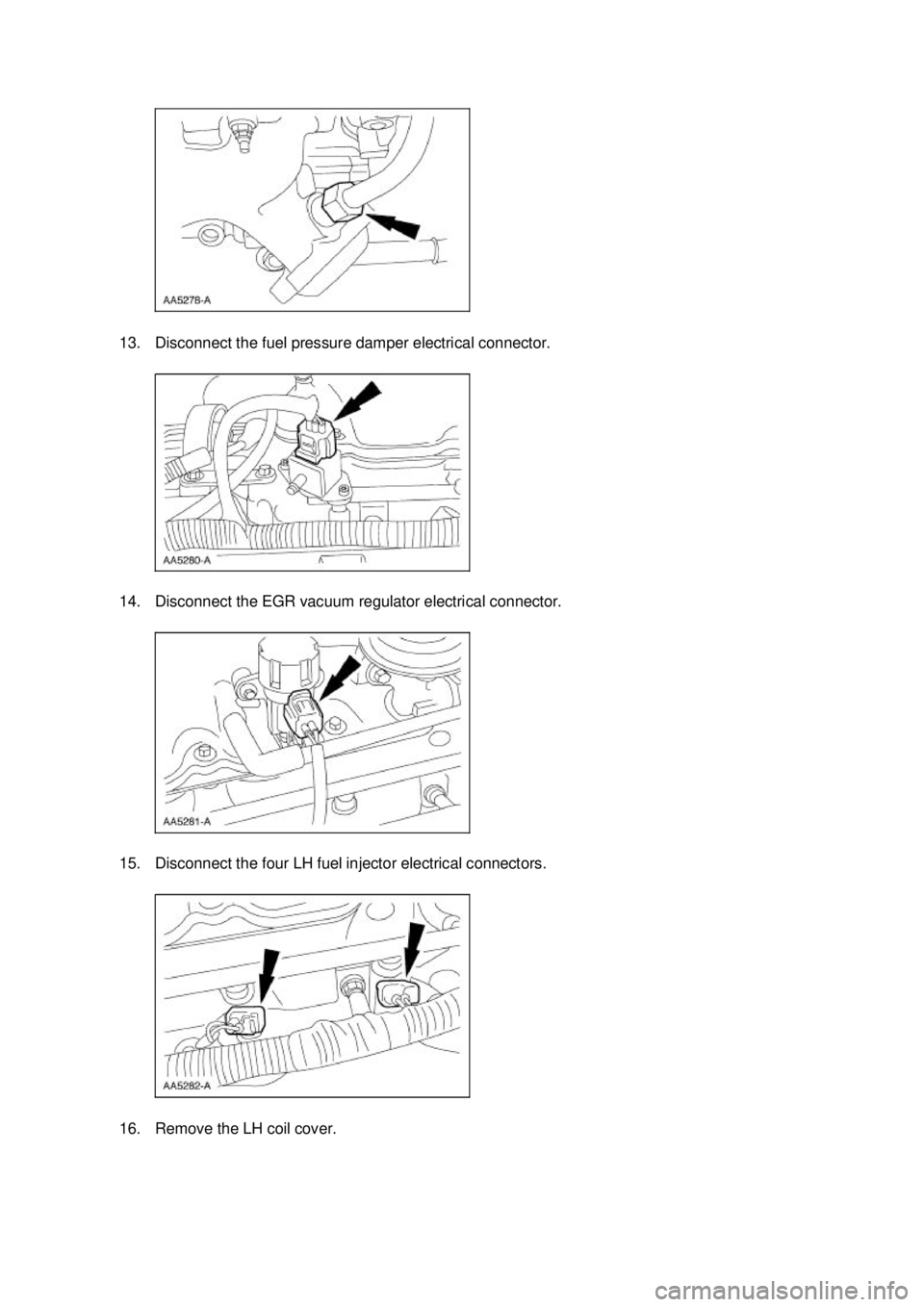

FORD MUSTANG 2003 Workshop Manual 13. Disconnect the fuel pressure damper electrical connector. 14. Disconnect the EGR vacuum regulator electrical connector. 15. Disconnect the four LH fuel injector electrical connectors. 16. Remov
