Page 2809 of 4378

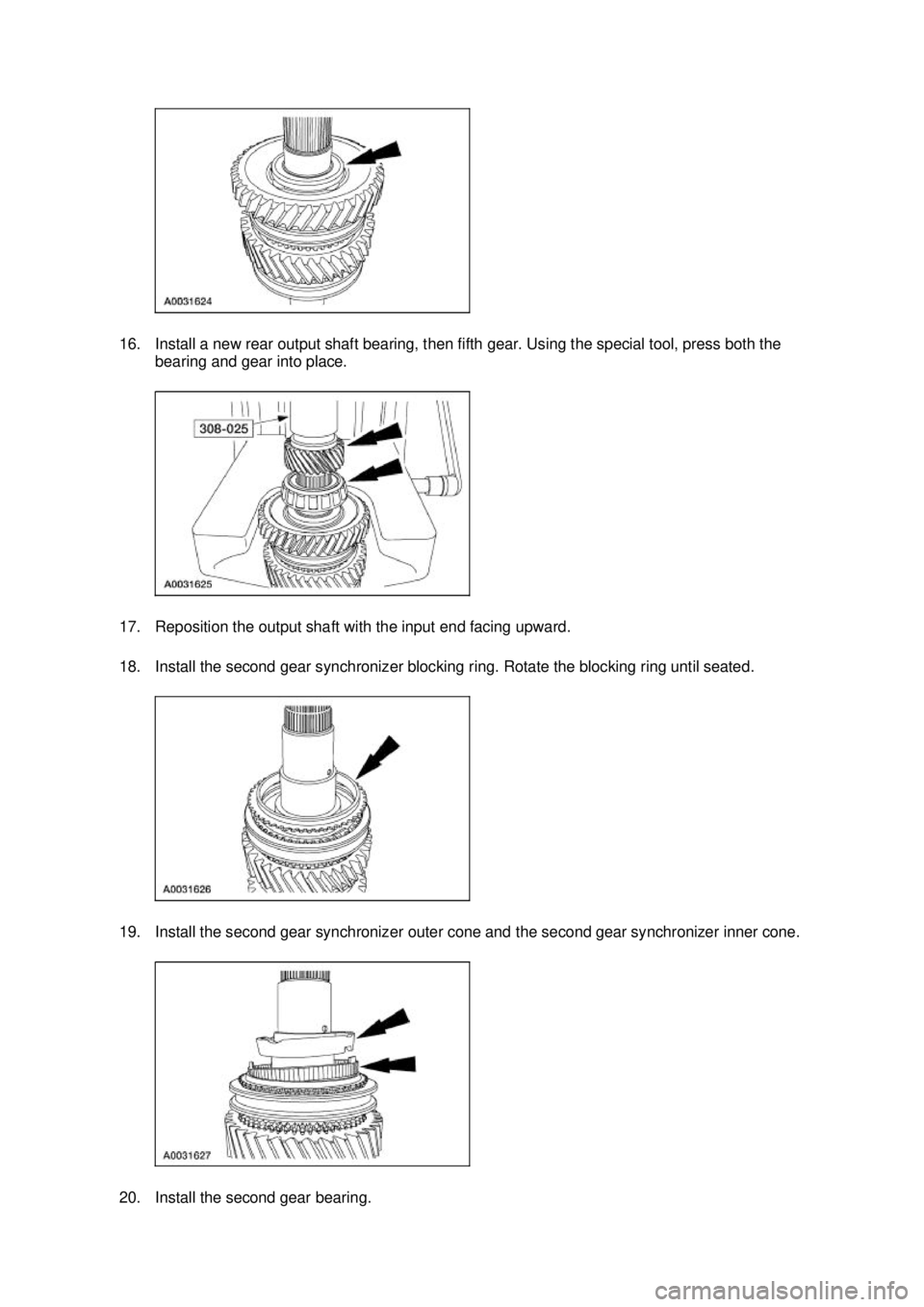

FORD MUSTANG 2003 Workshop Manual 16. Install a new rear output shaft bearing, then fifth gear. Using the special tool, press both the bearing and gear into place. 17. Reposition the output shaft with the input end facing upward. 1

Page 2810 of 4378

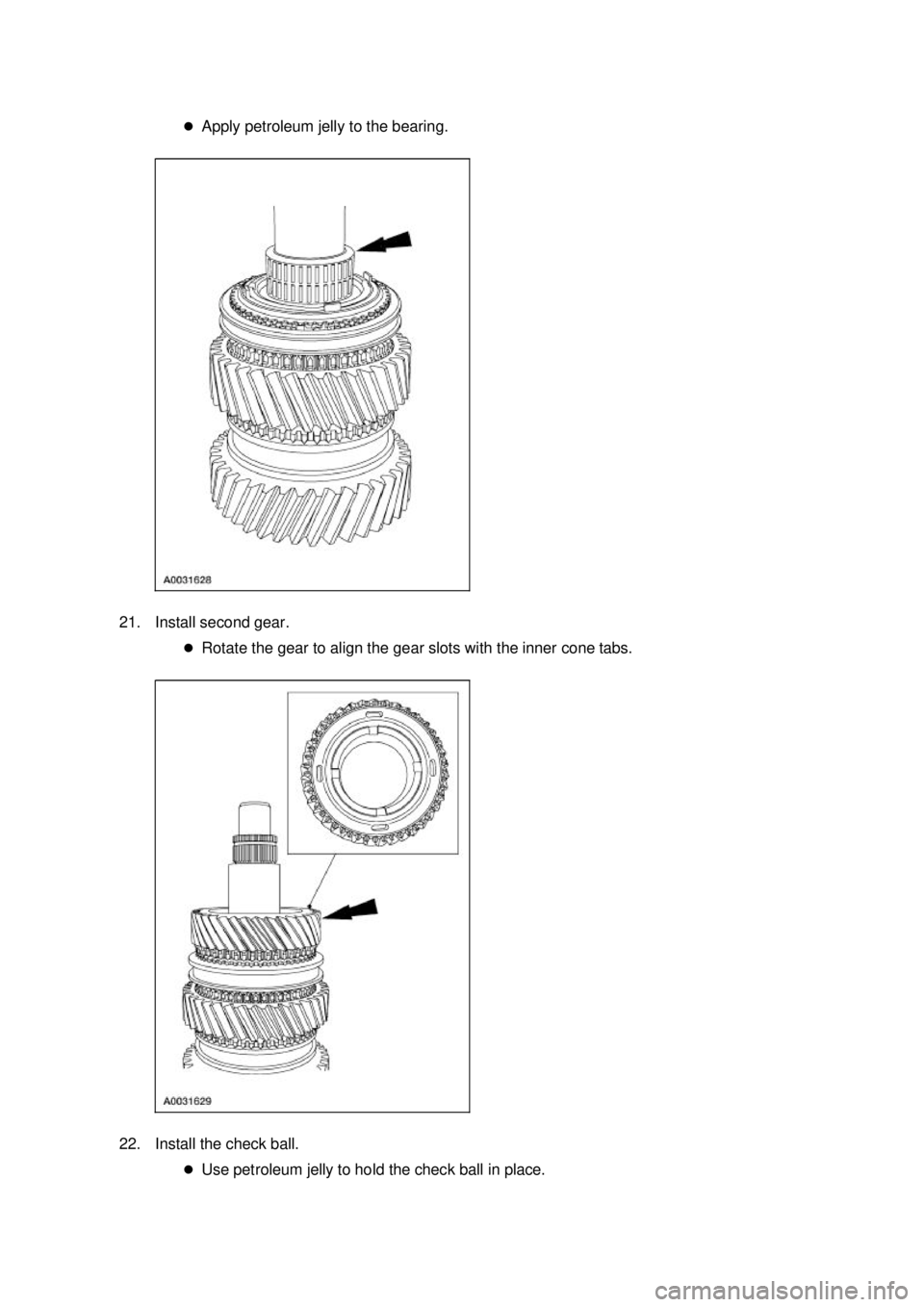

FORD MUSTANG 2003 Workshop Manual �z Apply petroleum jelly to the bearing. 21. Install second gear. �zRotate the gear to align the gear slots with the inner cone tabs. 22. Install the check ball. �zUse petroleum jelly to hold the

Page 2811 of 4378

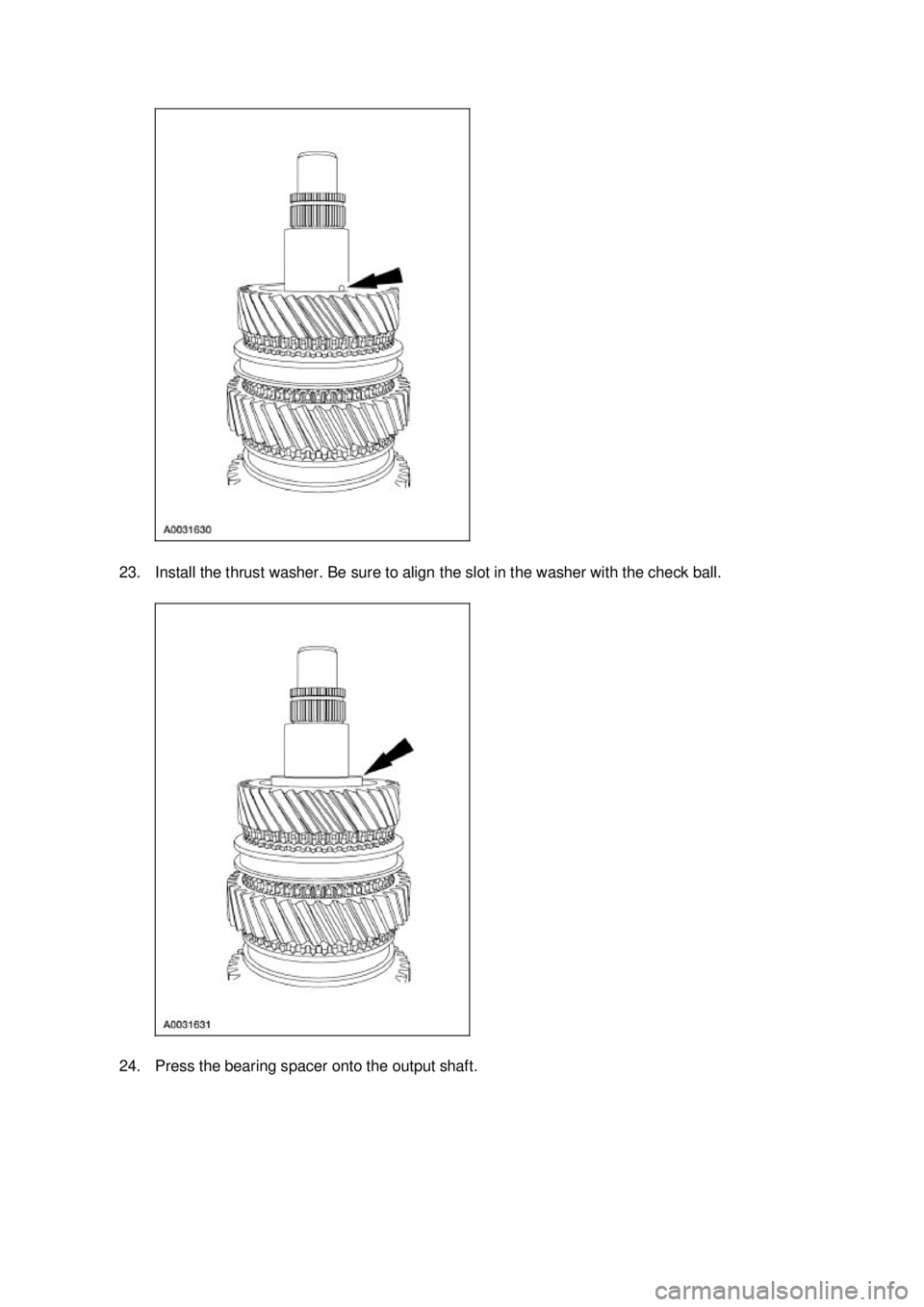

FORD MUSTANG 2003 Workshop Manual 23. Install the thrust washer. Be sure to align the slot in the washer with the check ball. 24. Press the bearing spacer onto the output shaft. Klj . 13 ba 172003 Mustang Workshop Manual 18.

Page 2812 of 4378

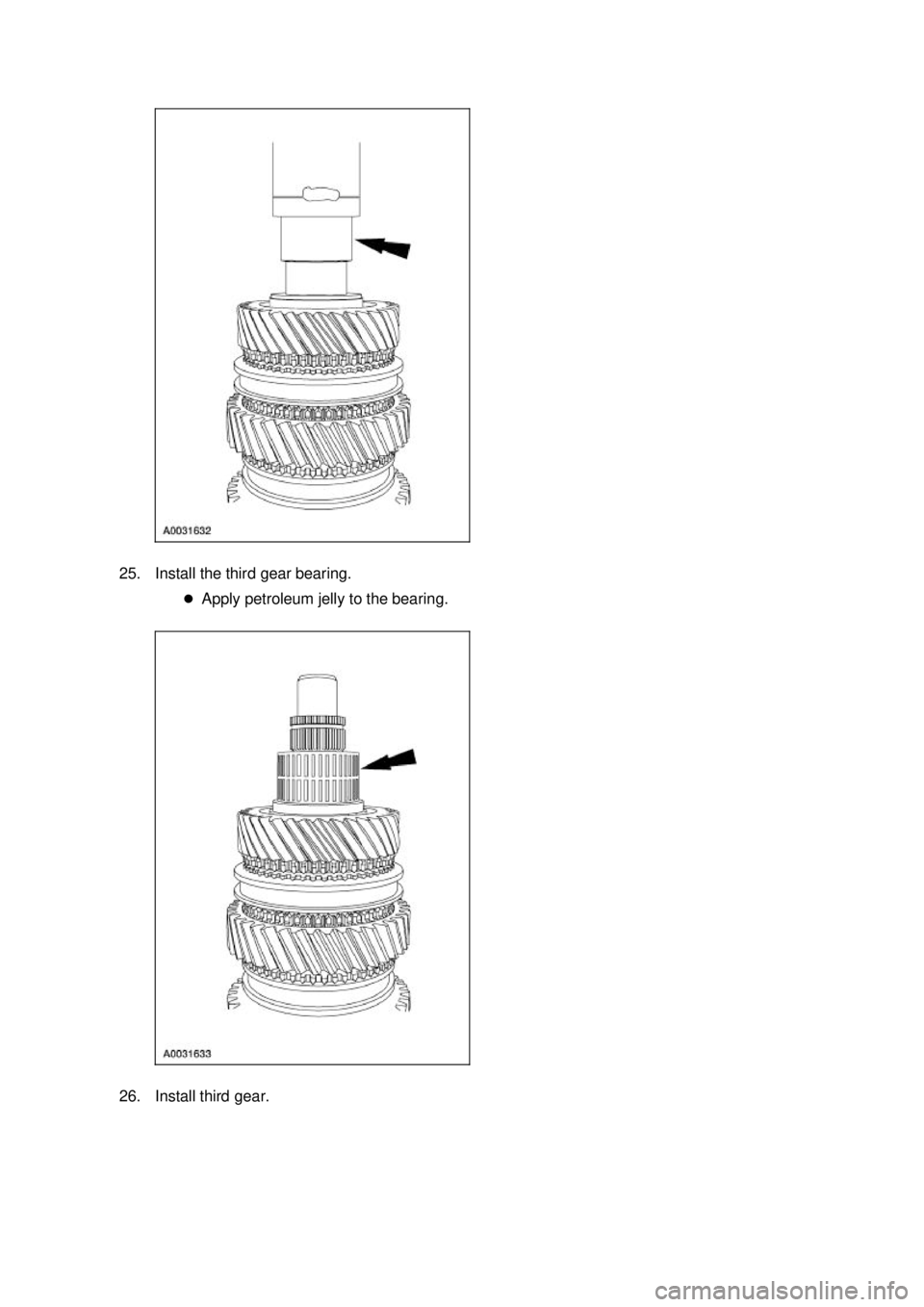

FORD MUSTANG 2003 Workshop Manual 25. Install the third gear bearing. �zApply petroleum jelly to the bearing. 26. Install third gear. Klj . 14 ba 172003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocac

Page 2813 of 4378

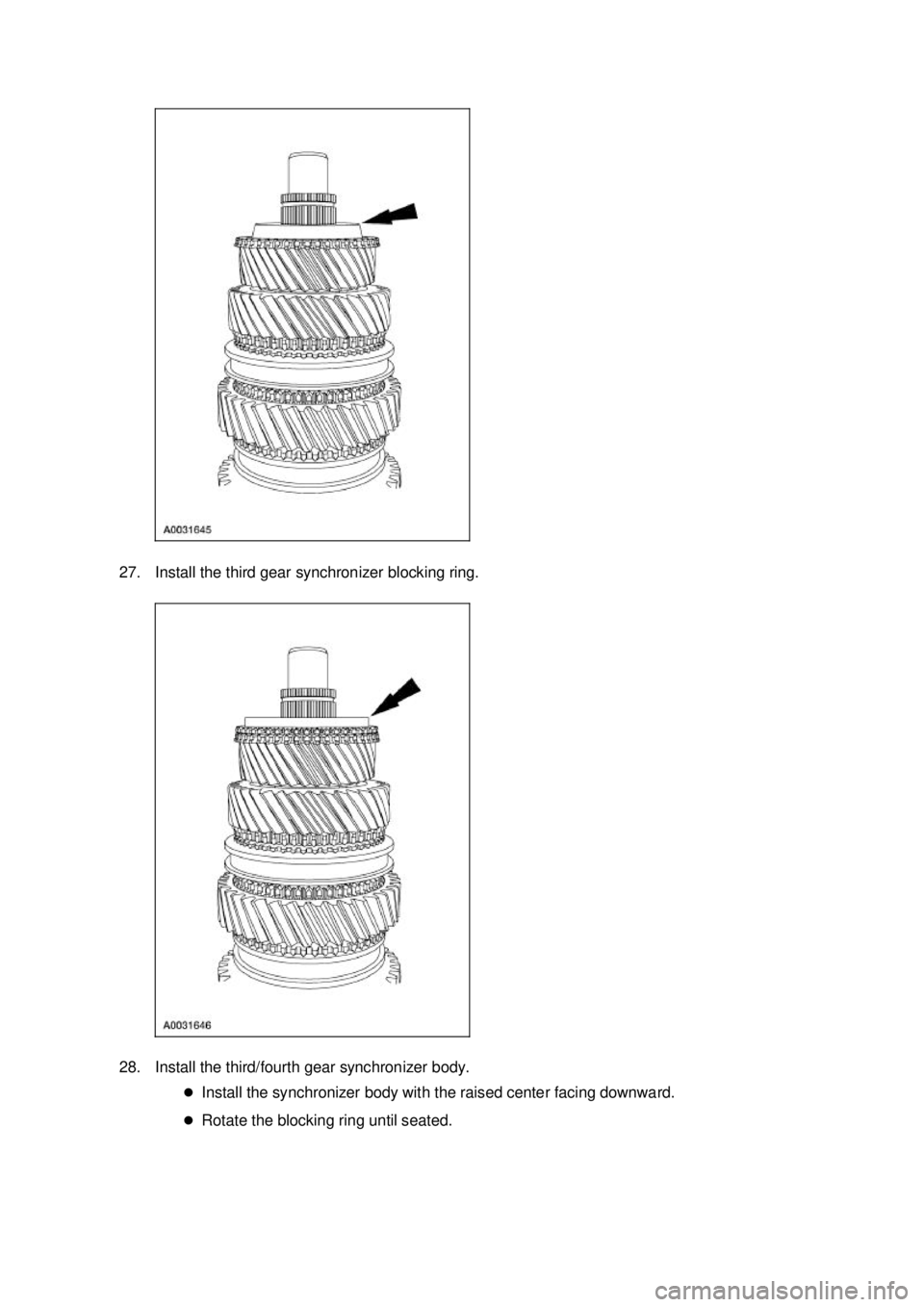

FORD MUSTANG 2003 Workshop Manual 27. Install the third gear synchronizer blocking ring. 28. Install the third/fourth gear synchronizer body. �zInstall the synchronizer body with the raised center facing downward. �z Rotate the blo

Page 2814 of 4378

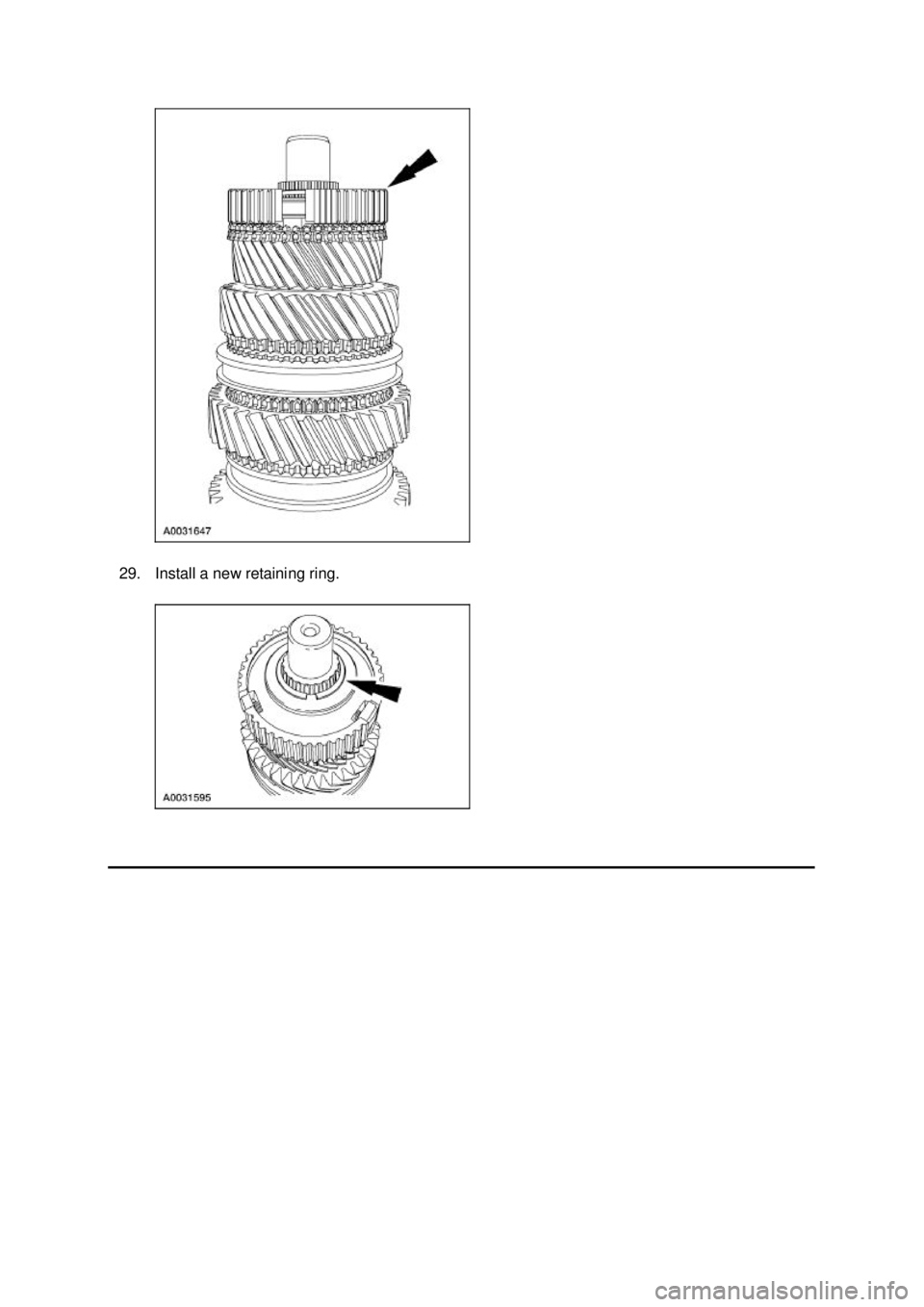

FORD MUSTANG 2003 Workshop Manual 29. Install a new retaining ring. Klj . 16 ba 172003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 2815 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 17 ba 172003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 2816 of 4378

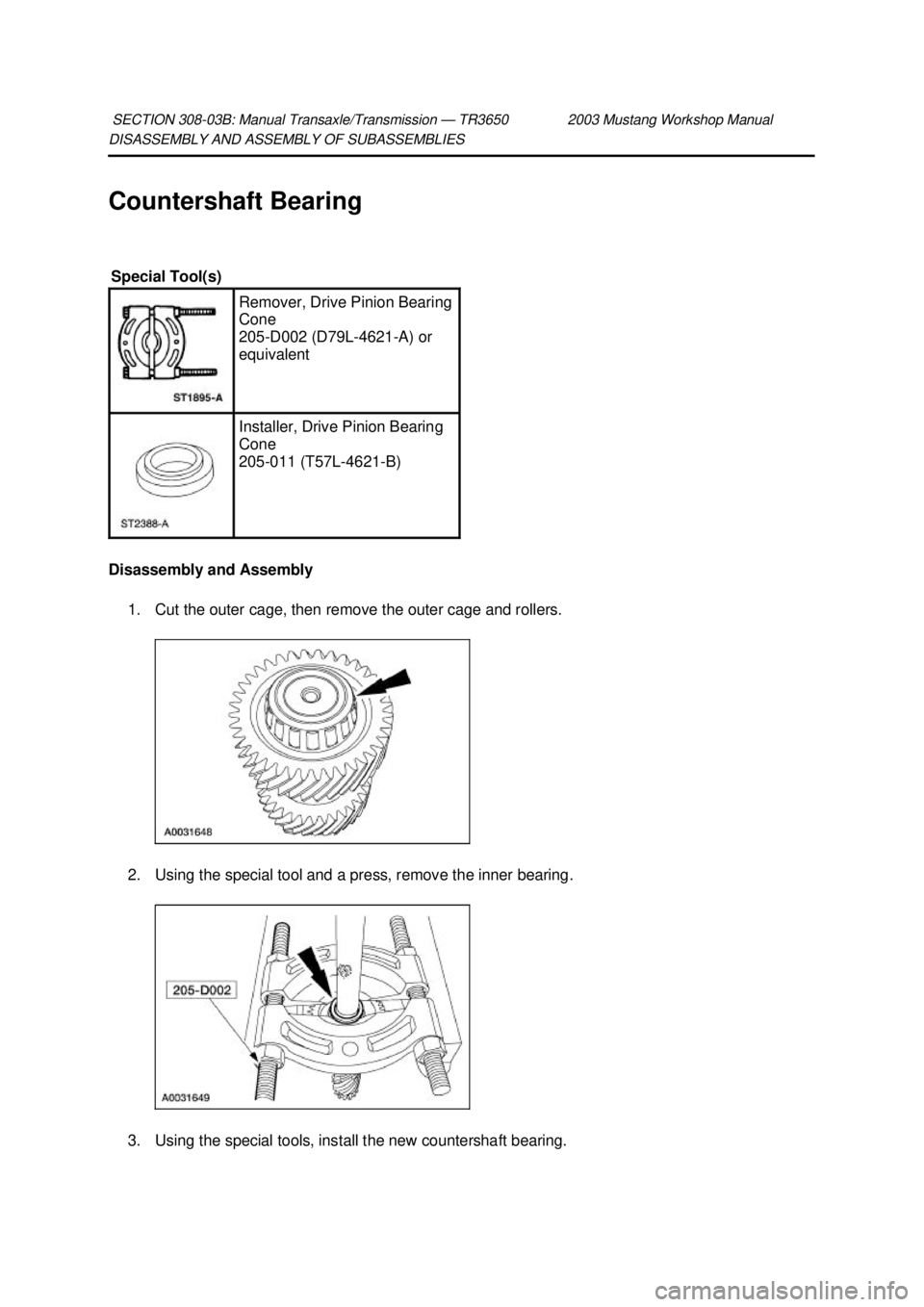

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES Countershaft Bearing Disassembly and Assembly 1. Cut the outer cage, then remove the outer cage and rollers. 2. Using the special tool and a press, remove
