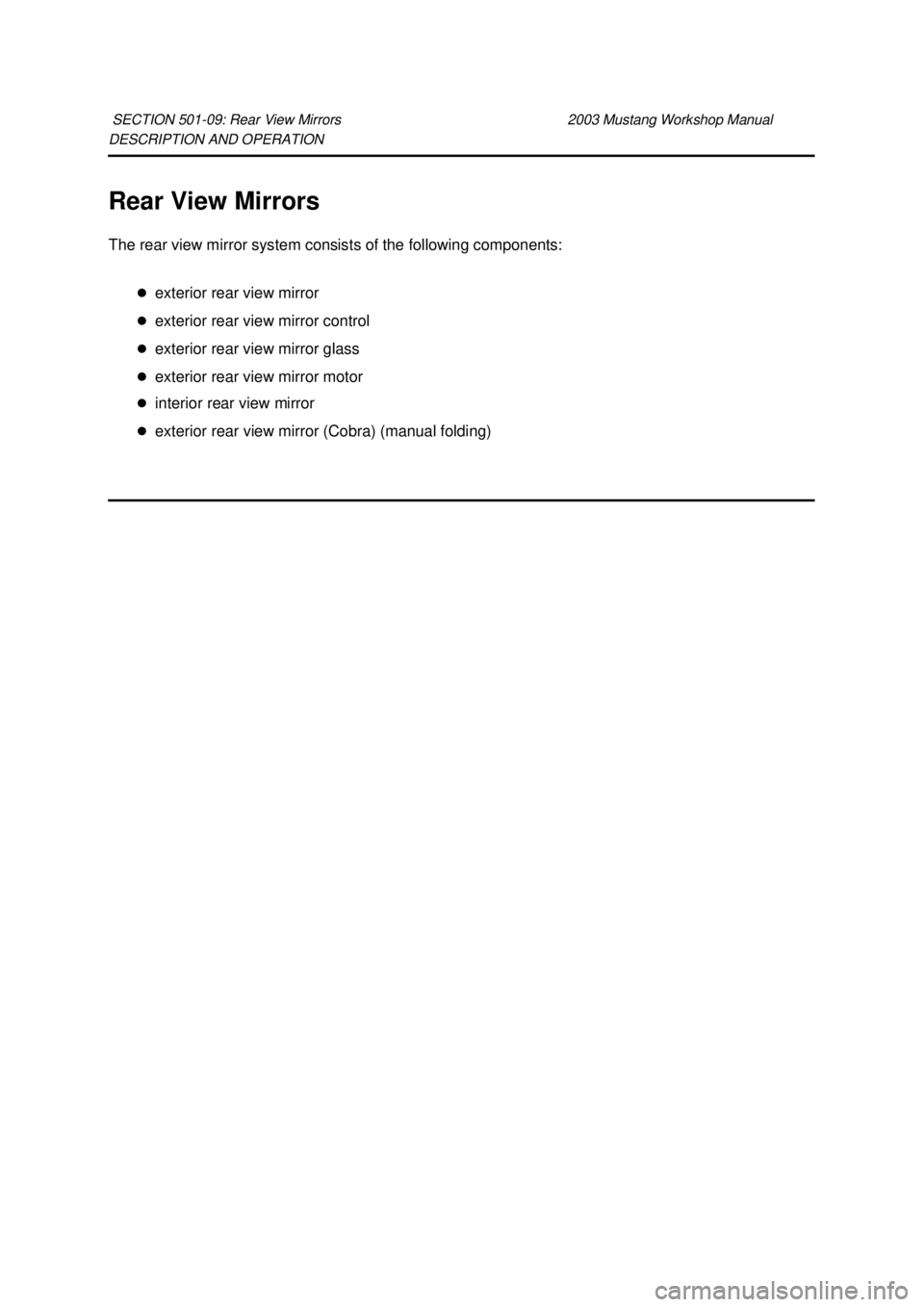

Page 3649 of 4378

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Rear View Mirrors The rear view mirror system consists of the following components: �zexterior rear view mirror �z exterior rear view mirror control �z exterior rear vie

Page 3650 of 4378

FORD MUSTANG 2003 Workshop Manual DIAGNOSIS AND TESTING Rear View Mirrors Refer to Wiring Diagrams Cell 124 , Power Mirrors for schematic and connector information. Inspection and Verification 1. Verify the customer concern by o

Page 3651 of 4378

FORD MUSTANG 2003 Workshop Manual Pinpoint Tests PINPOINT TEST A: THE MIRRORS ARE INOPERATIVE �z Central junction box (CJB) fuse 19 (15A). �z Circuitry. �z A single mirror is inoperative �zExterior rear view mirror control. �z

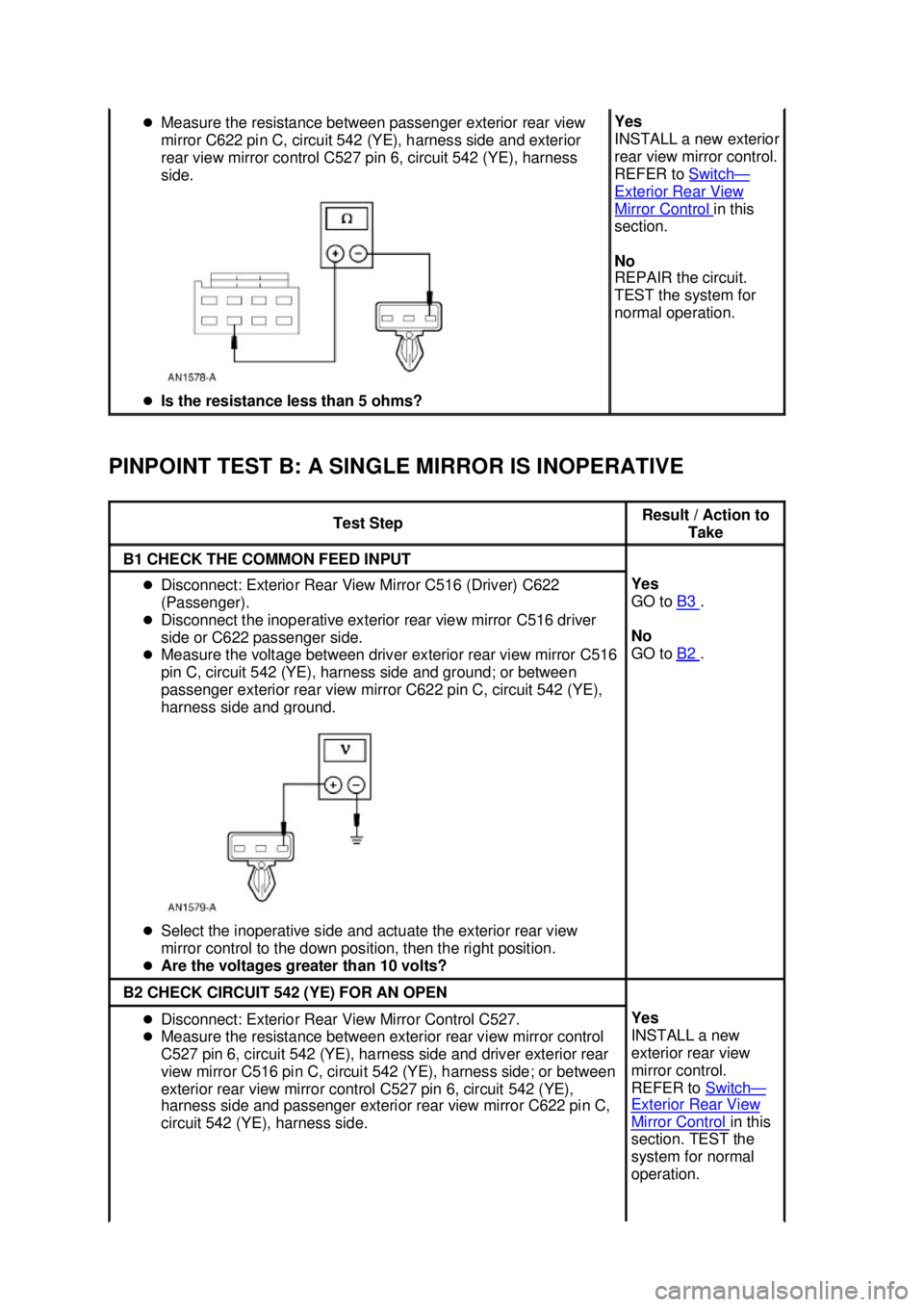

Page 3652 of 4378

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST B: A SINGLE MIRROR IS INOPERATIVE �z Measure the resistance between passenger exterior rear view mirror C622 pin C, circuit 542 (YE), harness side and exterior rear view mirror contro

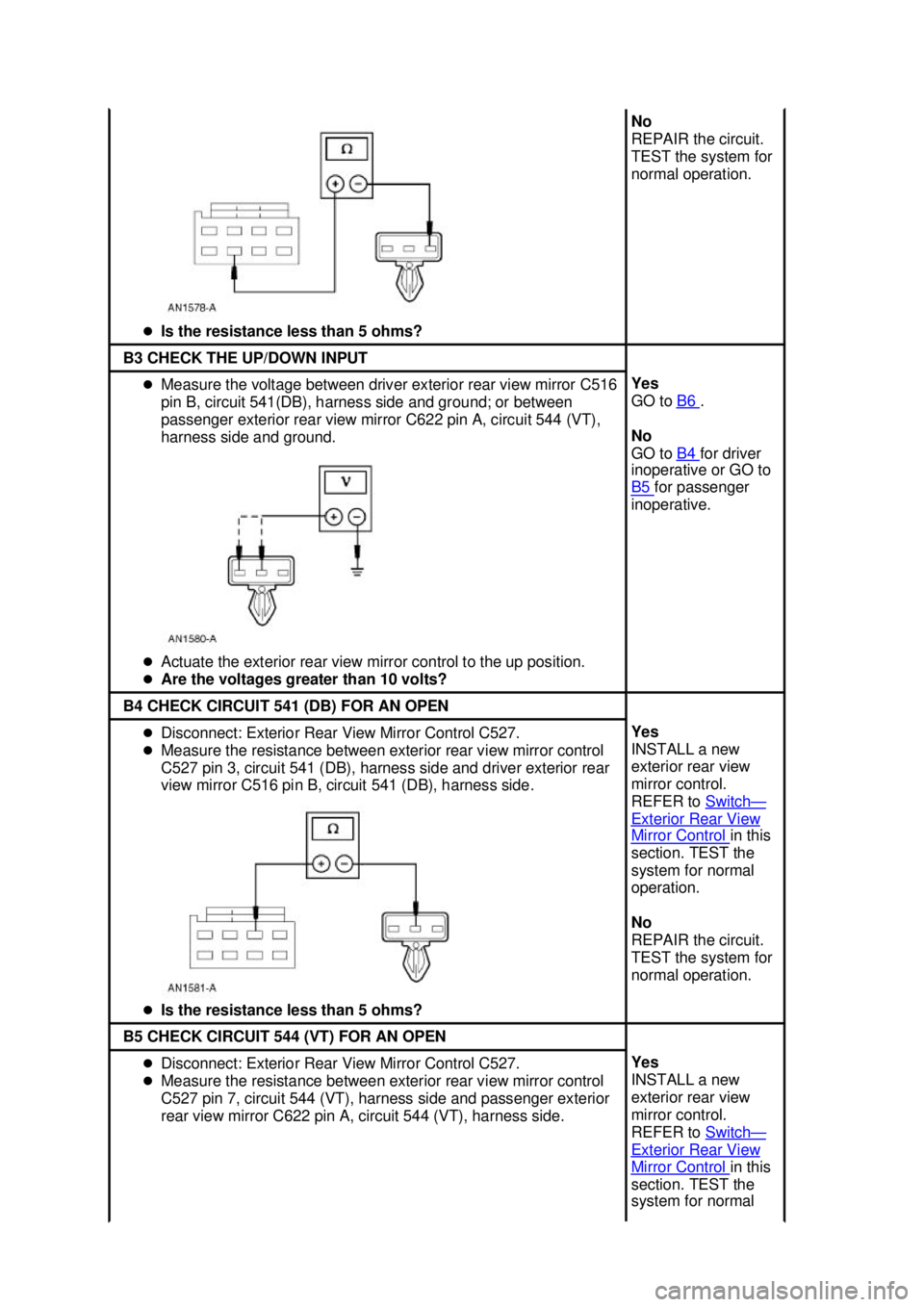

Page 3653 of 4378

FORD MUSTANG 2003 Workshop Manual �z Is the resistance less than 5 ohms? No REPAIR the circuit. TEST the system for normal operation. B3 CHECK THE UP/DOWN INPUT �z Measure the voltage between driver exterior rear view mirror C51

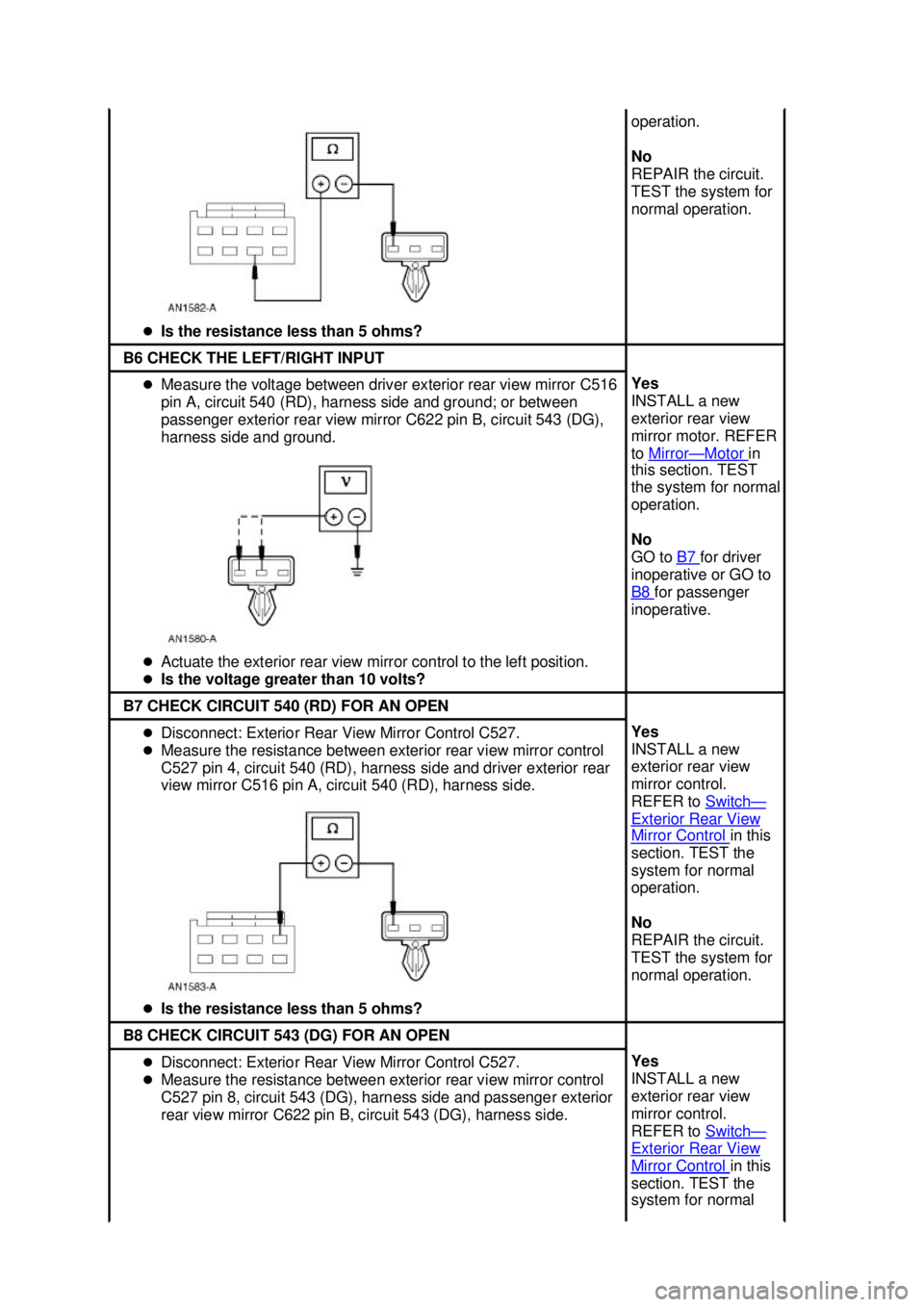

Page 3654 of 4378

FORD MUSTANG 2003 Workshop Manual �z Is the resistance less than 5 ohms? operation. No REPAIR the circuit. TEST the system for normal operation. B6 CHECK THE LEFT/RIGHT INPUT �z Measure the voltage between driver exterior rear

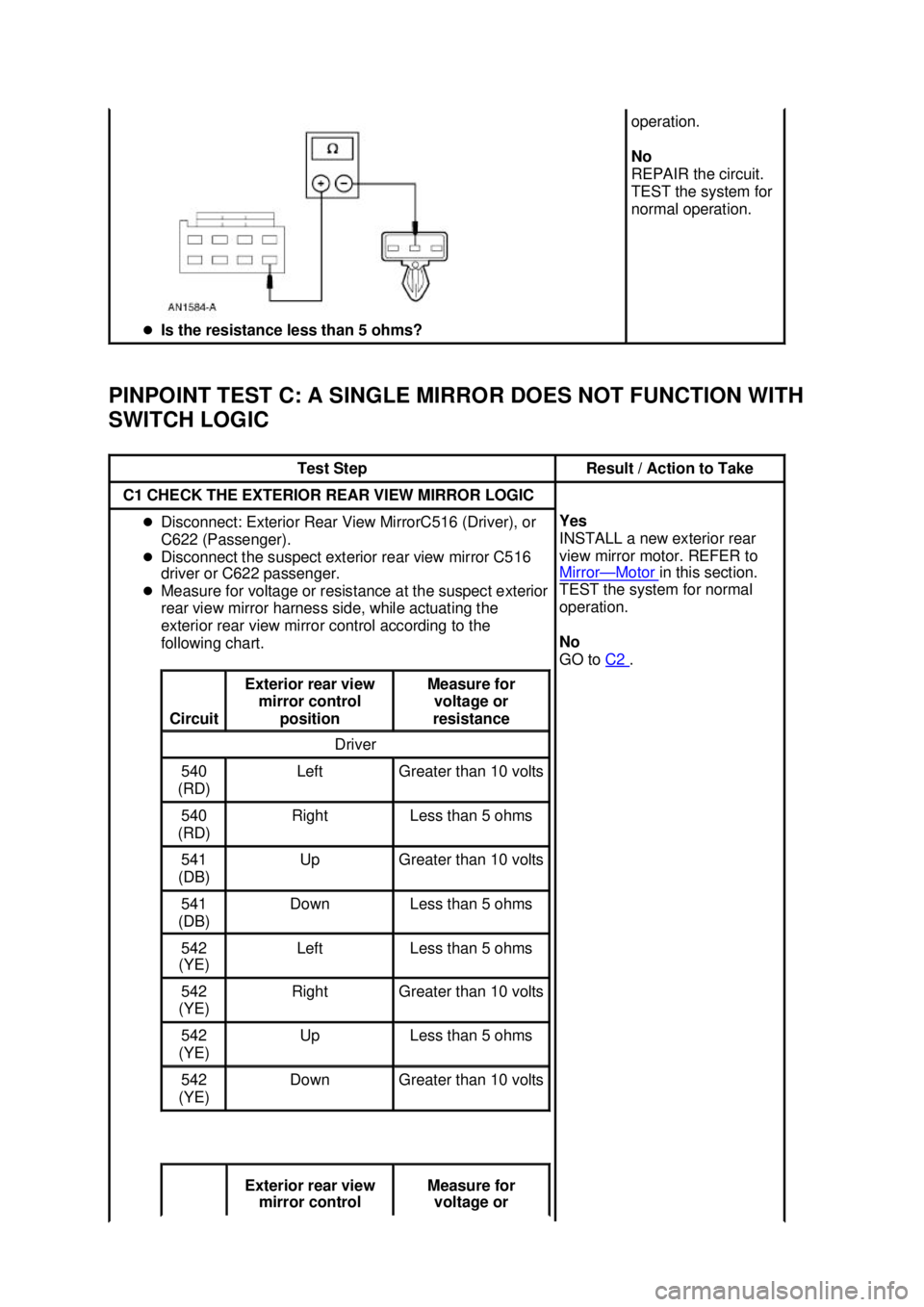

Page 3655 of 4378

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST C: A SINGLE MIRROR DOES NOT FUNCTION WITH SWITCH LOGIC �z Is the resistance less than 5 ohms? operation. No REPAIR the circuit. TEST the system for normal operation. Test Step R

Page 3656 of 4378

FORD MUSTANG 2003 Workshop Manual �z Is the circuit logic OK? Circuit position resistance Passenger 543 (DG) Left Greater than 10 volts 543 (DG) Right Less than 5 ohms 544 (VT) Up Greater than 10 volts 544 (VT) Down
