Page 4177 of 4378

FORD MUSTANG 2003 Workshop Manual Fig. 22: 4.6L SOHC, Engine Performance Circuit (3 of 3) EXTERIOR LIGHTS 2003 Ford Mustang 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:45:09Page 23 © 2006 Mitc

Page 4178 of 4378

FORD MUSTANG 2003 Workshop Manual Fig. 23: Back-up Lamps Circuit 2003 Ford Mustang 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:45:09Page 24 © 2006 Mitchell Repair Information Company, LLC.

Page 4179 of 4378

FORD MUSTANG 2003 Workshop Manual Fig. 24: Exterior Lamps Circuit GROUND DISTRIBUTION 2003 Ford Mustang 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:45:09Page 25 © 2006 Mitchell Repair Informat

Page 4180 of 4378

FORD MUSTANG 2003 Workshop Manual Fig. 25: Ground Distribution Circuit (1 of 2) 2003 Ford Mustang 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:45:09Page 26 © 2006 Mitchell Repair Information Comp

Page 4181 of 4378

FORD MUSTANG 2003 Workshop Manual Fig. 26: Ground Distribution Circuit (2 of 2) HEADLIGHTS 2003 Ford Mustang 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:45:09Page 27 © 2006 Mitchell Repair Inf

Page 4182 of 4378

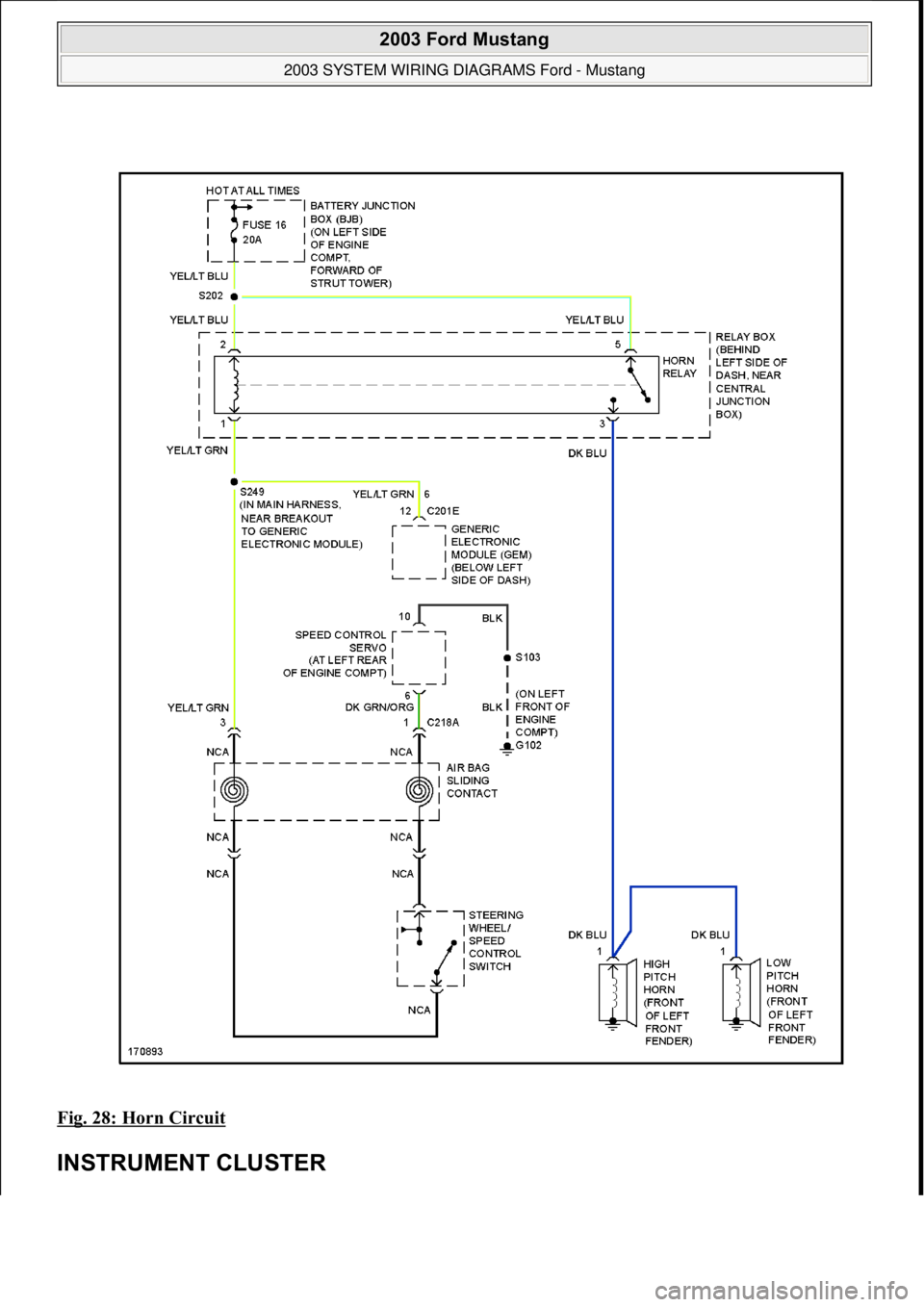

FORD MUSTANG 2003 Workshop Manual Fig. 27: Headlights Circuit HORN 2003 Ford Mustang 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:45:09Page 28 © 2006 Mitchell Repair Information Company, LLC.

Page 4183 of 4378

FORD MUSTANG 2003 Workshop Manual Fig. 28: Horn Circuit INSTRUMENT CLUSTER 2003 Ford Mustang 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:45:09Page 29 © 2006 Mitchell Repair Information Company

Page 4184 of 4378

FORD MUSTANG 2003 Workshop Manual Fig. 29: Instrument Cluster Circuit INTERIOR LIGHTS 2003 Ford Mustang 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:45:09Page 30 © 2006 Mitchell Repair Informat
