Page 3945 of 4378

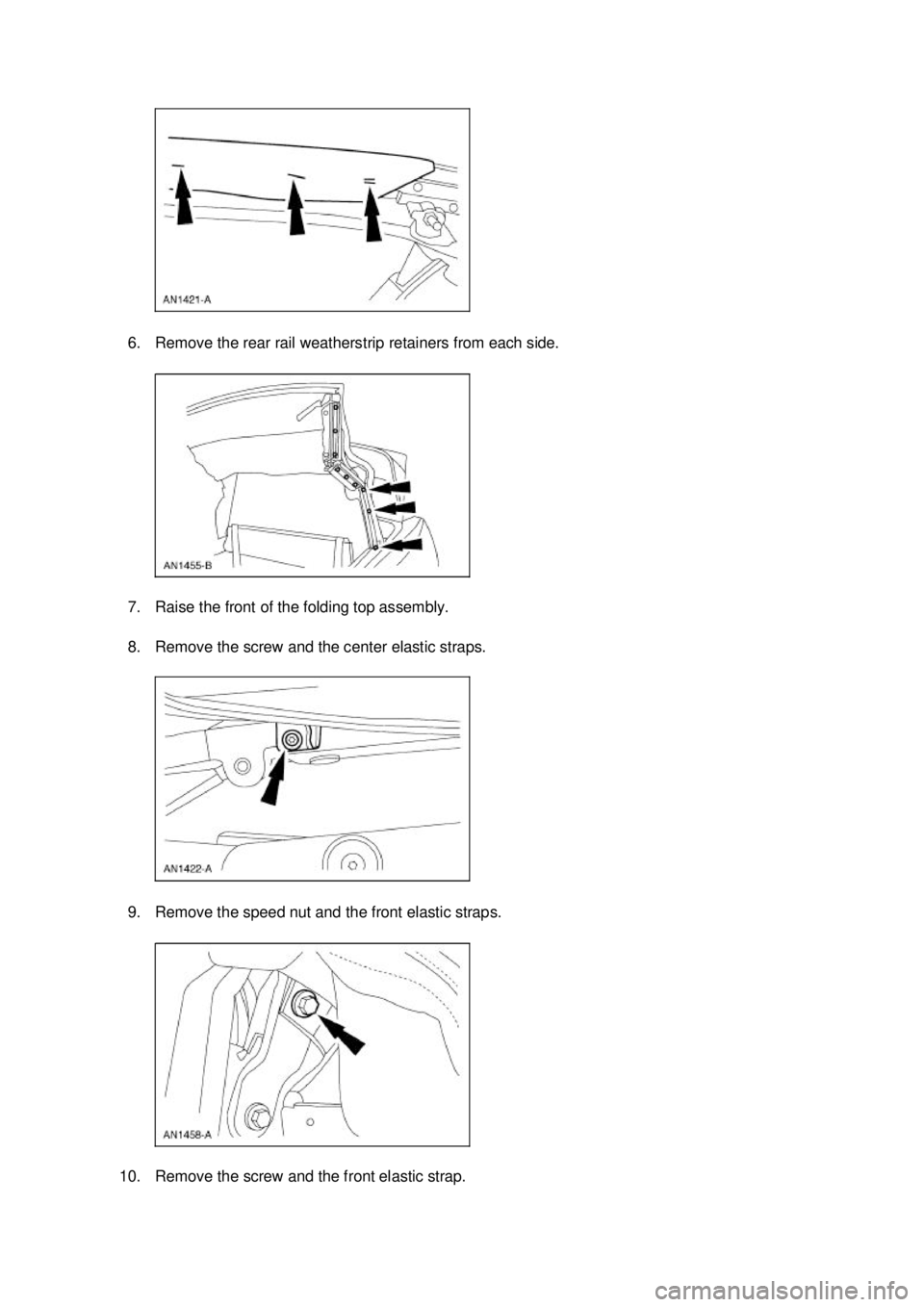

FORD MUSTANG 2003 Workshop Manual 6. Remove the rear rail weatherstrip retainers from each side. 7. Raise the front of the folding top assembly. 8. Remove the screw and the center elastic straps. 9. Remove the speed nut and the fro

Page 3946 of 4378

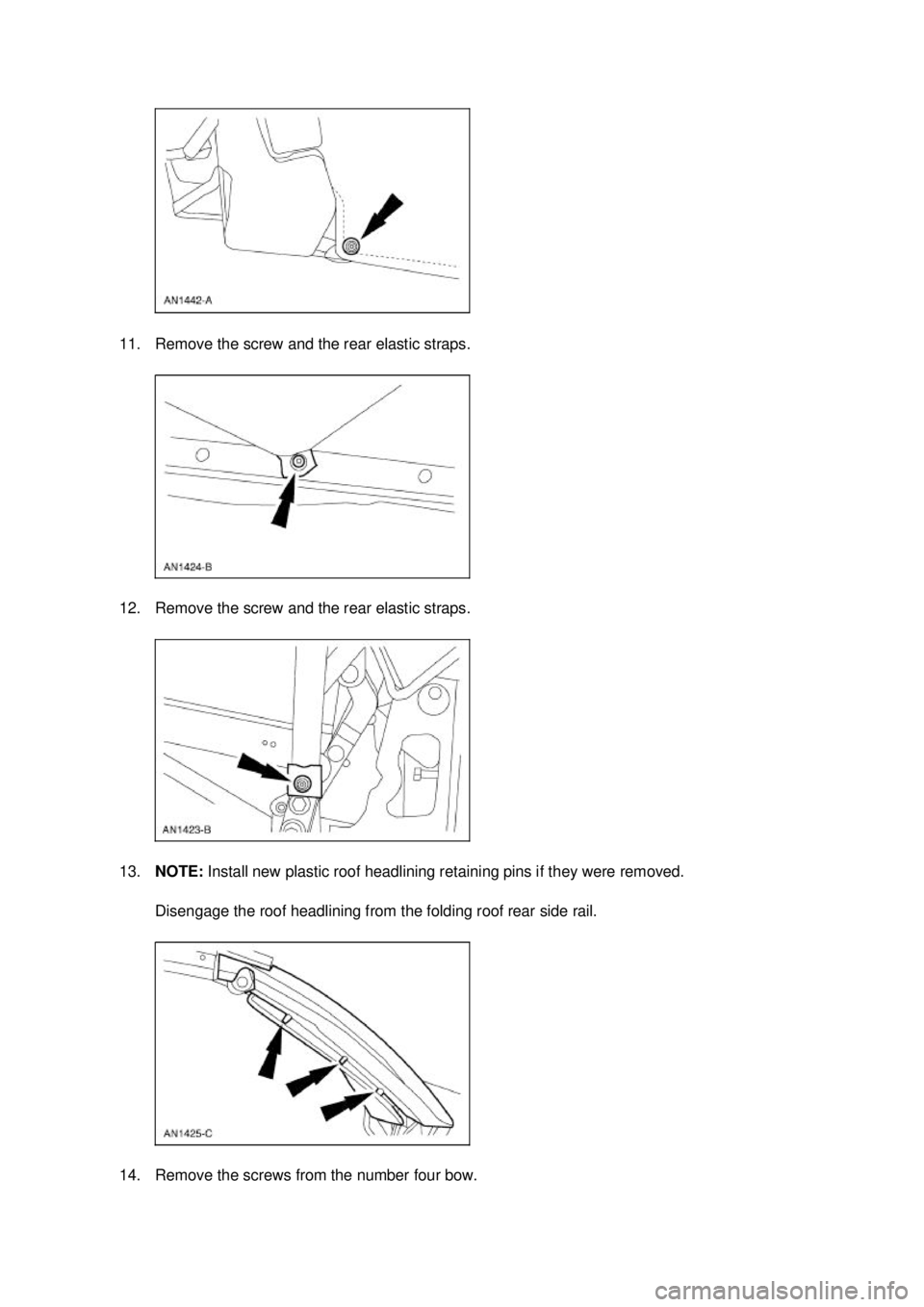

FORD MUSTANG 2003 Workshop Manual 11. Remove the screw and the rear elastic straps. 12. Remove the screw and the rear elastic straps. 13. NOTE: Install new plastic roof headlining retaining pins if they were removed. Disengage the

Page 3947 of 4378

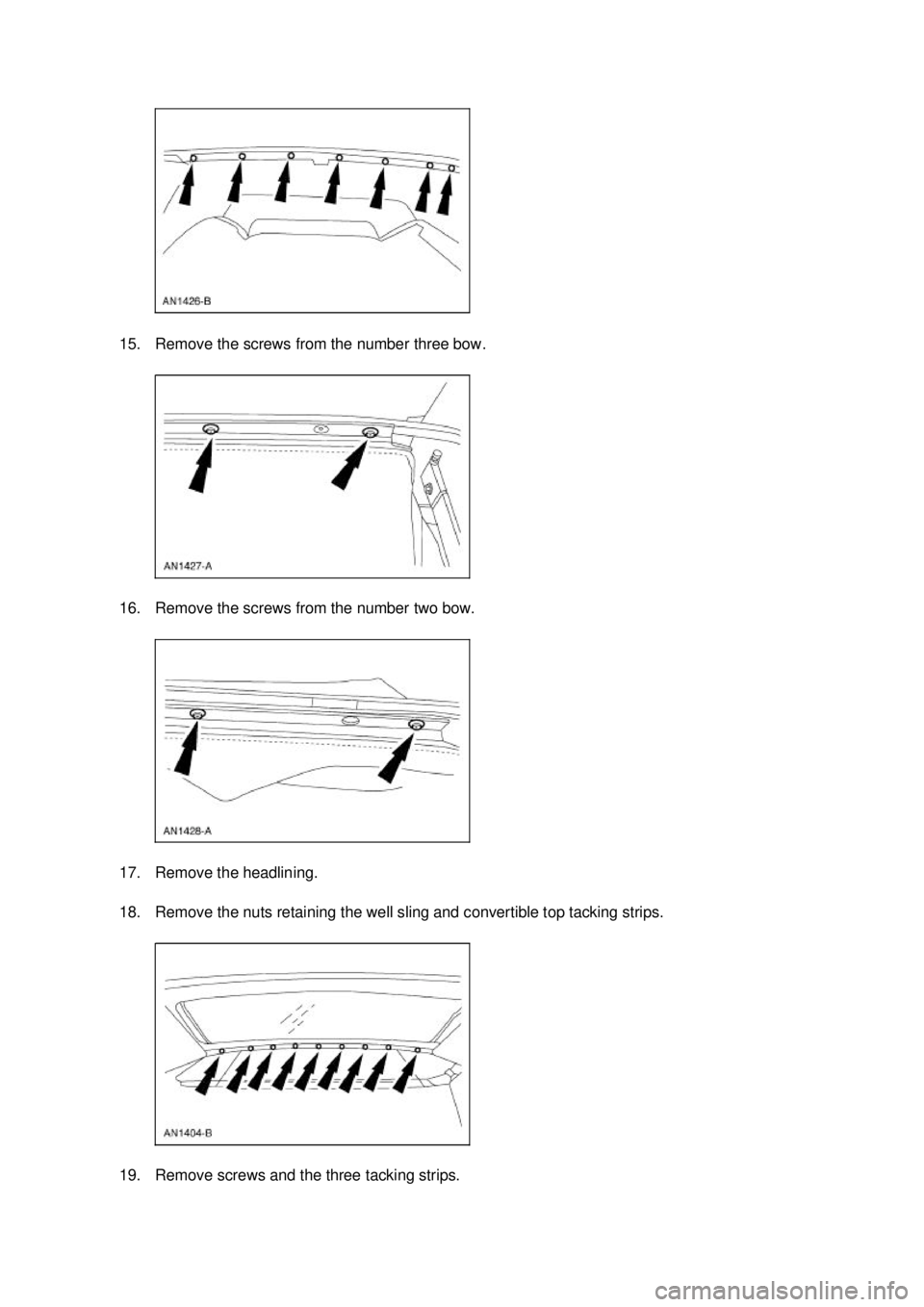

FORD MUSTANG 2003 Workshop Manual 15. Remove the screws from the number three bow. 16. Remove the screws from the number two bow. 17. Remove the headlining. 18. Remove the nuts retaining the well sling and convertible top tacking s

Page 3948 of 4378

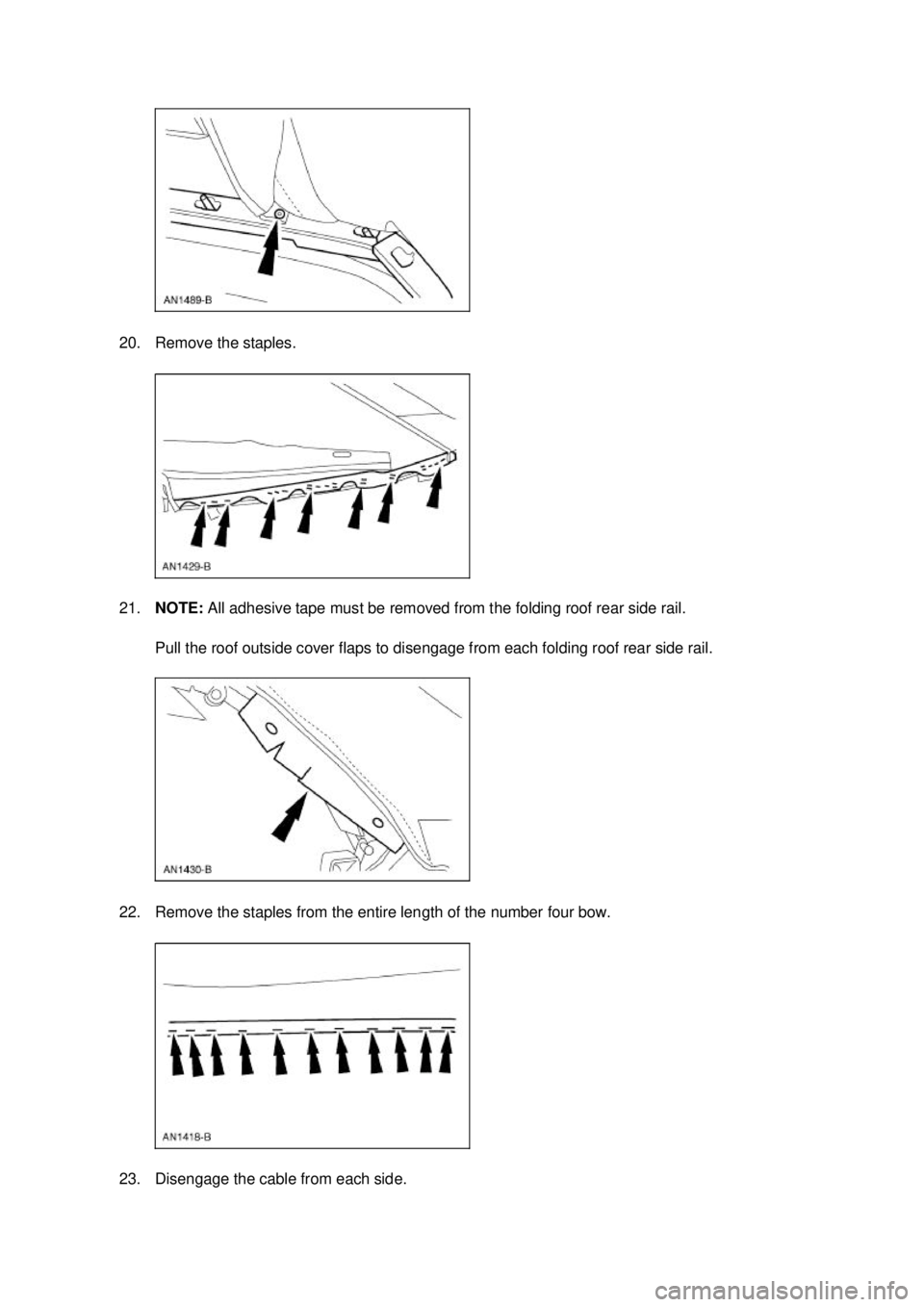

FORD MUSTANG 2003 Workshop Manual 20. Remove the staples. 21. NOTE: All adhesive tape must be removed from the folding roof rear side rail. Pull the roof outside cover flaps to disengage from each folding roof rear side rail. 22.

Page 3949 of 4378

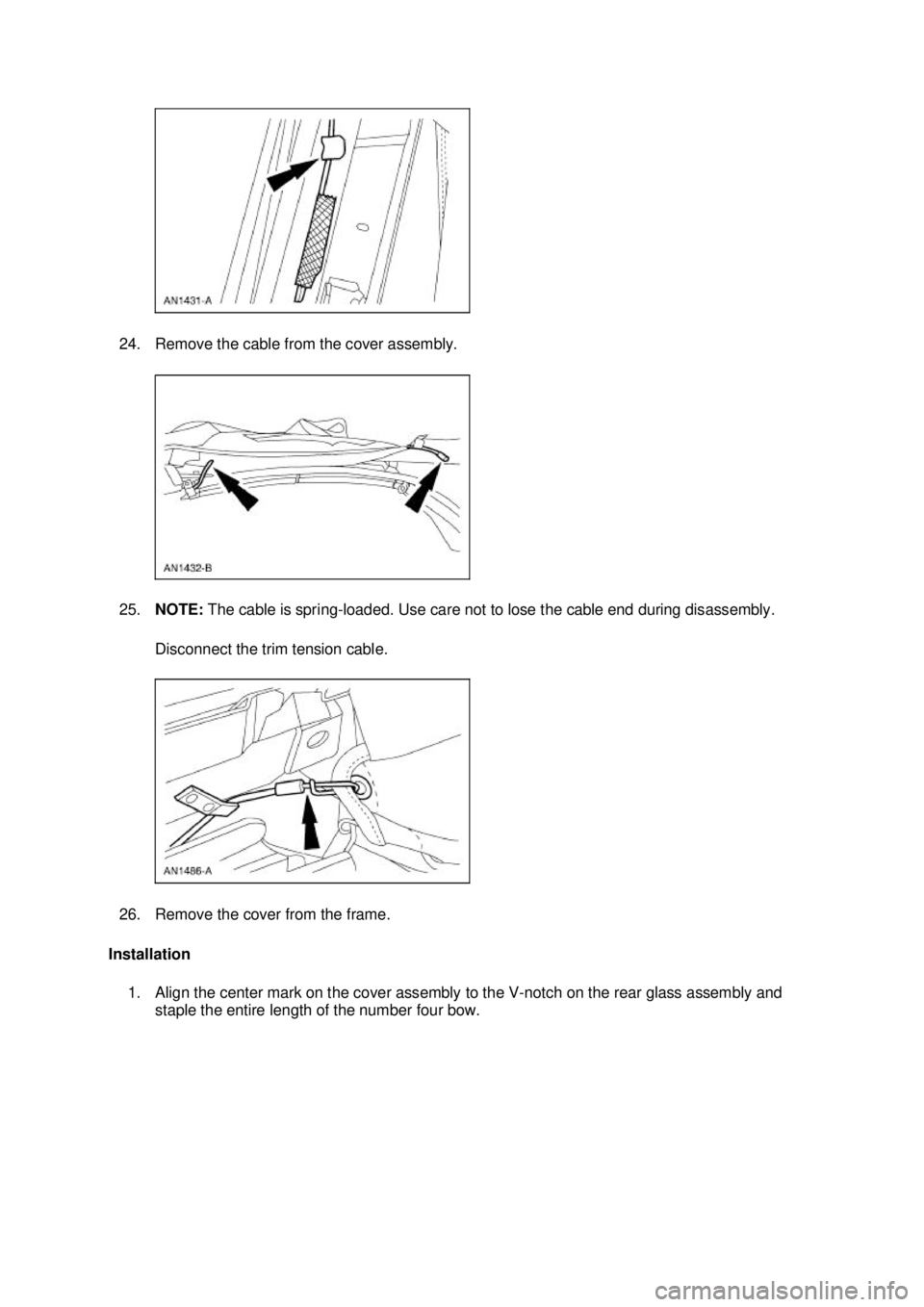

FORD MUSTANG 2003 Workshop Manual 24. Remove the cable from the cover assembly. 25. NOTE: The cable is spring- loaded. Use care not to lose the cable end during disassembly. Disconnect the trim tension cable. 26. Remove the cover

Page 3950 of 4378

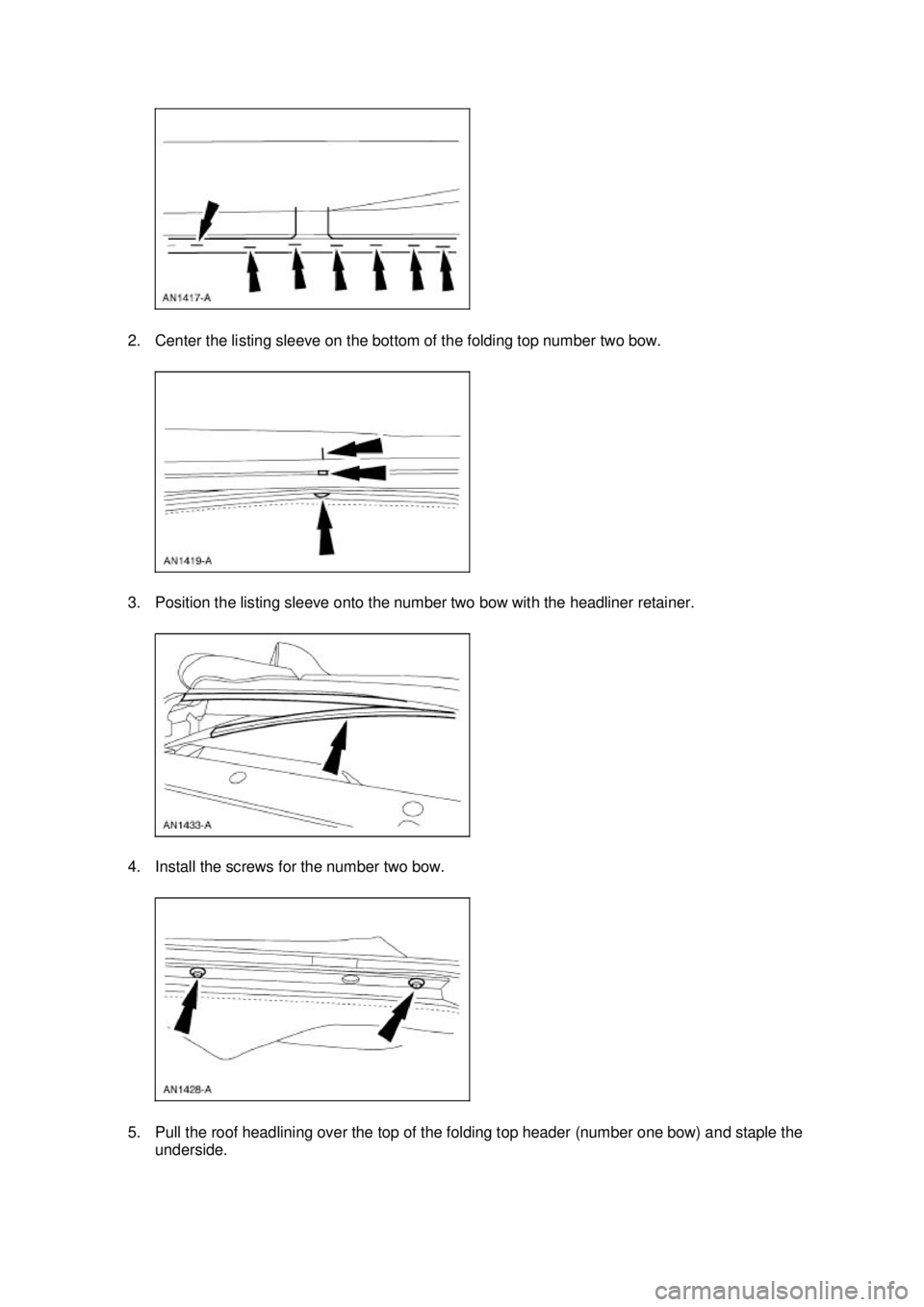

FORD MUSTANG 2003 Workshop Manual 2. Center the listing sleeve on the bottom of the folding top number two bow. 3. Position the listing sleeve onto the number two bow with the headliner retainer. 4. Install the screws for the number

Page 3951 of 4378

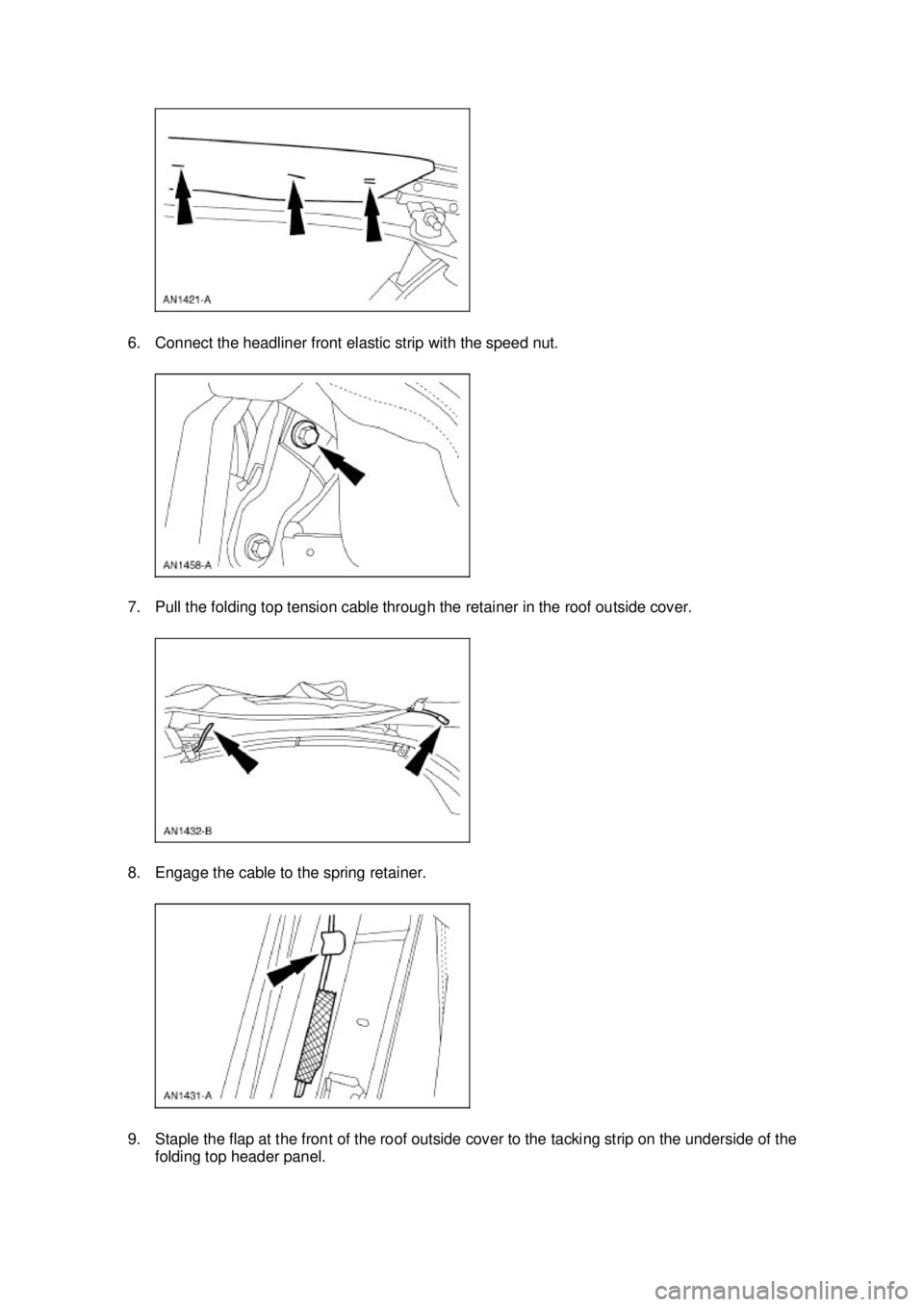

FORD MUSTANG 2003 Workshop Manual 6. Connect the headliner front elastic strip with the speed nut. 7. Pull the folding top tension cable through the retainer in the roof outside cover. 8. Engage the cable to the spring retainer. 9.

Page 3952 of 4378

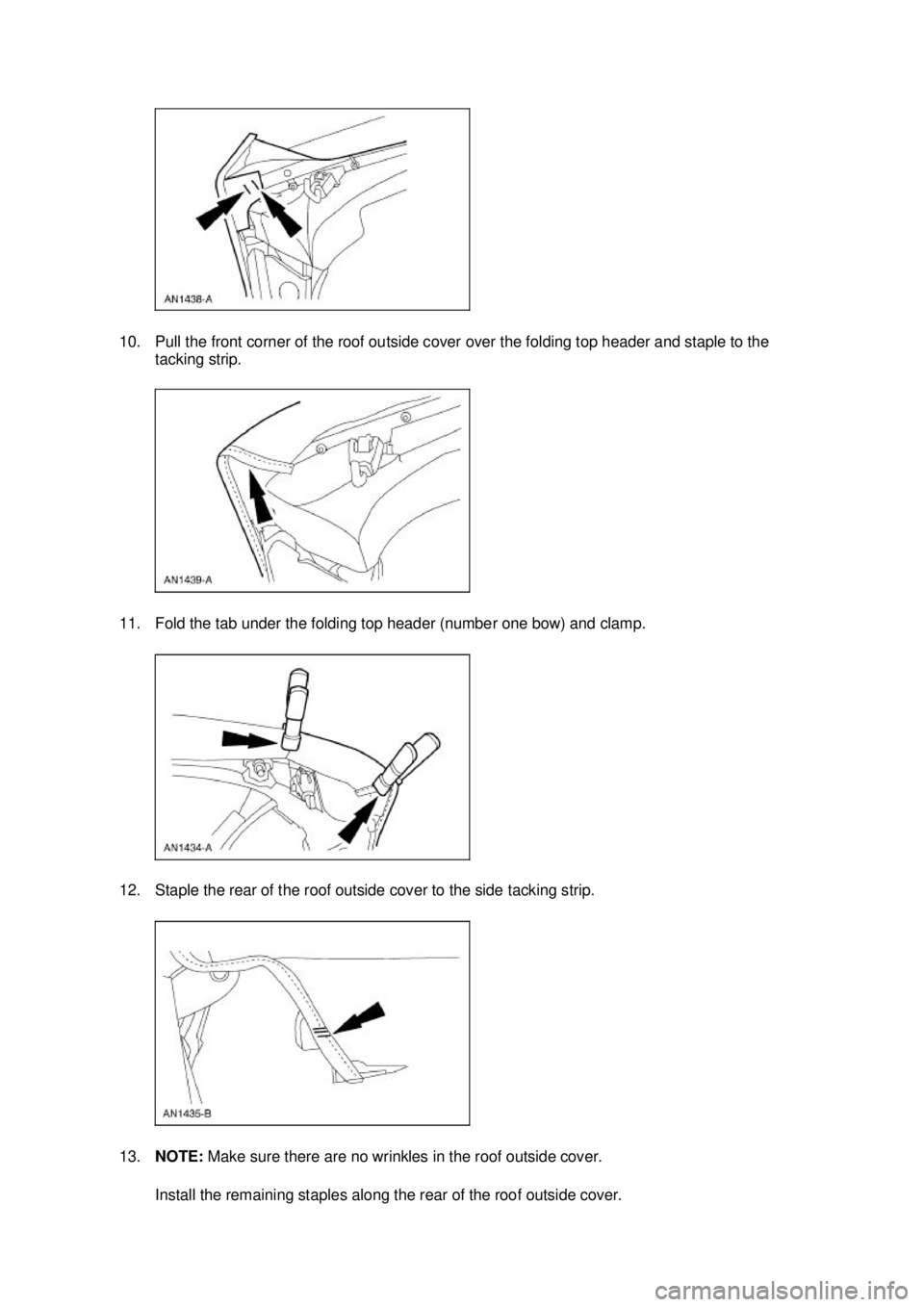

FORD MUSTANG 2003 Workshop Manual 10. Pull the front corner of the roof outside cover over the folding top header and staple to the tacking strip. 11. Fold the tab under the folding top header (number one bow) and clamp. 12. Staple
