Page 2681 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 6 ba 62003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 2682 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Release Cable — Clutch Removal CAUTION: Whenever the clutch release lever cable (7K553) is disconnected for any reason, such as transmission removal, clutch pedal compo

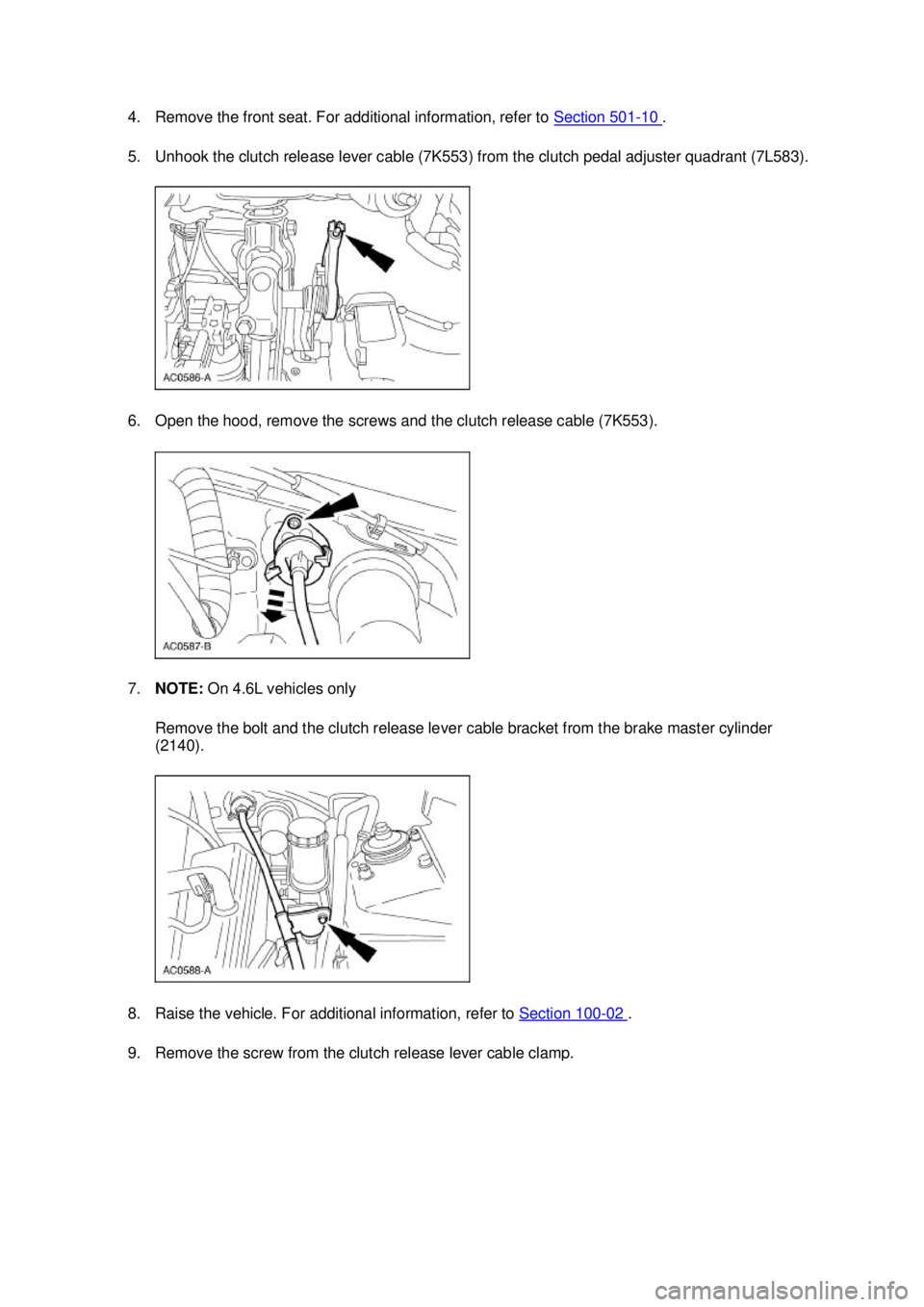

Page 2683 of 4378

FORD MUSTANG 2003 Workshop Manual 4. Remove the front seat. For additional information, refer to Section 501 - 10 . 5. Unhook the clutch release lever cable (7K553) from the clutch pedal adjuster quadrant (7L583). 6. Open the hood

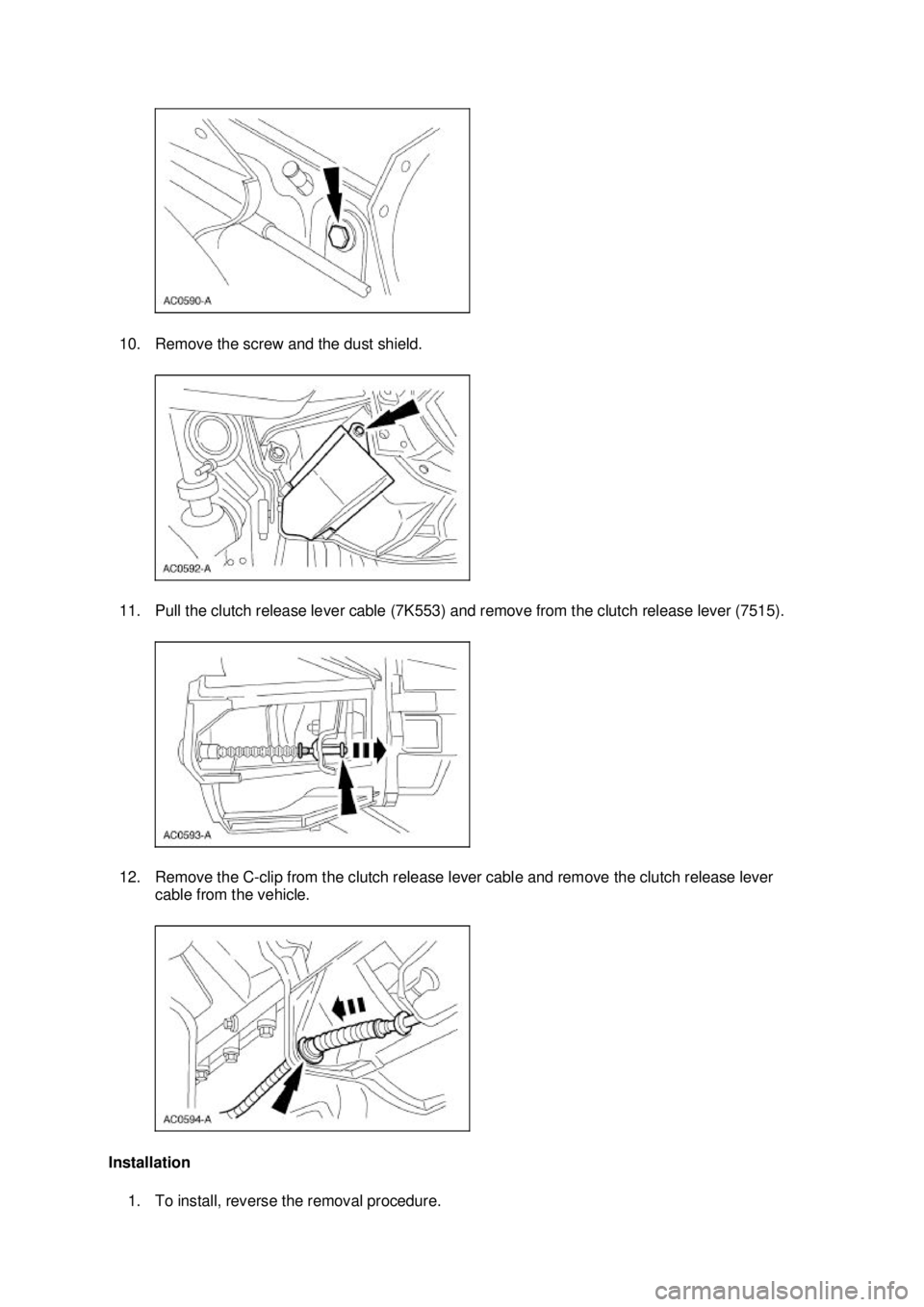

Page 2684 of 4378

FORD MUSTANG 2003 Workshop Manual 10. Remove the screw and the dust shield. 11. Pull the clutch release lever cable (7K553) and remove from the clutch release lever (7515). 12. Remove the C- clip from the clutch release lever cable

Page 2685 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 4 ba 52003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 2686 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 5 ba 52003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 2687 of 4378

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS SECTION 308- 03A: Manual Transaxle/Transmission — T5OD 2003 Mustang Workshop Manual General Specifications Item Specification Lubricants and Sealants Multi- Purpose Grease D0AZ

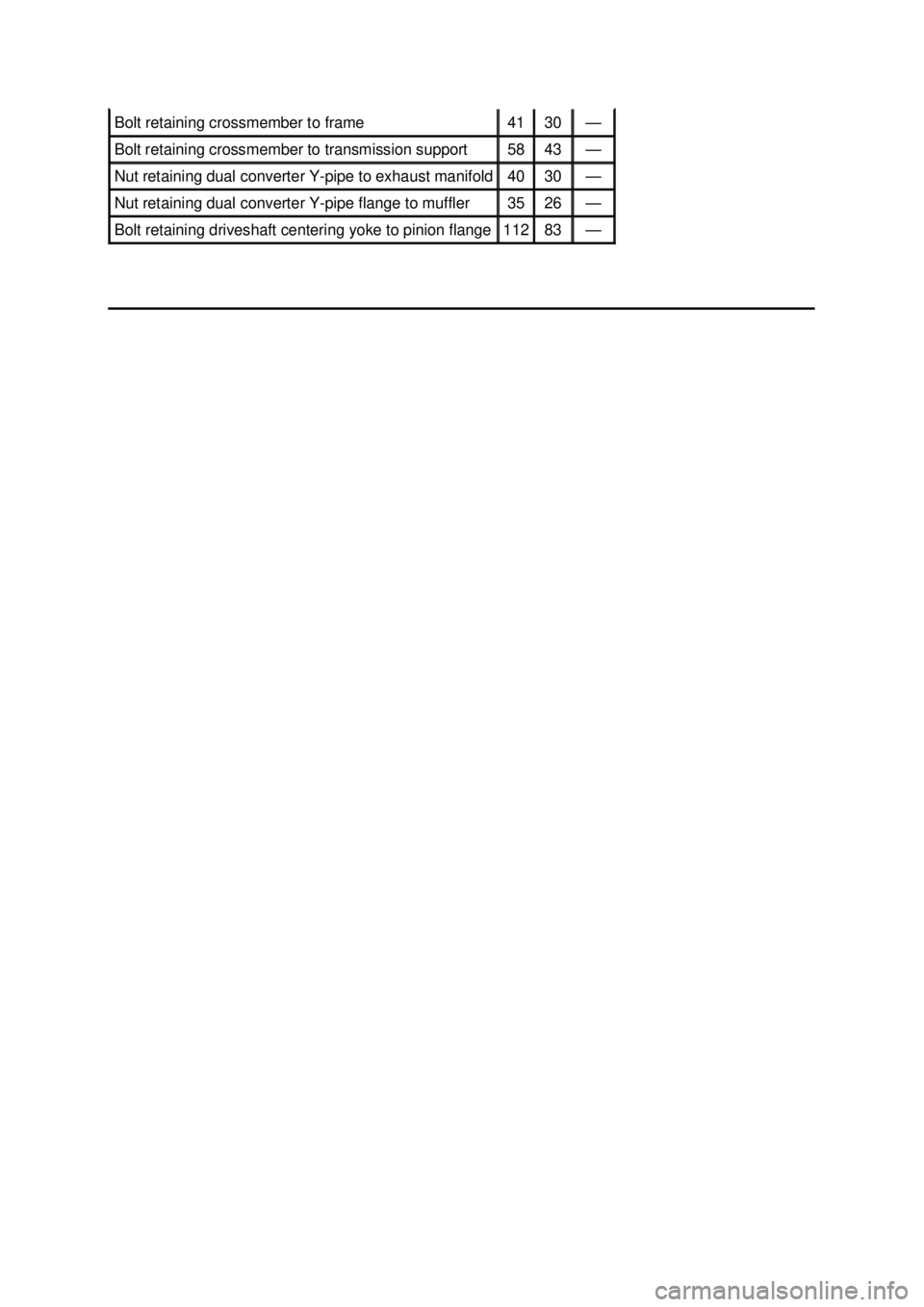

Page 2688 of 4378

FORD MUSTANG 2003 Workshop Manual Bolt retaining crossmember to frame 41 30 — Bolt retaining crossmember to transmission support 58 43 — Nut retaining dual converter Y- pipe to exhaust manifold 40 30 — Nut retaining dua
