FORD MUSTANG 2003 Workshop Manual PINPOINT TEST D: THE DOOR AJAR CHIME DOES NOT OPERATE
CORRECTLY �z
Is the resistance less than 5 ohms? C8 CHECK FOR CORRECT MODULE OPERATION
�z
Check:
�zfor corrosion
�z for pushed- out pins
�z

Page 3330 of 4378

FORD MUSTANG 2003 Workshop Manual �z
Enter the following diagnostic mode on the diagnostic tool:
GEM PID.
�z Monitor the GEM PID P_DR_SW while opening and closing
the passenger door.
�z Do the GEM PID P_DR_SW values indicate CLOSE

Page 3331 of 4378

FORD MUSTANG 2003 Workshop Manual �z

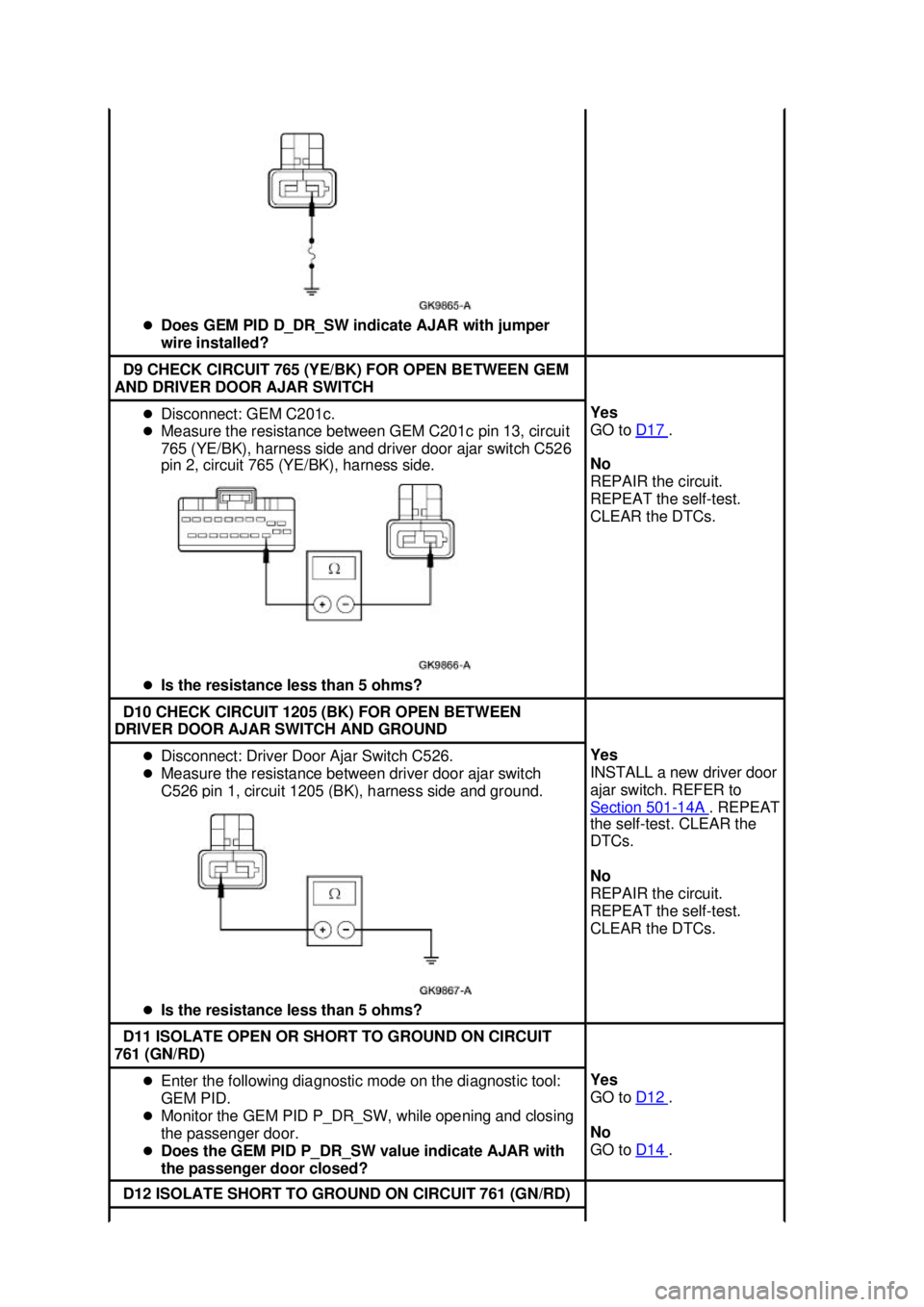

Does GEM PID D_DR_SW indicate AJAR with jumper
wire installed? D9 CHECK CIRCUIT 765 (YE/BK) FOR OPEN BETWEEN GEM
AND DRIVER DOOR AJAR SWITCH �z
Disconnect: GEM C201c.
�z Measure the resistance

Page 3332 of 4378

FORD MUSTANG 2003 Workshop Manual �z
Disconnect: Passenger Door Ajar Switch C602.
�z Enter the following diagnostic mode on the diagnostic tool:
GEM PID.
�z Monitor the GEM PID P_DR_SW.
�z Does GEM PID P_DR_SW read CLOSED? Yes
I

Page 3333 of 4378

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST E: THE HEADLAMP ON REMINDER CHIME DOES
NOT OPERATE CORRECTLY �z
Is the resistance less than 5 ohms? D16 CHECK CIRCUIT 1205 (BK) FOR OPEN BETWEEN
PASSENGER DOOR AJAR SWITCH AND GROUND

Page 3334 of 4378

FORD MUSTANG 2003 Workshop Manual E2 CHECK IGNITION STATES
�z
Connect the diagnostic tool.
�z Enter the following diagnostic mode on the diagnostic tool:
GEM PID.
�z Monitor the GEM PIDS IGN_KEY, IGN_A, IGN_S, and
IGN_R while cyc

E2 CHECK IGNITION STATES
z
Connect the diagnostic tool.
z Enter the following diagnostic mode on the diagnostic tool:
GEM PID.
z Monitor the GEM PIDS IGN_KEY, IGN_A, IGN_S, and
IGN_R while cycling the ignition switch through the OFF,
ACC, RUN, START and key out positions.
z Do the PID values agree with the ignition switch
states? Yes
GO to
E3 .
No
Go To Pinpoint Test B .
E3 CHECK GEM INTERNAL TONE OPERATION
z
Enter the following diagnostic mode on the diagnostic tool:
GEM Active Command.
z Trigger the GEM active command CHIME ON and OFF.
z Does the chime operate correctly? Yes
GO to
E4 .
No
GO to E9 .
E4 CHECK GEM INPUT FROM DOOR AJAR CIRCUIT
z
Enter the following diagnostic mode on the diagnostic tool:
GEM PID.
z Monitor the GEM PID D_DR_SW while opening and closing
the driver door.
z Do the GEM PID D_DR_SW values indicate CLOSED
and AJAR correctly? Yes
GO to
E5 .
No
GO to Pinpoint Test D .
E5 MONITOR EXTERIOR LAMP INPUT FOR CORRECT
STATE z
Key in OFF position.
z Enter the following diagnostic mode on the diagnostic tool:
GEM PID.
z Monitor the GEM PID PARK_SW, while triggering the
headlamp switch ON and OFF.
z Do the GEM PID PARK_SW values indicate ON and
OFF correctly? Yes
GO to
E9 .
No
GO to E6 .
E6 CHECK EXTERIOR LAMP INPUT CIRCUIT FOR SHORT
TO POWER — GEM PID PARK_SW z
Key in OFF position.
z Enter the following diagnostic mode on the diagnostic tool:
GEM PID.
z Monitor the GEM PID PARK_SW, while opening and
closing the driver door.
z Does the GEM PID PARK_SW value always indicate
ON? Yes
GO to
E8 .
No
GO to E7 .
E7 CHECK CIRCUIT 14 (BN) FOR OPEN
z
Key in OFF position.
z Disconnect: GEM C201c.
z Disconnect: Headlamp Switch C205.
z Measure the resistance between GEM C201c pin 7, circuit
14 (BN), harness side and headlamp switch C205 pin R,
circuit 14 (BN), harness side. Yes
GO to
E9 .
No
REPAIR the circuit. REPEAT
the self- test. CLEAR the
DTCs. Klj . 16 ba
202003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3335 of 4378

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST F: THE SAFETY BELT WARNING CHIME DOES NOT
OPERATE CORRECTLY �z
Is the resistance less than 5 ohms? E8 TEST CIRCUIT 14 (BN) FOR SHORT TO BATTERY
�z
Key in OFF position.
�z Disconnect

Page 3336 of 4378

FORD MUSTANG 2003 Workshop Manual �z
Monitor the GEM PIDS IGN_KEY, IGN_A, IGN_S, and
IGN_R while cycling the ignition switch through the OFF,
ACC, RUN, START and key out positions.
�z Do the PID values agree with the ignition switc

z
Monitor the GEM PIDS IGN_KEY, IGN_A, IGN_S, and
IGN_R while cycling the ignition switch through the OFF,
ACC, RUN, START and key out positions.
z Do the PID values agree with the ignition switch
states? F2 DETERMINE IF THE GEM IS RECEIVING CORRECT
SAFETY BELT SWITCH STATUS z
Key in ON position.
z Enter the following diagnostic mode on the diagnostic tool:
GEM PID.
z Monitor the GEM PID D_SBELT while buckling and
unbuckling the driver safety belt.
z Does the GEM PID D_SBELT read OUT and IN
correctly? Yes
GO to
F3 .
No
GO to F5 .
F3 CHECK THE GEM INTERNAL TONE OPERATION
z
Enter the following diagnostic mode on the diagnostic tool:
GEM Active Command.
z Trigger the GEM active command CHIME ON and OFF.
z Does the chime operate correctly? Yes
GO to
F4 .
No
GO to F11 .
F4 CHECK THE SAFETY BELT WARNING LAMP OPERATION
z
Cycle the ignition switch from OFF to RUN while monitoring
the instrument cluster safety belt indicator lamp.
z Does instrument cluster safety belt indicator lamp
illuminate for approximately three seconds? Yes
GO to
F11 .
No
REFER to Section 413 - 01 .
F5 DETERMINE IF CIRCUIT 85 (BN/LB) IS OPEN OR
SHORTED TO GROUND z
Enter the following diagnostic mode on the diagnostic tool:
GEM PID.
z Monitor the GEM PID D_SBELT, while buckling and
unbuckling the driver safety belt.
z Does the GEM PID D_SBELT value indicate OUT with
the driver safety belt buckled? Yes
GO to
F6 .
No
GO to F8 .
F6 ISOLATE THE SHORT TO GROUND ON CIRCUIT 85
(BN/LB) z
Disconnect: Safety Belt Switch C323.
z Enter the following diagnostic mode on the diagnostic tool:
GEM PID.
z Monitor the GEM PID D_SBELT.
z Does the GEM PID D_SBELT value indicate IN? Yes
INSTALL a new safety belt
switch. REPEAT the self-
test. CLEAR the DTCs.
No
GO to
F7 .
F7 CHECK CIRCUIT 85 (BN/LB) FOR A SHORT TO GROUND
BETWEEN GEM AND SAFETY BELT SWITCH z
Disconnect: GEM C201d.
z Measure the resistance between GEM C201d pin 8, circuit
85 (BN/LB), harness side and ground. Yes
GO to
F11 .
No
REPAIR the circuit. REPEAT
the self- test. CLEAR the
DTCs. Klj . 18 ba
202003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
