Page 2185 of 4378

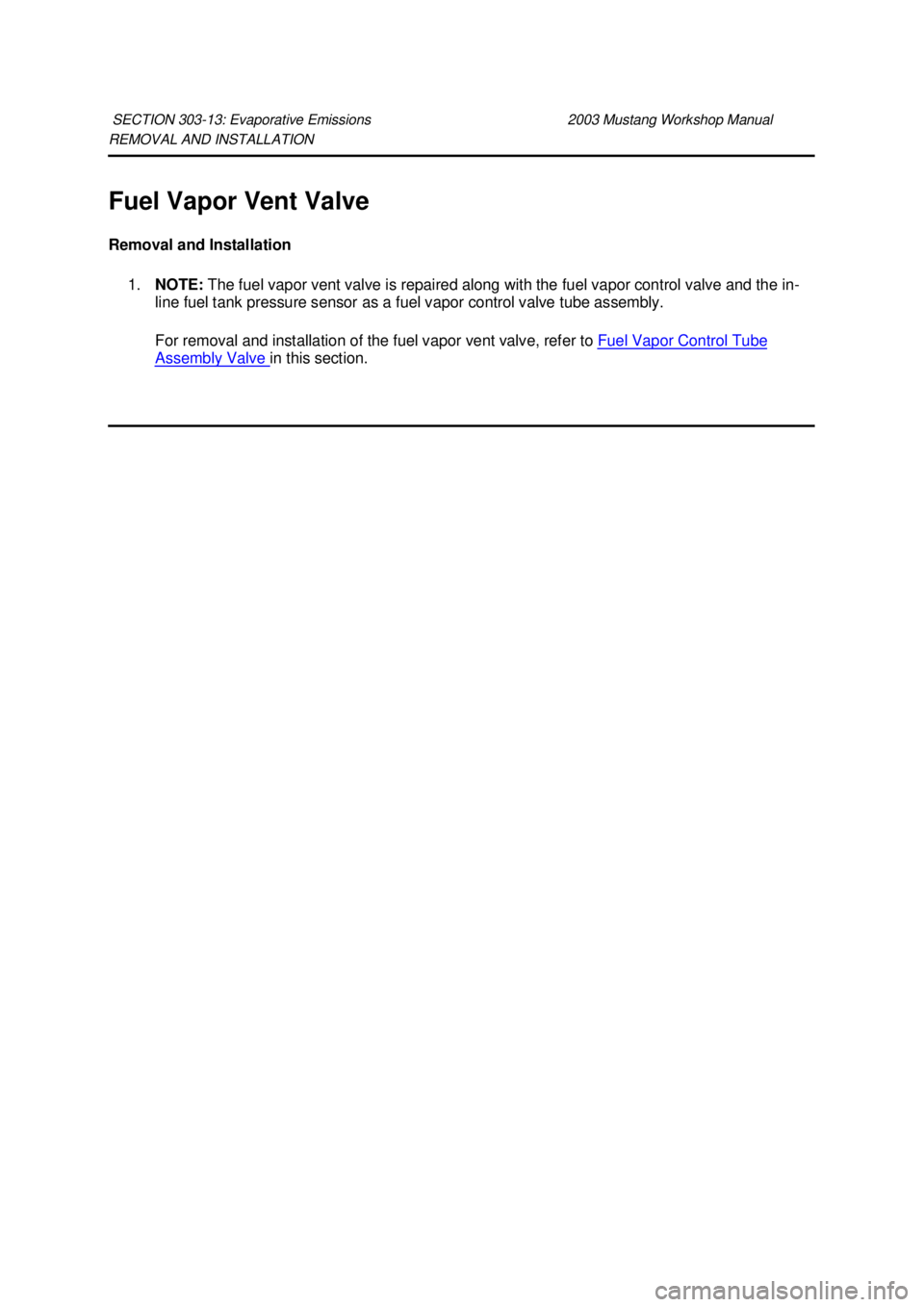

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Fuel Vapor Vent Valve Removal and Installation 1. NOTE: The fuel vapor vent valve is repaired along with the fuel vapor control valve and the in- line fuel tank pressure s

Page 2186 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Fuel Vapor Control Tube Assembly Valve Removal and Installation 1. Remove the fuel tank. For additional information, refer to Section 310 - 01 . 2. Remove the retainers.

Page 2187 of 4378

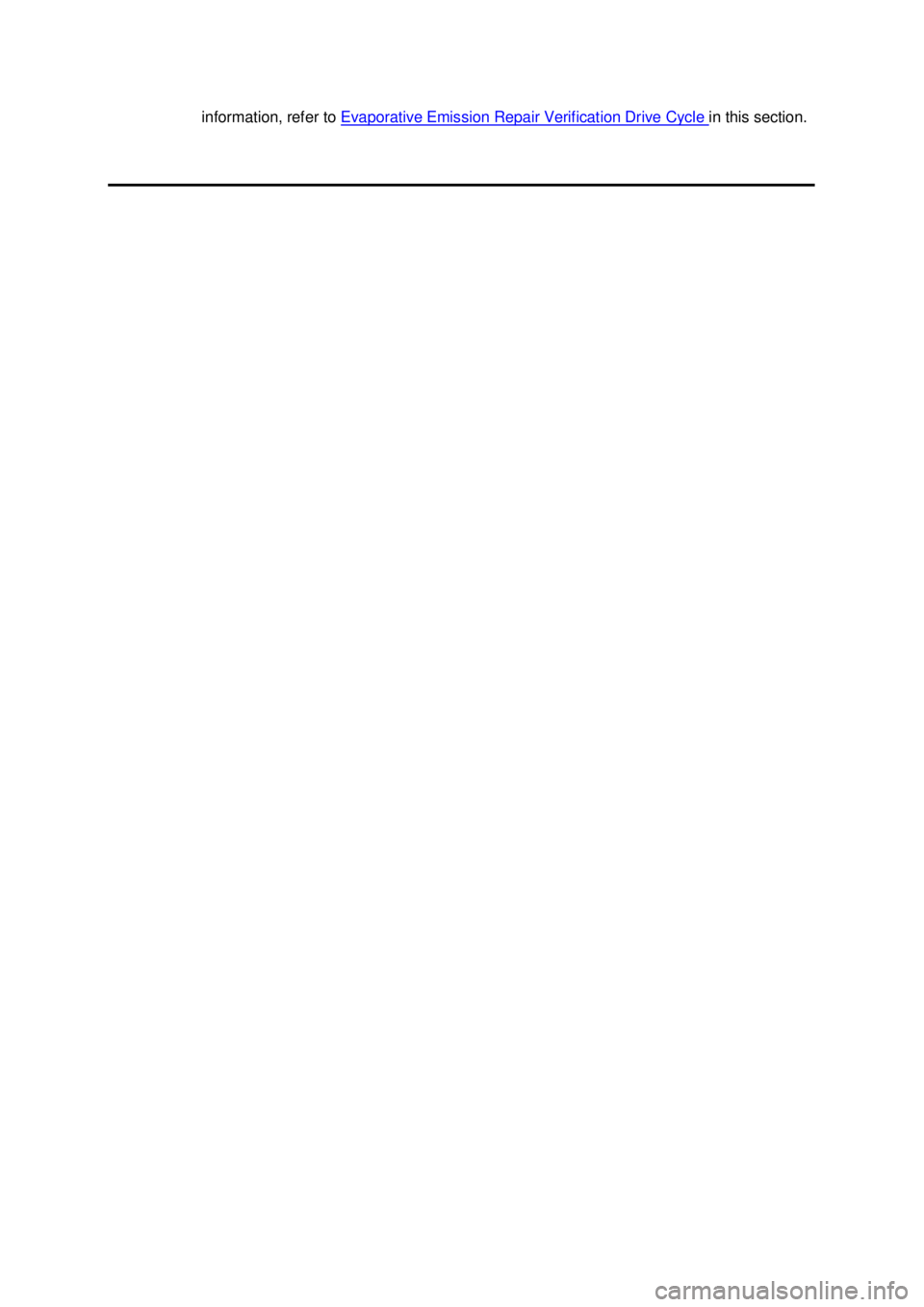

FORD MUSTANG 2003 Workshop Manual information, refer to Evaporative Emission Repair Verification Drive Cycle in this section. Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_44

Page 2188 of 4378

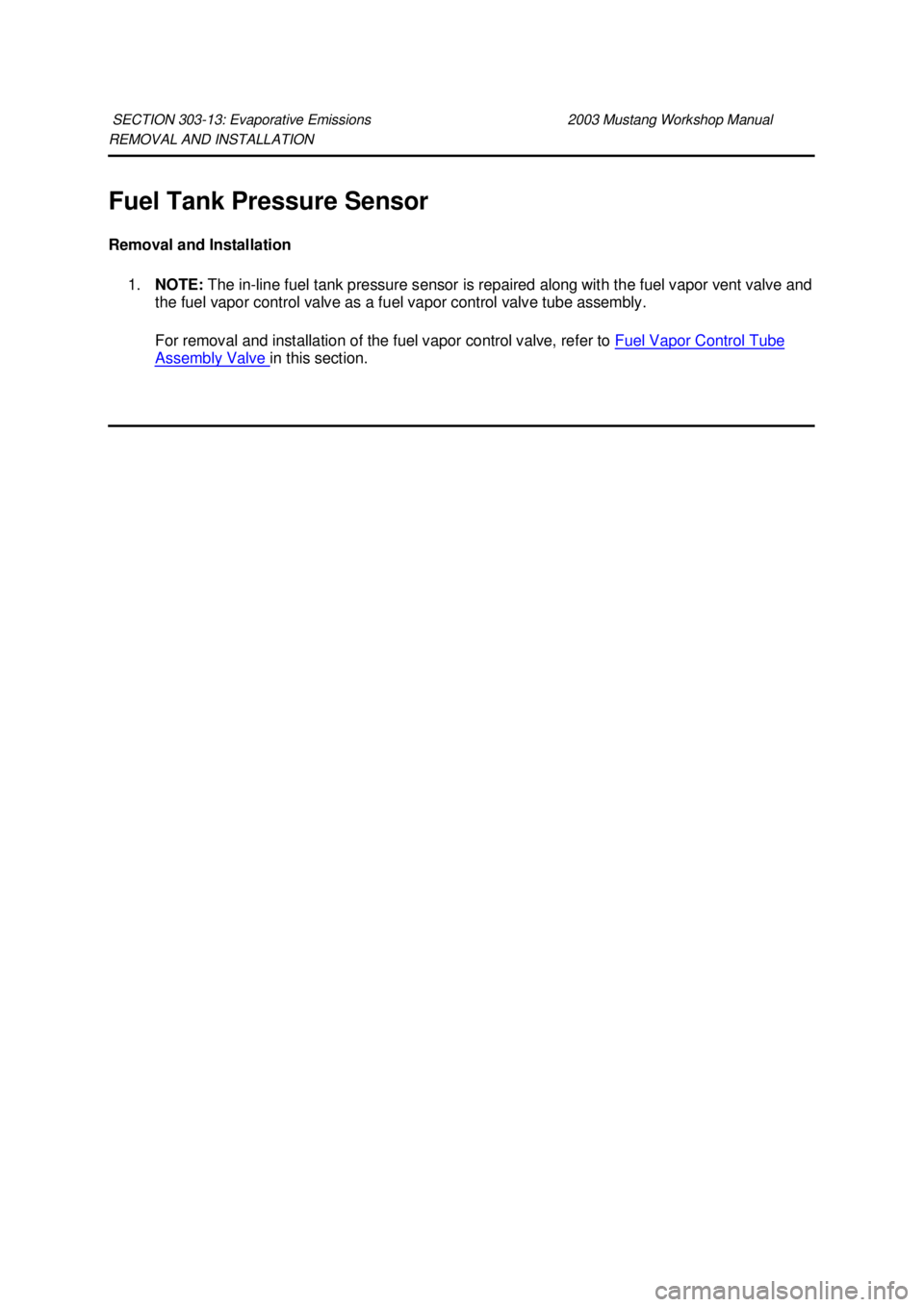

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Fuel Tank Pressure Sensor Removal and Installation 1. NOTE: The in-line fuel tank pressure sensor is repaired along with the fuel vapor vent valve and the fuel vapor cont

Page 2189 of 4378

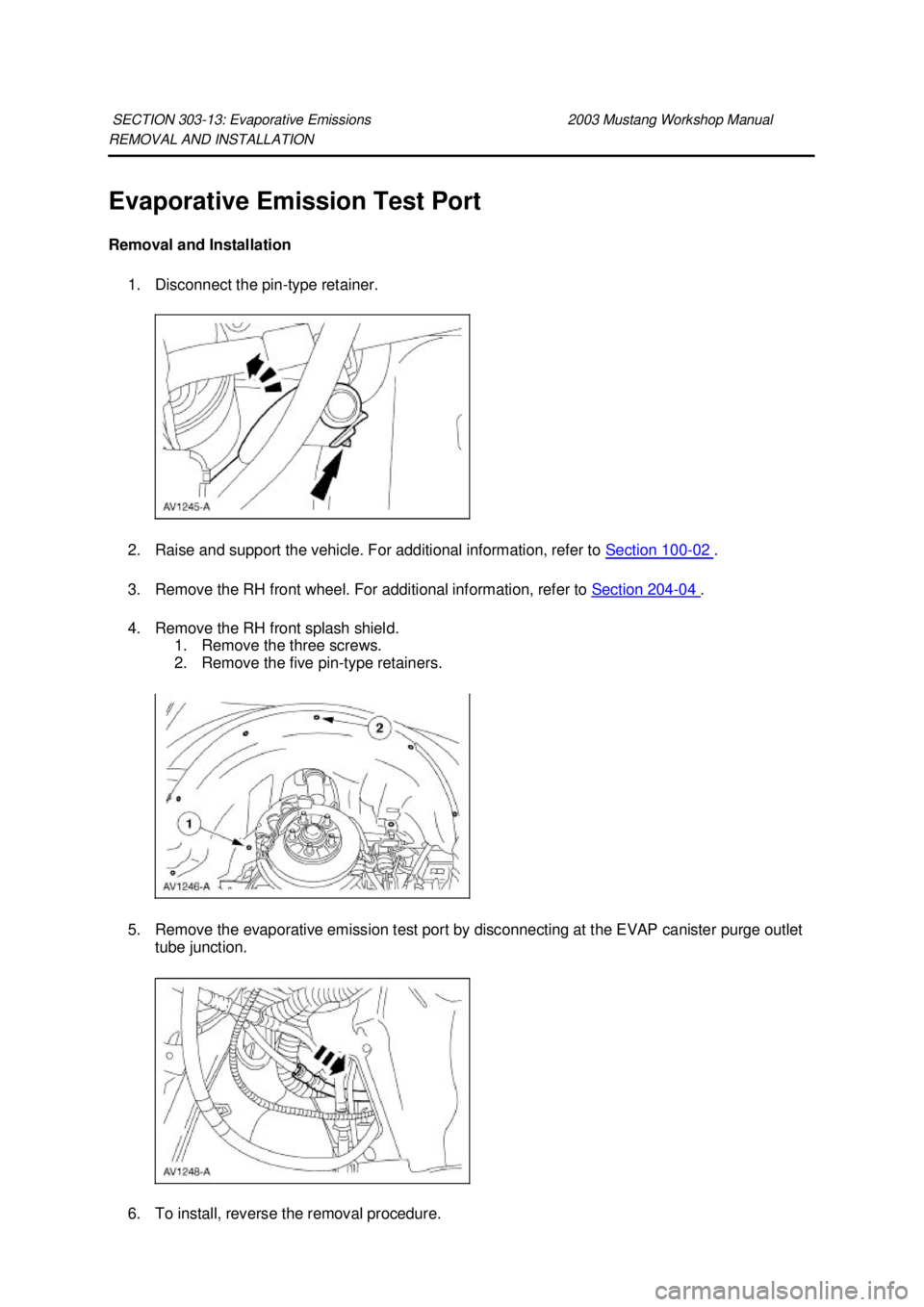

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Evaporative Emission Test Port Removal and Installation 1. Disconnect the pin- type retainer. 2. Raise and support the vehicle. For additional information, refer to Secti

Page 2190 of 4378

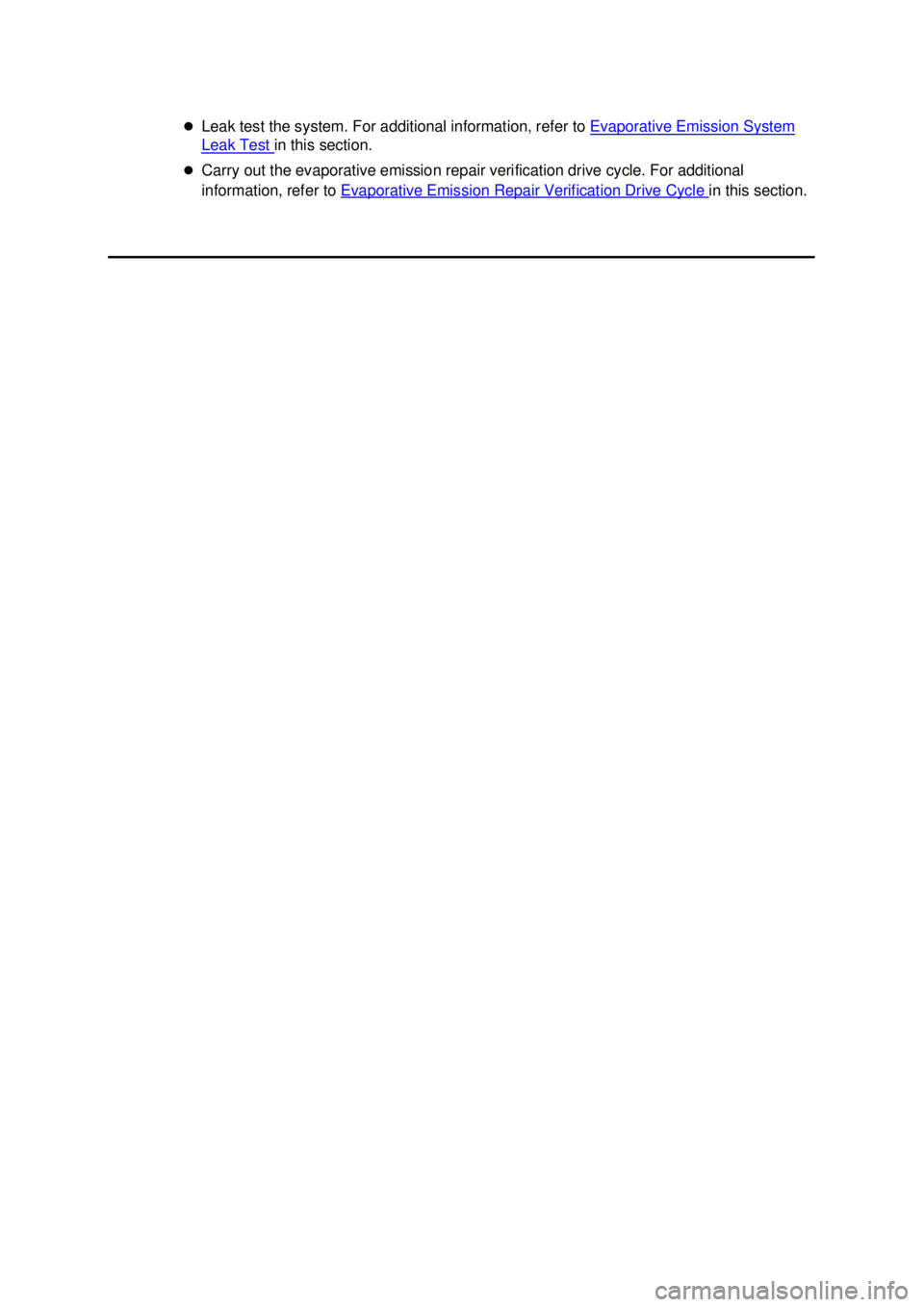

FORD MUSTANG 2003 Workshop Manual �z Leak test the system. For additional information, refer to Evaporative Emission System Leak Test in this section. �z Carry out the evaporative emission repair verification drive cycle. For addit

Page 2191 of 4378

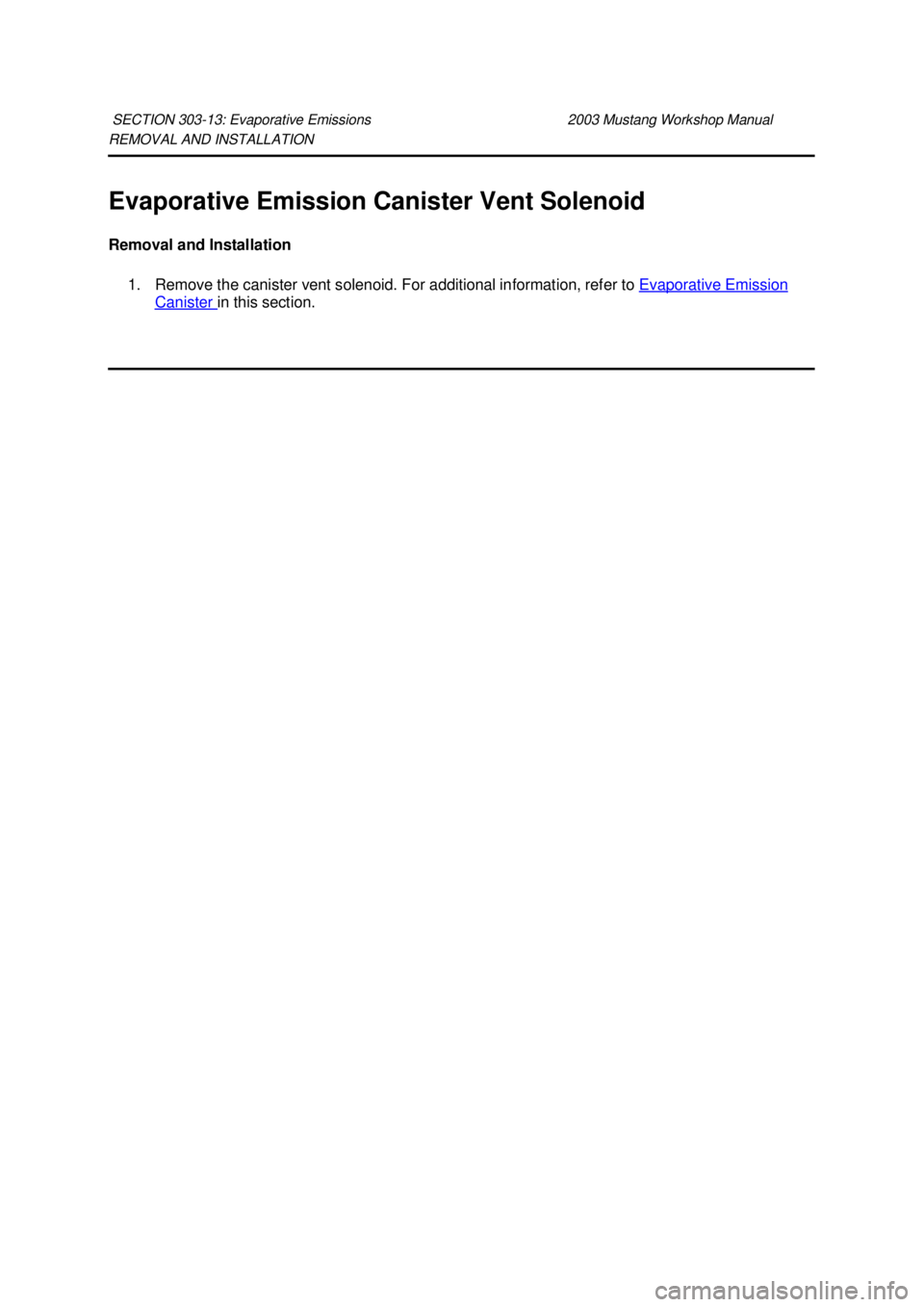

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Evaporative Emission Canister Vent Solenoid Removal and Installation 1. Remove the canister vent solenoid. For additional information, refer to Evaporative Emission Canist

Page 2192 of 4378

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS SECTION 303- 14: Electronic Engine Controls 2003 Mustang Workshop Manual General Specifications Item Specification Lubricants Super premium SAE 5W- 20 Engine Oil XO-5W20-DSP WSS-
