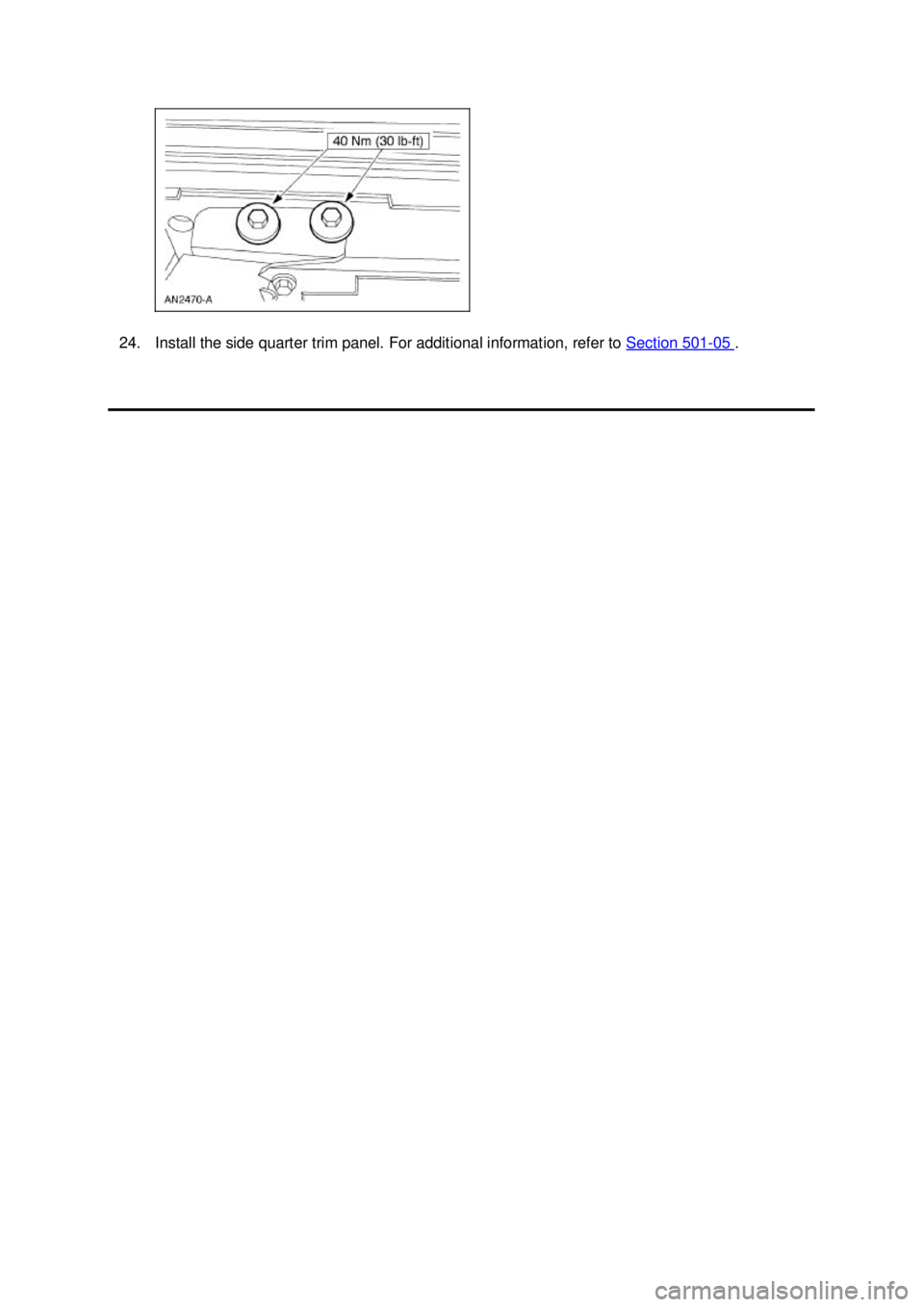

Page 3937 of 4378

FORD MUSTANG 2003 Workshop Manual 24. Install the side quarter trim panel. For additional information, refer to Section 501 - 05 . Klj . 12 ba 122003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/S

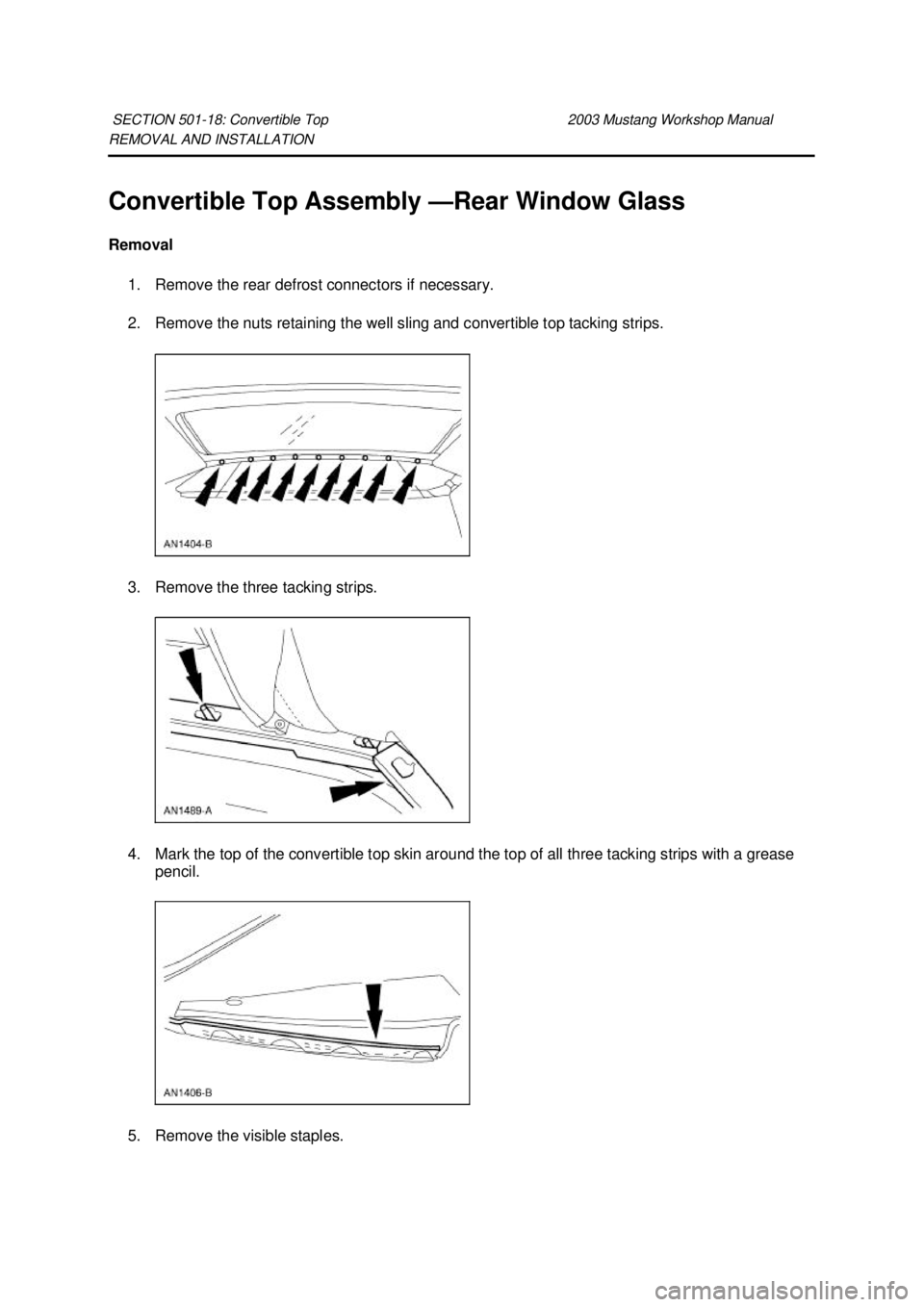

Page 3938 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Convertible Top Assembly — Rear Window Glass Removal 1. Remove the rear defrost connectors if necessary. 2. Remove the nuts retaining the well sling and convertible top

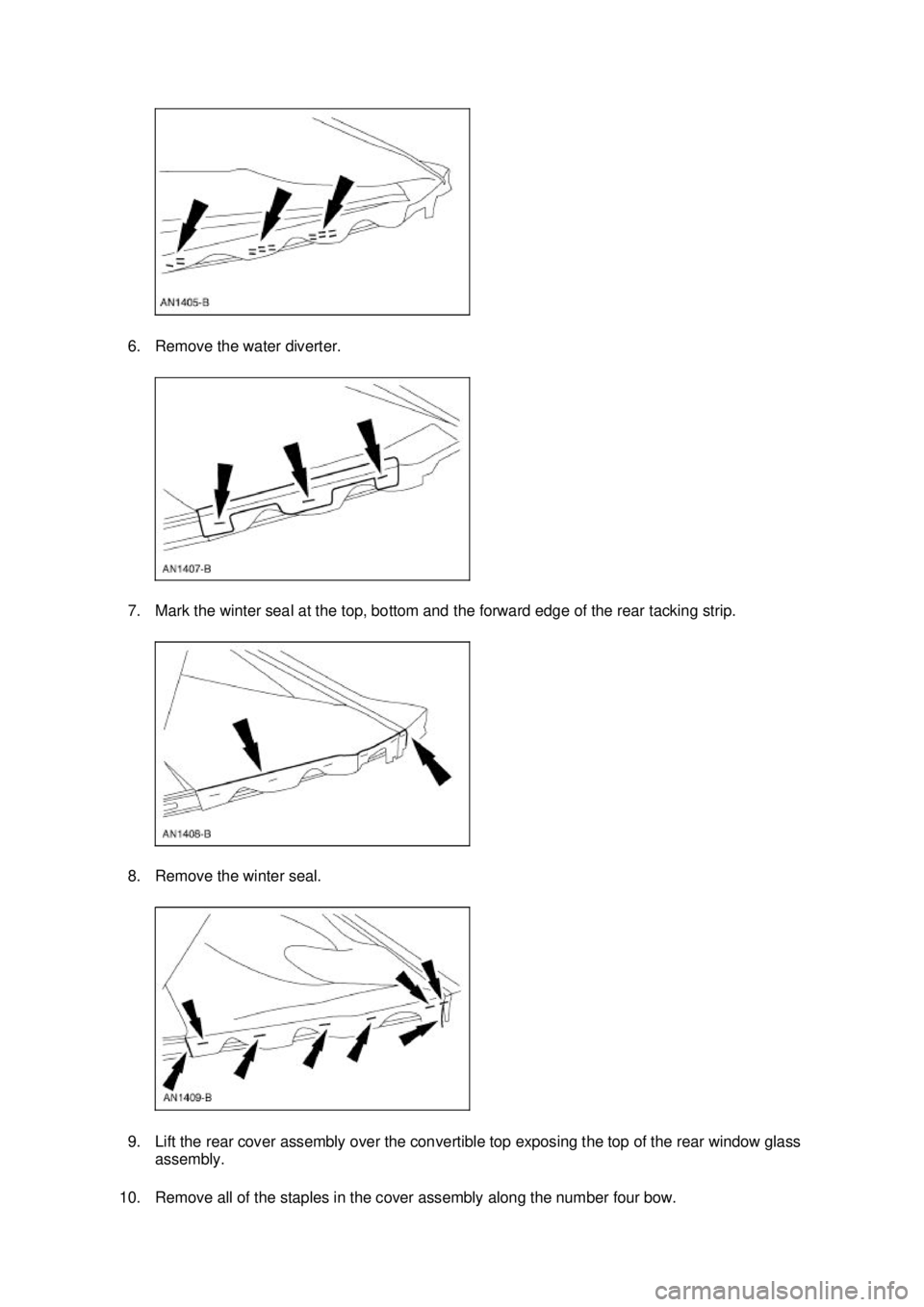

Page 3939 of 4378

FORD MUSTANG 2003 Workshop Manual 6. Remove the water diverter. 7. Mark the winter seal at the top, bottom and the forward edge of the rear tacking strip. 8. Remove the winter seal. 9. Lift the rear cover assembly over the converti

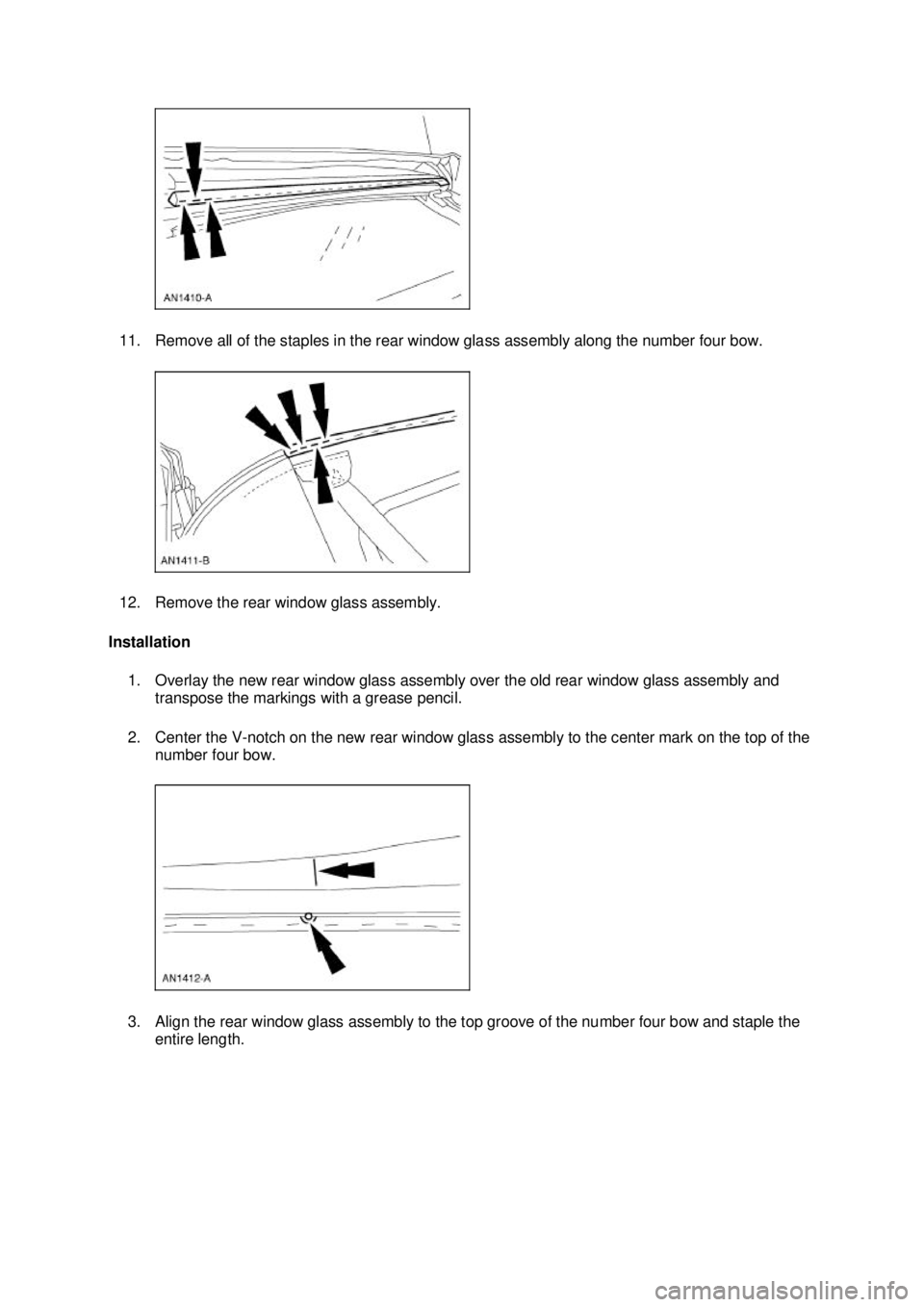

Page 3940 of 4378

FORD MUSTANG 2003 Workshop Manual 11. Remove all of the staples in the rear window glass assembly along the number four bow. 12. Remove the rear window glass assembly. Installation 1. Overlay the new rear window glass assembly over

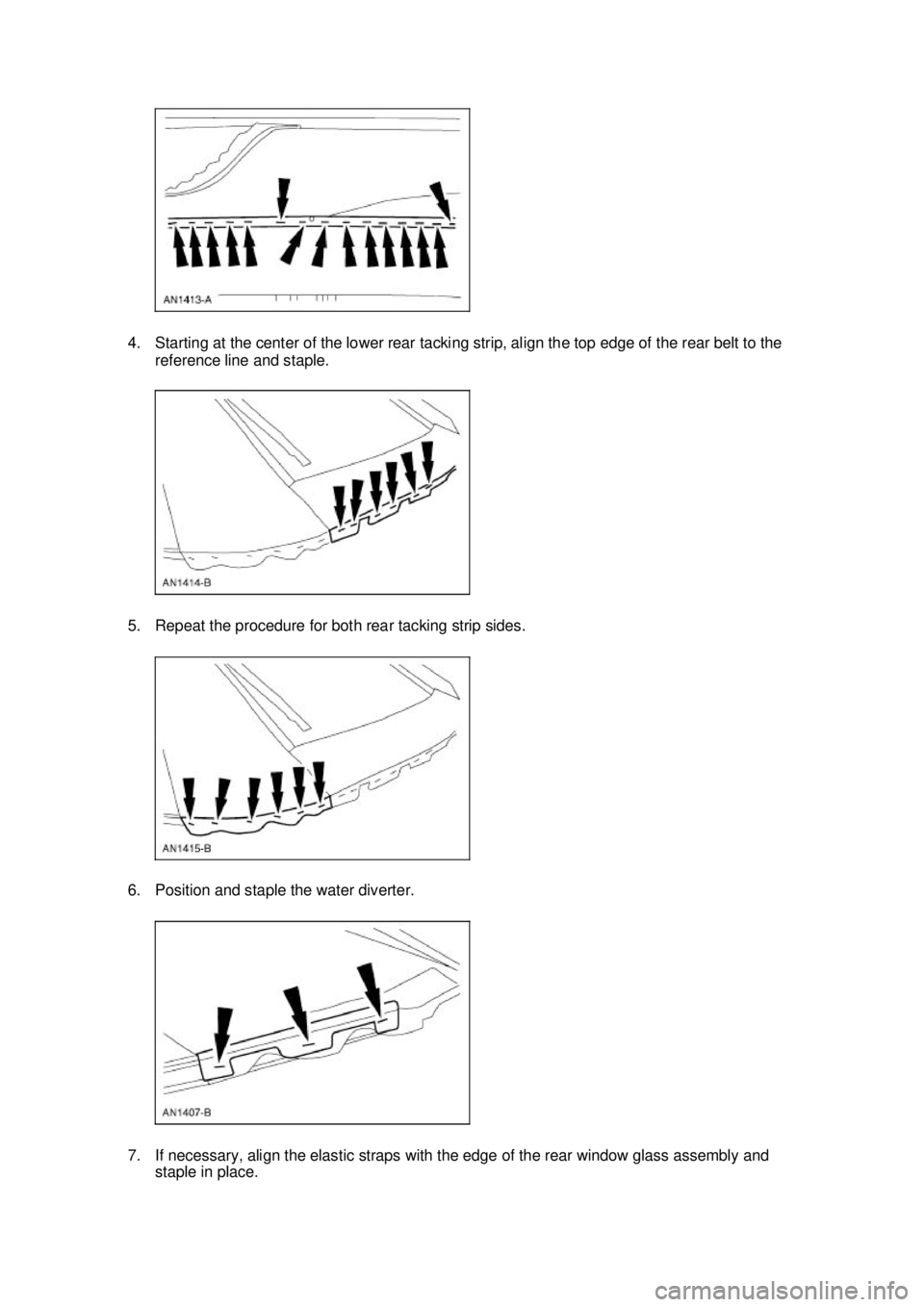

Page 3941 of 4378

FORD MUSTANG 2003 Workshop Manual 4. Starting at the center of the lower rear tacking strip, align the top edge of the rear belt to the reference line and staple. 5. Repeat the procedure for both rear tacking strip sides. 6. Positi

Page 3942 of 4378

FORD MUSTANG 2003 Workshop Manual 8. Align the center line mark on the cover assembly to the V- notch on the rear window glass assembly and staple the entire length. 9. Align the top edge of the quarter tacking strip to the referenc

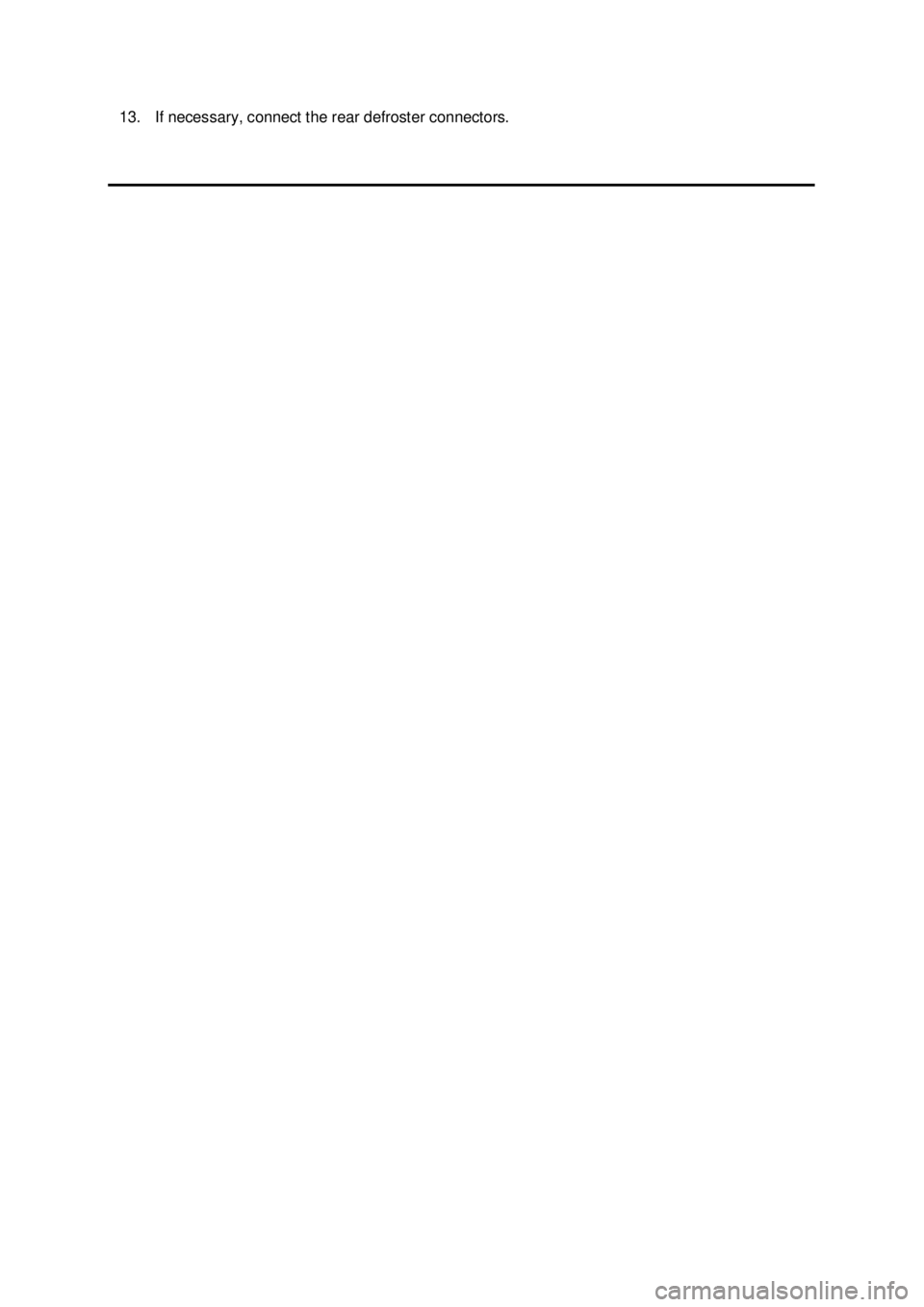

Page 3943 of 4378

FORD MUSTANG 2003 Workshop Manual 13. If necessary, connect the rear defroster connectors. Klj . 6 ba 62003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

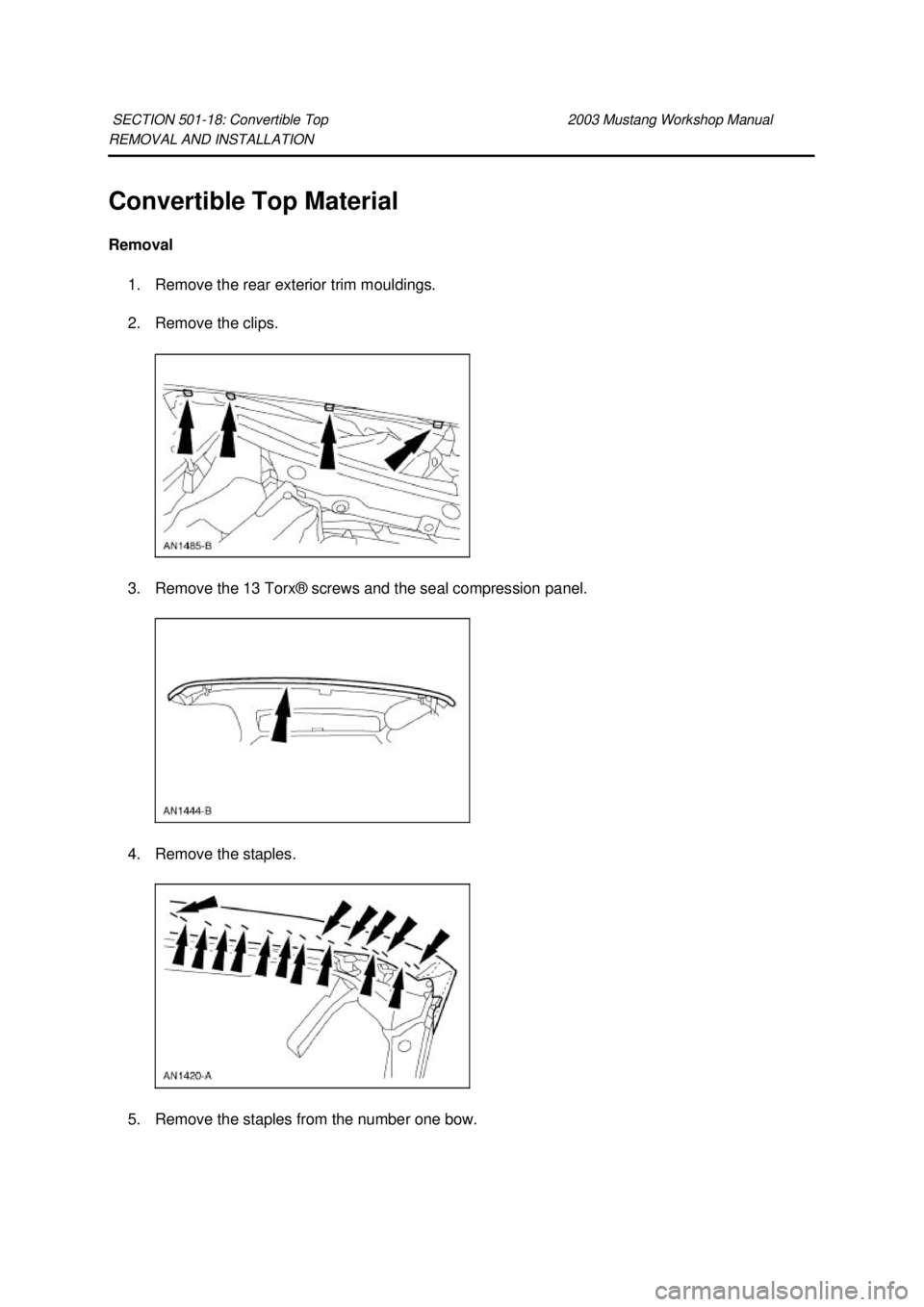

Page 3944 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Convertible Top Material Removal 1. Remove the rear exterior trim mouldings. 2. Remove the clips. 3. Remove the 13 Torx® screws and the seal compression panel. 4. Remov
