Page 1793 of 4378

FORD MUSTANG 2003 Workshop Manual 3. Using the data recorded earlier and the Bearing Select Fit Chart, Standard Bearings Chart determine the required bearing grade for each main bearing. �zRead the first letter of the engine block m

Page 1794 of 4378

FORD MUSTANG 2003 Workshop Manual NOTE: Before assembling the cylinder block, all sealing surfaces must be free from chips, dirt, paint and foreign material. Also, make sure the coolant and oil passages are clear. 5. Install the up

Page 1795 of 4378

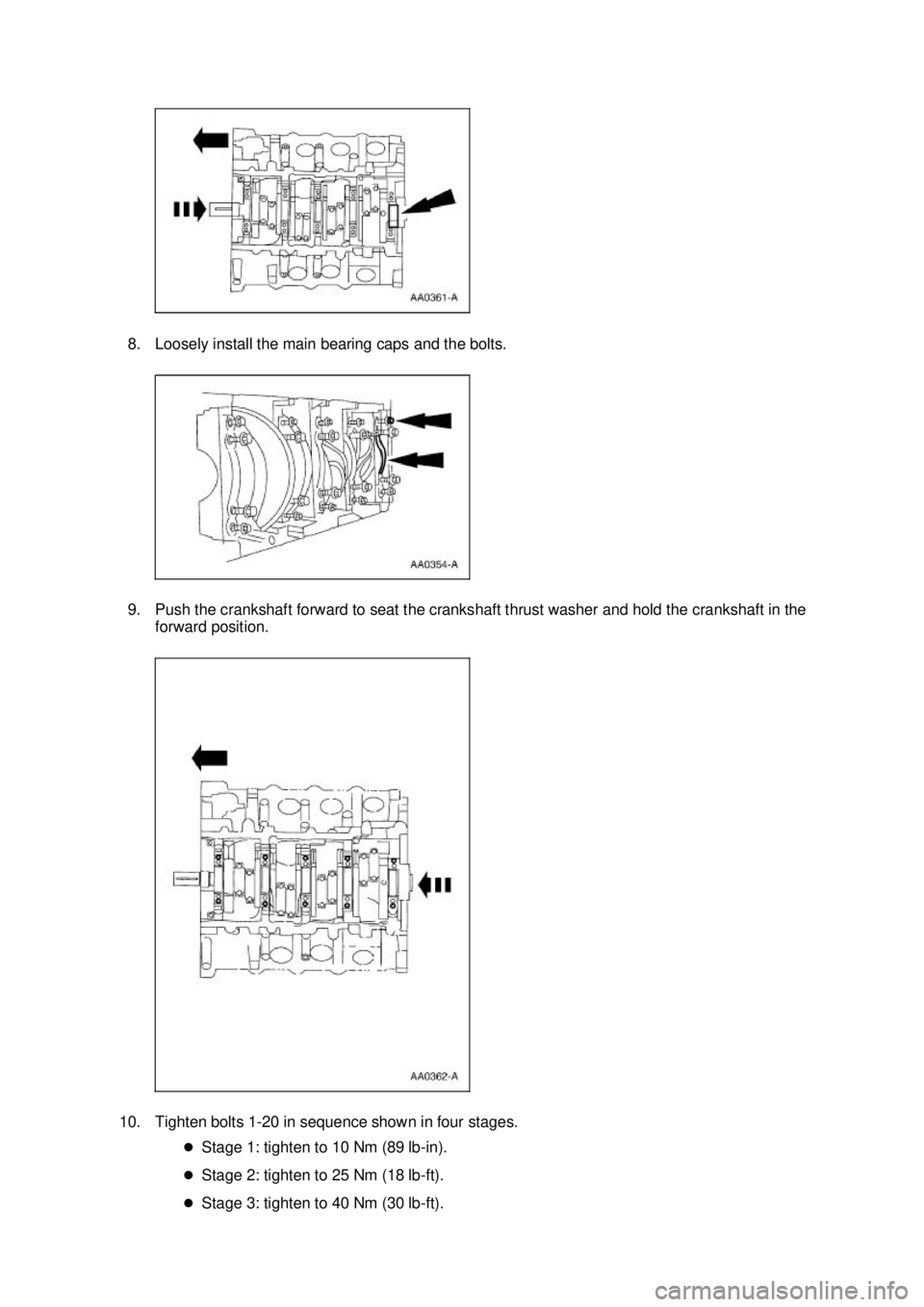

FORD MUSTANG 2003 Workshop Manual 8. Loosely install the main bearing caps and the bolts. 9. Push the crankshaft forward to seat the crankshaft thrust washer and hold the crankshaft in the forward position. 10. Tighten bolts 1- 20

Page 1796 of 4378

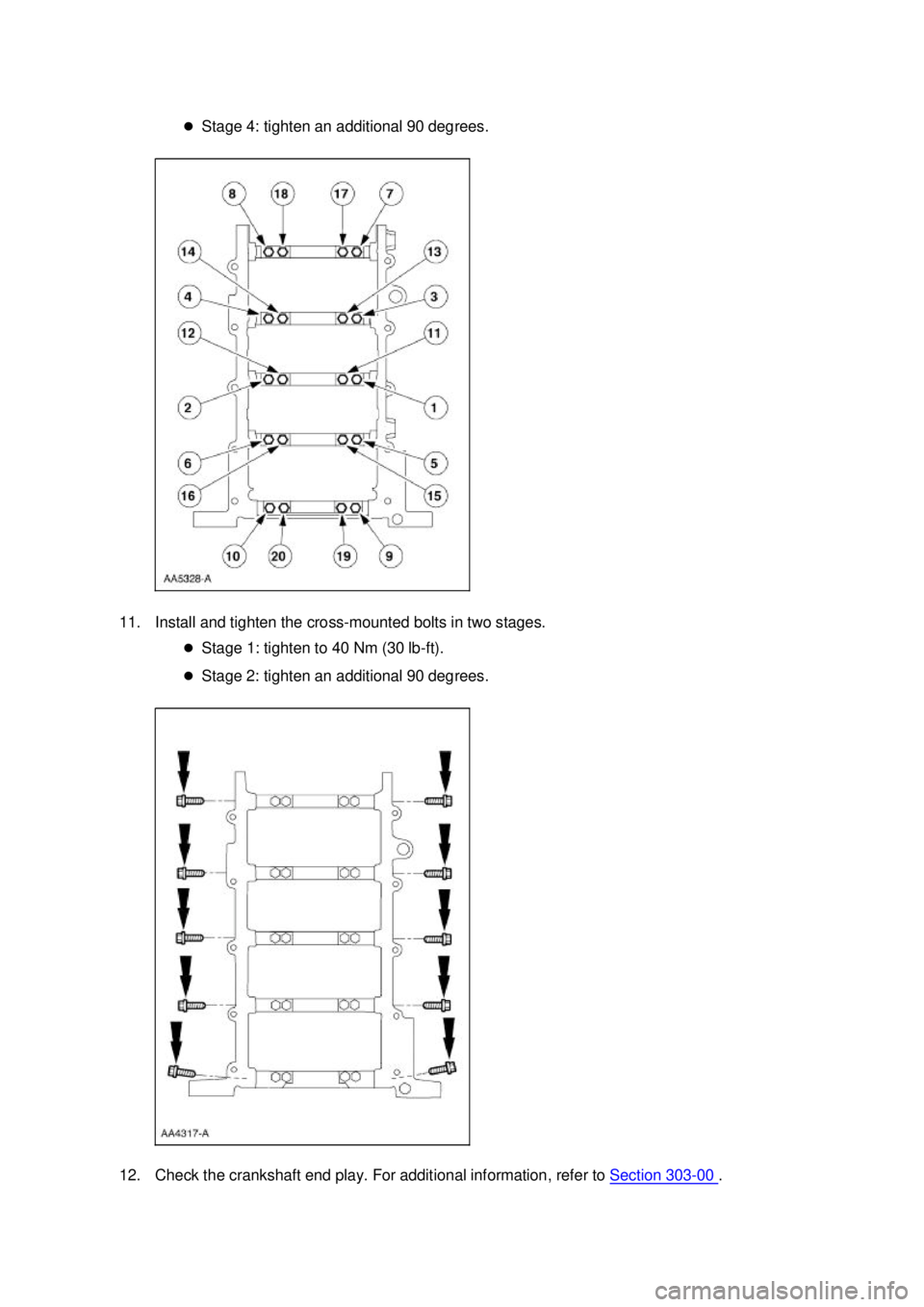

FORD MUSTANG 2003 Workshop Manual �z Stage 4: tighten an additional 90 degrees. 11. Install and tighten the cross- mounted bolts in two stages. �z Stage 1: tighten to 40 Nm (30 lb- ft). �z Stage 2: tighten an additional 90 degrees.

Page 1797 of 4378

FORD MUSTANG 2003 Workshop Manual 13. CAUTION: Do not scratch the cylinder walls or crankshaft journals with the connecting rod. NOTE: Make sure that the piston arrow is facing forward. NOTE: Lubricate the piston rings, cylinder

Page 1798 of 4378

FORD MUSTANG 2003 Workshop Manual 16. Check the connecting rod bearing clearance. For additional information, refer to Section 303 - 00 . 17. Install the LH engine mount. 18. Install the RH engine mount. 19. Install the nuts and

Page 1799 of 4378

FORD MUSTANG 2003 Workshop Manual 21. Position the oil pump and tighten the bolts in the sequence shown. 22. NOTE: Install a new O- ring if necessary. Install the oil pump screen cover and tube. 23. Install the cylinder head gaske

Page 1800 of 4378

FORD MUSTANG 2003 Workshop Manual procedures. Make sure the camshaft timing sprockets are positioned correctly. 25. NOTE: The LH is shown; the RH is similar. NOTE: Lubricate the bolt heads and threads. Use clean engine oil. Inst
