39. Rotate the RH camshaft sprocket until the timing mark is approximately at the 11 o'clock
position. Rotate the LH camshaft sprocket until the timing mark is approximately at the 12
o'clock position.
40. CAUTION: Unless otherwise instructed, do not rotate either the crankshaft or the
camshafts, when the timing chains are removed and the cylinder heads are installed.
Severe piston and valve damage will occur.
CAUTION: When instructed to do so, rotate the crankshaft counterclockwise only.
Do not rotate past the position shown or severe piston and valve damage can occur.
NOTE: The number one cylinder is at top dead center (TDC) when the stud on the engine block
fits into the slot in the handle of the special tool.
Using the special tool, position the crankshaft so the number one cylinder is at TDC. Klj . 17 ba
362003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1322 of 4378

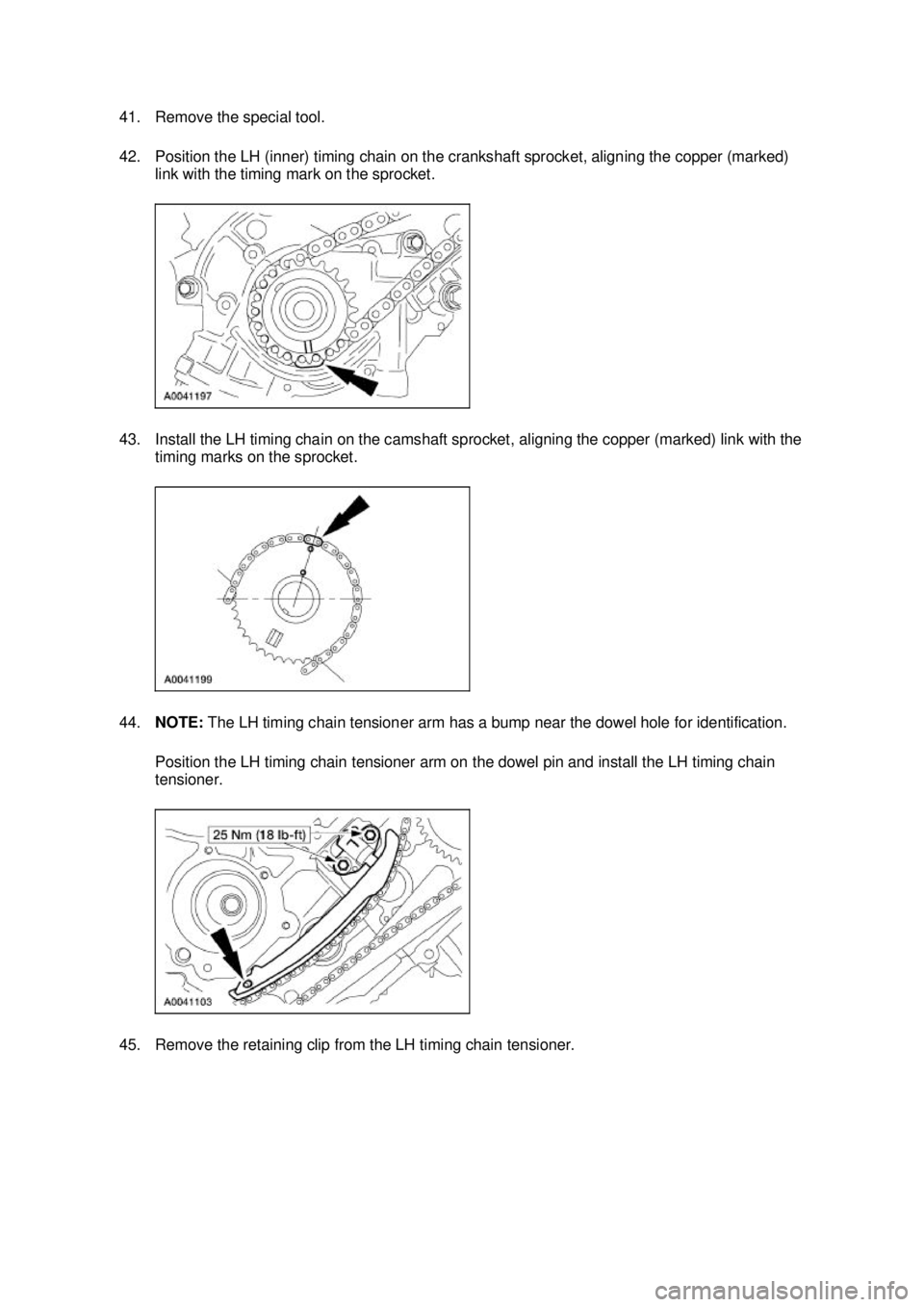

41. Remove the special tool.
42. Position the LH (inner) timing chain on the crankshaft sprocket, aligning the copper (marked)
link with the timing mark on the sprocket.
43. Install the LH timing chain on the camshaft sprocket, aligning the copper (marked) link with the timing marks on the sprocket.
44. NOTE: The LH timing chain tensioner arm has a bump near the dowel hole for identification.
Position the LH timing chain tensioner arm on the dowel pin and install the LH timing chain
tensioner.
45. Remove the retaining clip from the LH timing chain tensioner. Klj . 18 ba
362003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1323 of 4378

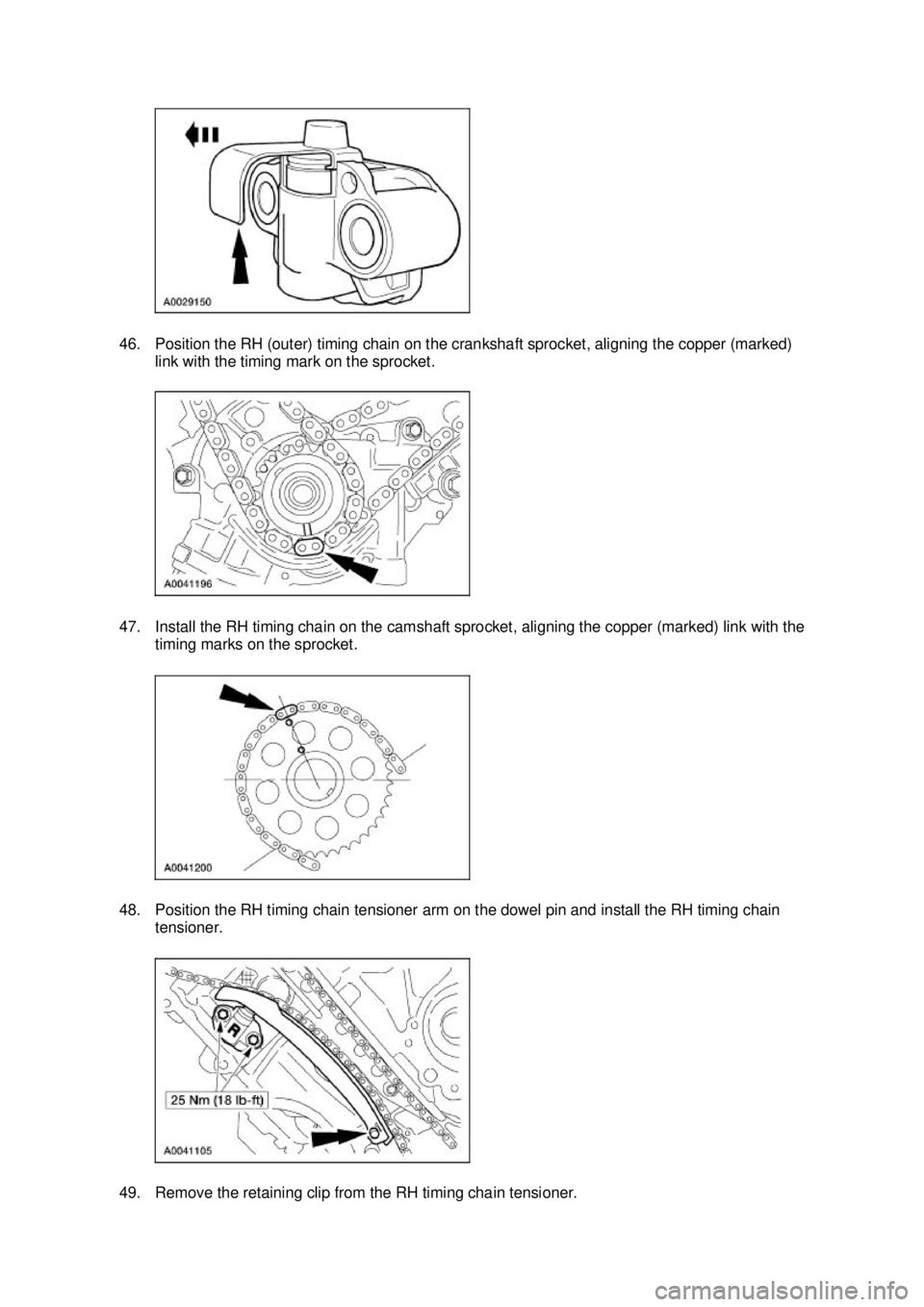

46. Position the RH (outer) timing chain on the crankshaft sprocket, aligning the copper (marked)
link with the timing mark on the sprocket.
47. Install the RH timing chain on the camshaft sprocket, aligning the copper (marked) link with the timing marks on the sprocket.
48. Position the RH timing chain tensioner arm on the dowel pin and install the RH timing chain tensioner.
49. Remove the retaining clip from the RH timing chain tensioner. Klj . 19 ba
362003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1324 of 4378

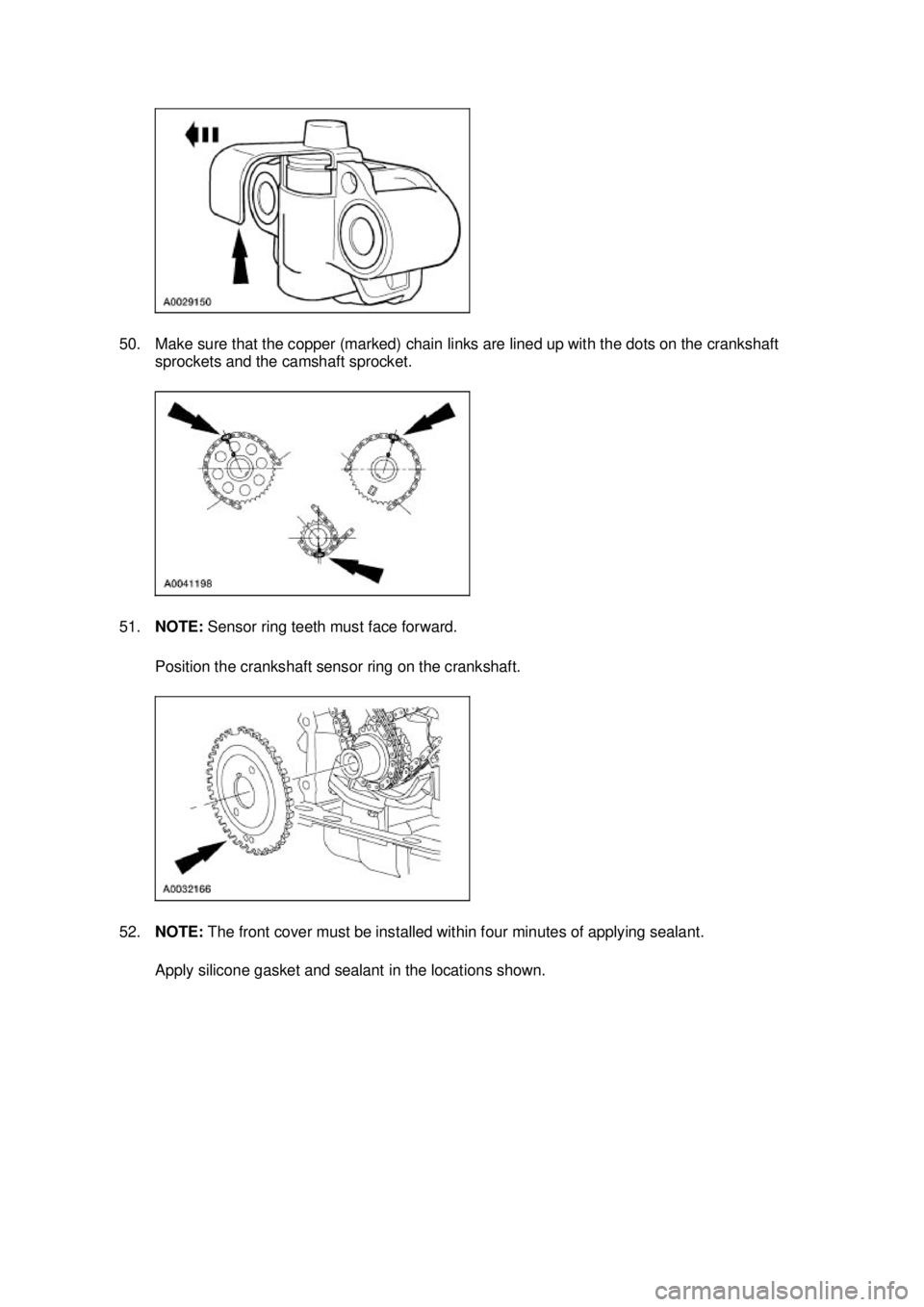

50. Make sure that the copper (marked) chain links are lined up with the dots on the crankshaft
sprockets and the camshaft sprocket.
51. NOTE: Sensor ring teeth must face forward.
Position the crankshaft sensor ring on the crankshaft.
52. NOTE: The front cover must be installed within four minutes of applying sealant.
Apply silicone gasket and sealant in the locations shown. Klj . 20 ba
362003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1325 of 4378
53. Install a new engine front cover gasket on the engine front cover.
54. Install the engine front cover.
Item Part
Number Description
1 N806177 Bolt, Hex Flange Head Pilot, M8 x 1.25 x 53
2 N806177 Bolt, Hex Flange Head Pilot, M8 x 1.25 x 53
3 N806177 Bolt, Hex Flange Head Pilot, M8 x 1.25 x 53
4 N806177 Bolt, Hex Flange Head Pilot, M8 x 1.25 x 53
5 N806177 Bolt, Hex Flange Head Pilot, M8 x 1.25 x 53
6 W706508 Stud, Hex Shldr Pilot, M8 x 1.25 x 50 —
M6 x 1 x
10 7 N808586 Stud and Washer, Hex Head Pilot, M8 x 1.25 x 60
—
M6 x 1 x 26 Klj . 21 ba
