Page 153 of 4378

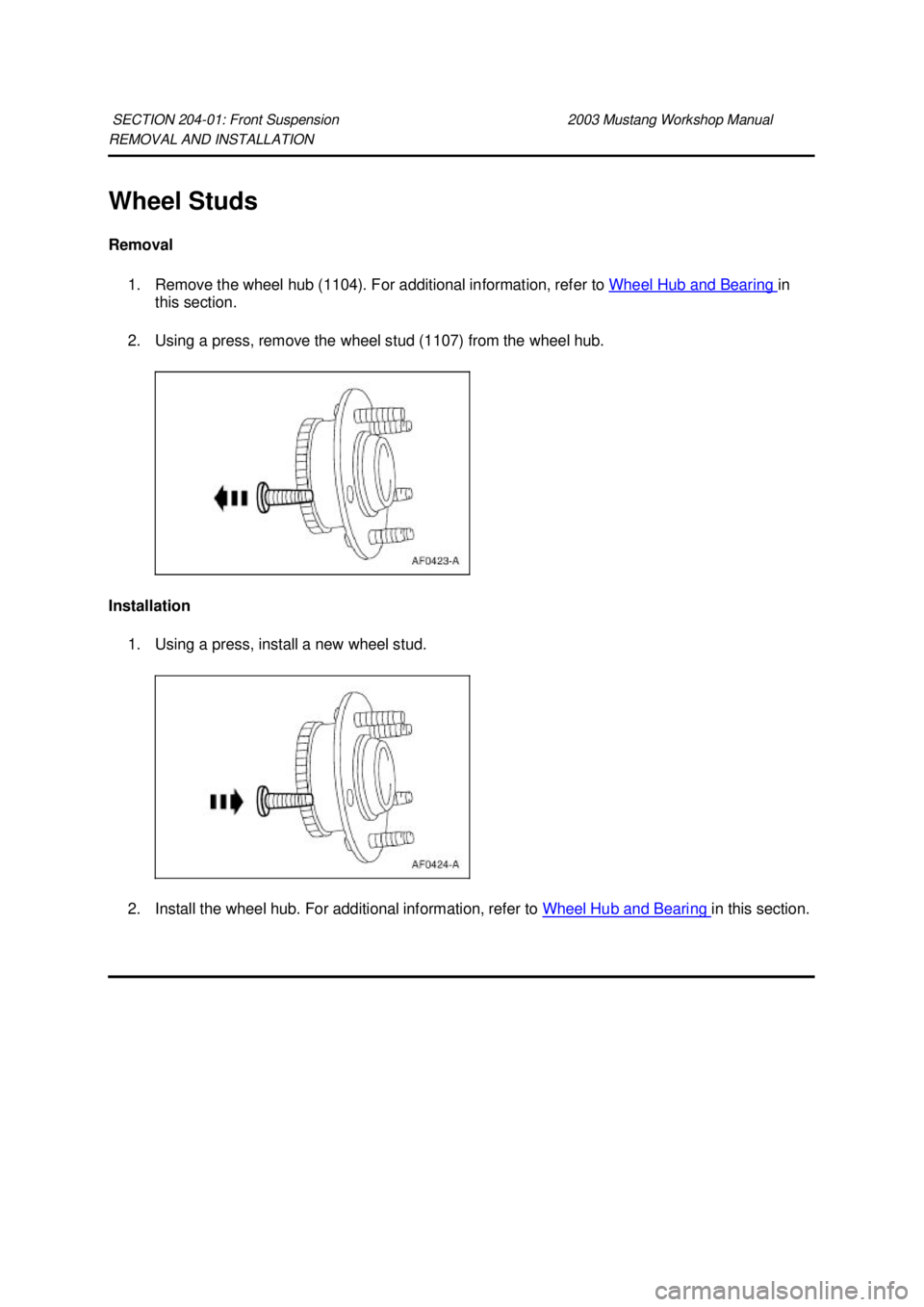

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Wheel Studs Removal 1. Remove the wheel hub (1104). For additional information, refer to Wheel Hub and Bearing in this section. 2. Using a press, remove the wheel stud

Page 154 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 155 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Wheel Hub and Bearing Removal CAUTION: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure can resul

Page 156 of 4378

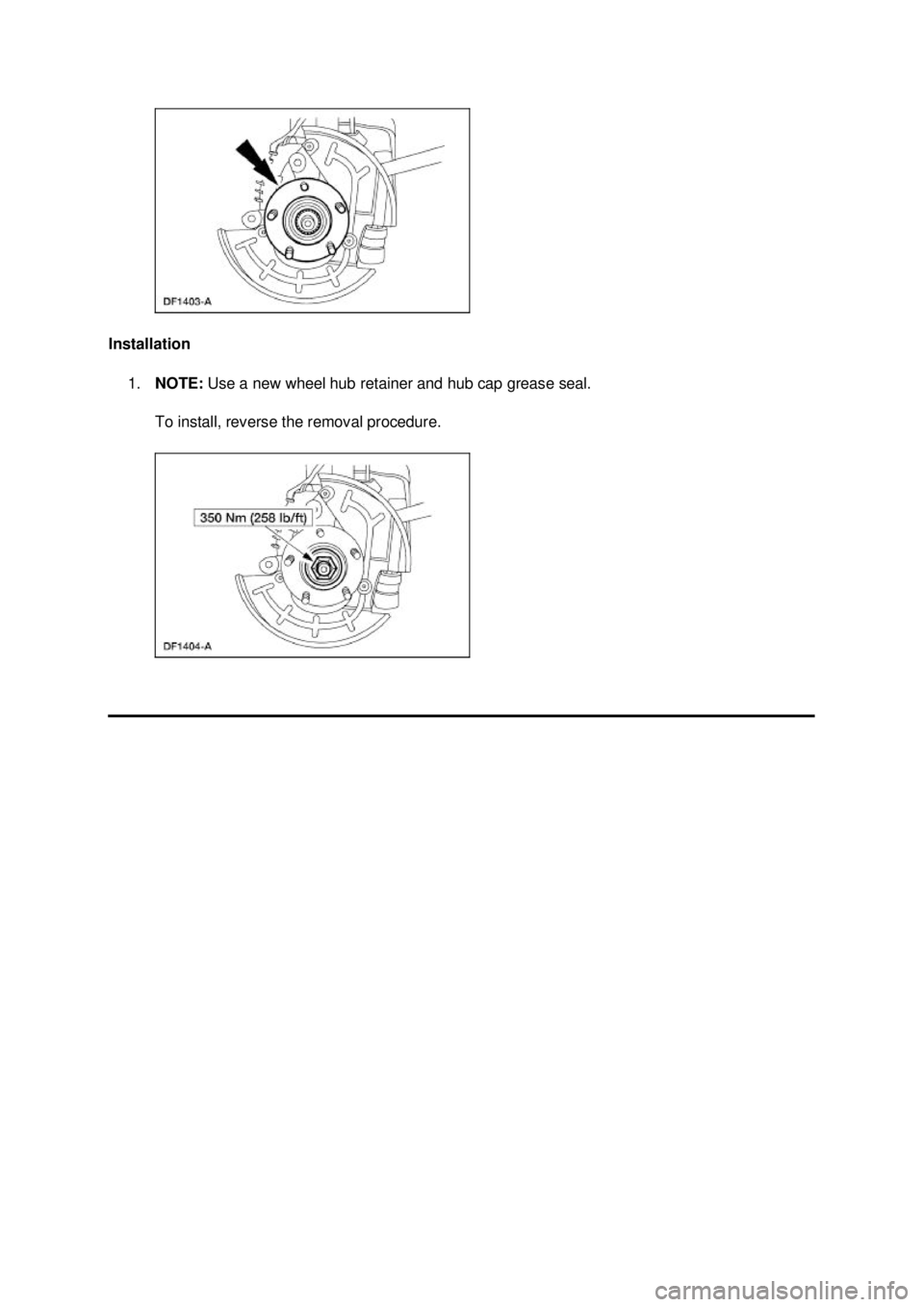

FORD MUSTANG 2003 Workshop Manual Installation 1. NOTE: Use a new wheel hub retainer and hub cap grease seal. To install, reverse the removal procedure. Klj . 2 ba 22003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/

Page 157 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Arm — Lower Removal CAUTION: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure can result in maj

Page 158 of 4378

FORD MUSTANG 2003 Workshop Manual 6. Remove the front coil spring (5310). For additional information, refer to Spring in this section. 7. Remove the nut and the front suspension lower control arm. Discard the nut. Installation 1.

Page 159 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Bar — Stabilizer Removal CAUTION: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure can result i

Page 160 of 4378

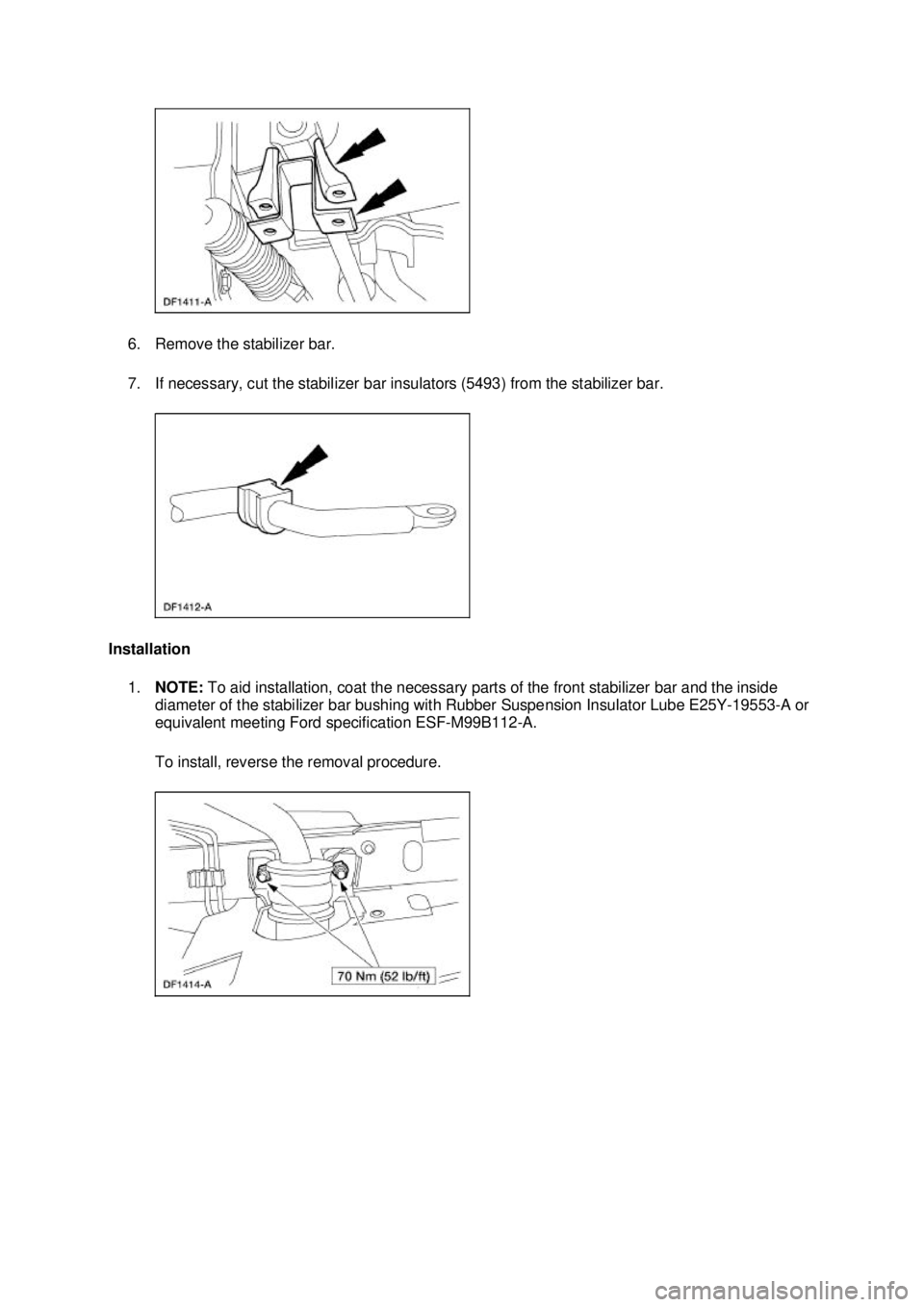

FORD MUSTANG 2003 Workshop Manual 6. Remove the stabilizer bar. 7. If necessary, cut the stabilizer bar insulators (5493) from the stabilizer bar. Installation 1. NOTE: To aid installation, coat the necessary parts of the front st
