Page 1169 of 4378

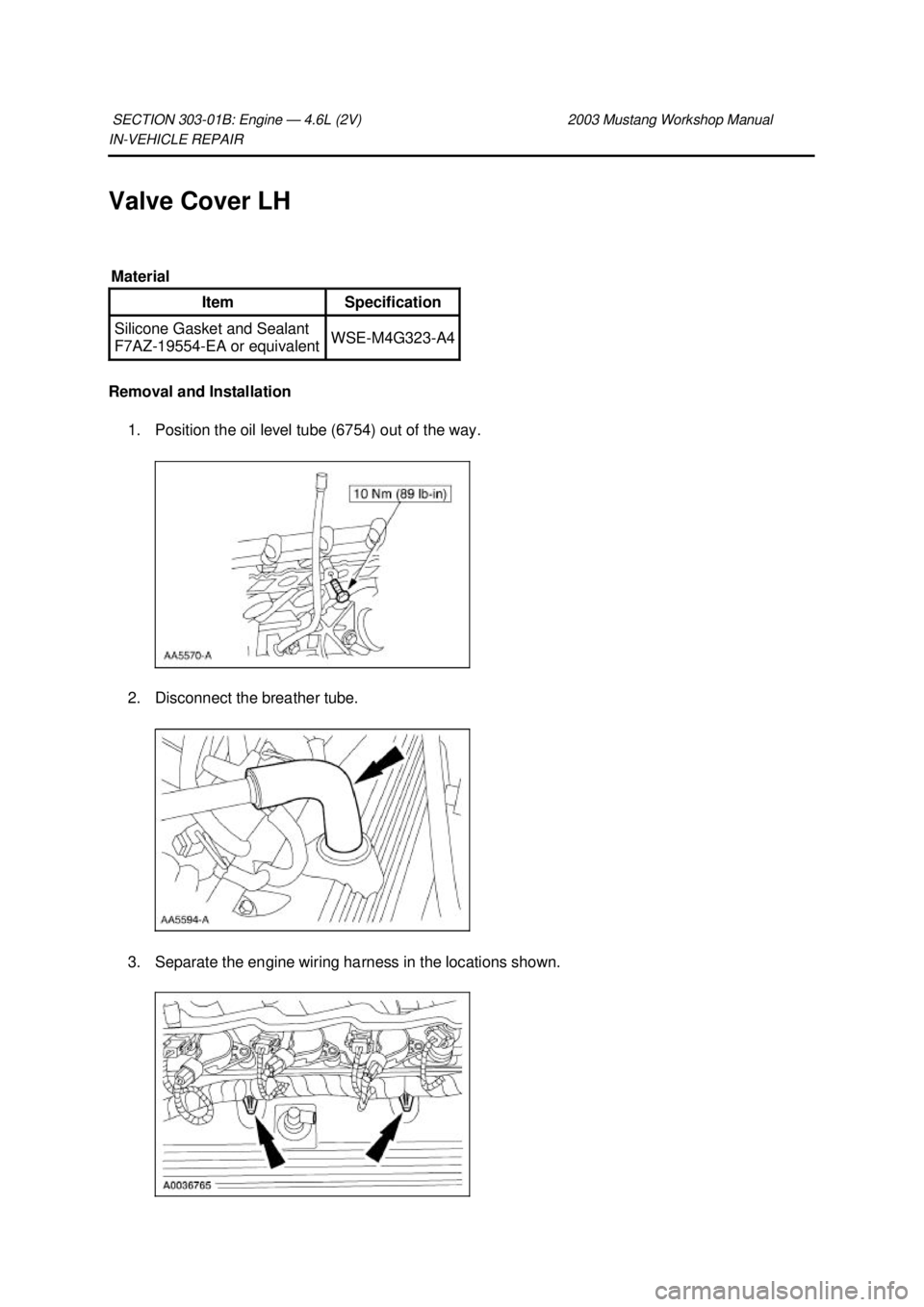

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Valve Cover LH Removal and Installation 1. Position the oil level tube (6754) out of the way. 2. Disconnect the breather tube. 3. Separate the engine wiring harness in the loca

Page 1170 of 4378

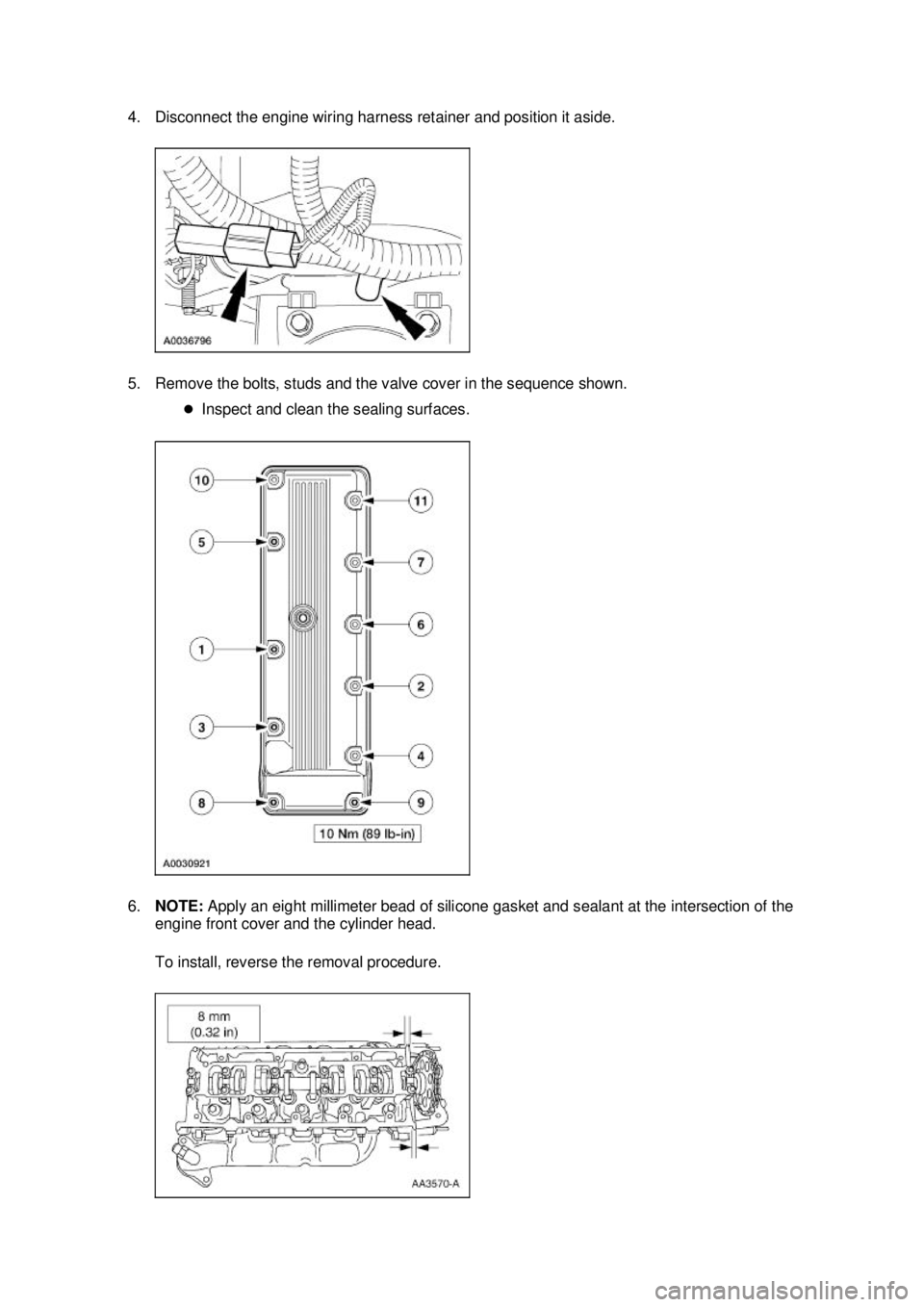

FORD MUSTANG 2003 Workshop Manual 4. Disconnect the engine wiring harness retainer and position it aside. 5. Remove the bolts, studs and the valve cover in the sequence shown. �zInspect and clean the sealing surfaces. 6. NOTE: App

Page 1171 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1172 of 4378

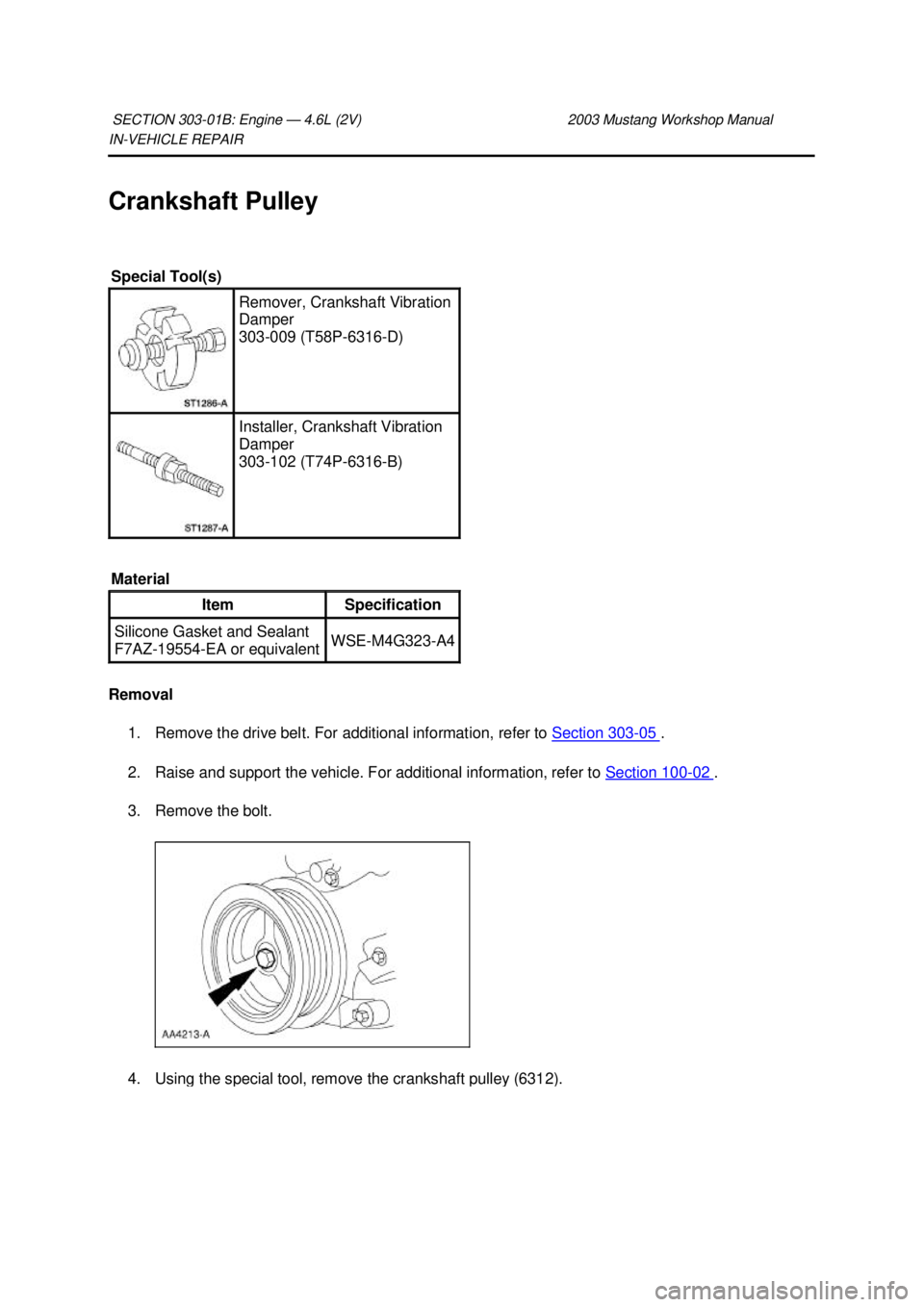

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Crankshaft Pulley Removal 1. Remove the drive belt. For additional information, refer to Section 303 - 05 . 2. Raise and support the vehicle. For additional information, refer

Page 1173 of 4378

FORD MUSTANG 2003 Workshop Manual Installation 1. NOTE: The crankshaft pulley must be installed within four minutes of applying the sealant. Apply sealant to the woodruff key slot on the crankshaft pulley. 2. Using the special too

Page 1174 of 4378

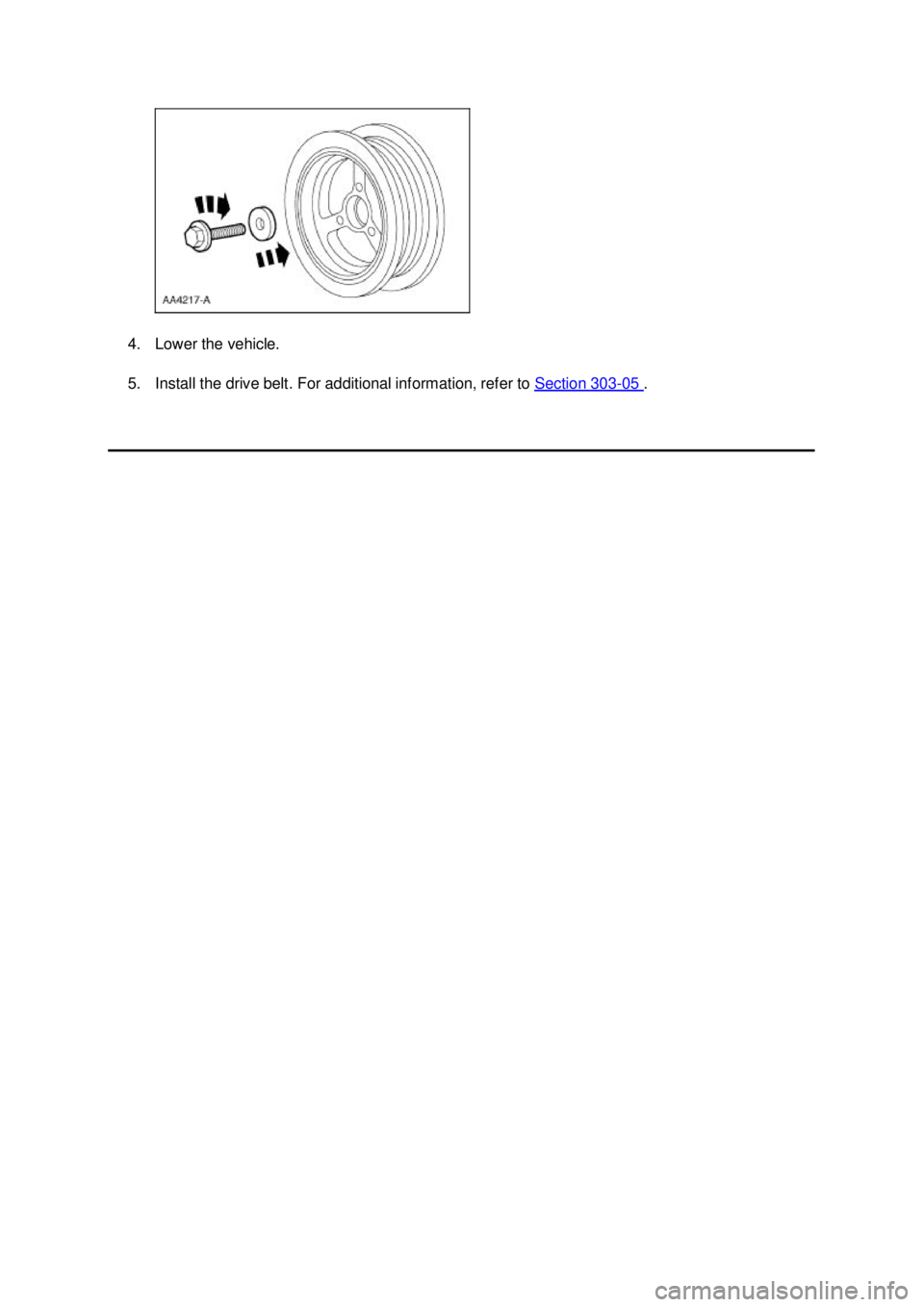

FORD MUSTANG 2003 Workshop Manual 4. Lower the vehicle. 5. Install the drive belt. For additional information, refer to Section 303 - 05 . Klj . 3 ba 32003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/ts

Page 1175 of 4378

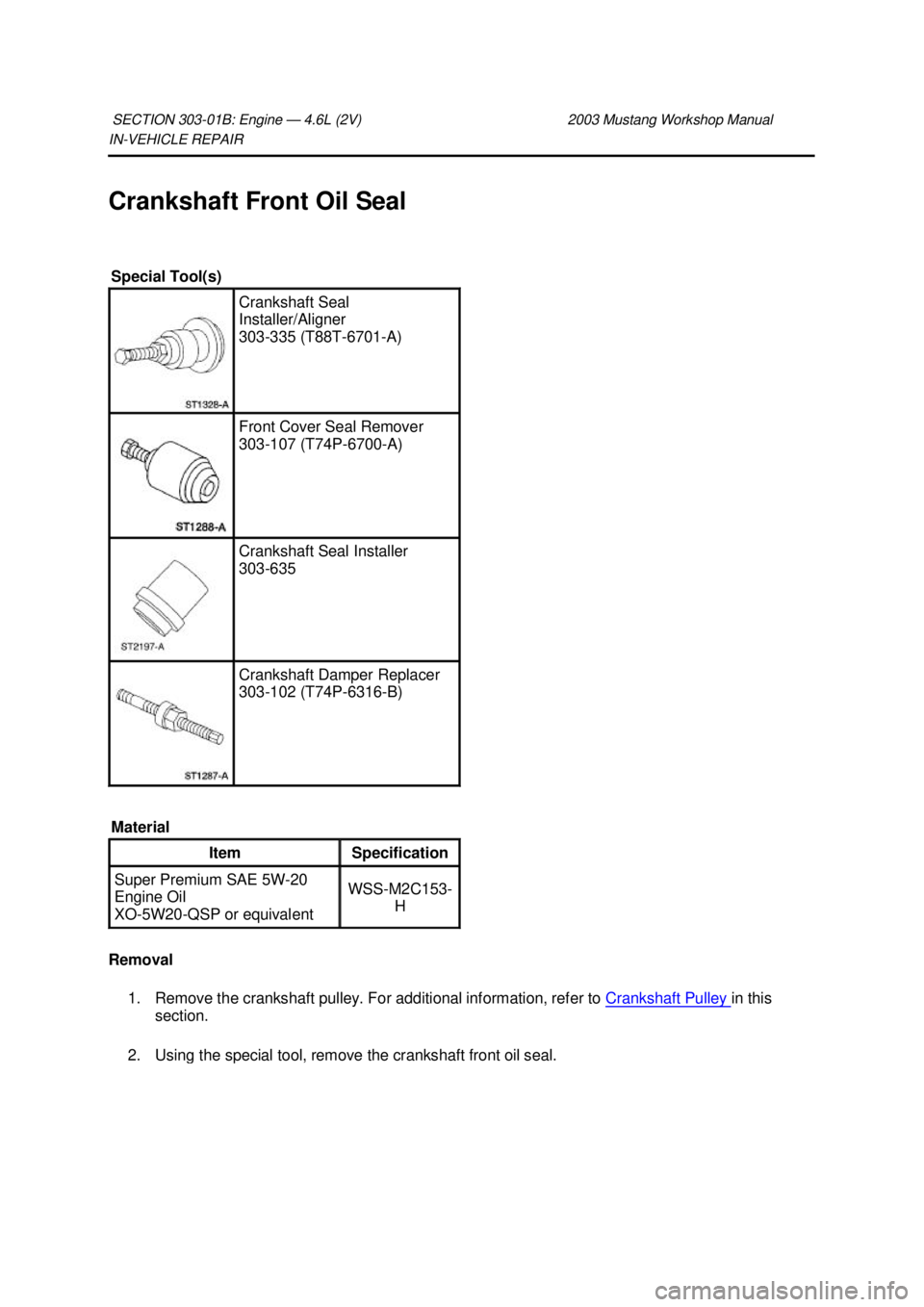

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Crankshaft Front Oil Seal Removal 1. Remove the crankshaft pulley. For additional information, refer to Crankshaft Pulley in this section. 2. Using the special tool, remove t

Page 1176 of 4378

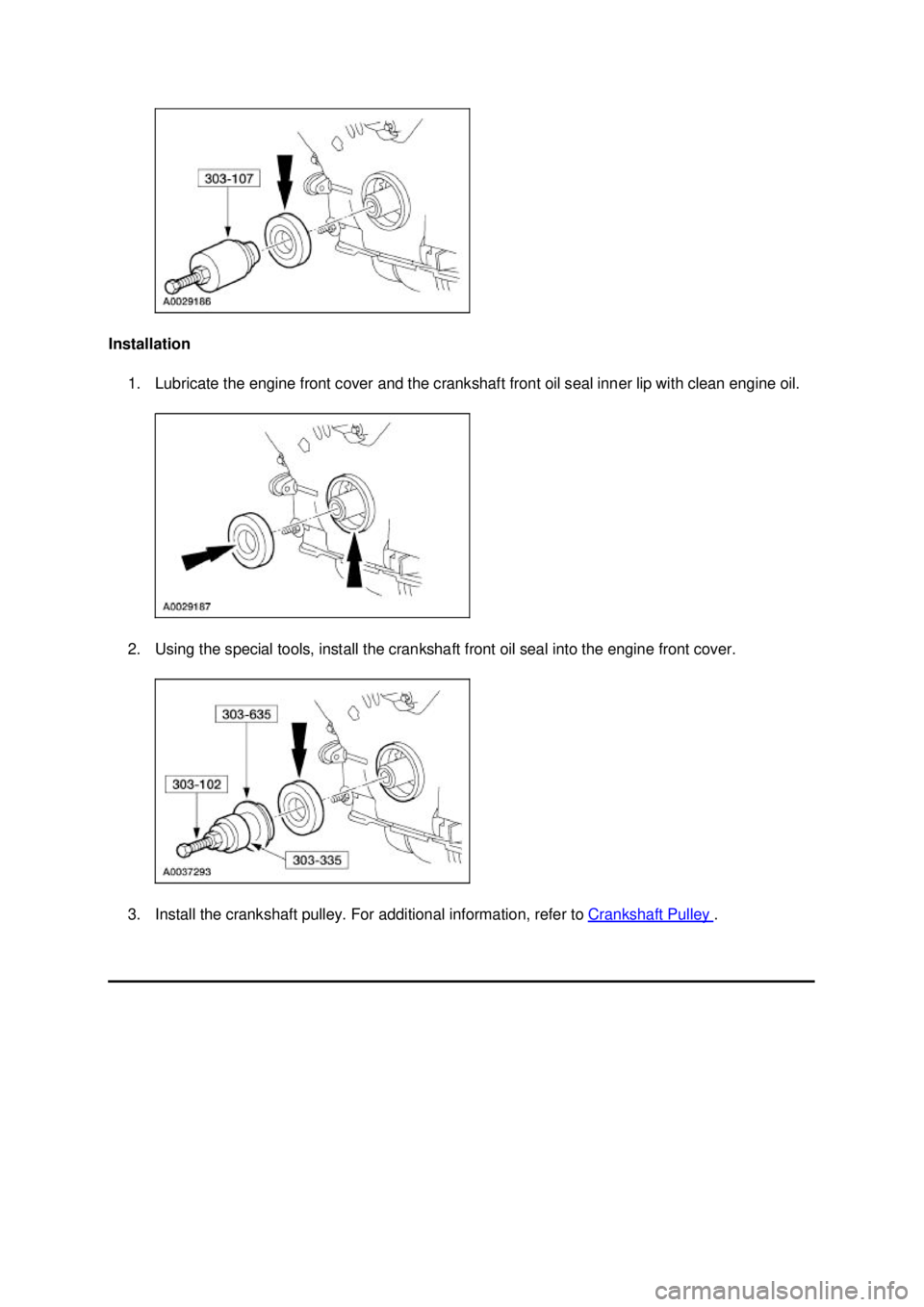

FORD MUSTANG 2003 Workshop Manual Installation 1. Lubricate the engine front cover and the crankshaft front oil seal inner lip with clean engine oil. 2. Using the special tools, install the crankshaft front oil seal into the engine
