Page 3489 of 4378

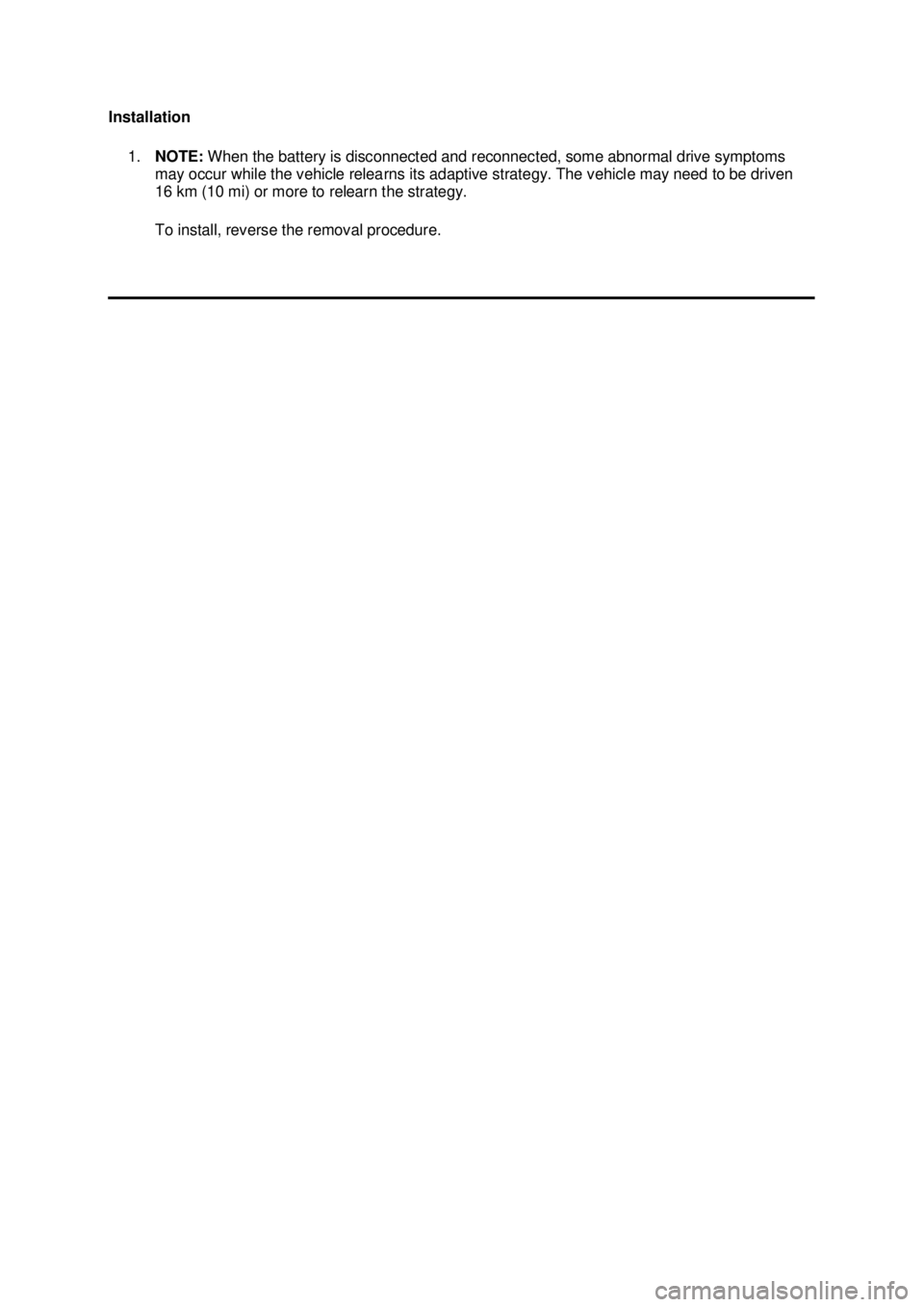

FORD MUSTANG 2003 Workshop Manual Installation
1. NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms
may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven
1

Page 3490 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION
Lamp Switch —
Brake Pedal Position (BPP)
Removal 1. Disconnect the battery ground cable.
2. Remove the brake pedal position (BPP) switch. 1. Remove the clip.
2. Remove

Page 3491 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3492 of 4378

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION
Interior Lighting
The interior lighting system consists of the following:
�zmap/dome lamp assembly
�z rear- high mount/cargo lamp assembly
�z dimmer switch
�z door ajar

Page 3493 of 4378

FORD MUSTANG 2003 Workshop Manual DIAGNOSIS AND TESTING
Interior Lighting
Refer to Wiring Diagrams Cell
111 , Remote Control Alarm and Lock System for schematic and
connector information.
Refer to Wiring Diagrams Cell 59 , Gen

DIAGNOSIS AND TESTING
Interior Lighting
Refer to Wiring Diagrams Cell
111 , Remote Control Alarm and Lock System for schematic and
connector information.
Refer to Wiring Diagrams Cell 59 , Generic Electronic Module for schematic and connector
information.
Refer to Wiring Diagrams Cell 89 , Courtesy Lamps for schematic and connector information.
Principles of Operation
Battery Saver
The battery saver feature provides automatic shut- off of power to demand and courtesy lamp circuitry.
When the generic electronic module (GEM) detects the ignition switch circuits are in the key OFF or
removed ignition key positions, power will be disabled after individual time- out periods of 30 minutes
for the demand lamps, and 10 minutes for the courtesy lamps. However, the time- out period for the
courtesy lamps changes to 30 minutes when the GEM detects that the luggage compartment lid is ajar
by means of the luggage compartment lid ajar circuit, or if the dome lamp is switched on by means of
the dome lamp circuit. When the GEM detects that the ignition switch is in the RUN, ACC, or START
positions, the battery saver feature is disabled.
The battery saver timer for the demand lamps is reset when the GEM detects that the ignition switch is
in the OFF or key out positions or when the GEM detects any one of the following conditions:
zthe driver or passenger door becomes ajar, as detected by the door ajar circuit
z the luggage compartment lid becomes ajar, as detected by the luggage compartment lid ajar
circuit
z the dome lamp switch is activated, as detected by the dome lamp switch circuit
The battery saver timer for the courtesy lamps is reset when the GEM detects that the ignition switch is
in the OFF or key out positions or when the GEM detects the driver or passenger door becomes ajar SECTION 417-
02: Interior Lighting 2003 Mustang Workshop Manual Special Tool(s)
73 Digital Multimeter or
equivalent
105-
R0051 Worldwide Diagnostic System
(WDS)
418-
F224,
New Generation STAR (NGS)
Tester
418- F052, or equivalent scan
tool Klj . 1 ba
162003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3494 of 4378

FORD MUSTANG 2003 Workshop Manual as detected by the door ajar circuit. For vehicles equipped with the remote keyless entry feature, any
signal the GEM detects when a valid remote transmitter button is depressed will reset both the

as detected by the door ajar circuit. For vehicles equipped with the remote keyless entry feature, any
signal the GEM detects when a valid remote transmitter button is depressed will reset both the
demand and courtesy lamp battery saver timers. This battery saver relay then restores power to both
the demand and courtesy lamp circuits.
Base Courtesy and Extended Lighting
The base courtesy lighting feature provides interior lighting for the convenience of the vehicle's
occupants. The courtesy lamps consist of the map/dome lamps for the coupe and the map lamps for
the convertible. All lamps designated as courtesy lamps will be illuminated whenever the GEM detects
that the driver or passenger doors become ajar, by means of the driver or passenger door ajar circuits.
The courtesy lamps will also be illuminated when the GEM detects that the dome lamp switch has
been activated, by means of the dome lamp switch circuit.
The extended courtesy lighting feature provides temporary extended illumination of the courtesy lamps
after the customer has entered the vehicle. The courtesy lamps will remain illuminated for 25 seconds
after the GEM detects that the driver and passenger doors are closed, as detected by the door ajar
circuits. The extended courtesy lighting feature will be terminated after the 25 second time-
out period,
or if the GEM detects that the ignition switch has been moved from the OFF position to either the RUN,
ACC, or START positions.
Demand Lighting
The GEM does not provide any special features to the demand lighting group with the exception of
providing a power source when the battery saver feature is active. The demand lighting group consists
of the luggage compartment lamp, the driver and passenger vanity mirror lamps, and the map lamps.
Illuminated Entry with Remote Keyless Entry
The illuminated entry with remote keyless entry feature, provides power to the courtesy lamps when
the remote transmitter is used. When the GEM detects that the ignition switch is in the OFF or key out
positions, and it detects that a valid remote transmitter unlock button has been depressed, power to
the courtesy lamps will be enabled. The courtesy lamp circuit will remain powered until one of the
following occurs:
zThe GEM detects that the ignition switch has been moved from the OFF, to the RUN, START,
or ACC position.
z The GEM detects any valid remote transmitter lock button is depressed.
z The courtesy lamp circuit has been powered for 25 seconds.
If the GEM detects any valid remote transmitter unlock button has been depressed, and the ignition
switch is in the OFF or key out position during the 25 second time- out, the courtesy lamp circuits will
remain powered for an additional 25 seconds.
Inspection and Verification
1. The interior lighting system is a generic electronic module (GEM) controlled system.
2. Verify the customer concern by operating the interior lighting system.
3. Visually inspect for the following obvious signs of mechanical and electrical damage. Klj . 2 ba
162003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3495 of 4378

FORD MUSTANG 2003 Workshop Manual 4. If the concern remains after the inspection, connect the scan tool to the data link connector
(DLC) located beneath the instrument panel and select the vehicle to be tested from the scan
tool men

4. If the concern remains after the inspection, connect the scan tool to the data link connector
(DLC) located beneath the instrument panel and select the vehicle to be tested from the scan
tool menu. If the scan tool does not communicate with the vehicle:
zcheck that the program card is correctly installed.
z check the connections to the vehicle.
z check the ignition switch position.
5. If the scan tool still does not communicate with the vehicle, refer to the scan tool manual.
6. Carry out the DATA LINK DIAGNOSTIC TEST. If the scan tool responds with: zCKT914, CKT915 or CKT70 = ALL ECUS NO RESP/NOT EQUIP, refer to Section 418 -
00 .
z NO RESP/NOT EQUIP for GEM, go to Pinpoint Test A.
z SYSTEM PASSED, retrieve and record the continuous diagnostic trouble codes (DTCs),
erase the continuous DTCs and carry out self- test diagnostics for the GEM.
7. If the DTCs retrieved are related to the concern, go to GEM Diagnostic Trouble Code (DTC) Index to continue diagnostics.
8. If no DTCs related to the concern are retrieved, proceed to Symptom Chart to continue diagnostics.
GEM Diagnostic Trouble Code (DTC) Index Visual Inspection Chart Mechanical Electrical
z
Switch(es) z
CJB Fuses:
„7 (20A)
„ 32 (15A)
„ 39 (5A)
z Wiring harness
z Connections
z Lamps
z Circuitry
GEM Diagnostic Trouble Code (DTC) Index DTC Description Source Action
B1322 Driver Door Ajar Circuit
Short to Ground GEM REFER to
Section 417 - 02 .
B1330 Passenger Door Ajar Circuit
Short to Ground GEM REFER to
Section 417 - 02 .
B1334 Decklid Ajar Rear Door
Circuit Short to Ground GEM REFER to
Section 417 - 02 .
B1342 ECU Is Defective GEM CLEAR the DTC. Retrieve the DTCs. If DTC B1342 is
retrieved, INSTALL a new GEM. For additional information, REFER to Section 419 - 10 .
B1397 Power Door unlock Circuit
Short to Battery GEM REFER to
Section 501 - 14B .
B1405 Driver Power Window Down
Circuit Short to Battery GEM REFER to
Section 501 - 11 . Klj . 3 ba
162003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

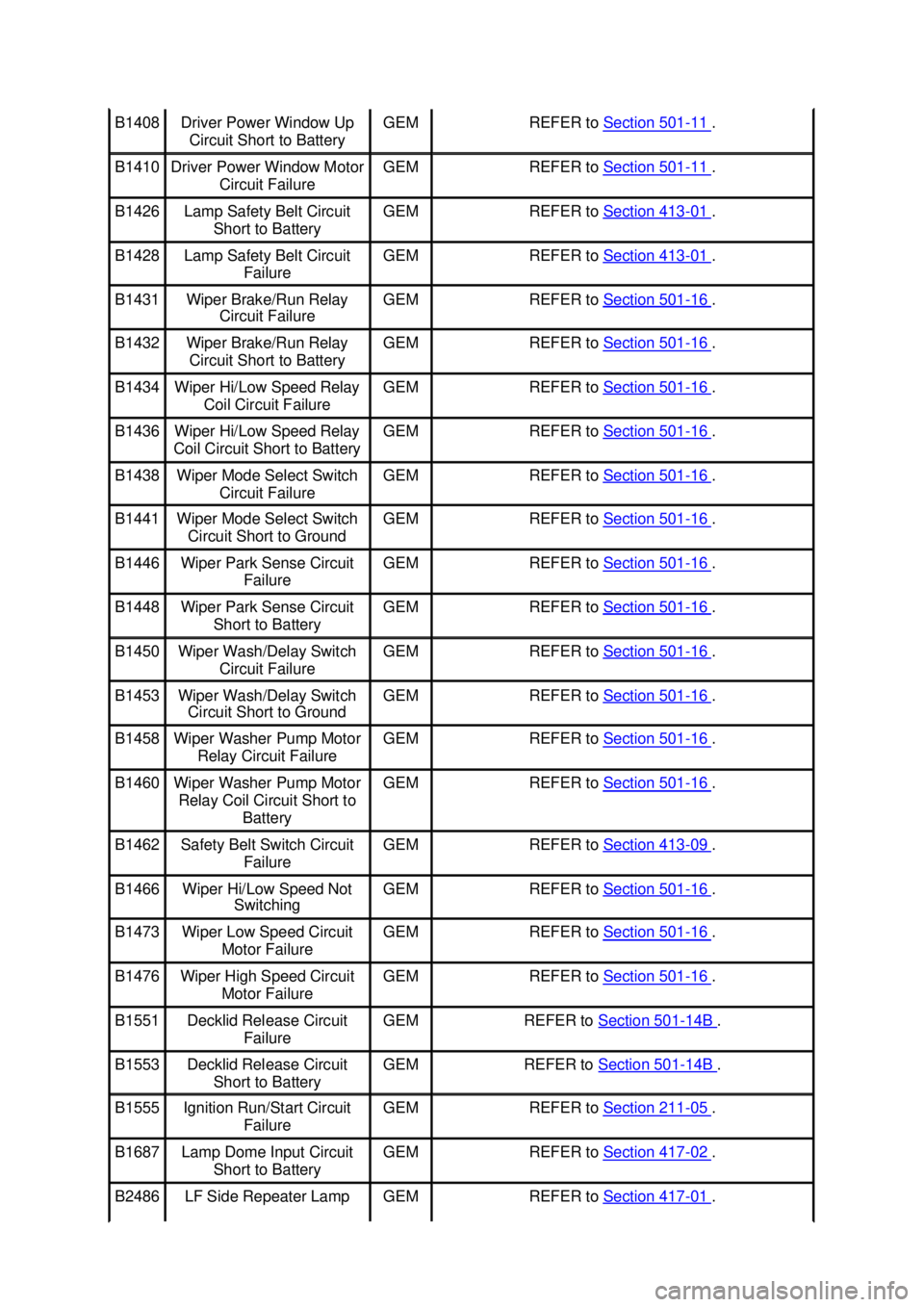

Page 3496 of 4378

FORD MUSTANG 2003 Workshop Manual B1408 Driver Power Window Up
Circuit Short to Battery GEM REFER to
Section 501 - 11 .
B1410 Driver Power Window Motor
Circuit Failure GEM REFER to
Section 501 - 11 .
B1426 Lamp Safety B

B1408 Driver Power Window Up
Circuit Short to Battery GEM REFER to
Section 501 - 11 .
B1410 Driver Power Window Motor
Circuit Failure GEM REFER to
Section 501 - 11 .
B1426 Lamp Safety Belt Circuit
Short to Battery GEM REFER to
Section 413 - 01 .
B1428 Lamp Safety Belt Circuit
Failure GEM REFER to
Section 413 - 01 .
B1431 Wiper Brake/Run Relay
Circuit Failure GEM REFER to
Section 501 - 16 .
B1432 Wiper Brake/Run Relay
Circuit Short to Battery GEM REFER to
Section 501 - 16 .
B1434 Wiper Hi/Low Speed Relay
Coil Circuit Failure GEM REFER to
Section 501 - 16 .
B1436 Wiper Hi/Low Speed Relay
Coil Circuit Short to Battery GEM REFER to
Section 501 - 16 .
B1438 Wiper Mode Select Switch
Circuit Failure GEM REFER to
Section 501 - 16 .
B1441 Wiper Mode Select Switch
Circuit Short to Ground GEM REFER to
Section 501 - 16 .
B1446 Wiper Park Sense Circuit
Failure GEM REFER to
Section 501 - 16 .
B1448 Wiper Park Sense Circuit
Short to Battery GEM REFER to
Section 501 - 16 .
B1450 Wiper Wash/Delay Switch
Circuit Failure GEM REFER to
Section 501 - 16 .
B1453 Wiper Wash/Delay Switch
Circuit Short to Ground GEM REFER to
Section 501 - 16 .
B1458 Wiper Washer Pump Motor
Relay Circuit Failure GEM REFER to
Section 501 - 16 .
B1460 Wiper Washer Pump Motor
Relay Coil Circuit Short to Battery GEM REFER to
Section 501 - 16 .
B1462 Safety Belt Switch Circuit
Failure GEM REFER to
Section 413 - 09 .
B1466 Wiper Hi/Low Speed Not
Switching GEM REFER to
Section 501 - 16 .
B1473 Wiper Low Speed Circuit
Motor Failure GEM REFER to
Section 501 - 16 .
B1476 Wiper High Speed Circuit
Motor Failure GEM REFER to
Section 501 - 16 .
B1551 Decklid Release Circuit
Failure GEM REFER to
Section 501 - 14B .
B1553 Decklid Release Circuit
Short to Battery GEM REFER to
Section 501 - 14B .
B1555 Ignition Run/Start Circuit
Failure GEM REFER to
Section 211 - 05 .
B1687 Lamp Dome Input Circuit
Short to Battery GEM REFER to
Section 417 - 02 .
B2486 LF Side Repeater Lamp GEM REFER to
Section 417 - 01 . Klj . 4 ba
162003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
