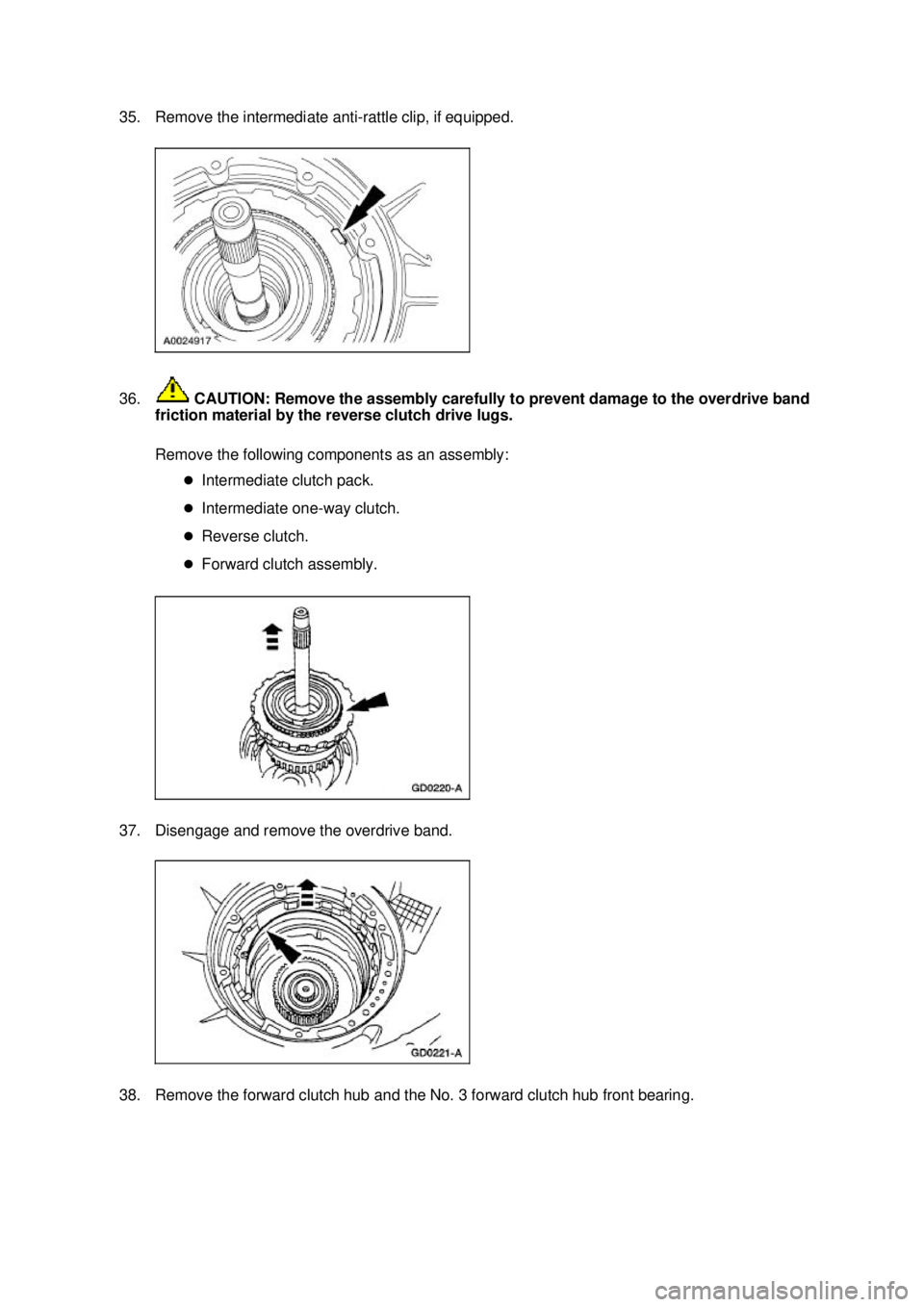

FORD MUSTANG 2003 Workshop Manual 31. Using the special tools, remove the front pump seal. 32. NOTE: These bolts have been coated with sealant. High break torque may be required to remove the bolts. Remove the bolts. 33. Using th

Page 2482 of 4378

FORD MUSTANG 2003 Workshop Manual 35. Remove the intermediate anti- rattle clip, if equipped. 36. CAUTION: Remove the assembly carefully to prevent damage to the overdrive band friction material by the reverse clutch drive lugs. R

Page 2483 of 4378

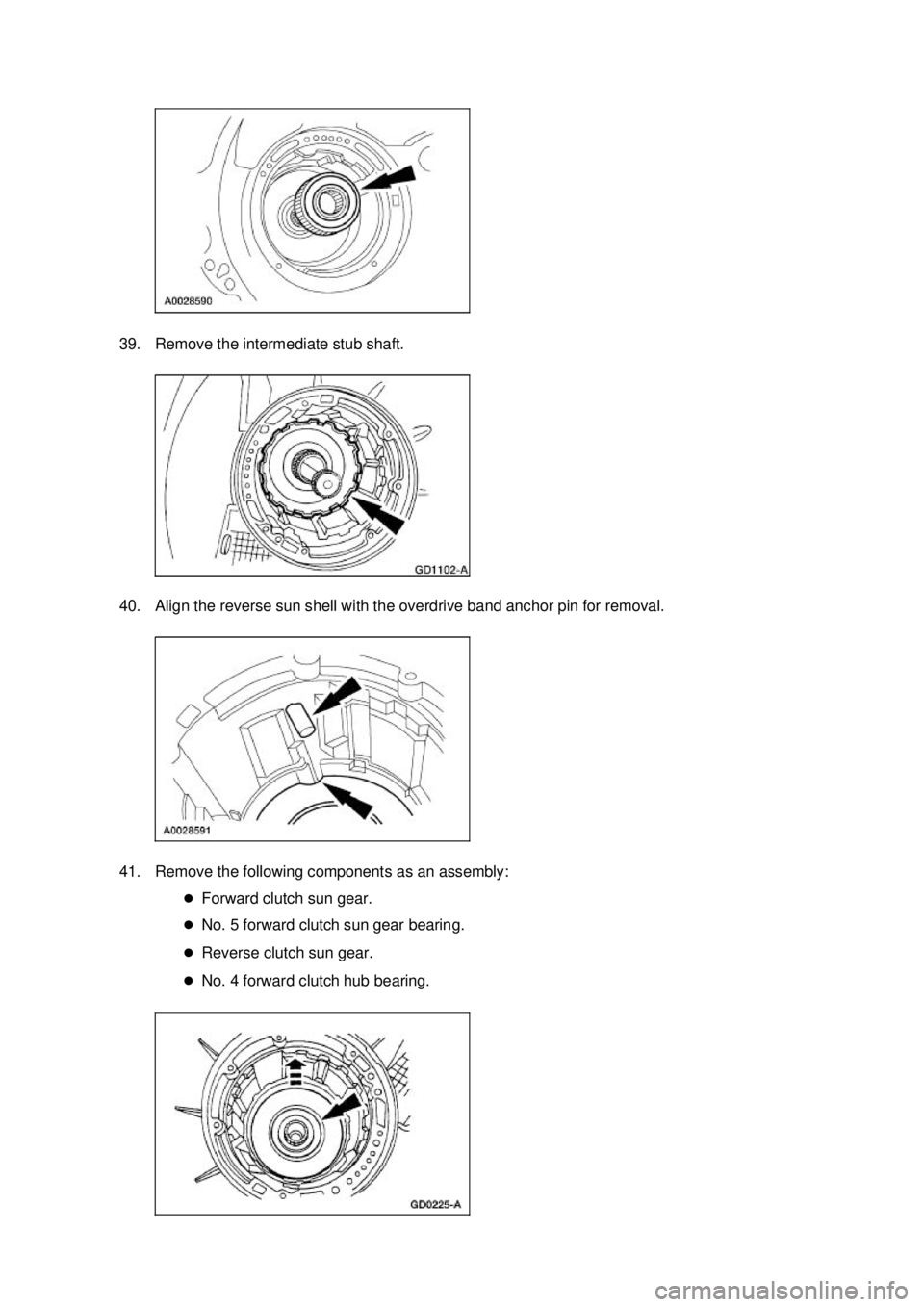

FORD MUSTANG 2003 Workshop Manual 39. Remove the intermediate stub shaft. 40. Align the reverse sun shell with the overdrive band anchor pin for removal. 41. Remove the following components as an assembly: �zForward clutch sun gear

Page 2484 of 4378

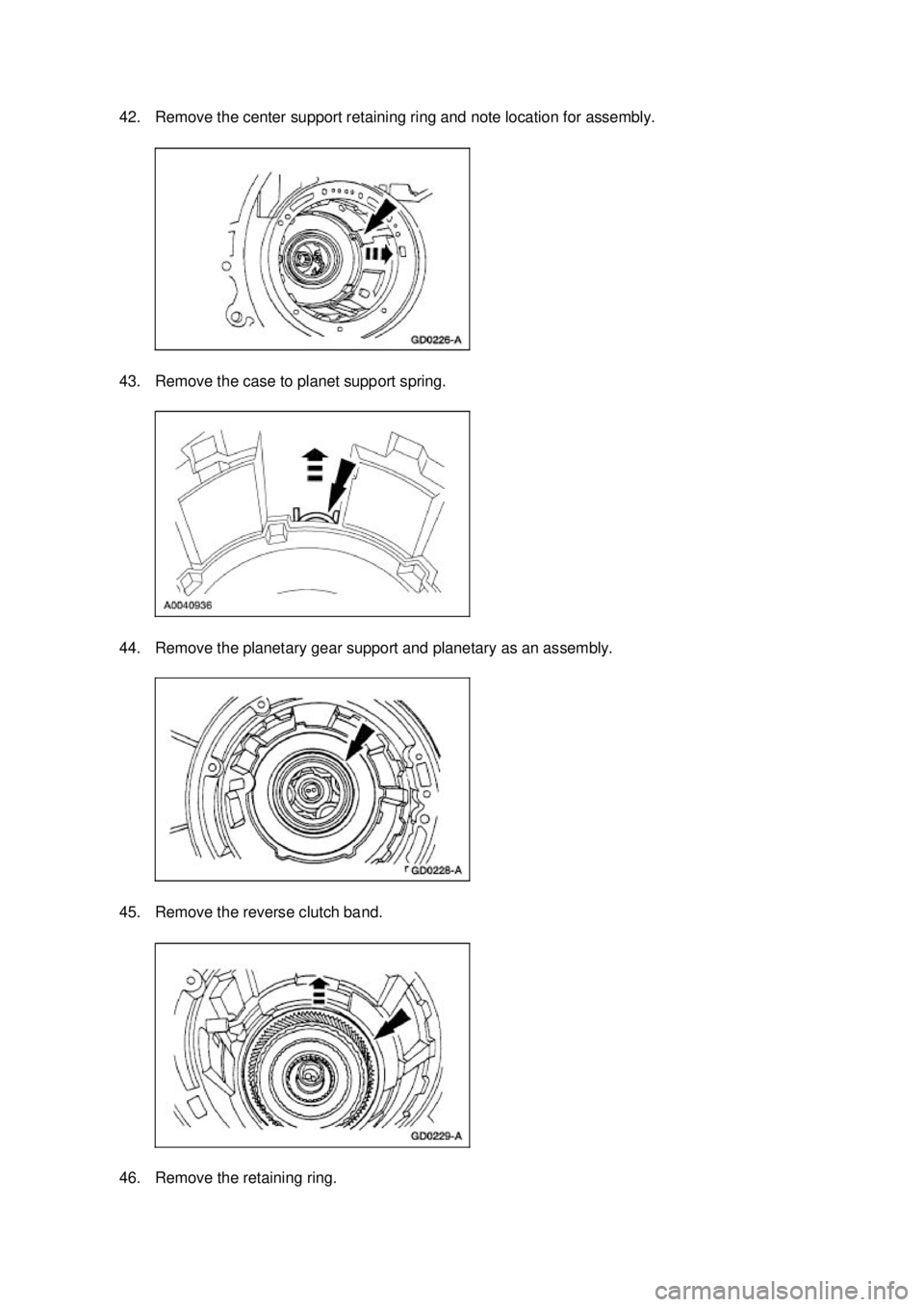

FORD MUSTANG 2003 Workshop Manual 42. Remove the center support retaining ring and note location for assembly. 43. Remove the case to planet support spring. 44. Remove the planetary gear support and planetary as an assembly. 45. Re

Page 2485 of 4378

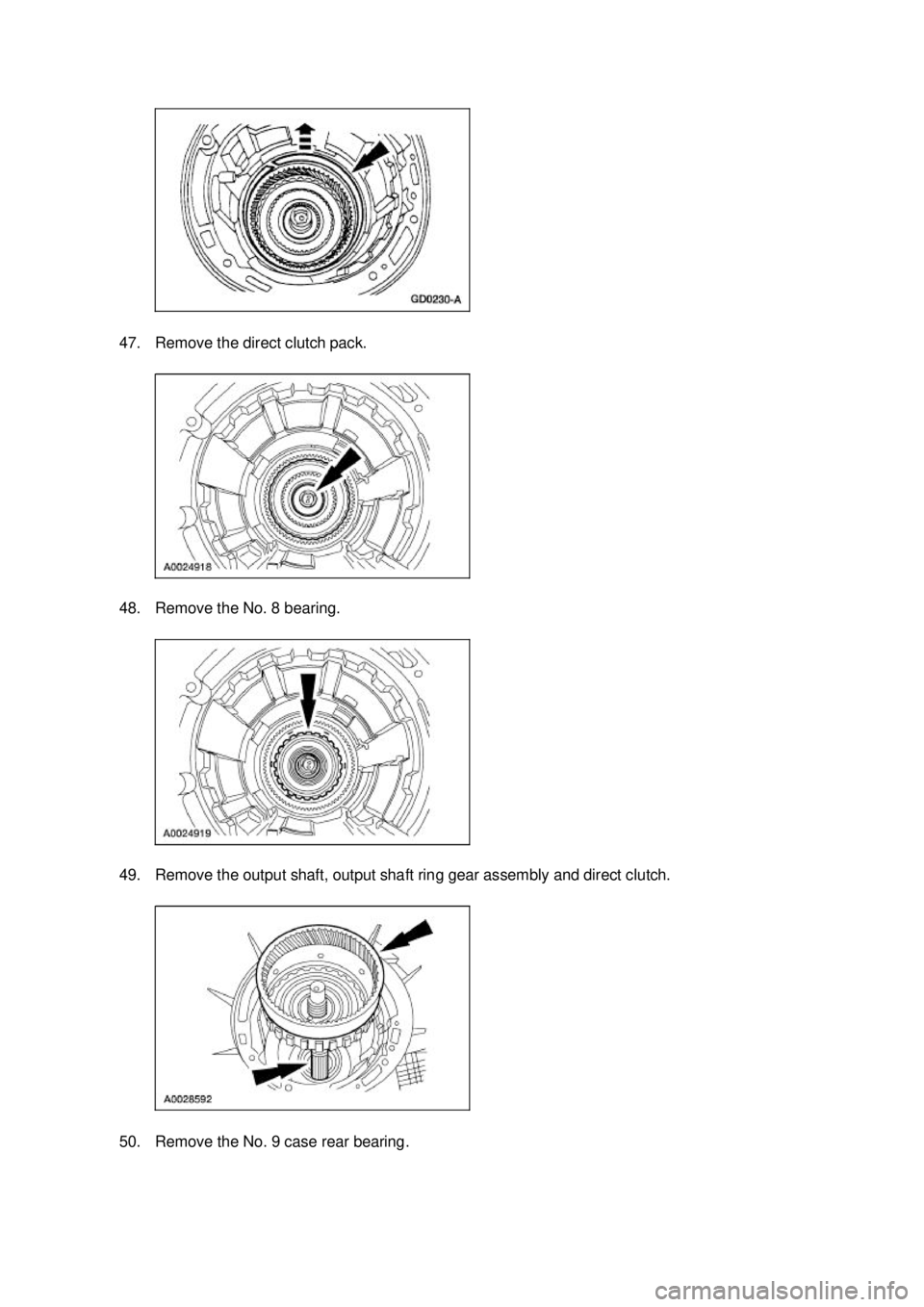

FORD MUSTANG 2003 Workshop Manual 47. Remove the direct clutch pack. 48. Remove the No. 8 bearing. 49. Remove the output shaft, output shaft ring gear assembly and direct clutch. 50. Remove the No. 9 case rear bearing. Klj . 1

Page 2486 of 4378

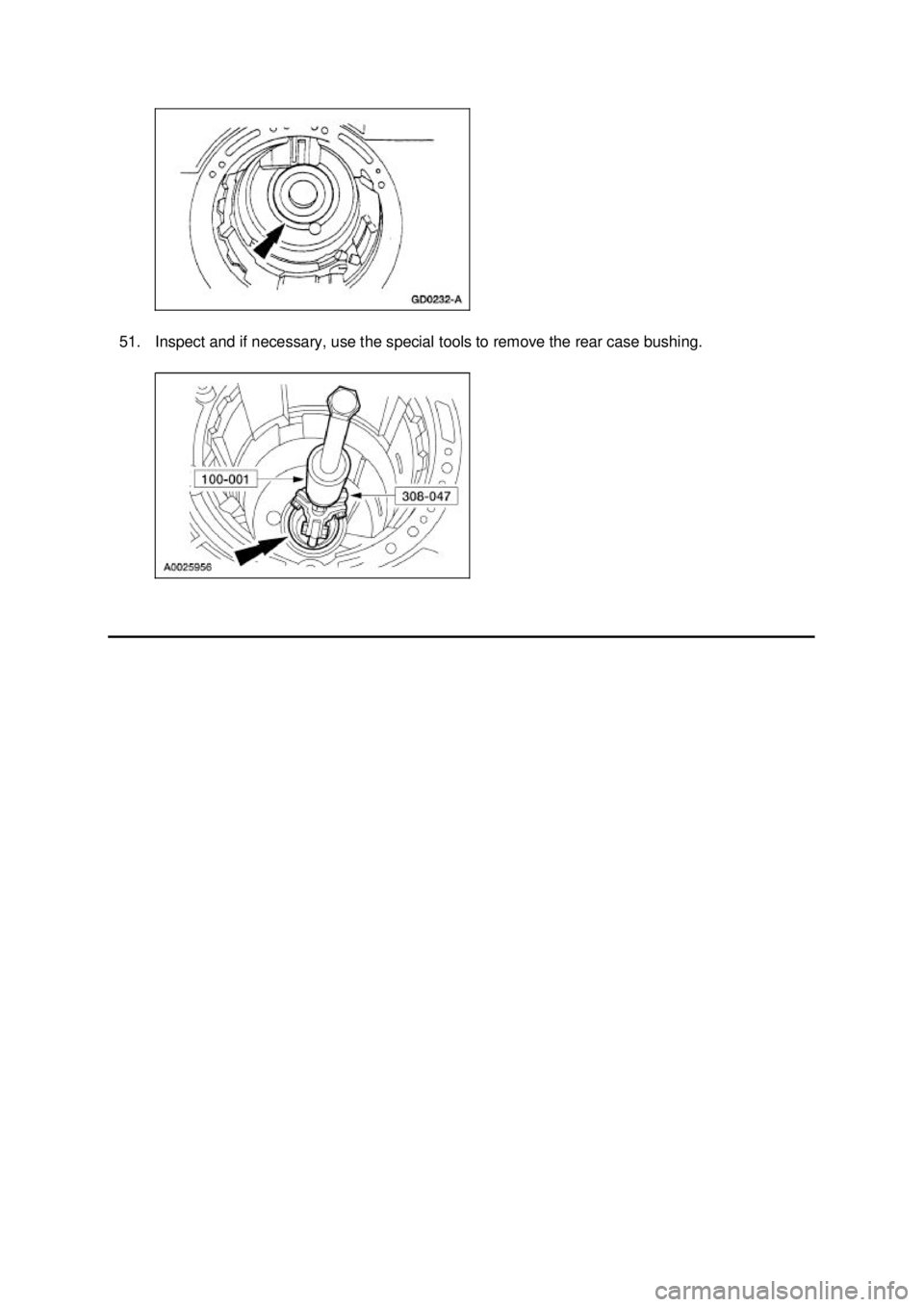

FORD MUSTANG 2003 Workshop Manual 51. Inspect and if necessary, use the special tools to remove the rear case bushing. Klj . 16 ba 162003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~

Page 2487 of 4378

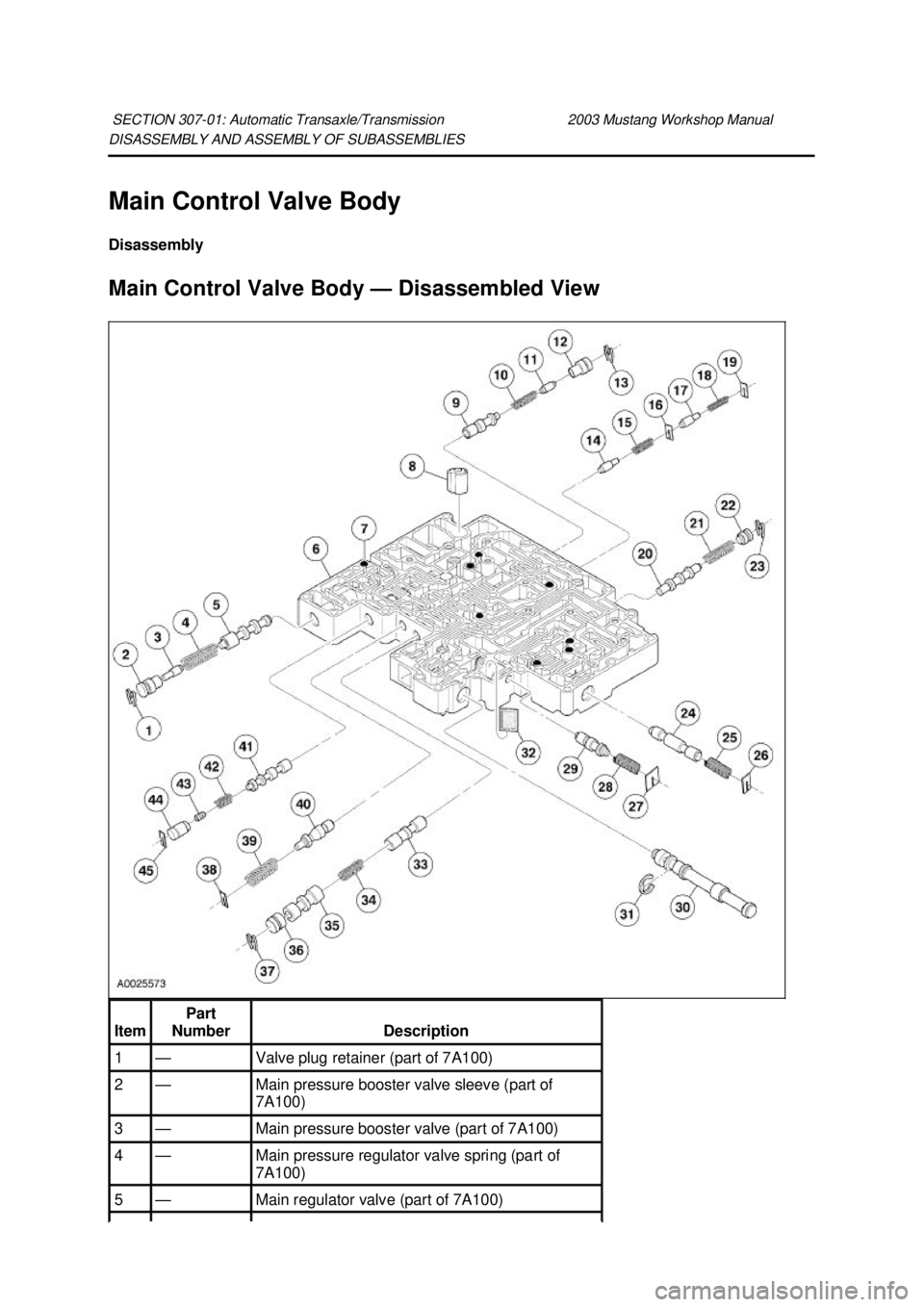

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES Main Control Valve Body Disassembly Main Control Valve Body — Disassembled View SECTION 307- 01: Automatic Transaxle/Transmission 2003 Mustang Workshop

Page 2488 of 4378

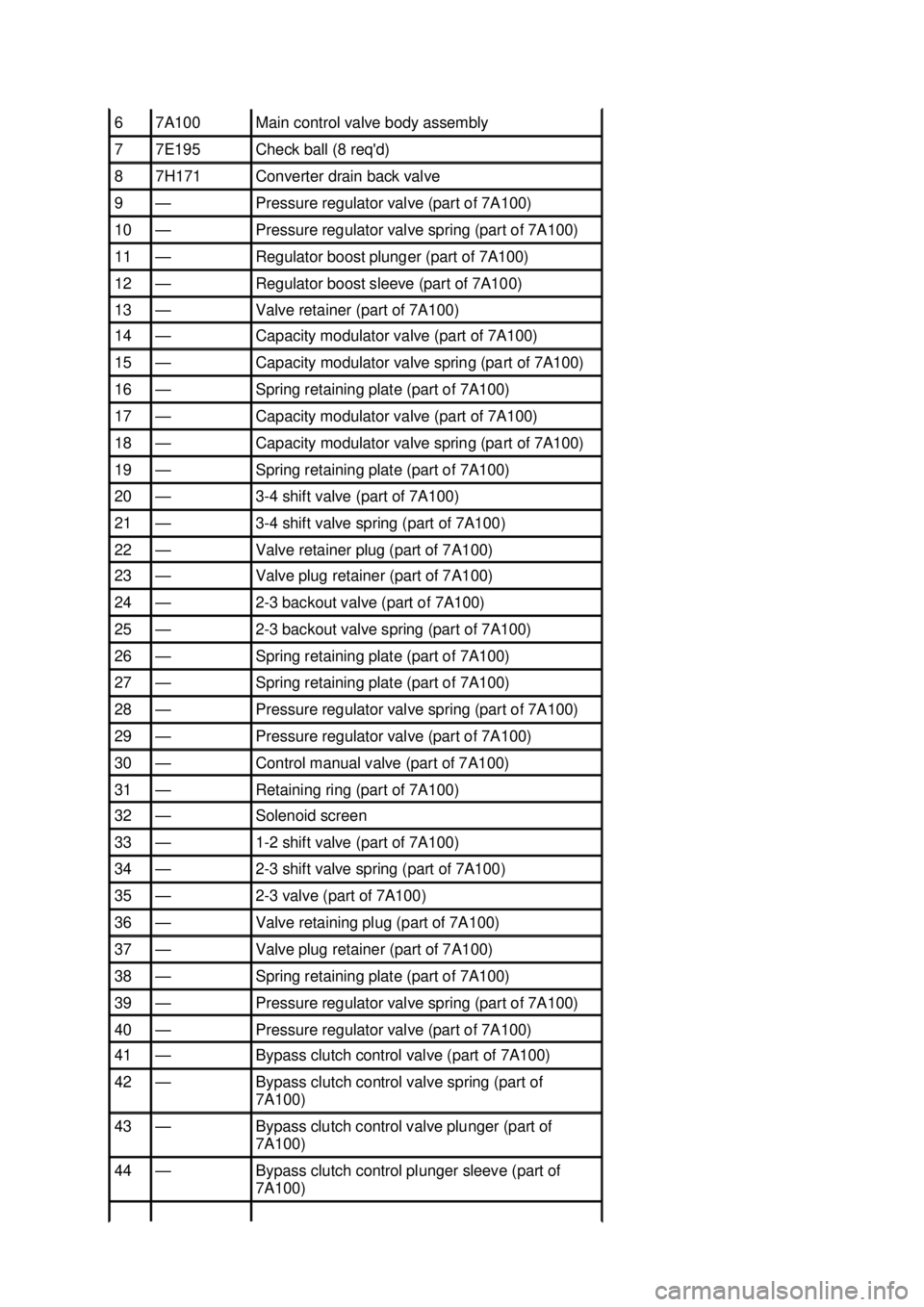

FORD MUSTANG 2003 Workshop Manual 6 7A100 Main control valve body assembly 7 7E195 Check ball (8 reqd) 8 7H171 Converter drain back valve 9 — Pressure regulator valve (part of 7A100) 10 — Pressure regulator valve spri
